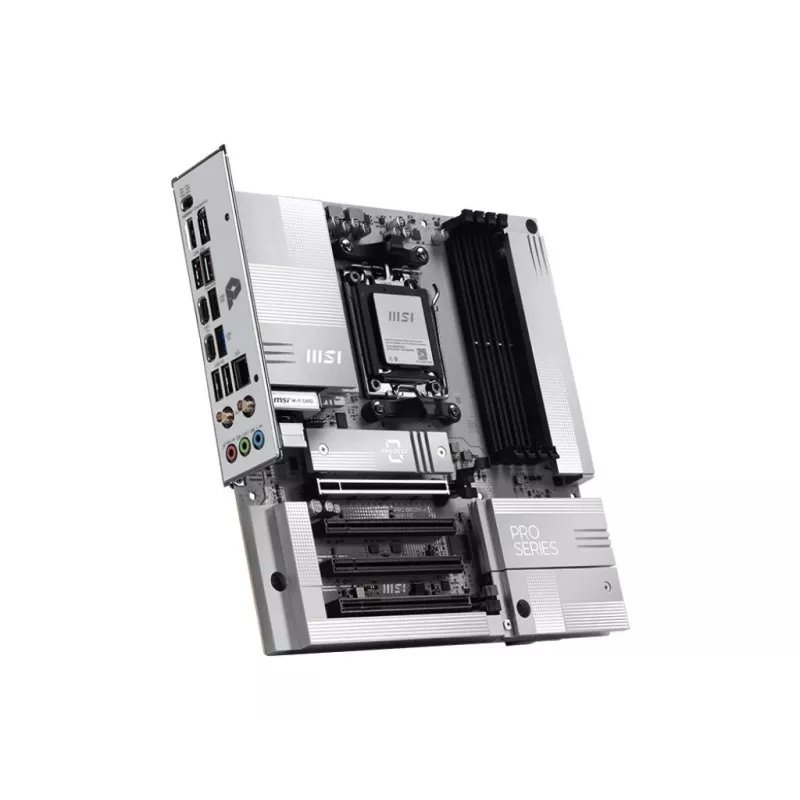

Mainboard, MSI, AMD B850, Socket AM5, micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xPCI Express x4 slots, 1xP

Mainboard, MSI, AMD B850, Socket AM5, micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xPCI Express x4 slots, 1xP

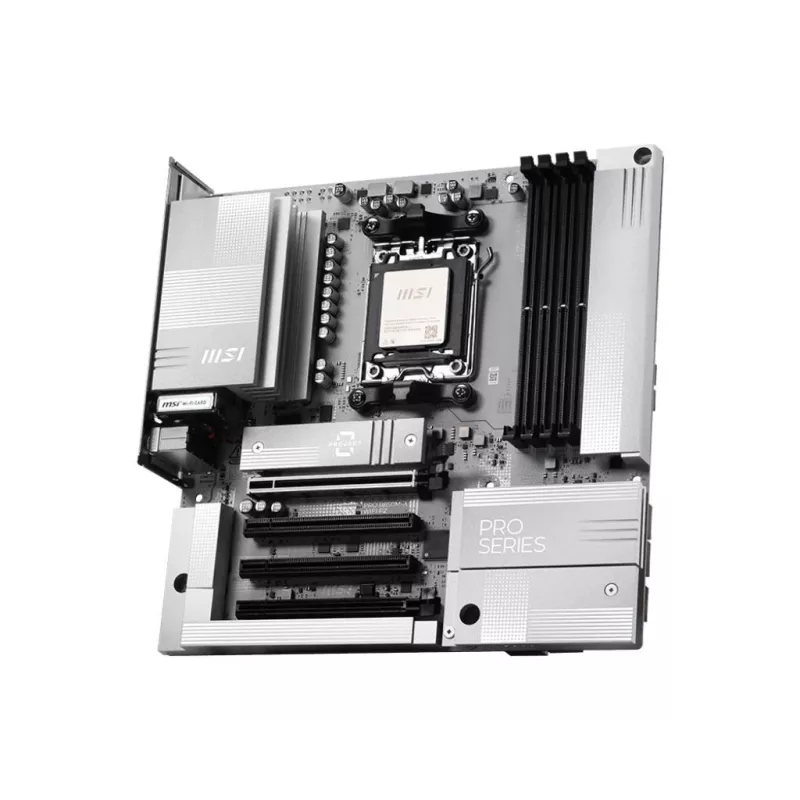

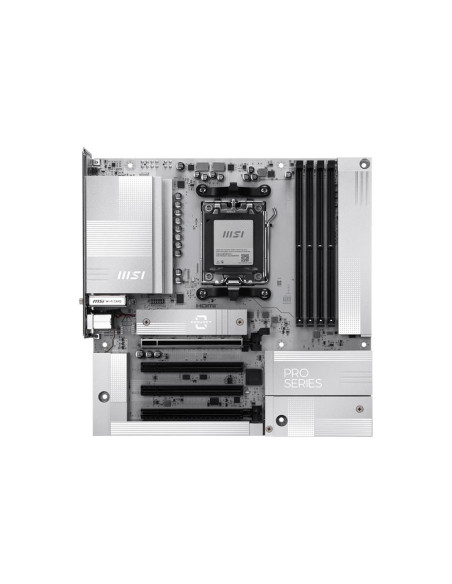

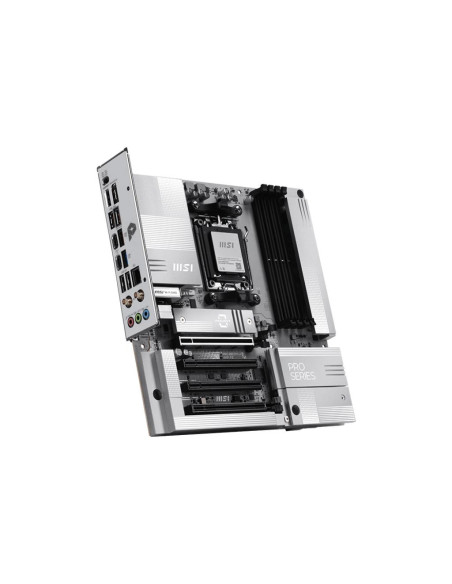

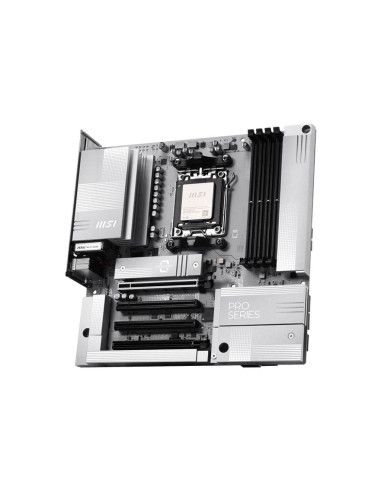

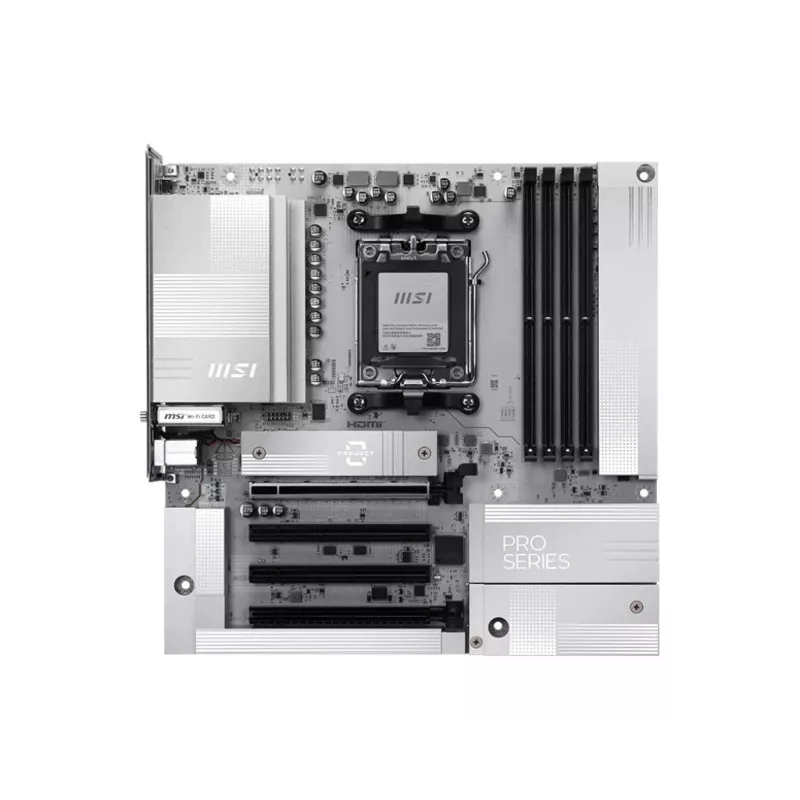

Name: Mainboard, MSI, AMD B850, Socket AM5, micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xPCI Express x4 slots, 1xP
Brand: MSI
SKU: PRO B850M A WIFI PZ
Price: 194.79 EUR
Availability: InStock

Gamintojas: MSI

Kodas PRO B850M A WIFI PZ

Yra sandėlyje

194,79 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

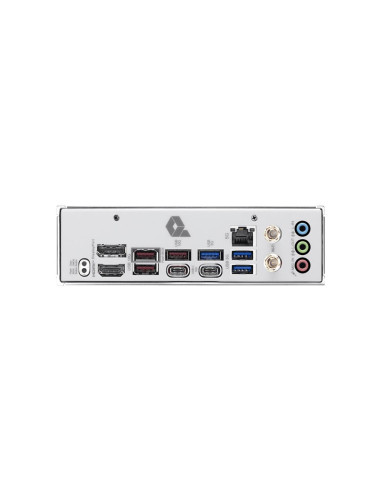

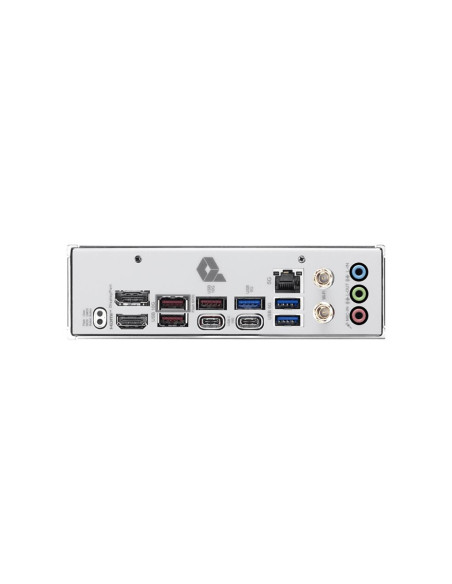

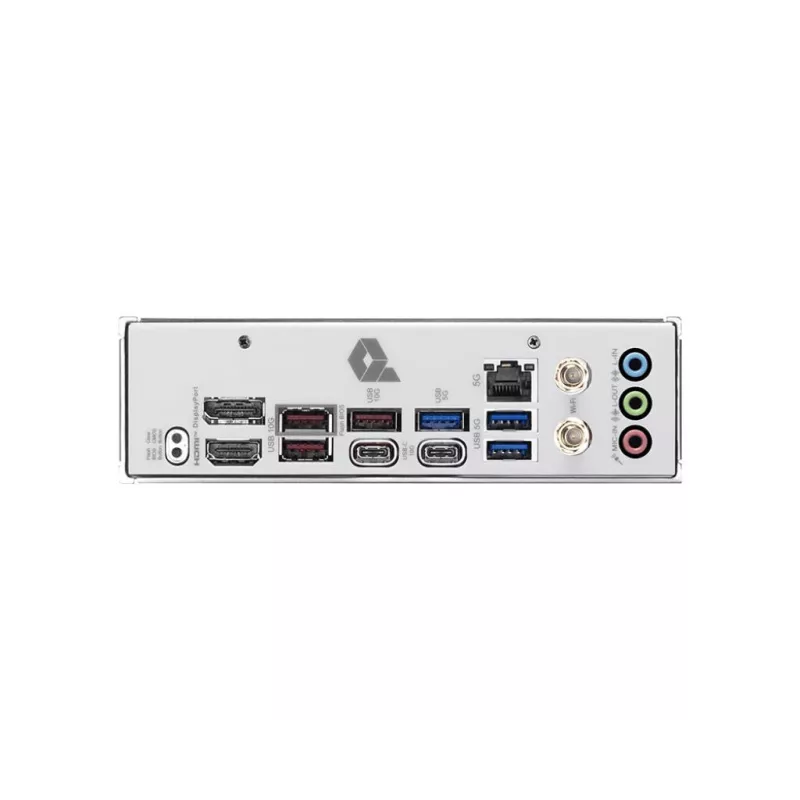

AMD B850 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2 , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: MSI AM5 PRO B850M-A WIFI PZ M-ATX. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 8000 SERIES, AMD RYZEN 9000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 25
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.075
UNIT BOX LENGTH: 0.29
UNIT BOX WIDTH: 0.285
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: 5 GIGABIT ETHERNET
COMPONENT FOR: PC
PRODUCT COLOUR: BLACK
DEPTH, MM: 243.84
WIDTH, MM: 243.84
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.007378
UNIT CALCULATED WEIGHT, KG: 1.78
ETHERNET LAN: YES
WI-FI: Yes
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)
BLUETOOTH: YES
BLUETOOTH VERSION: 5.4
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
HDMI VERSION: 2.1
PROCESSOR MANUFACTURER: AMD
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
PROCESSOR SOCKET: SOCKET AM5
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: AMD B850
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CHASSIS INTRUSION CONNECTOR: YES
CPU FAN CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF COM CONNECTORS: 1
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 4
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
LINE-IN: YES
MICROPHONE IN: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 3
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 6000/6400/8200
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF WATER PUMP CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 2
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 6.5
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 3.7
TOTAL NUMBER OF SATA CONNECTORS: 4
PCI EXPRESS X16 SLOTS: 1
PCI EXPRESS X4 SLOTS: 1
