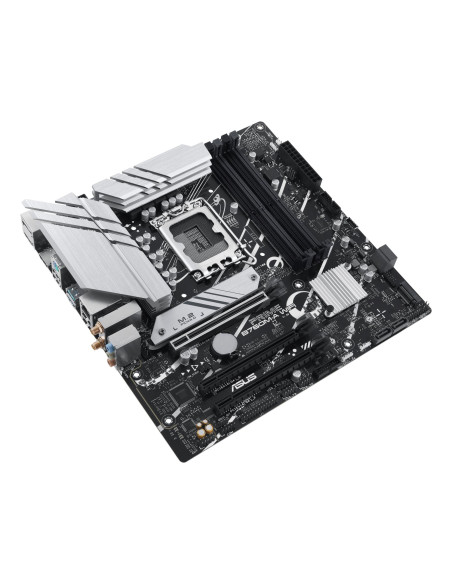

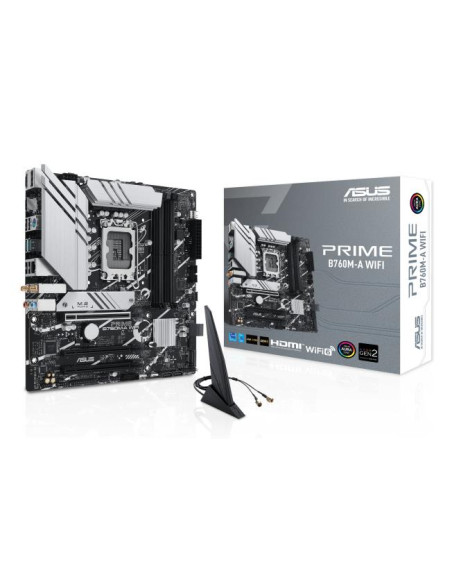

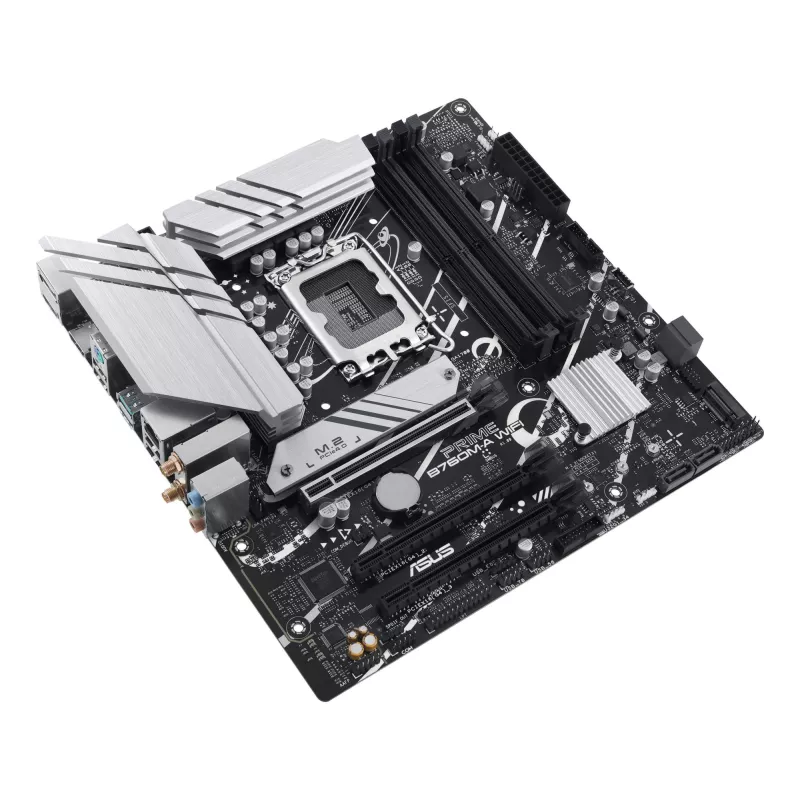

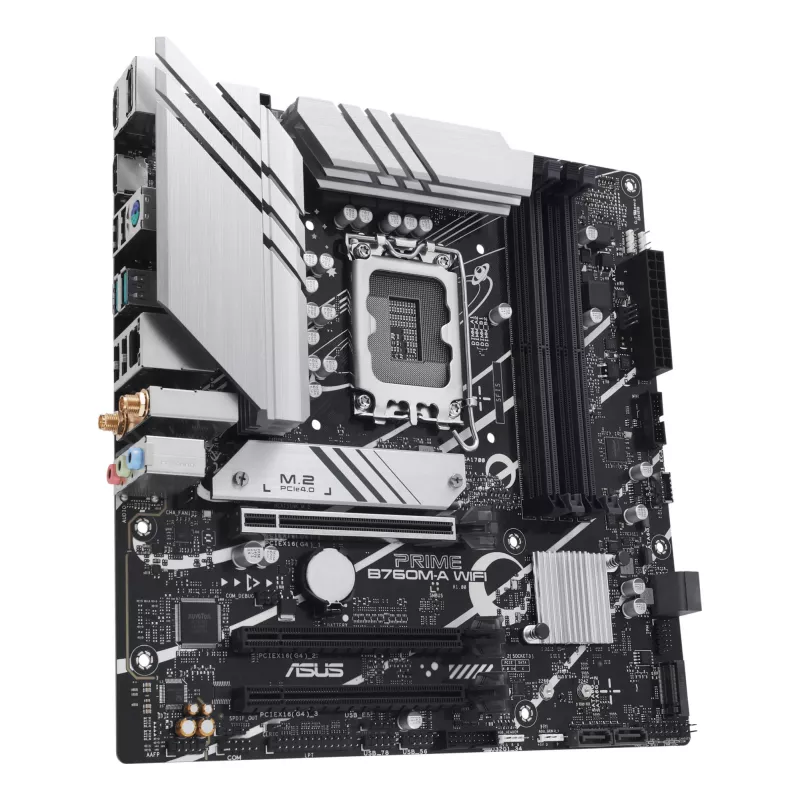

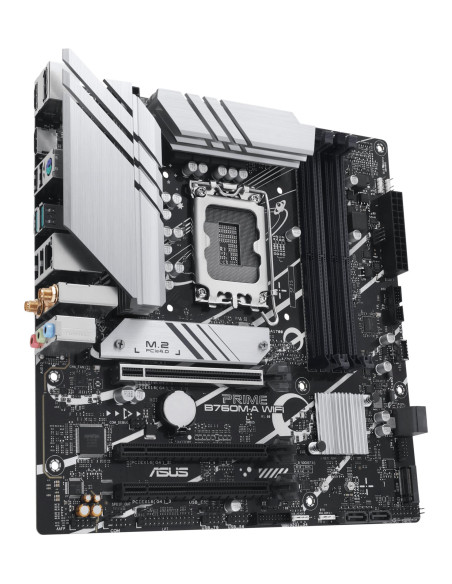

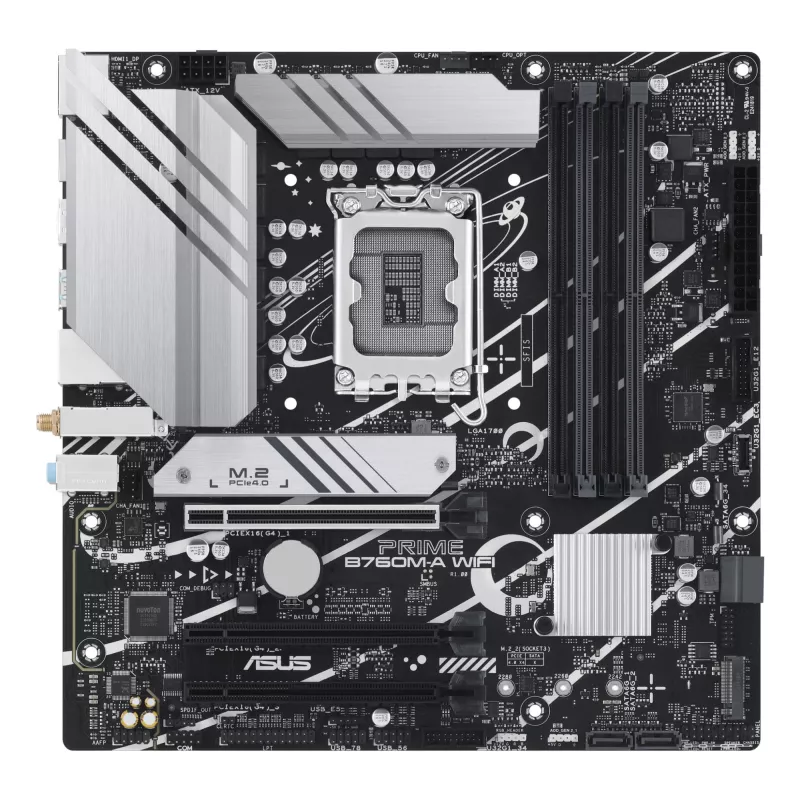

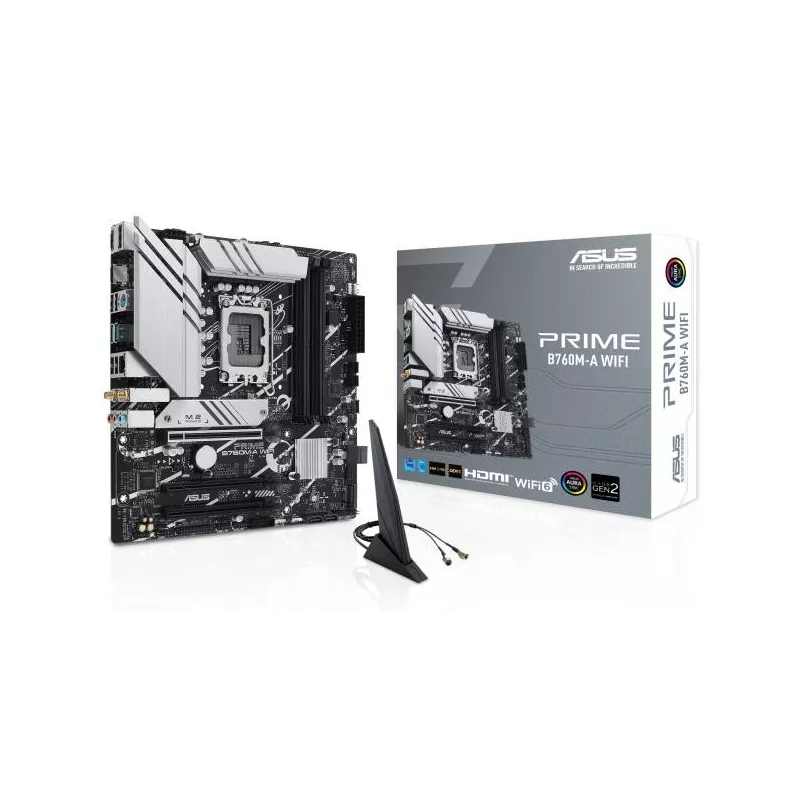

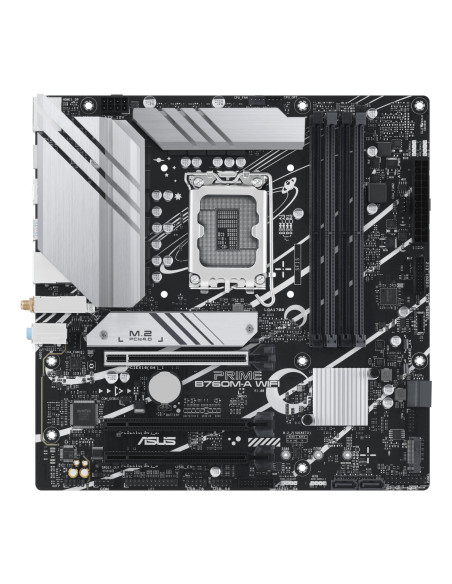

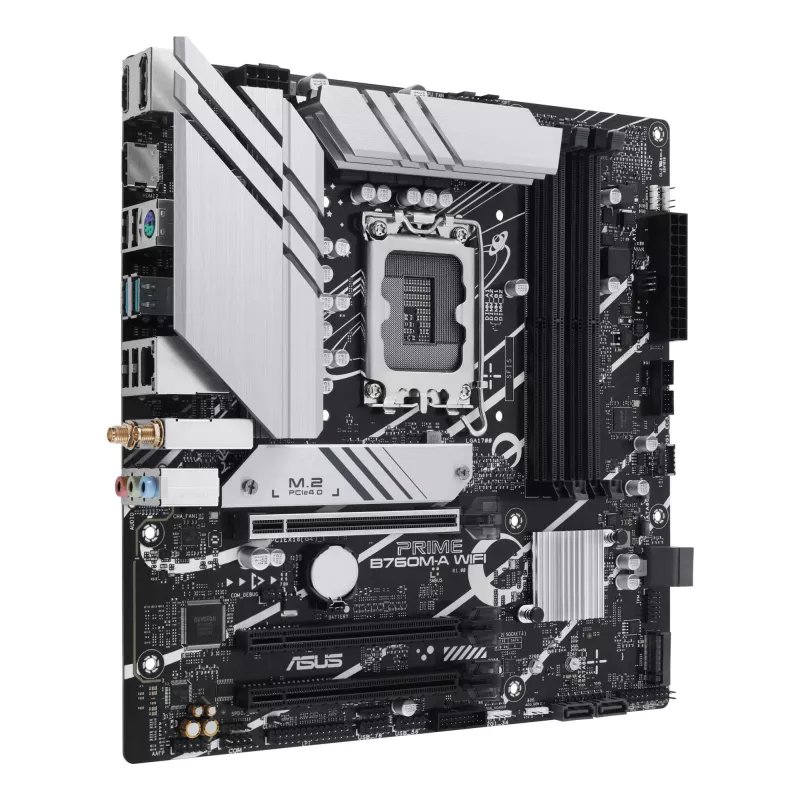

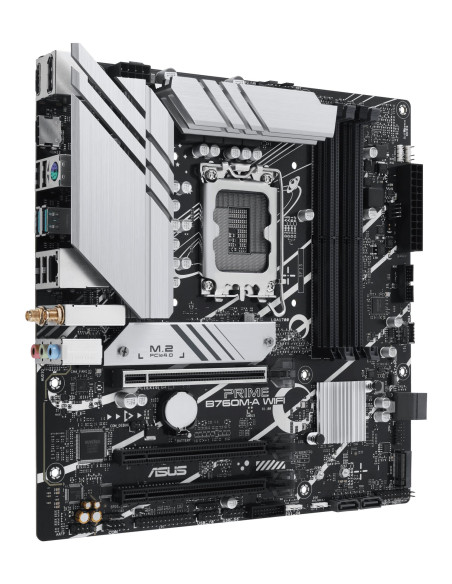

Name: Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 4.0 16x, 2xM.2, 2xHDMI, 1xD
Brand: ASUS
SKU: PRIMEB760M-AWIFI
Price: 127.44 EUR
Availability: InStock

Gamintojas: ASUS

Kodas PRIMEB760M-AWIFI

Yra sandėlyje

127,44 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 2xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Weight 886 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS PRIME B760M-A WIFI. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CELERON , INTEL CORE I3, INTEL CORE I5, INTEL CORE I7, INTEL CORE I9,.... SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 1
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.28
UNIT BOX WIDTH: 0.275
DEPTH, MM: 244
HEIGHT, MM: 50
WEIGHT, G: 886
WIDTH, MM: 244
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.006489
UNIT CALCULATED WEIGHT, KG: 1.59
PACKAGE DEPTH, MM: 275
PACKAGE HEIGHT, MM: 67.5
PACKAGE WEIGHT, G: 1402
PACKAGE WIDTH, MM: 275
MODEL: PRIME B760M-A WIFI
COMPATIBLE PROCESSOR SERIES: INTEL CELERON /INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL CORE I9/INTEL PENTIUM GOLD
SUPPORTED PROCESSOR SOCKETS: LGA 1700
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1700
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 128
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 3
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 3

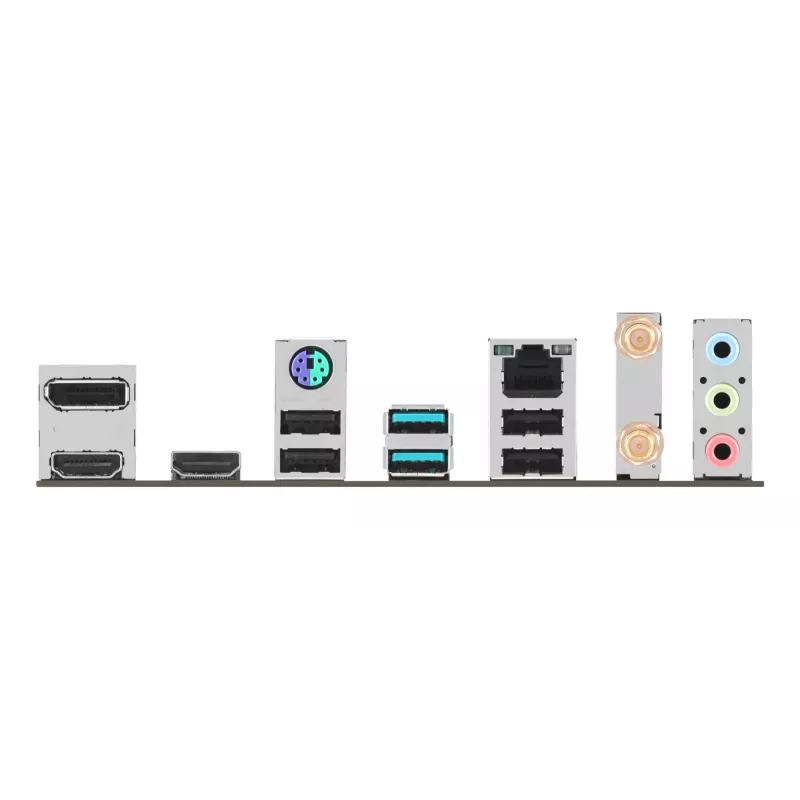

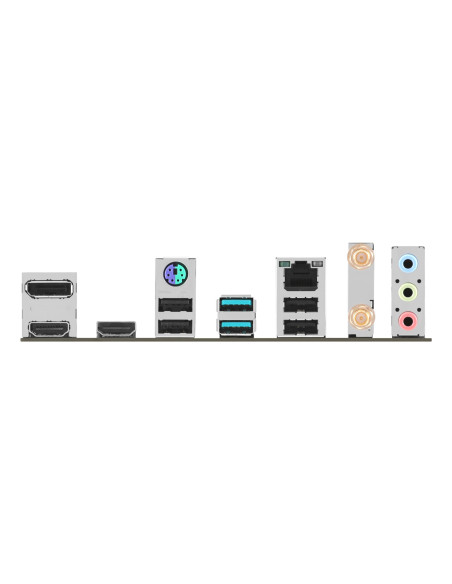

ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 2
MOTHERBOARD CHIPSET: Intel B760
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
WIFI-AP ANTENNA JACK: 2
BLUETOOTH: YES
BLUETOOTH VERSION: 5.2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET/FAST ETHERNET/GIGABIT ETHERNET
PS/2 PORTS QUANTITY: 1
TOP WI-FI STANDARD: WI-FI 6 (802.11AX)
WI-FI: Yes
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 2
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
CABLES INCLUDED: SATA
ETHERNET LAN: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7200
NUMBER OF HDDS SUPPORTED: 4
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
HDMI VERSION: 2.1
POWER SOURCE TYPE: ATX
TPM CONNECTOR: YES
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
NUMBER OF COM CONNECTORS: 1
USB 2.0 PORTS QUANTITY: 4
USER GUIDE: YES
S/PDIF OUT CONNECTOR: YES
