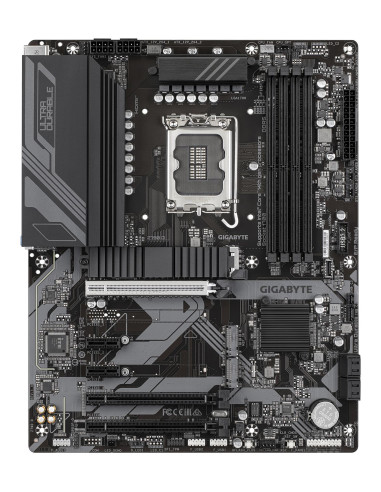

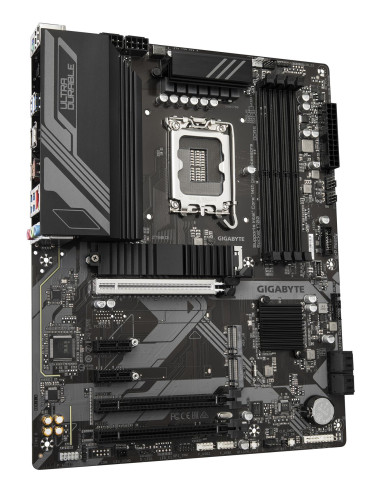

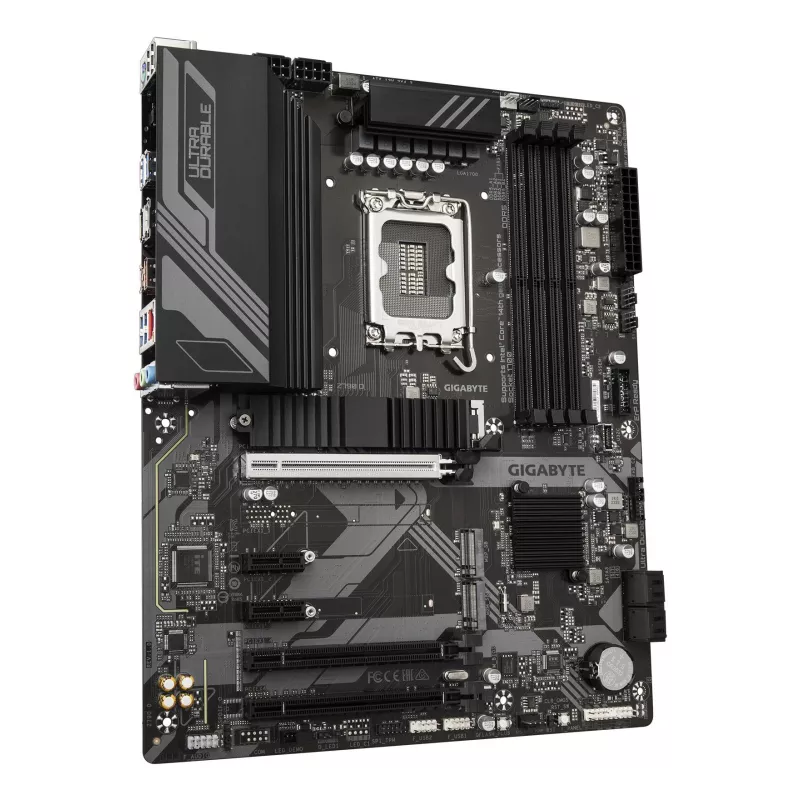

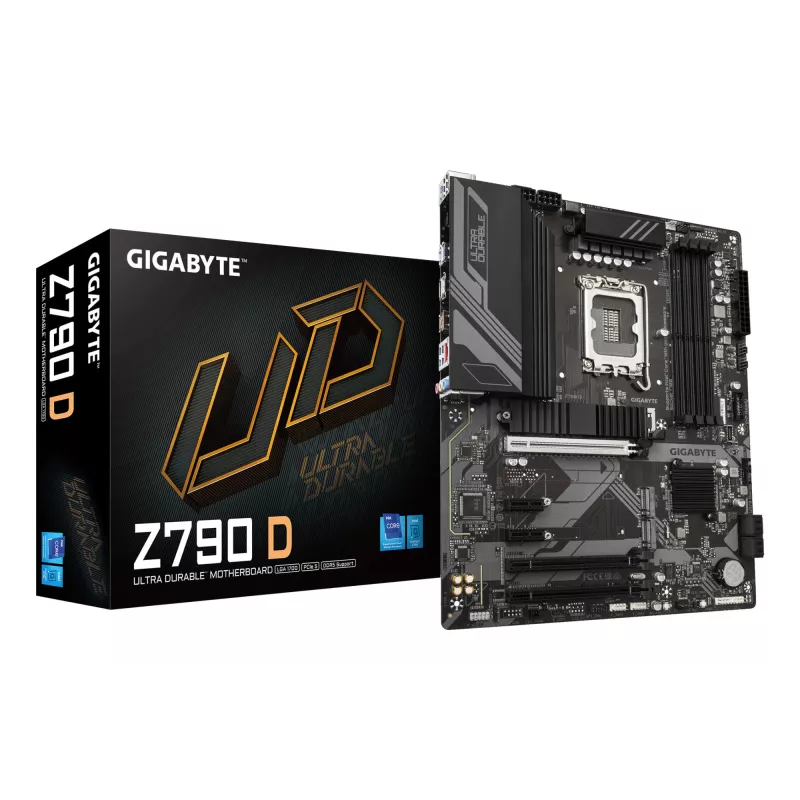

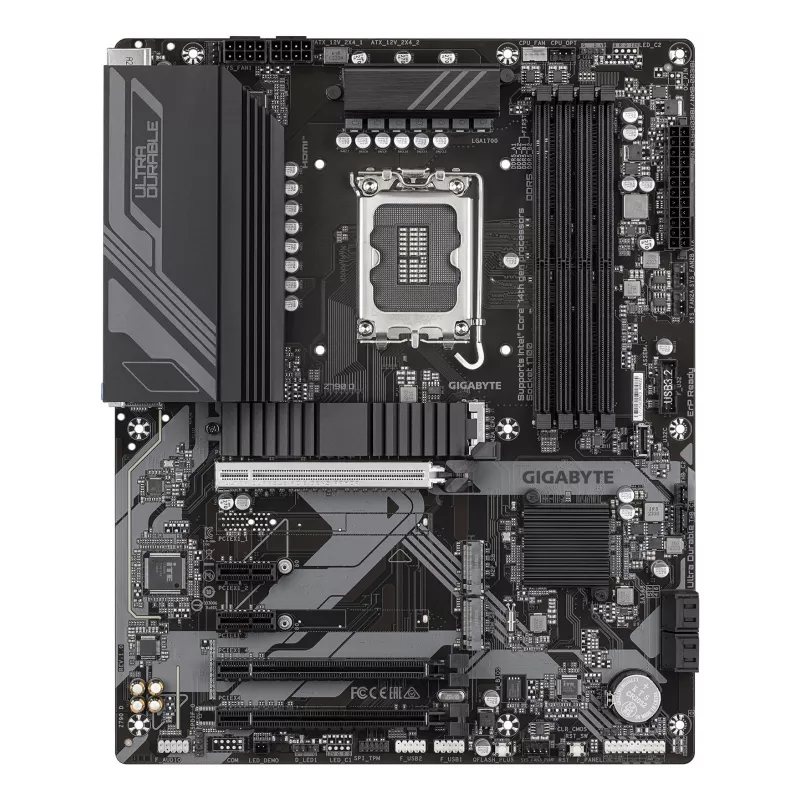

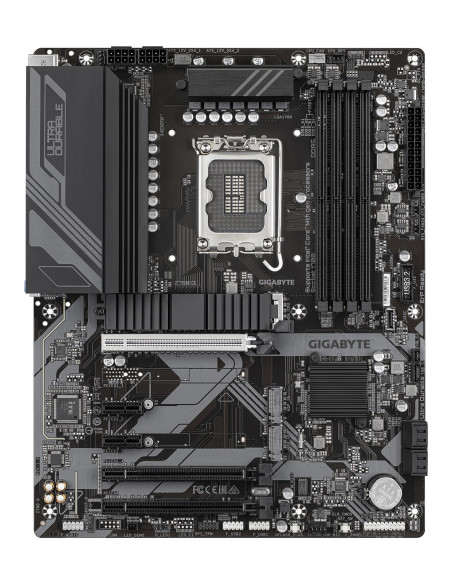

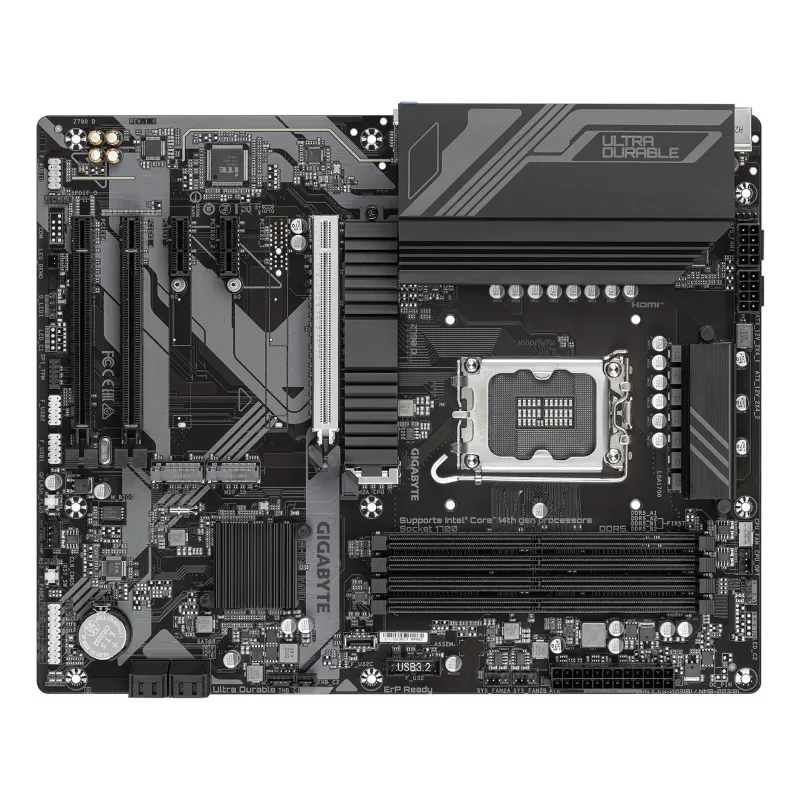

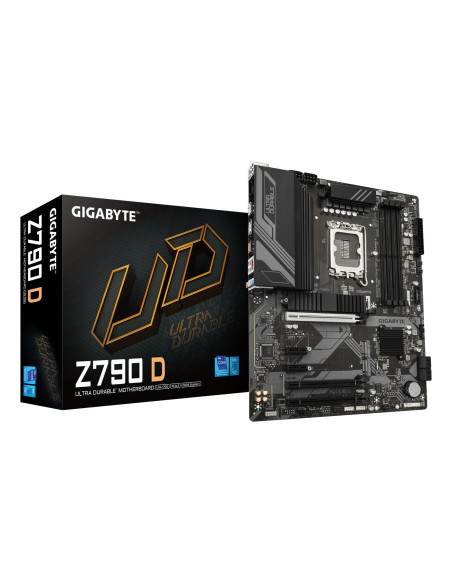

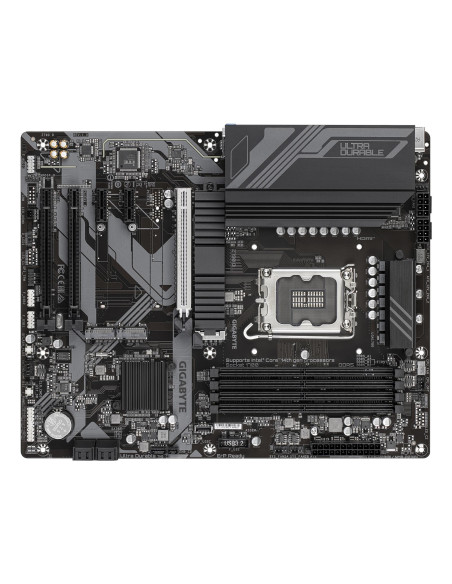

Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790D1.2

Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790D1.2

Name: Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790D1.2
Brand: GIGABYTE
SKU: Z790 D 1.2
Price: 156.16 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas Z790 D 1.2

Yra sandėlyje

156,16 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel Z790 Express , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2304 pixels , Discrete graphics support Yes , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE Z790 D MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 12+1+ PHASES DIGITAL VRM, UP TO 7600MHZ DDR5 (OC), 3XPCIE 4.0 M.2, 2.5GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CE
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX LENGTH: 0.338
UNIT BOX HEIGHT: 0.081
UNIT BOX WIDTH: 0.27
PRODUCT COLOUR: BROWN
CABLES INCLUDED: SATA
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 305
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.01002
UNIT CALCULATED WEIGHT, KG: 1.81
ATX POWER CONNECTOR (24-PIN): YES
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 1802.5
PACKAGE WIDTH, MM: 335
COUNTRY OF ORIGIN: CHINA
WARRANTY PERIOD, YEAR(S): 3
EPS POWER CONNECTOR (8-PIN): YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
NUMBER OF HDDS SUPPORTED: 4
MODEL: Z790 D (REV. 1.2)
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
NUMBER OF STORAGE DRIVES SUPPORTED: 7
USB 2.0 PORTS QUANTITY: 2
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
PROCESSOR MANUFACTURER: Intel
WI-FI: No
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
MAXIMUM INTERNAL MEMORY, GB: 192
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
HEADPHONE OUTPUTS: 1
MICROPHONE IN: YES
S/PDIF OUT PORT: YES
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: INTEL Z790 EXPRESS
MEMORY CHANNELS: DUAL-CHANNEL
TOTAL NUMBER OF SATA CONNECTORS: 4
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
MEMORY SLOTS TYPE: DIMM
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
NUMBER OF BATTERY CELLS: 1
BATTERY WEIGHT, G: 3
PROCESSOR SOCKET: LGA 1700
HDCP: YES
COMPONENT FOR: PC
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
POWER SOURCE TYPE: ATX
ANTENNA INCLUDED: YES
BATTERIES INCLUDED: YES
USB CONNECTOR TYPE: USB TYPE-A/USB TYPE-C
BATTERY TYPE: CR2032
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DIRECTX VERSION: 12.0
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CELERON /INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL CORE I9/INTEL PENTIUM GOLD
SUPPORTED PROCESSOR SOCKETS: LGA 1700
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 192
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
CPU FAN CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
WIFI-AP ANTENNA JACK: 2
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7600
THUNDERBOLT HEADERS: 2
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
TPM CONNECTOR: YES
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
DISCRETE GRAPHICS SUPPORT: YES
SUPPORTED MEMORY MODULE CAPACITIES: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
MAXIMUM NUMBER OF SMP PROCESSORS: 1
NUMBER OF EATX POWER CONNECTORS: 2
