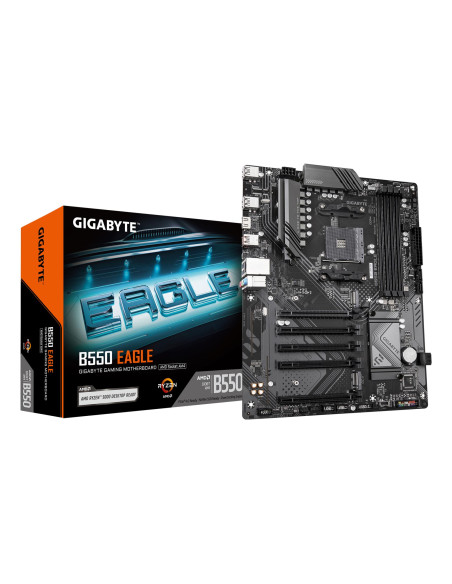

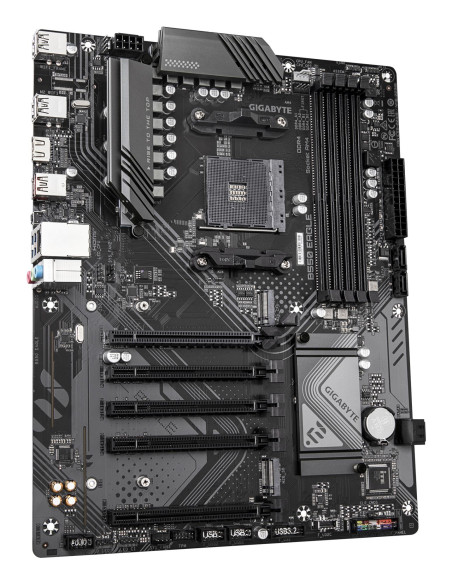

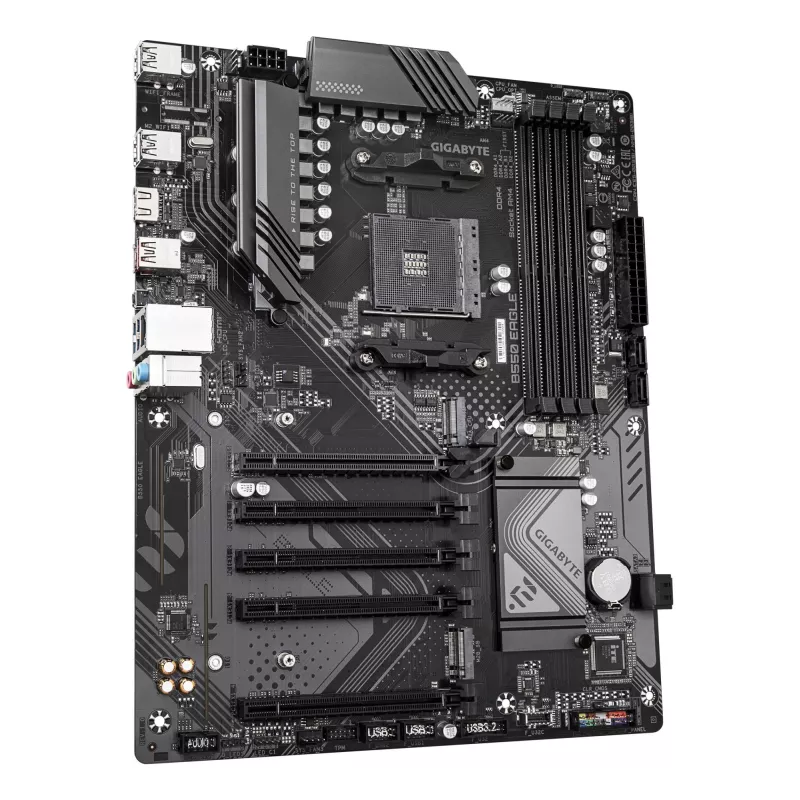

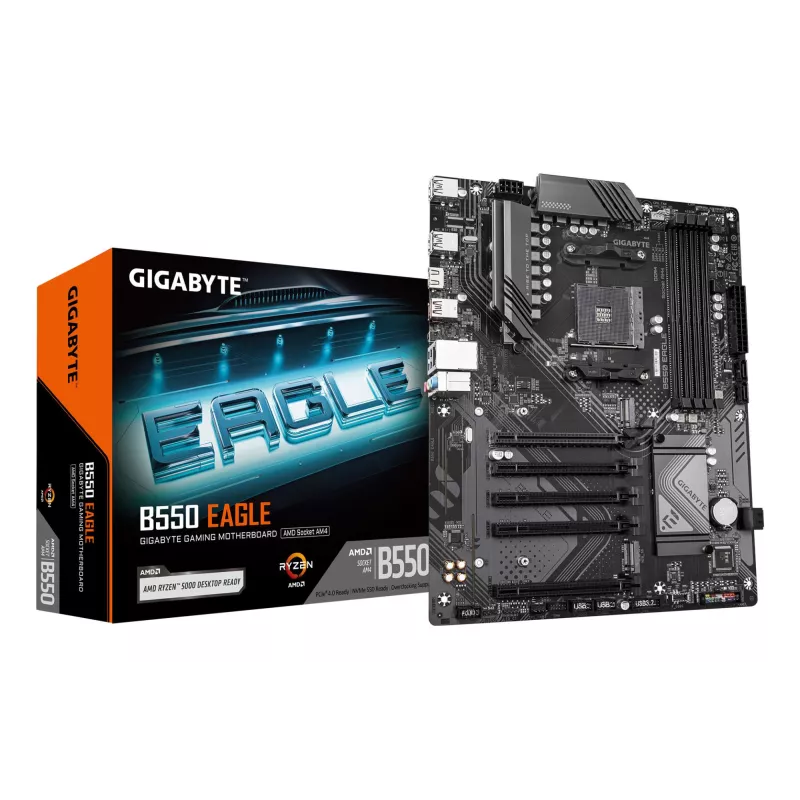

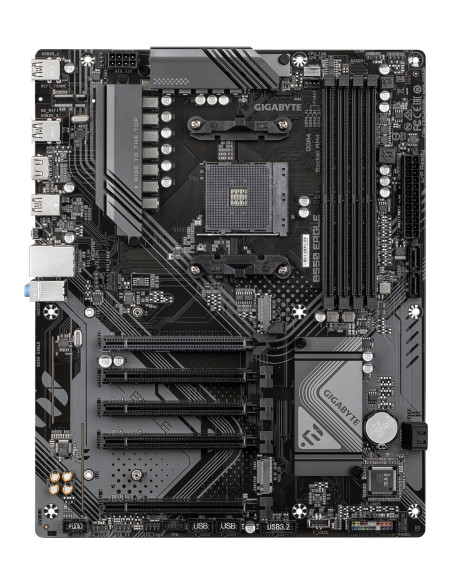

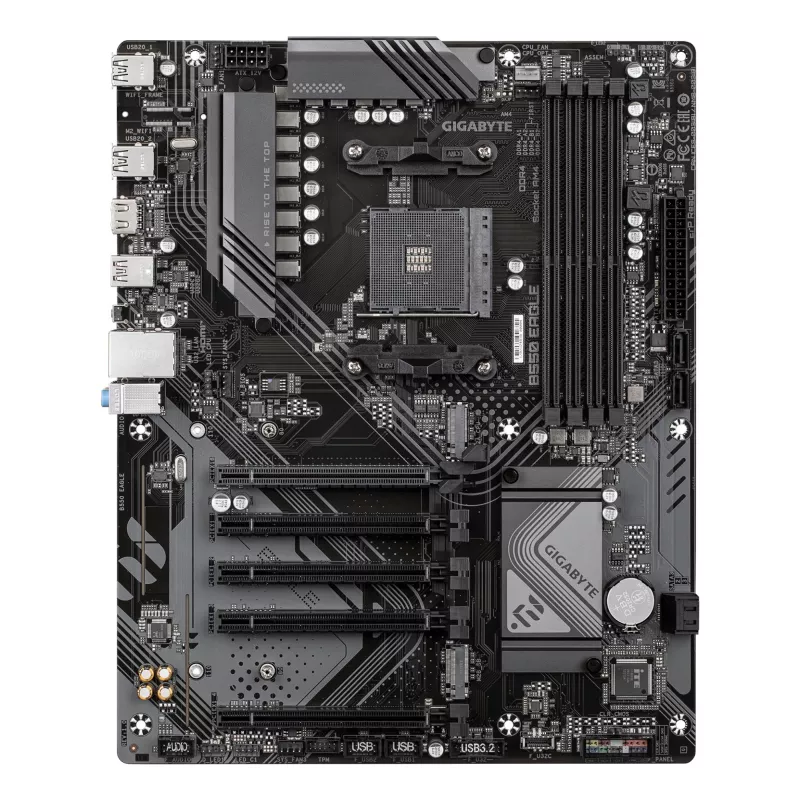

Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 4xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1xHD

Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 4xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1xHD

Name: Mainboard, GIGABYTE, AMD B550, SAM4, ATX, Memory DDR4, Memory slots 4, 4xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1xHD
Brand: GIGABYTE
SKU: B550 EAGLE 1.0
Price: 93.48 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B550 EAGLE 1.0

Yra sandėlyje

93,48 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

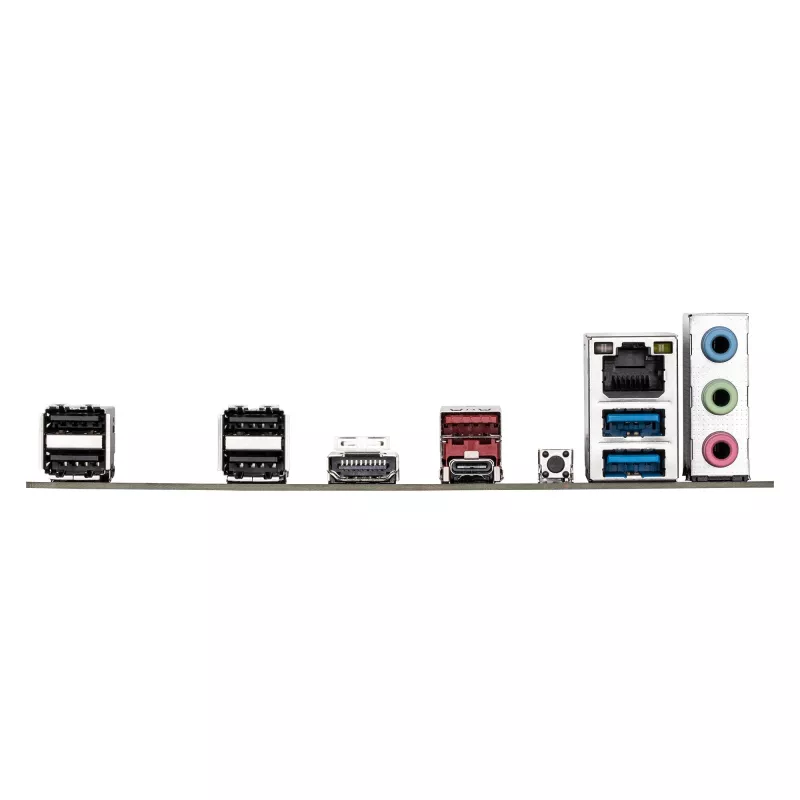

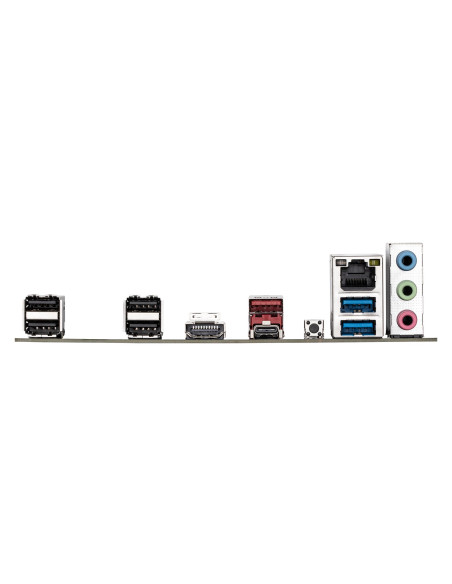

AMD B550 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 1.25 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B550 EAGLE MOTHERBOARD - AMD RYZEN 5000 G-SERIES CPUS, 10+3+1 PHASES VRM, UP TO 3200MHZ DDR4, 1XPCIE 4.0 + 1XPCIE 3.0 M.2, 1GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.335
UNIT BOX WIDTH: 0.275
PRODUCT COLOUR: DARK BROWN
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1250
WIDTH, MM: 305
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 1482.5
PACKAGE WIDTH, MM: 335
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.01011
UNIT CALCULATED WEIGHT, KG: 1.47
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
HDMI VERSION: 2.1
MODEL: B550 EAGLE
HDCP: YES
WARRANTY PERIOD, YEAR(S): 3
SCREWS INCLUDED: YES
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
WI-FI: No
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
USB 2.0 PORTS QUANTITY: 4
POWER SOURCE TYPE: ATX
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: AMD
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
BATTERY WEIGHT, G: 3
BATTERIES INCLUDED: YES
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DIRECTX VERSION: 12.0
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 4000 SERIES/AMD RYZEN 5000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
PROCESSOR SOCKET: SOCKET AM4
MAXIMUM INTERNAL MEMORY, GB: 128
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
MOTHERBOARD CHIPSET: AMD B550
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
2ND M.2 LARGEST KEY SIZE: 22110
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 3200
NUMBER OF HDDS SUPPORTED: 4
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 5
NUMBER OF WATER PUMP CONNECTORS: 1
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 4
