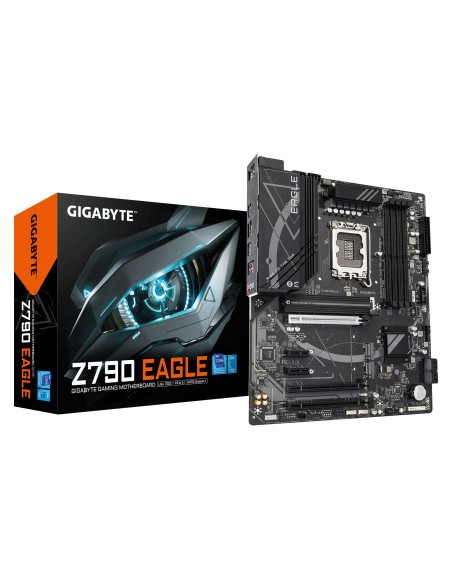

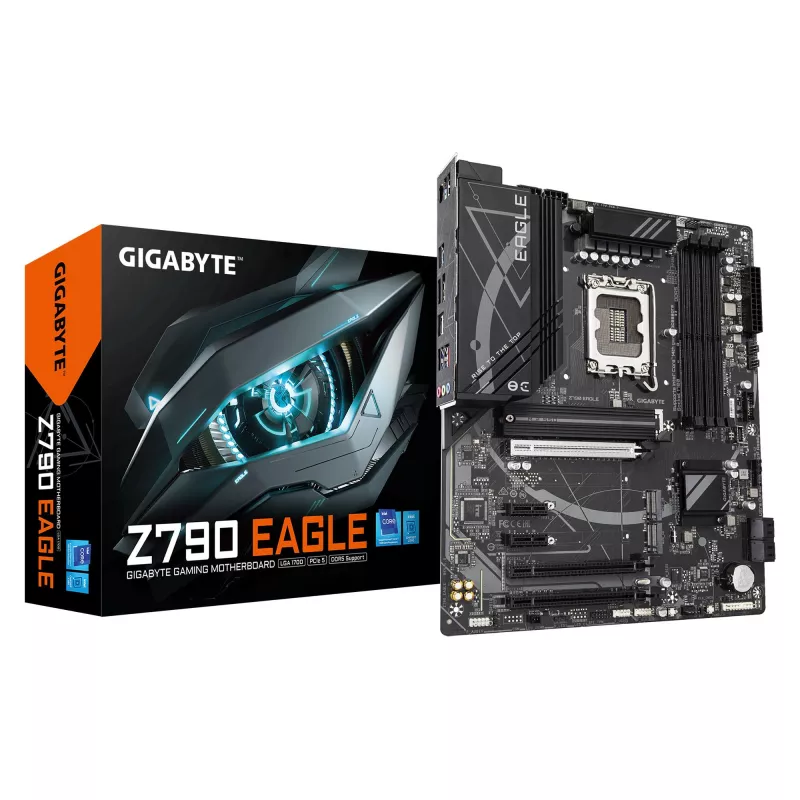

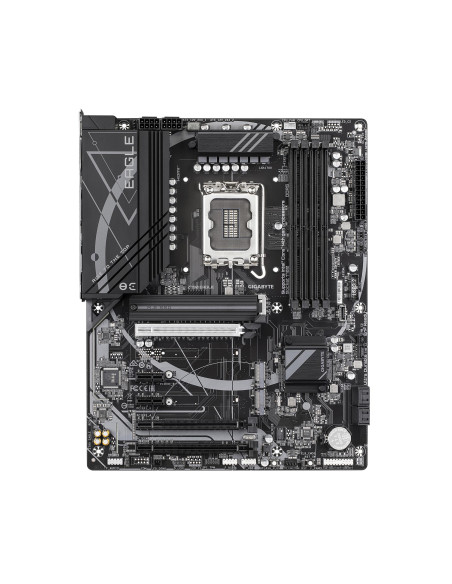

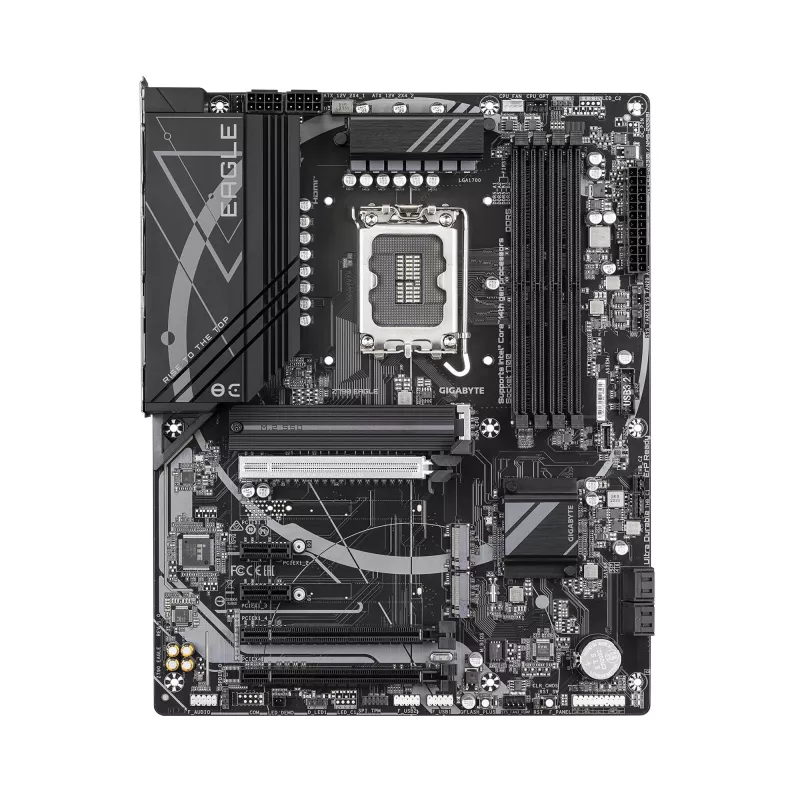

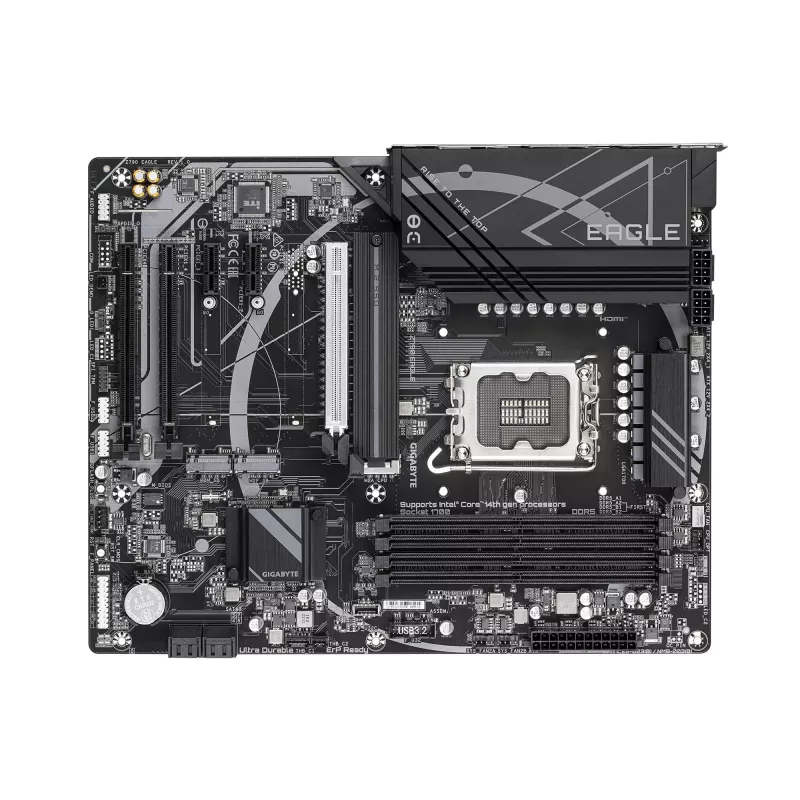

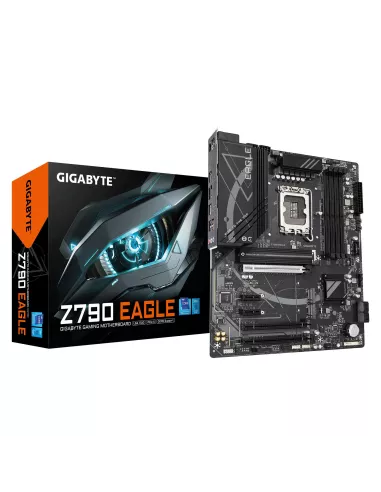

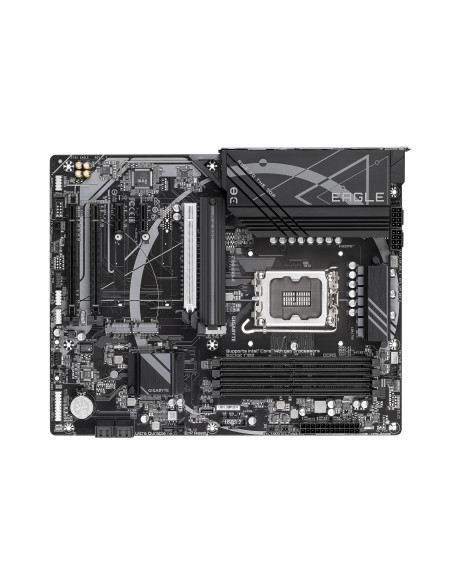

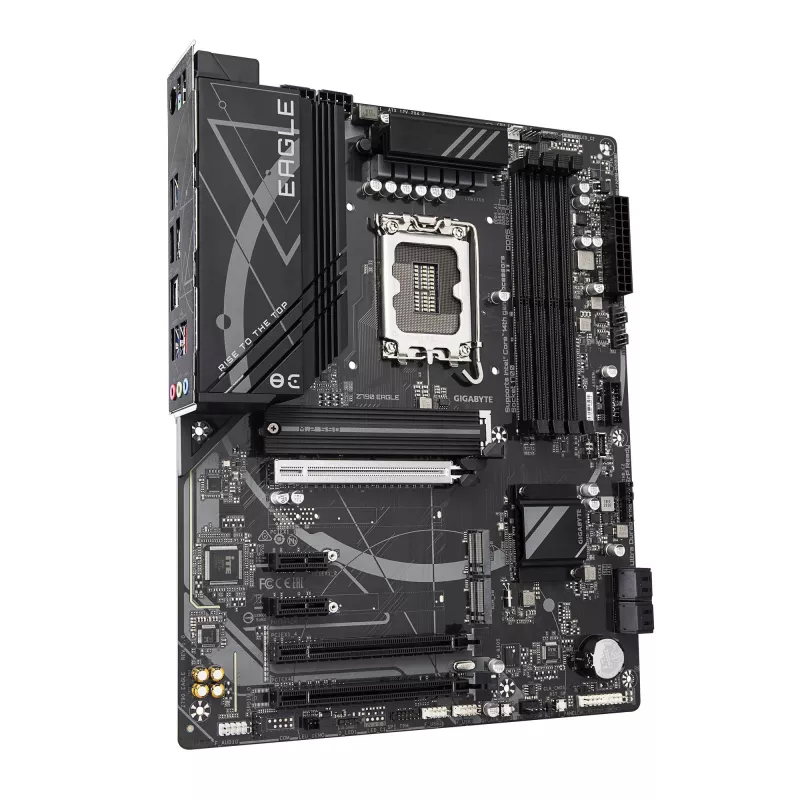

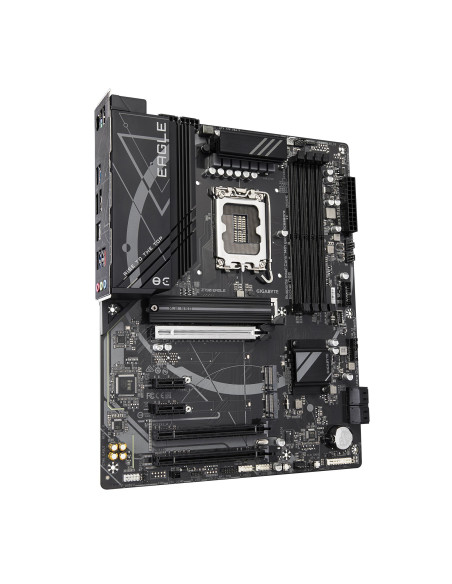

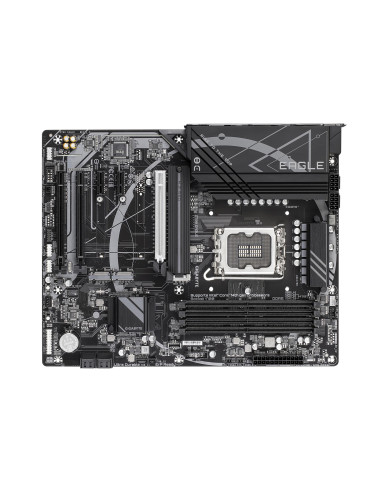

Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 4.0 4x , 1xPCI-

Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 4.0 4x , 1xPCI-

Name: Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 3.0 1x, 1xPCI-Express 4.0 4x , 1xPCI-
Brand: GIGABYTE
SKU: Z790 EAGLE 1.0
Price: 172.09 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas Z790 EAGLE 1.0

Yra sandėlyje

172,09 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

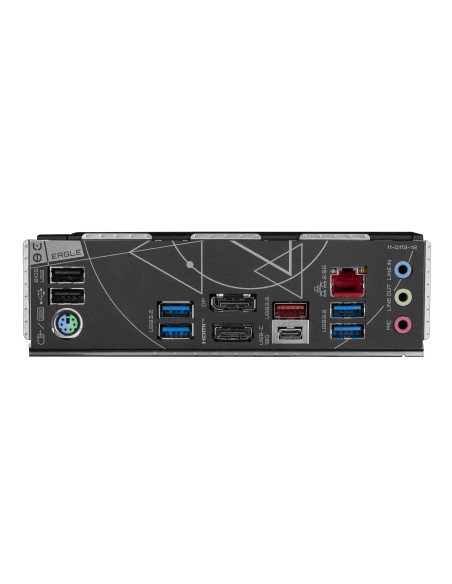

Intel Z790 , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2304 pixels , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE Z790 EAGLE MOTHERBOARD - SUPPORTS 14TH GEN. INTEL CORE CPUS, 12+1+1 PHASES VRM, UP TO 7600MHZ DDR5 (OC), 3XPCIE 4.0 M.2, 2,5GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CELE
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.342
UNIT BOX LENGTH: 0.271
UNIT BOX WIDTH: 0.081
PRODUCT COLOUR: BLACK
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 1792.5
PACKAGE WIDTH, MM: 335
UNIT CALCULATED VOLUME, CUBM: 0.01038
UNIT CALCULATED WEIGHT, KG: 1.82
HDCP: YES
HDMI VERSION: 2.1
HEADPHONE OUTPUTS: 1
MODEL: Z790 EAGLE (REV. 1.0)
WARRANTY PERIOD, YEAR(S): 3
WI-FI: No
ETHERNET LAN: YES
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
COUNTRY OF ORIGIN: CHINA
EPS POWER CONNECTOR (8-PIN): YES
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 305
UNITS PER SHIPPING BOX: 8
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
SCREWS INCLUDED: YES
ATX POWER CONNECTOR (24-PIN): YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
NUMBER OF HDDS SUPPORTED: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
NUMBER OF STORAGE DRIVES SUPPORTED: 7
USB 2.0 PORTS QUANTITY: 2
PROCESSOR MANUFACTURER: Intel
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
MAXIMUM INTERNAL MEMORY, GB: 256
ETHERNET LAN (RJ-45) PORTS: 1
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: INTEL Z790
LINE-IN: YES
PS/2 PORTS QUANTITY: 1
MEMORY CHANNELS: DUAL-CHANNEL
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
LAN CONTROLLER: REALTEK RTL8125
MEMORY SLOTS TYPE: DIMM
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
NUMBER OF BATTERY CELLS: 1
BATTERY WEIGHT, G: 3
PROCESSOR SOCKET: LGA 1700
COMPONENT FOR: PC
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
POWER SOURCE TYPE: ATX
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DIRECTX VERSION: 12.0
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN/INTEL CELERON
SUPPORTED PROCESSOR SOCKETS: LGA 1700
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
CPU FAN CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7600
THUNDERBOLT HEADERS: 2
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 2
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: YES
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
S/PDIF OUT CONNECTOR: YES
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
