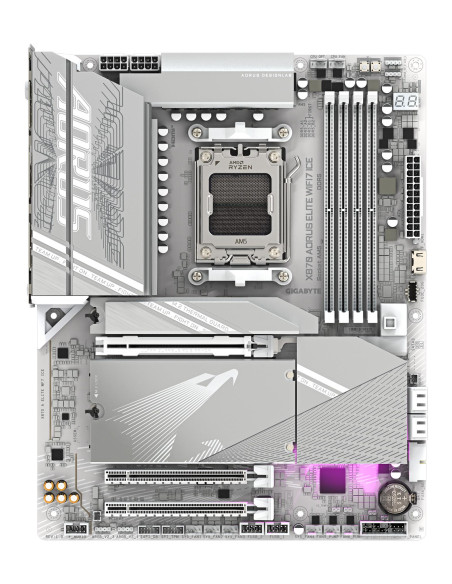

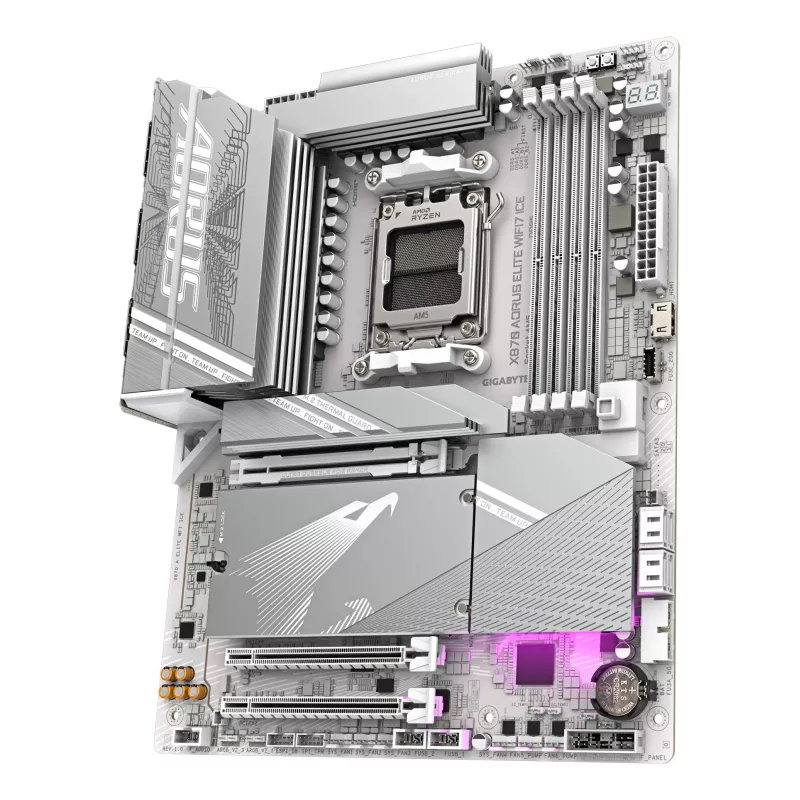

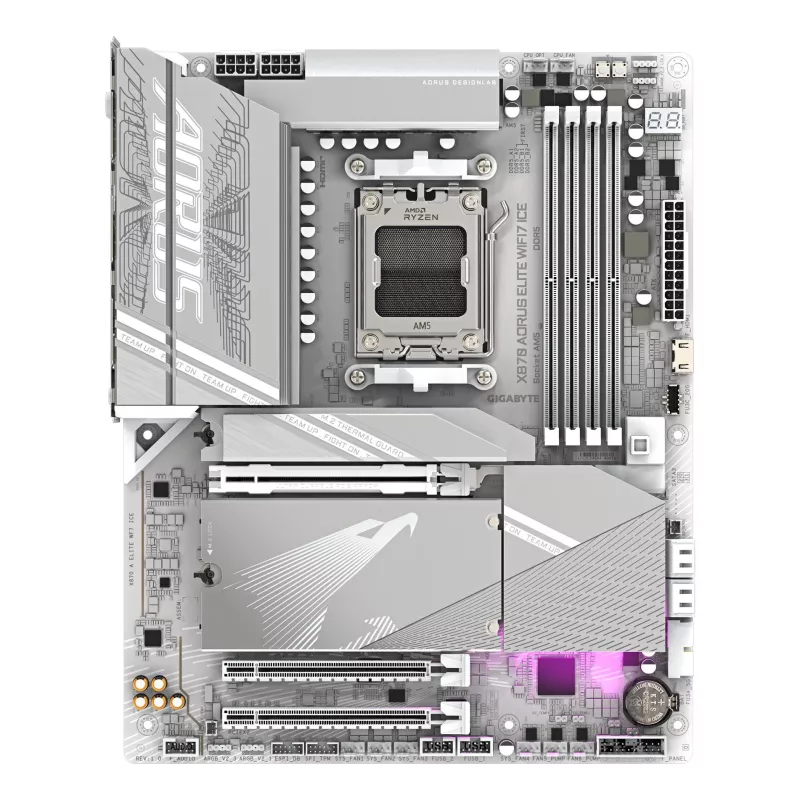

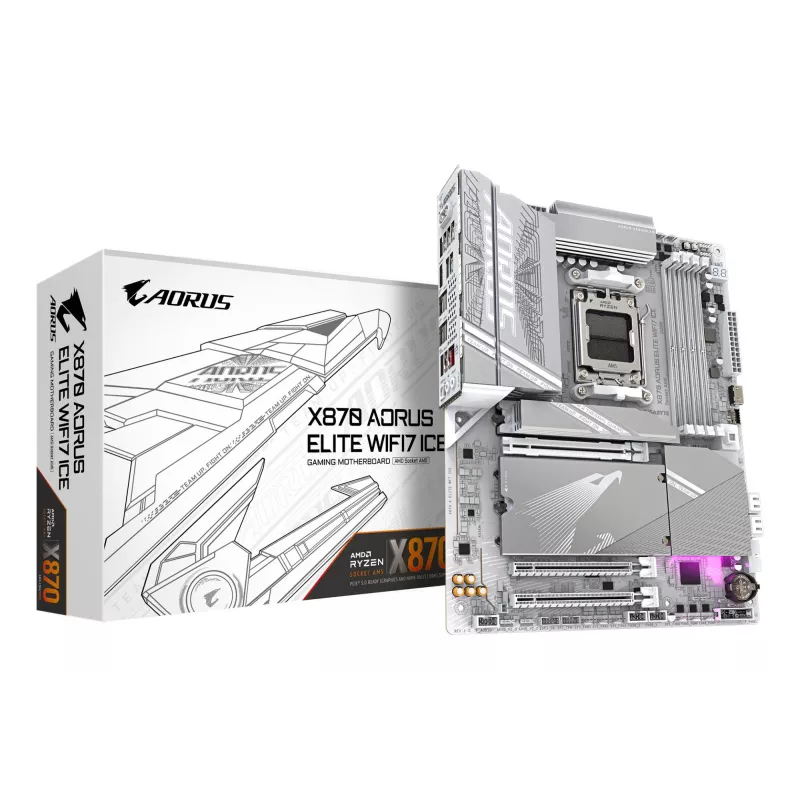

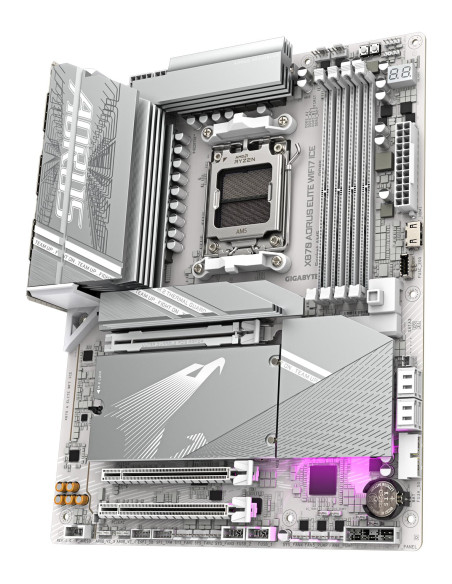

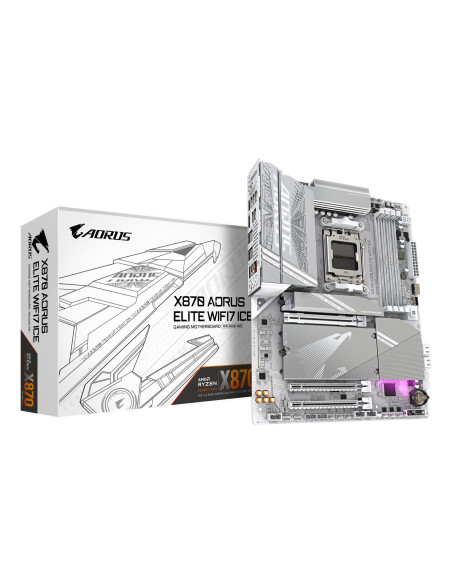

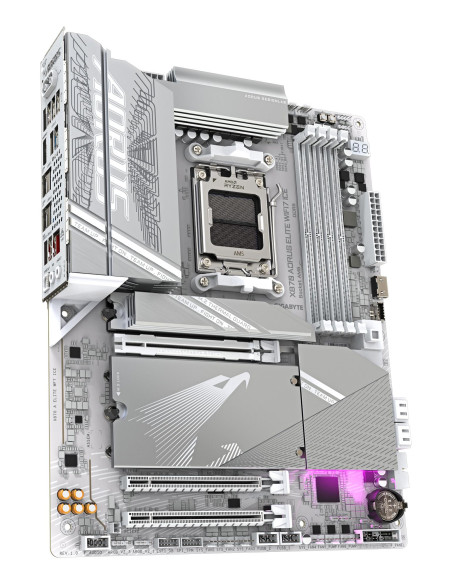

Mainboard, GIGABYTE, AMD X870, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, On-board graphics card Yes, Wi-Fi Yes, Bluetooth Yes,

Mainboard, GIGABYTE, AMD X870, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, On-board graphics card Yes, Wi-Fi Yes, Bluetooth Yes,

Name: Mainboard, GIGABYTE, AMD X870, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, On-board graphics card Yes, Wi-Fi Yes, Bluetooth Yes,
Brand: GIGABYTE
SKU: X870 A ELITE WF7 ICE 1.1
Price: 272.83 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas X870 A ELITE WF7 ICE 1.1

Yra sandėlyje

272,83 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

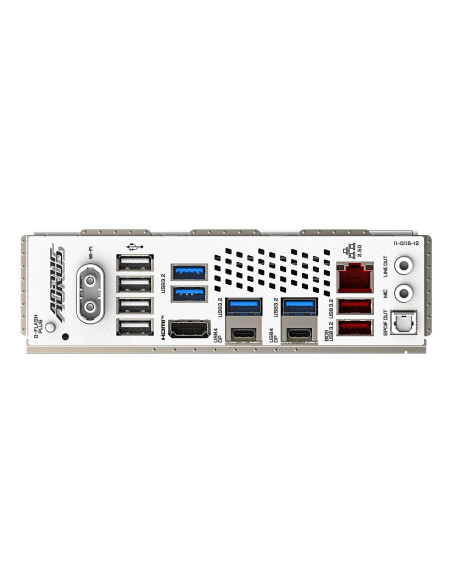

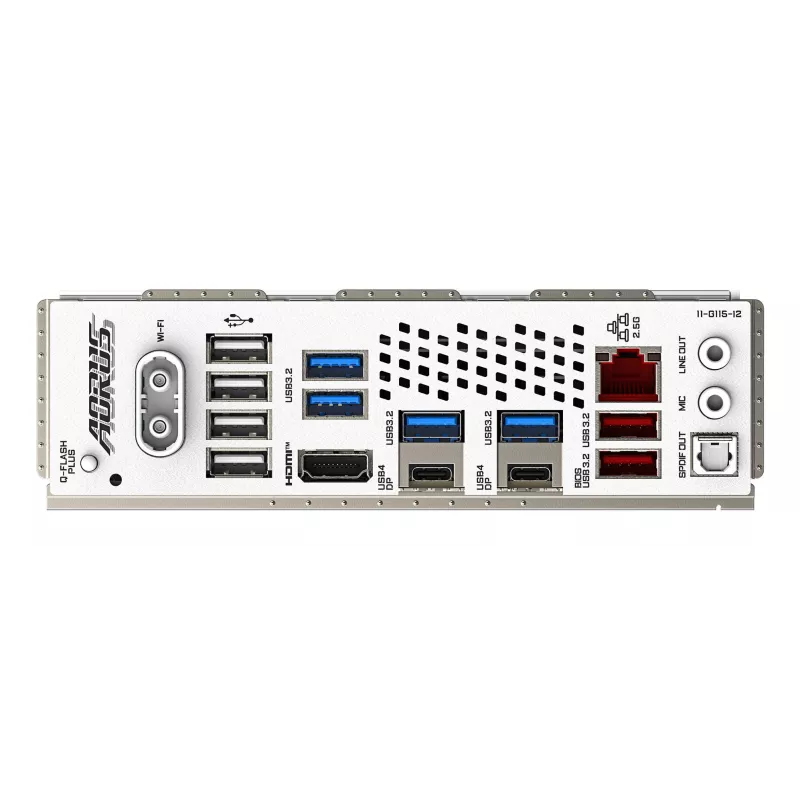

AMD X870 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2 , On-board graphics card Yes , 4096 x 2160 pixels , Discrete graphics support Yes , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 2.4 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE X870 AORUS ELITE WIFI7 ICE MOTHERBOARD - SUPPORTS AMD RYZEN 9000 CPUS, 16+2+2 PHASES DIGITAL VRM, UP TO 8200MHZ DDR5 (OC), 3XPCIE 5.0 + 1XPCIE 4.0, WI-FI 7, 2.5GBE LAN, USB 4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.38
UNIT BOX LENGTH: 0.45
UNIT BOX WIDTH: 0.31
COMPONENT FOR: PC
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 2400
WIDTH, MM: 305
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 2740
PACKAGE WIDTH, MM: 335
COUNTRY OF ORIGIN: CHINA
MODEL: X870 AORUS ELITE WIFI7 ICE
UNITS PER SHIPPING BOX: 5
UNIT CALCULATED VOLUME, CUBM: 0.01018
UNIT CALCULATED WEIGHT, KG: 2.59
WARRANTY PERIOD, YEAR(S): 3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
PRODUCT COLOUR: WHITE
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
HDCP: YES
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
BLUETOOTH VERSION: 5.4
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BLUETOOTH: YES
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
HEADPHONE OUTPUTS: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
USB 2.0 PORTS QUANTITY: 4
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
HDMI PORTS QUANTITY: 1
DIRECTX VERSION: 12.0
WI-FI: Yes
ETHERNET LAN: YES
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
SCREWS INCLUDED: YES
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
ON-BOARD GRAPHICS CARD: YES
ON-BOARD GRAPHICS CARD MODEL: AMD RADEON GRAPHICS
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC1220
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 8
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 6
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2X2 CONNECTORS: 1
MOTHERBOARD CHIPSET: AMD X870
S/PDIF OUT PORT: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
USB4 GEN 3X2 PORTS QUANTITY: 2
WIFI-AP ANTENNA JACK: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
3RD M.2 LARGEST KEY SIZE: 22110
4TH M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
4TH M.2 LARGEST KEY SIZE: 22110
NUMBER OF M.2 (M) SLOTS: 4
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
ANTENNA INCLUDED: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
NUMBER OF HDDS SUPPORTED: 4
MICROPHONE IN: YES
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200
TOTAL NUMBER OF SATA CONNECTORS: 4
WLAN CONTROLLER MODEL: MEDIATEK MT7925
PC HEALTH MONITORING: FAN/NOISE/TEMPERATURE/VOLTAGE/WATER COOLING
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF WATER PUMP CONNECTORS: 3
TPM CONNECTOR: YES
LAN CONTROLLER: REALTEK RTL8125
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
DISCRETE GRAPHICS SUPPORT: YES
NUMBER OF DISPLAYS SUPPORTED: 4
