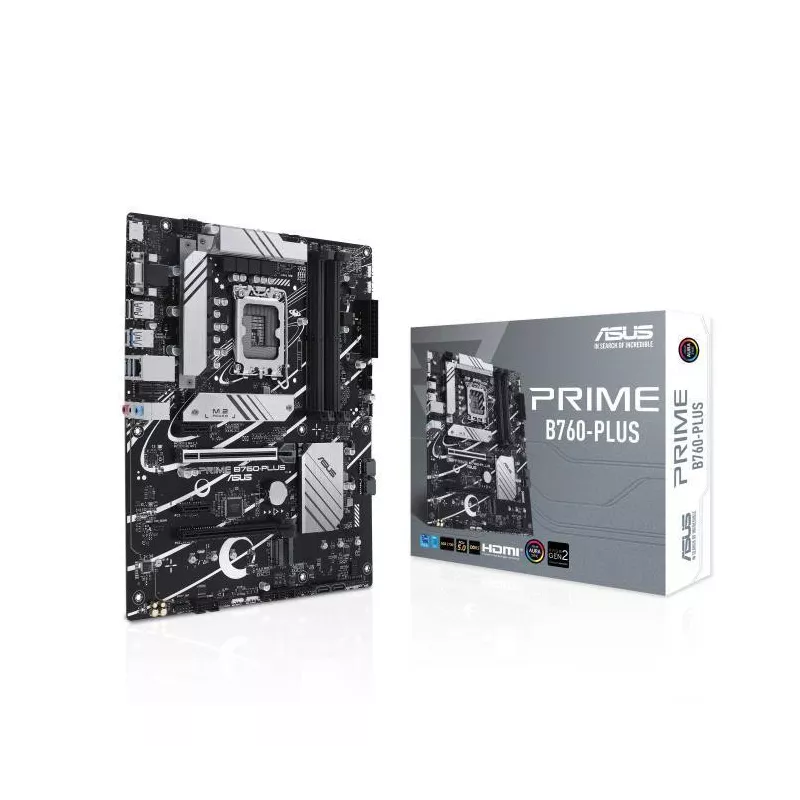

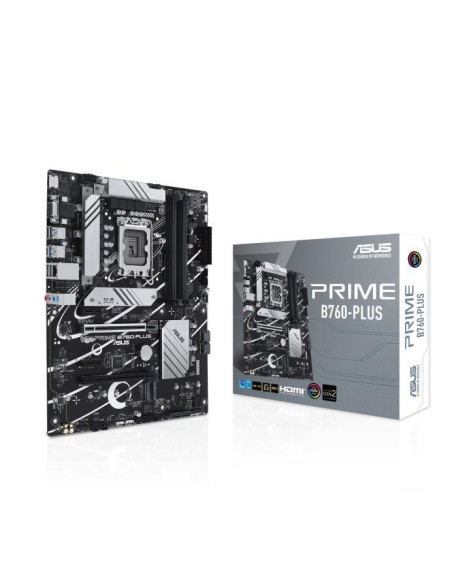

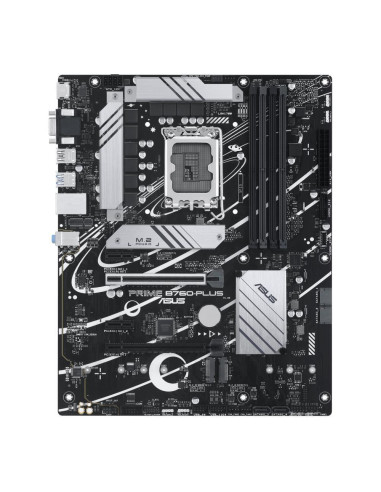

Mainboard, ASUS, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 1x

Mainboard, ASUS, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 1x

Name: Mainboard, ASUS, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 1x
Brand: ASUS
SKU: PRIMEB760-PLUS
Price: 128.13 EUR
Availability: InStock

Gamintojas: ASUS

Kodas PRIMEB760-PLUS

Yra sandėlyje

128,13 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity , Weight 760 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS PRIME B760-PLUS. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CELERON , INTEL CORE I3, INTEL CORE I5, INTEL CORE I7, INTEL CORE I9,.... SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 192
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.27
UNIT BOX LENGTH: 0.33
UNIT BOX WIDTH: 0.055
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.005814
UNIT CALCULATED WEIGHT, KG: 1.32
MODEL: PRIME B760-PLUS
DEPTH, MM: 244
HEIGHT, MM: 36
WEIGHT, G: 760
WIDTH, MM: 305
CABLES INCLUDED: SATA
PACKAGE DEPTH, MM: 266
PACKAGE HEIGHT, MM: 53
PACKAGE WIDTH, MM: 328
PACKAGE WEIGHT, G: 1200
HDMI VERSION: 2.1
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11
WI-FI: No
POWER SOURCE TYPE: ATX
USB 2.0 PORTS QUANTITY: 2
PROCESSOR MANUFACTURER: Intel
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
VGA (D-SUB) PORTS QUANTITY: 1
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CELERON /INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL CORE I9/INTEL PENTIUM GOLD
SUPPORTED PROCESSOR SOCKETS: LGA 1700
MOTHERBOARD CHIPSET: Intel B760
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
PROCESSOR SOCKET: LGA 1700
ECC СOMPATIBILITY: NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 192
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET/FAST ETHERNET/GIGABIT ETHERNET
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
UNBUFFERED MEMORY: YES
12V POWER CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
RGB LED PIN HEADER: YES
THUNDERBOLT HEADERS: 1
NUMBER OF COM CONNECTORS: 1
TPM CONNECTOR: YES
LINE-IN: YES
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
S/PDIF OUT CONNECTOR: YES
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
MAXIMUM NUMBER OF SMP PROCESSORS: 1
