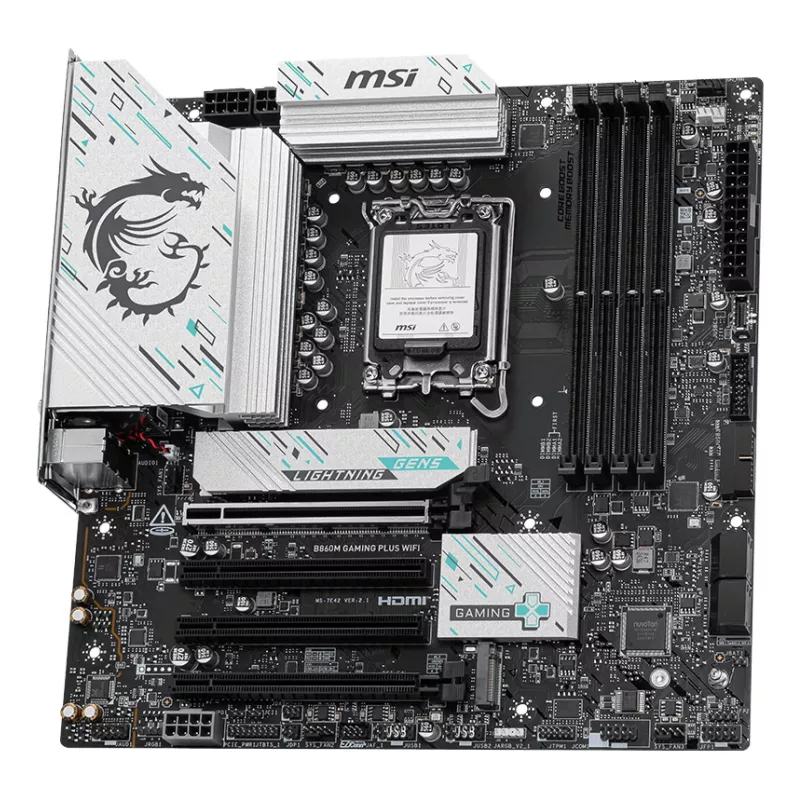

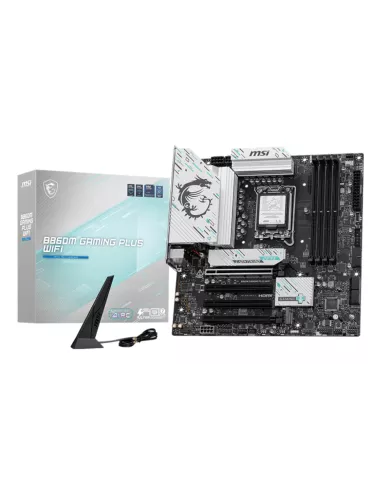

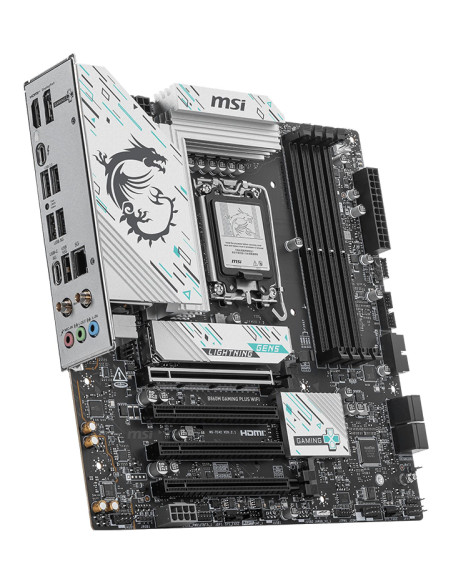

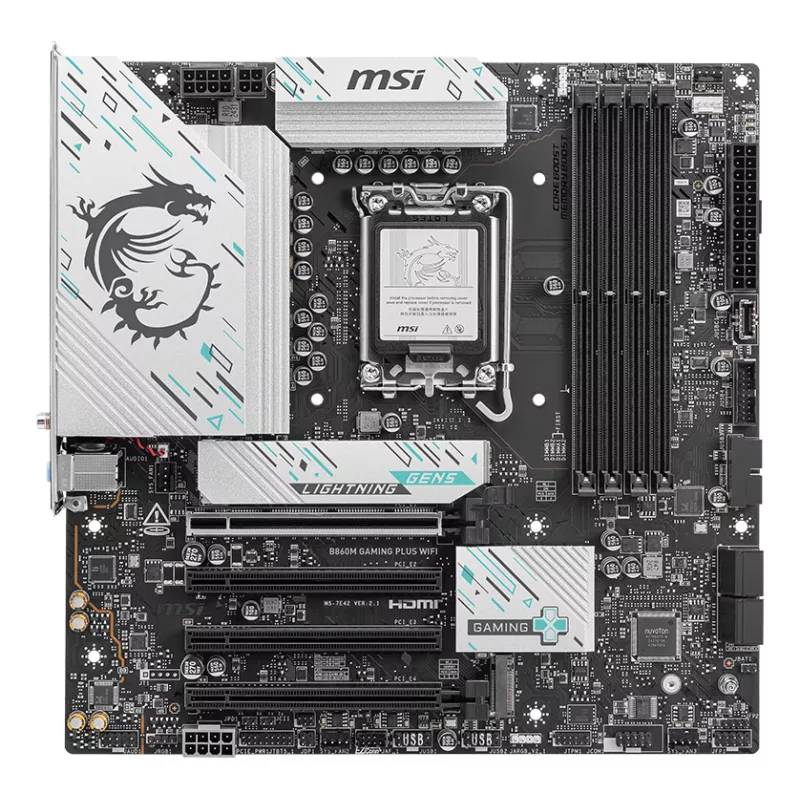

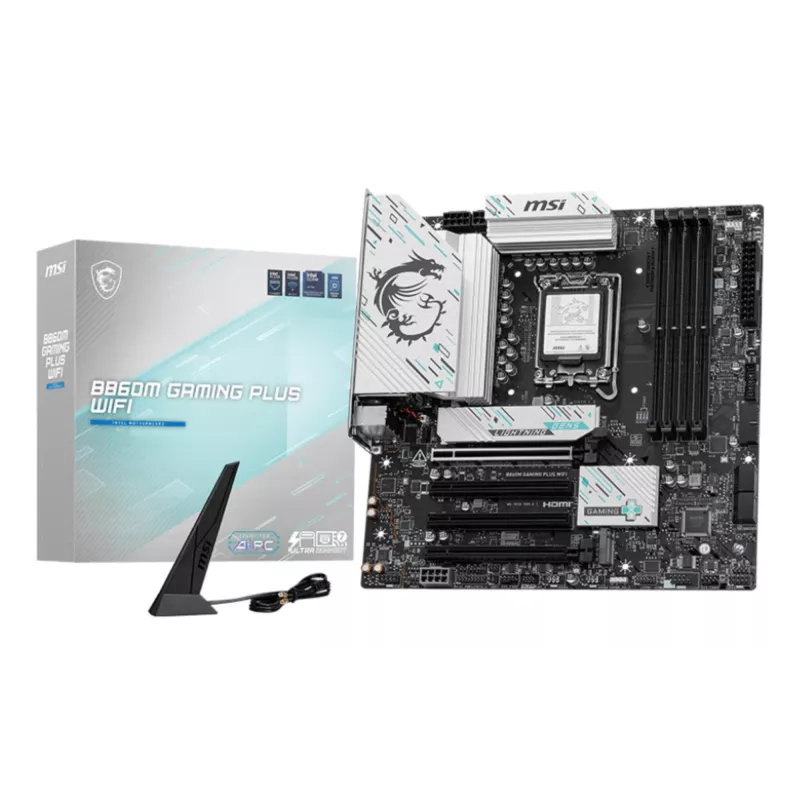

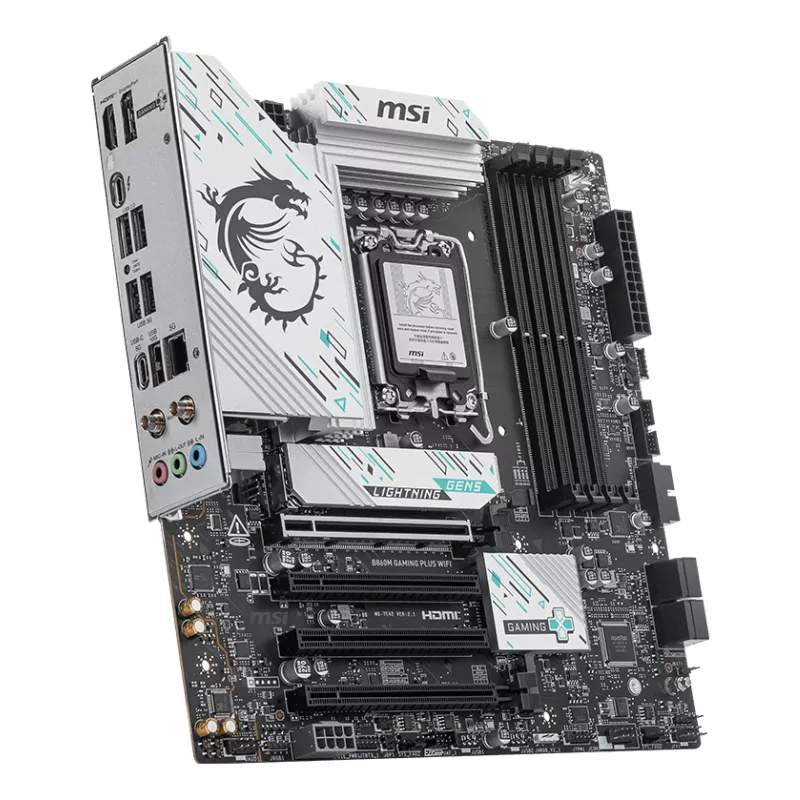

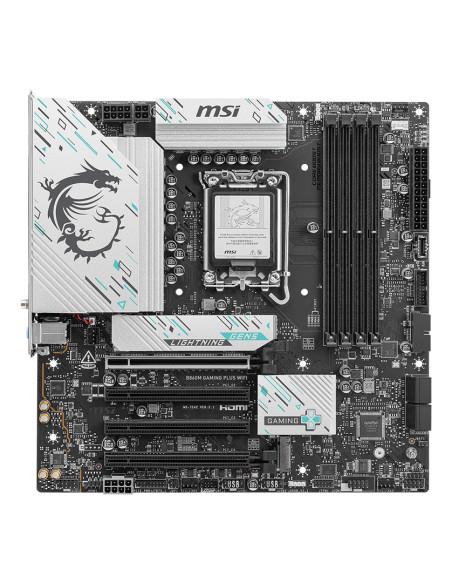

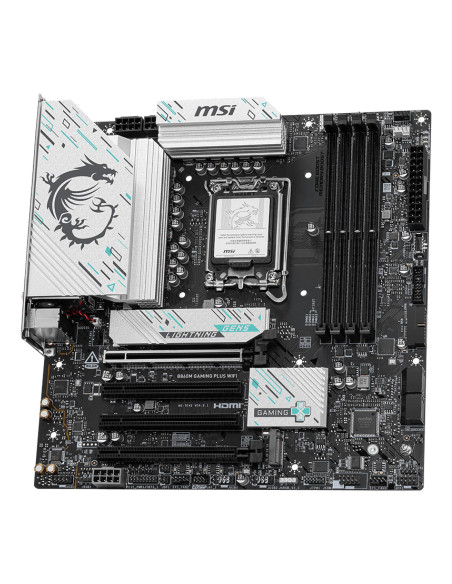

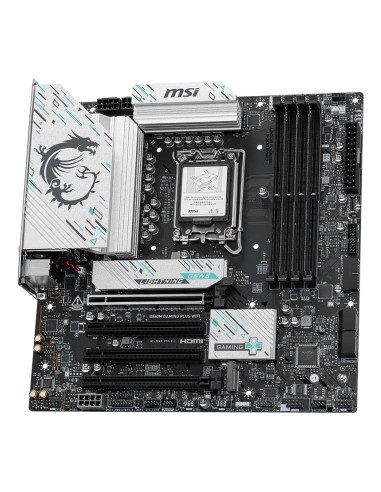

Mainboard, MSI, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, B860MGAMINGPLUSWIFI

Mainboard, MSI, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, B860MGAMINGPLUSWIFI

Name: Mainboard, MSI, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, B860MGAMINGPLUSWIFI
Brand: MSI
SKU: B860M GAMING PLUS WIFI
Price: 183.46 EUR
Availability: InStock

Gamintojas: MSI

Kodas B860M GAMING PLUS WIFI

Yra sandėlyje

183,46 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

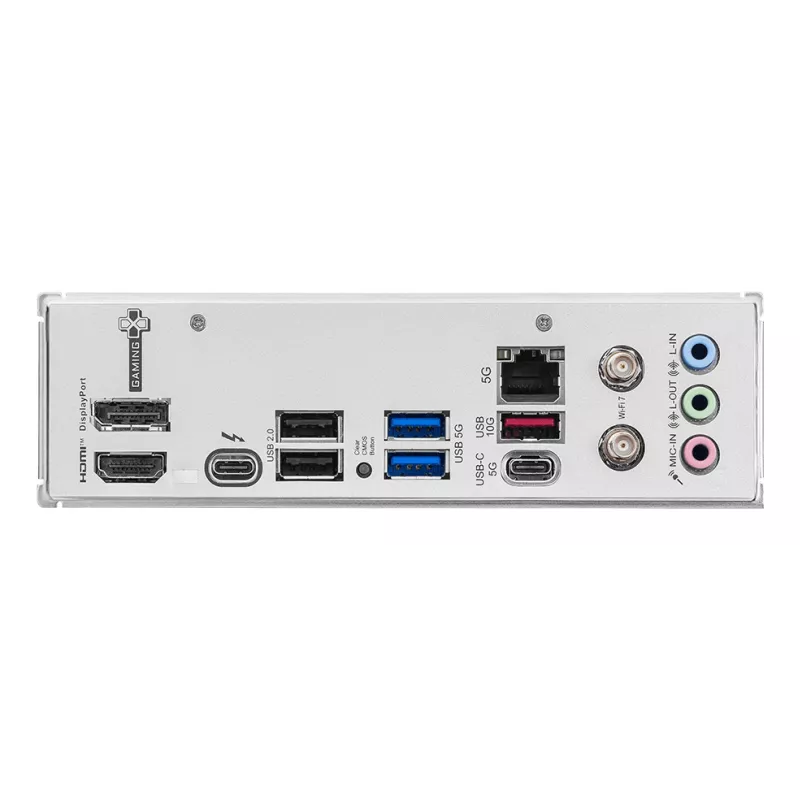

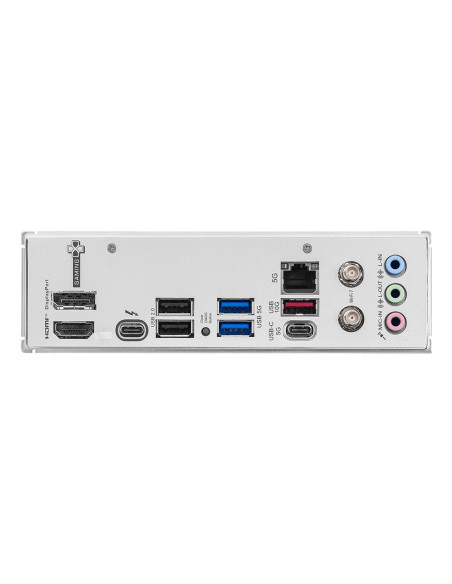

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2) , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,Micro SATA III , 2xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: MSI B860M GAMING PLUS WIFI. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2). SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256 GB, MEMORY SLOTS TYPE: DIMM. SUPP
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.28
UNIT BOX WIDTH: 0.28
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: 5 GIGABIT ETHERNET
COMPONENT FOR: PC
PRODUCT COLOUR: BLACK
DEPTH, MM: 243.84
WIDTH, MM: 243.84
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.006597
UNIT CALCULATED WEIGHT, KG: 1.56
ETHERNET LAN: YES
WI-FI: Yes
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)
MODEL: B860M GAMING PLUS WIFI
BLUETOOTH: YES
BLUETOOTH VERSION: 5.4
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
HDMI VERSION: 2.1
PROCESSOR MANUFACTURER: Intel
USB 2.0 PORTS QUANTITY: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
SUPPORTED PROCESSOR SOCKETS: LGA 1851
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: INTEL B860
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,MICRO SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
CPU FAN CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 4
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 4
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 3
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8800
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/6400/8800
RGB LED PIN HEADER: YES
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF WATER PUMP CONNECTORS: 1
WLAN CONTROLLER MODEL: KILLER WI-FI 7 1750X
ACPI VERSION: 6.5
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 3.7
TOTAL NUMBER OF SATA CONNECTORS: 4
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
