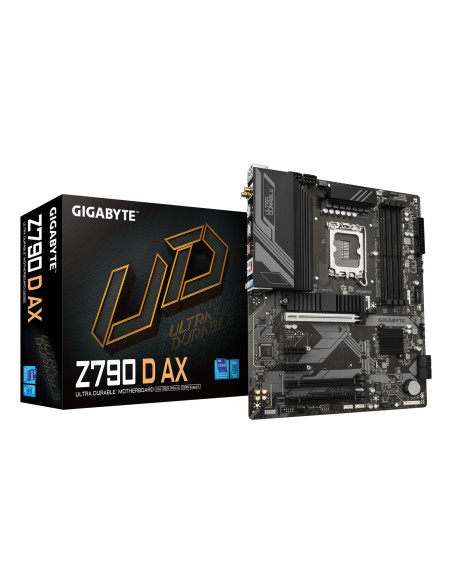

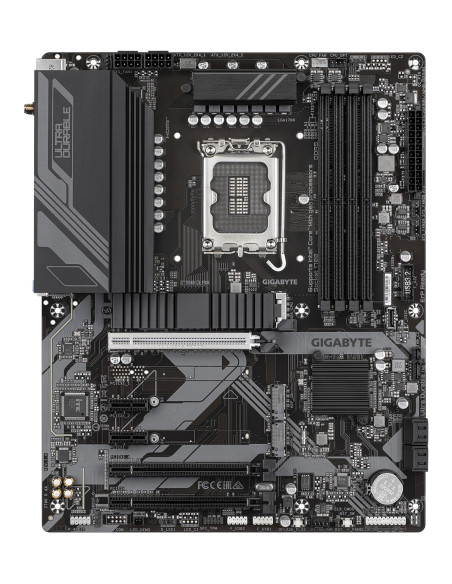

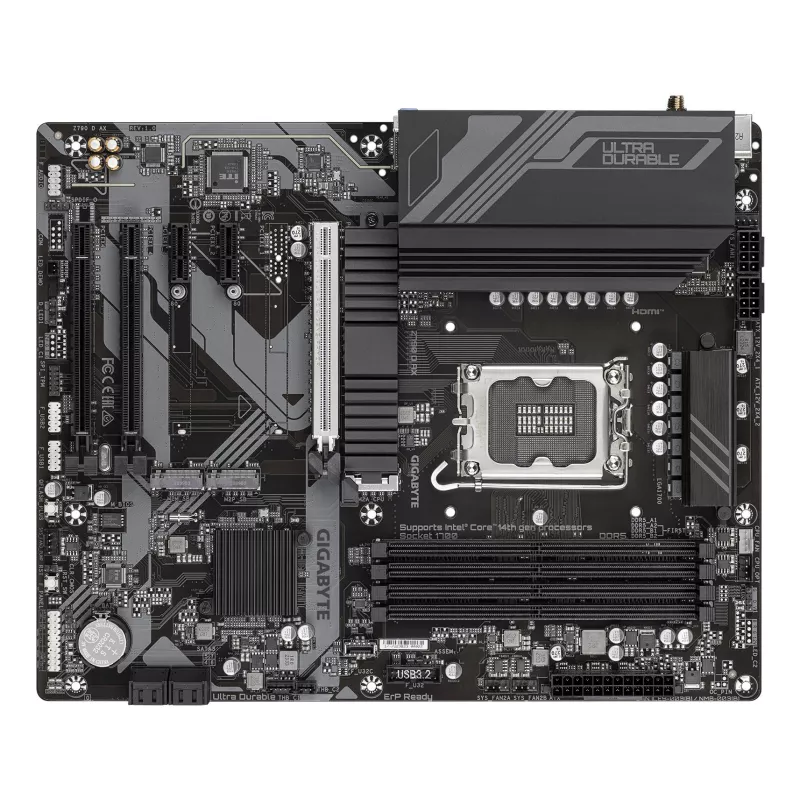

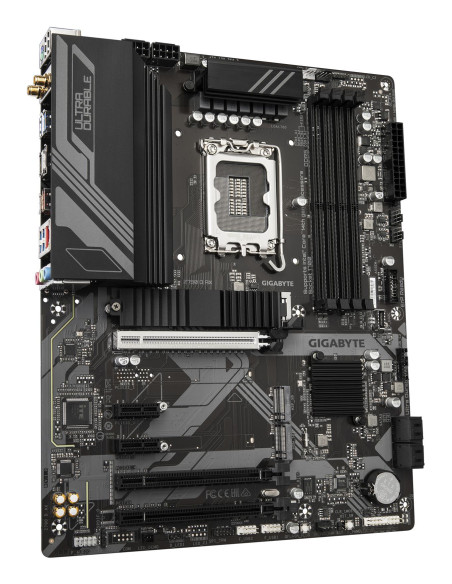

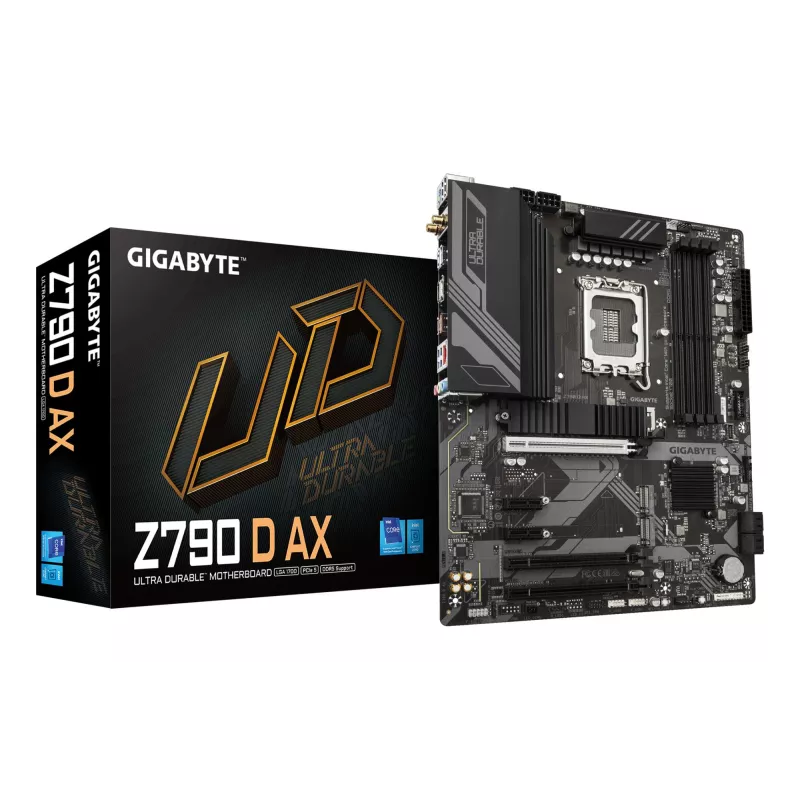

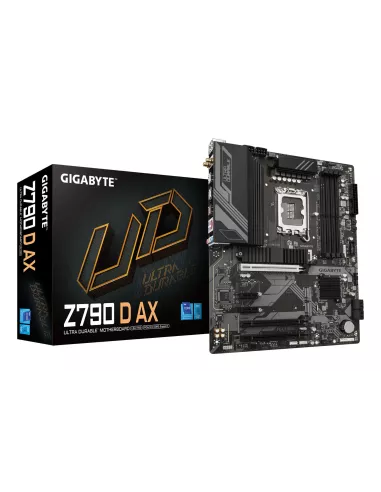

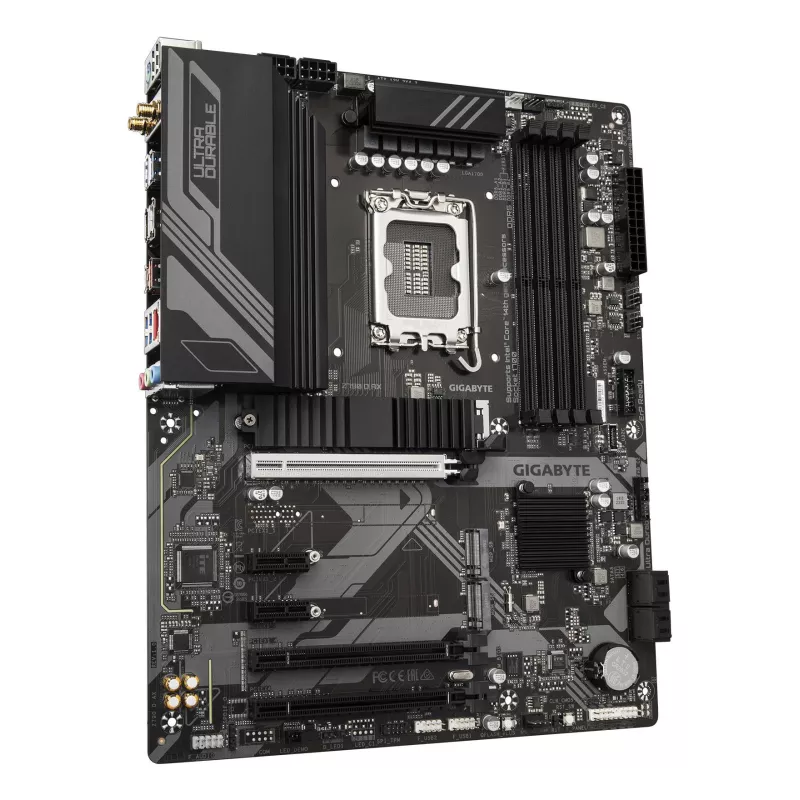

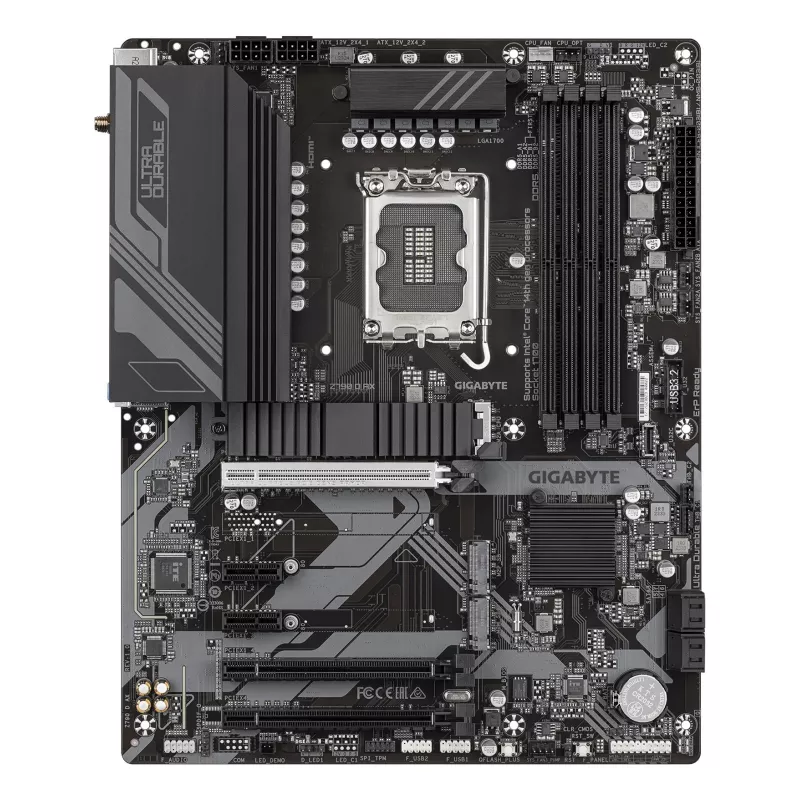

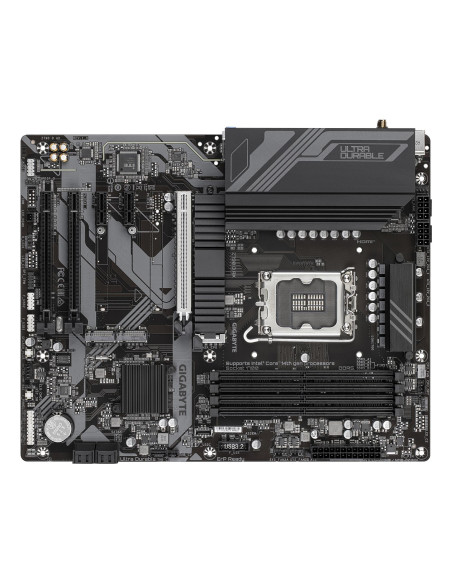

Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1

Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1

Name: Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1
Brand: GIGABYTE
SKU: Z790 D AX 1.1
Price: 173.71 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas Z790 D AX 1.1

Paskutinė prekė

173,71 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel Z790 Express , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2304 pixels , Discrete graphics support Yes , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE Z790 D AX MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 12+1+1 PHASES DIGITAL VRM, UP TO 7600MHZ DDR5 (OC), 3XPCIE 4.0 M.2, WI-FI 6E, 2.5GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SE
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.33
UNIT BOX WIDTH: 0.27
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
DIRECTX VERSION: 12.0
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
PRODUCT COLOUR: BROWN
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
DEPTH, MM: 244
HEIGHT, MM: 35
MODEL: Z790 D AX (REV. 1.0)
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.0099253
PRODUCT NET WEIGHT, KG: 1.4
UNIT CALCULATED WEIGHT, KG: 1.85625
WI-FI: Yes
WIDTH, MM: 305
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 1842.5
PACKAGE WIDTH, MM: 335
CABLES INCLUDED: SATA
WARRANTY PERIOD, YEAR(S): 3
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
COUNTRY OF ORIGIN: CHINA
RAID SUPPORT: YES
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MOTHERBOARD CHIPSET: INTEL Z790 EXPRESS
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPATIBLE PROCESSOR SERIES: INTEL CELERON/INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL CORE I9/INTEL PENTIUM GOLD
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 192
PROCESSOR SOCKET: LGA 1700
SUPPORTED PROCESSOR SOCKETS: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 192
PROCESSOR MANUFACTURER: Intel
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7600
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
SUPPORTED MEMORY TYPES: DDR5-SDRAM
MEMORY SLOTS TYPE: DIMM
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
NUMBER OF SATA III CONNECTORS: 4
NUMBER OF HDDS SUPPORTED: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1

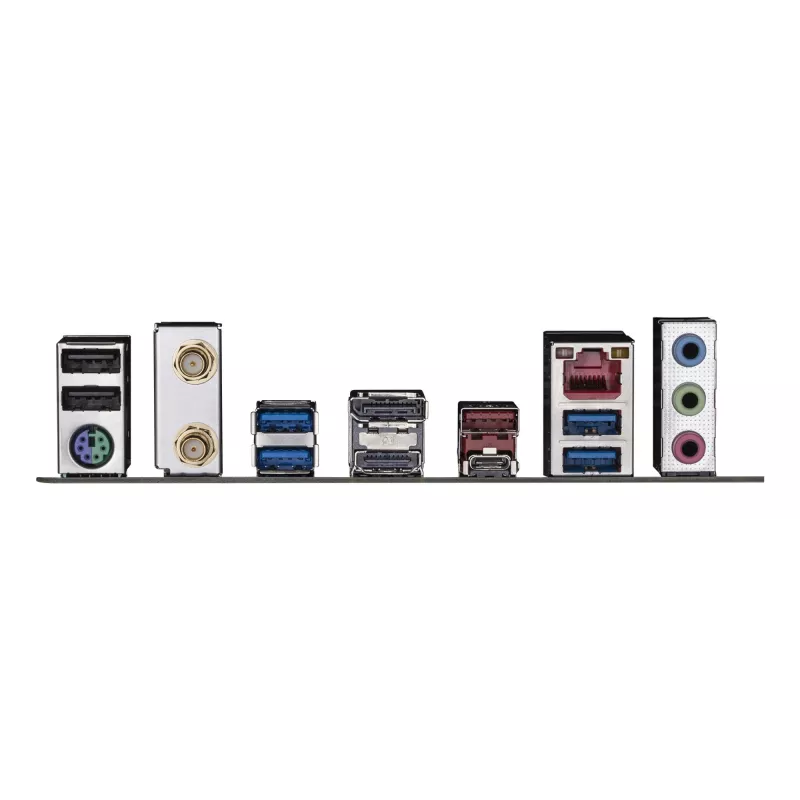

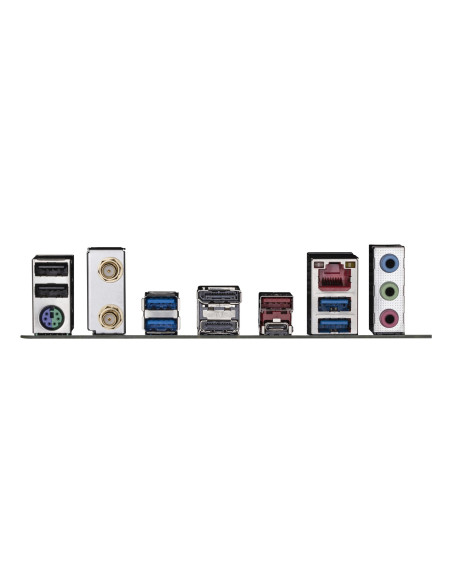

ETHERNET LAN (RJ-45) PORTS: 1
MICROPHONE IN: YES
S/PDIF OUT PORT: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
TOTAL NUMBER OF SATA CONNECTORS: 4
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
ACPI VERSION: 5.0
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
ETHERNET LAN: YES
ECC ?OMPATIBILITY: ECC & NON-ECC
UNBUFFERED MEMORY: YES
12V POWER CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
RGB LED PIN HEADER: YES
WIFI-AP ANTENNA JACK: 2
PS/2 PORTS QUANTITY: 1
AUDIO CHIP: REALTEK ALC897
ANTENNA INCLUDED: YES
THUNDERBOLT HEADERS: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
USB CONNECTOR TYPE: USB TYPE-A/USB TYPE-C
CLEAR CMOS BUTTON: YES
WLAN CONTROLLER MODEL: INTEL WI-FI 6E AX211
HEADPHONE OUTPUTS: 1
TPM CONNECTOR: YES
USB 2.0 PORTS QUANTITY: 2
POWER SOURCE TYPE: ATX
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
SUPPORTED MEMORY MODULE CAPACITIES: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
LAN CONTROLLER: REALTEK RTL8125
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERIES INCLUDED: YES
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
DISCRETE GRAPHICS SUPPORT: YES
MAXIMUM NUMBER OF SMP PROCESSORS: 1
NUMBER OF EATX POWER CONNECTORS: 2
