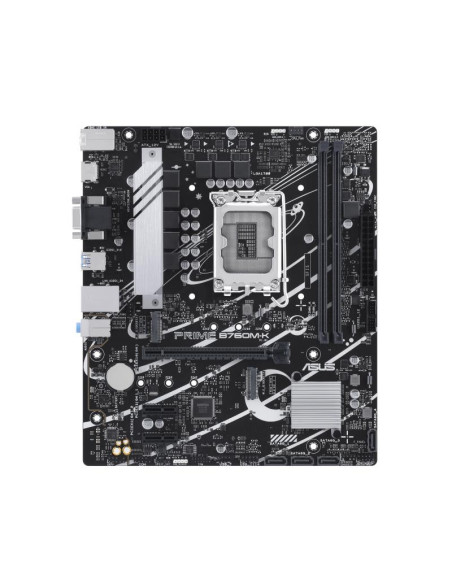

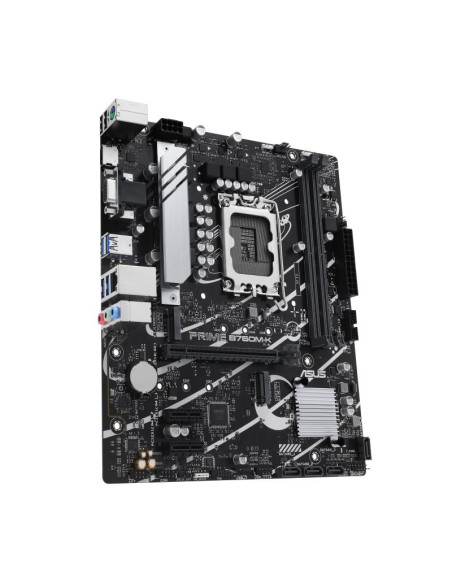

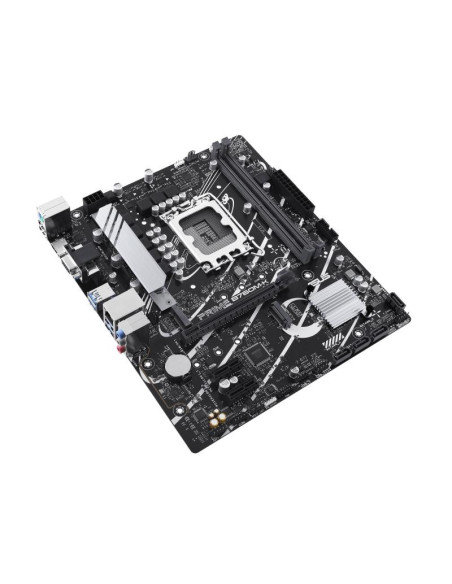

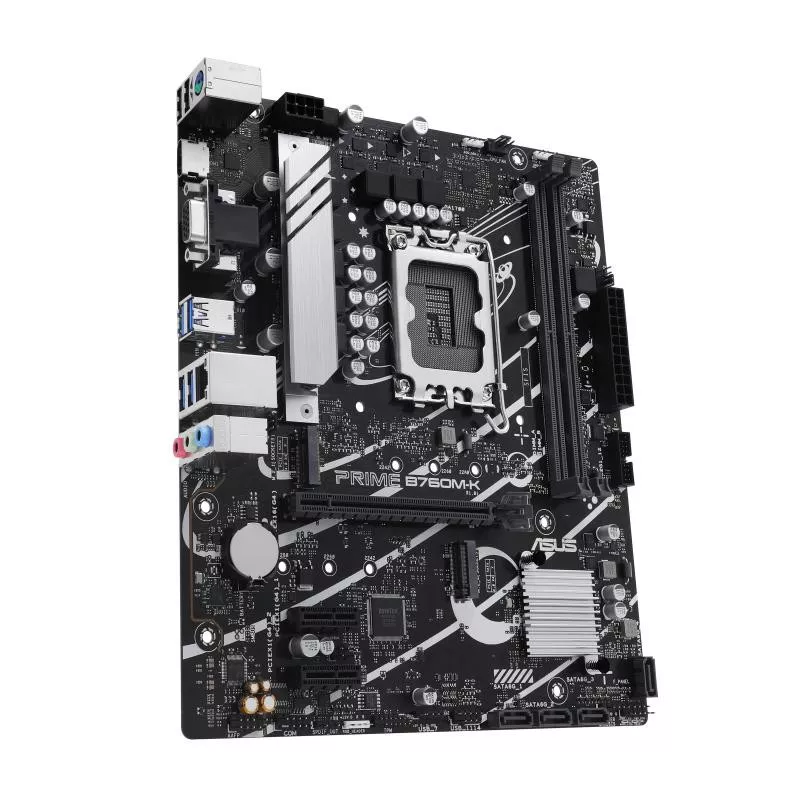

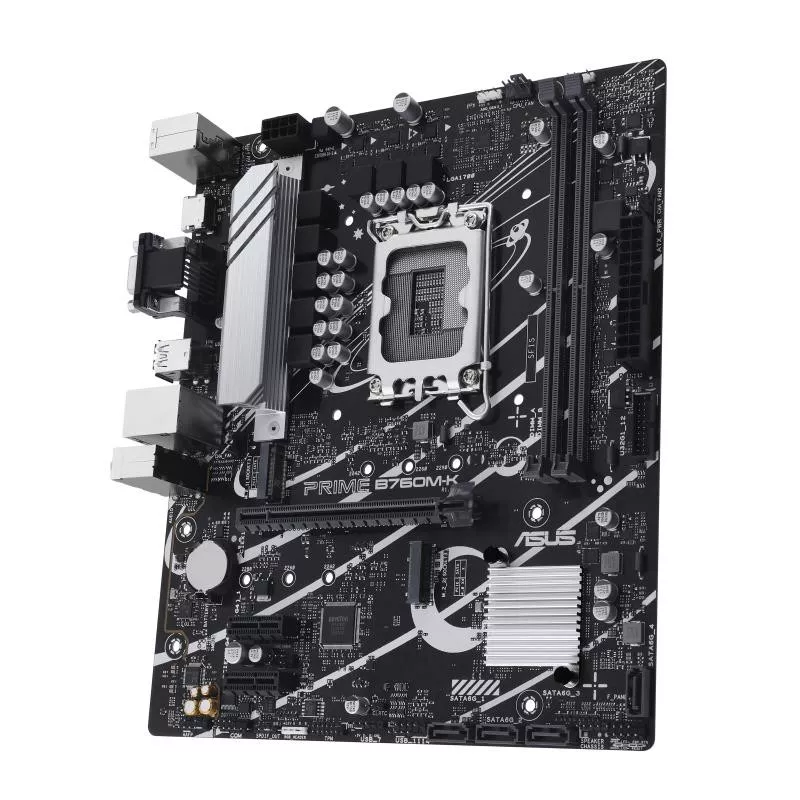

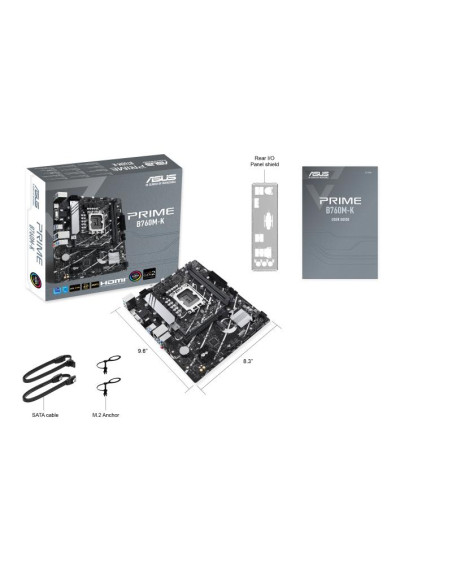

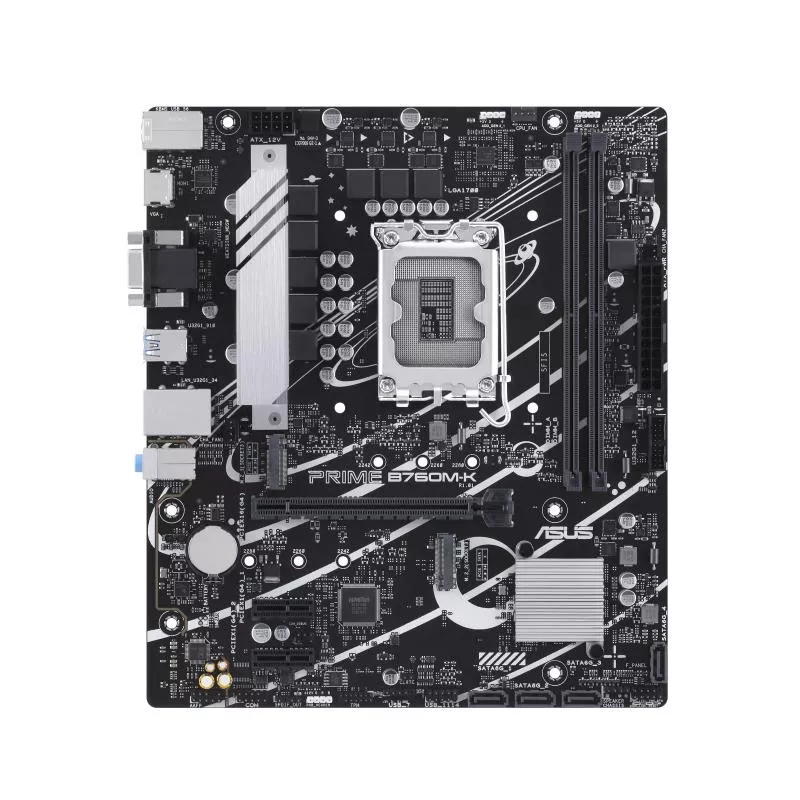

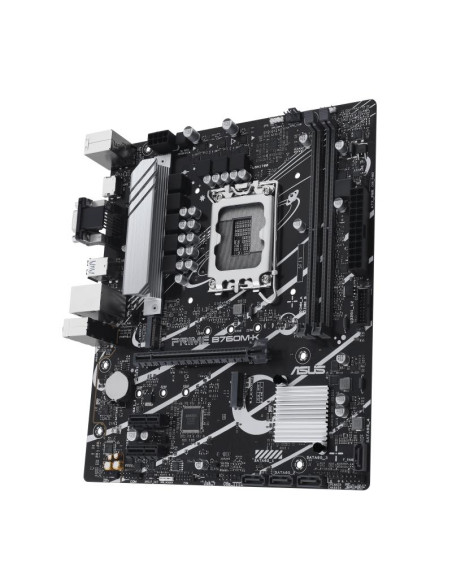

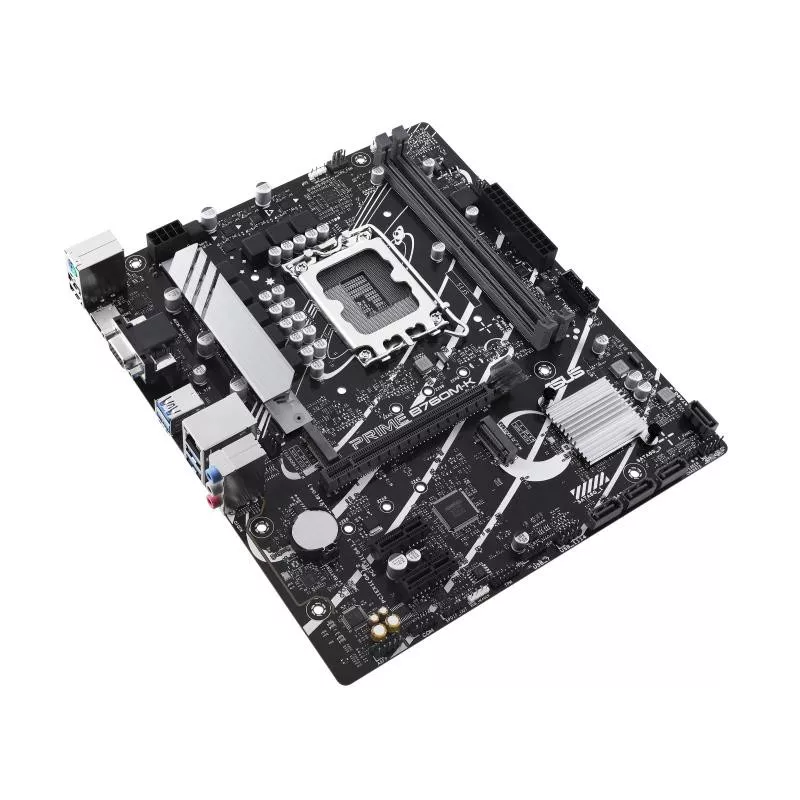

Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 1

Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 1

Name: Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 1
Brand: ASUS
SKU: PRIMEB760M-K
Price: 102.64 EUR
Availability: InStock

Gamintojas: ASUS

Kodas PRIMEB760M-K

Yra sandėlyje

102,64 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

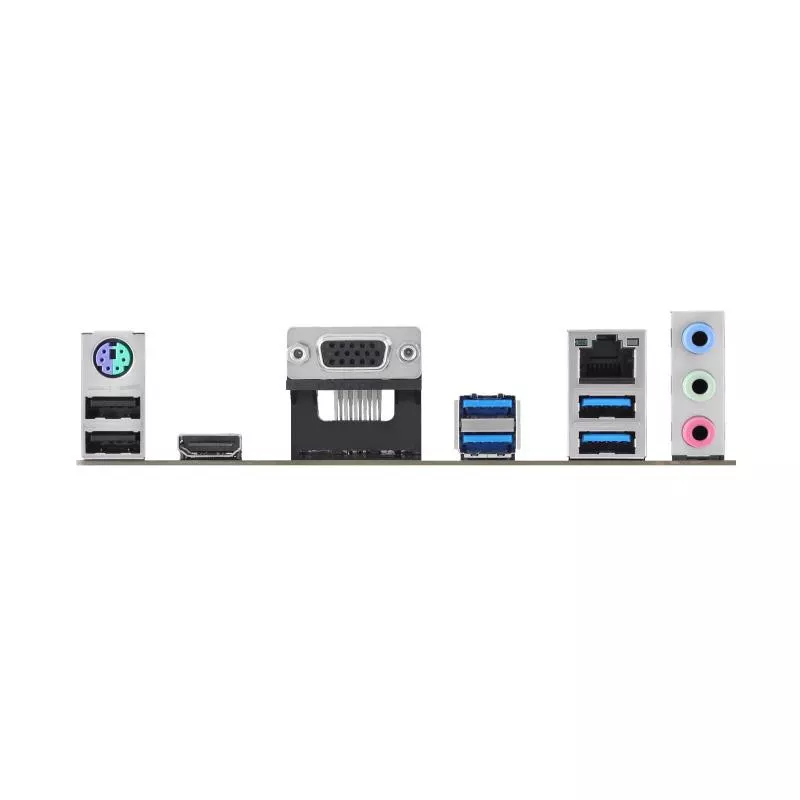

Intel B760 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.275
UNIT BOX WIDTH: 0.265
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.004834
PRODUCT NET WEIGHT, KG: 0.7
UNIT CALCULATED WEIGHT, KG: 1.02
MODEL: PRIME B760M-K
SUMMARY: ASUS PRIME B760M-K. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CELERON , INTEL PENTIUM GOLD, INTEL CORE I3, INTEL CORE I5, INTEL CORE .... SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 96 G
DEPTH, MM: 211
WIDTH, MM: 244
PACKAGE DEPTH, MM: 263
PACKAGE HEIGHT, MM: 51.5
PACKAGE WIDTH, MM: 270
PACKAGE WEIGHT, G: 1015
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11
WI-FI: No

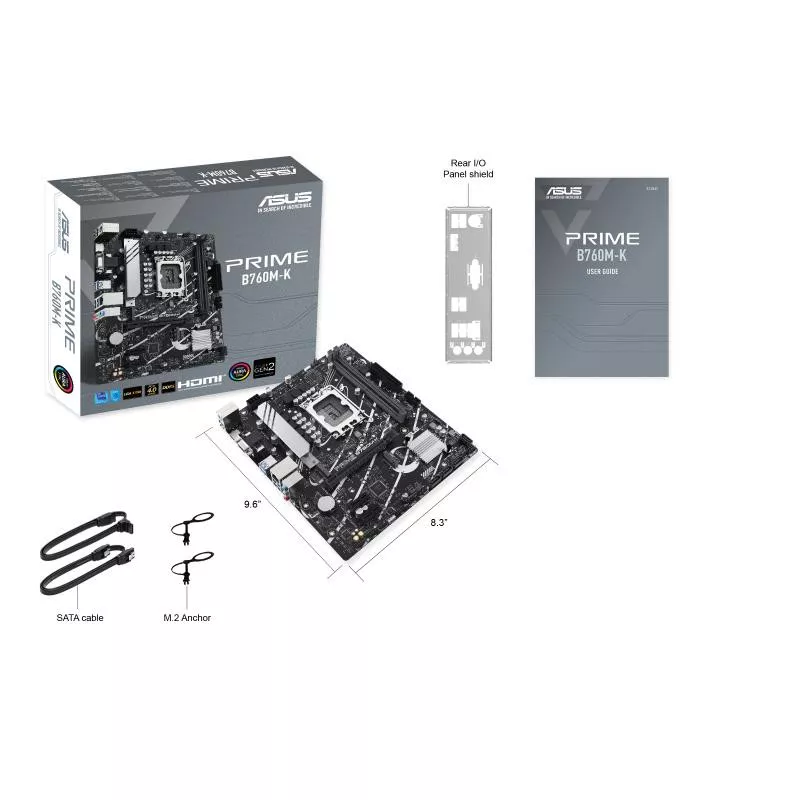

CABLES INCLUDED: SATA
USB 2.0 PORTS QUANTITY: 2
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: YES
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
VGA (D-SUB) PORTS QUANTITY: 1
RAID SUPPORT: YES
MOTHERBOARD CHIPSET: Intel B760
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
COMPATIBLE PROCESSOR SERIES: INTEL CELERON/INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL CORE I9/INTEL PENTIUM GOLD
PROCESSOR SOCKET: LGA 1700
SUPPORTED PROCESSOR SOCKETS: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 96
PROCESSOR MANUFACTURER: Intel
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8000
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000
SUPPORTED MEMORY TYPES: DDR5-SDRAM
MEMORY SLOTS TYPE: DIMM
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
NUMBER OF SATA III CONNECTORS: 4
NUMBER OF HDDS SUPPORTED: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
S/PDIF OUT PORT: YES
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
ECC ?OMPATIBILITY: NON-ECC
UNBUFFERED MEMORY: YES
12V POWER CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 1
RGB LED PIN HEADER: YES
PS/2 PORTS QUANTITY: 1
PCI EXPRESS X1 (GEN 4.X) SLOTS: 2
NUMBER OF COM CONNECTORS: 1
TPM CONNECTOR: YES
S/PDIF OUT CONNECTOR: YES
MAXIMUM NUMBER OF SMP PROCESSORS: 1
