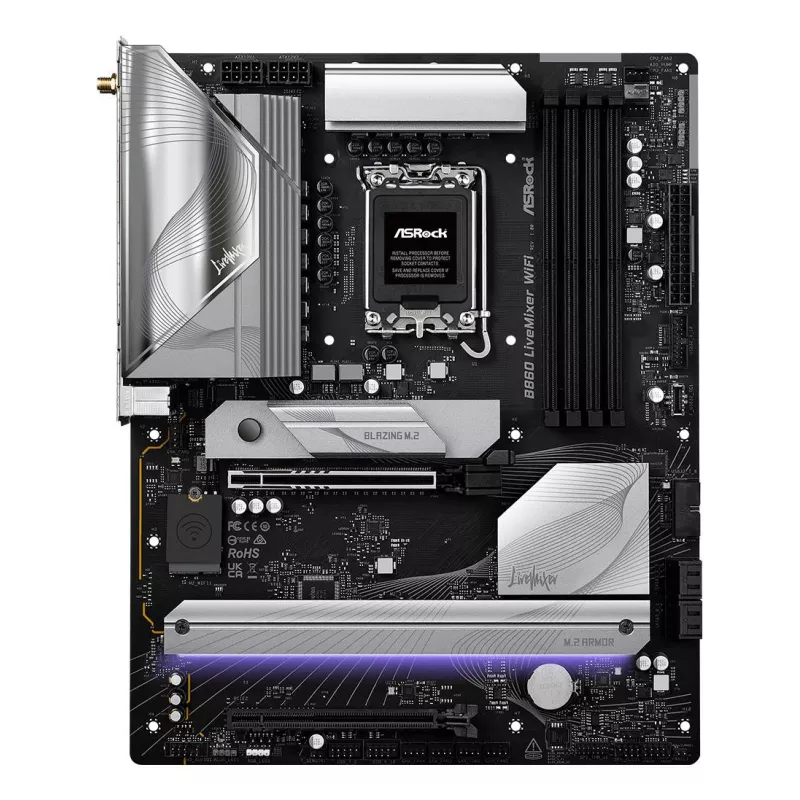

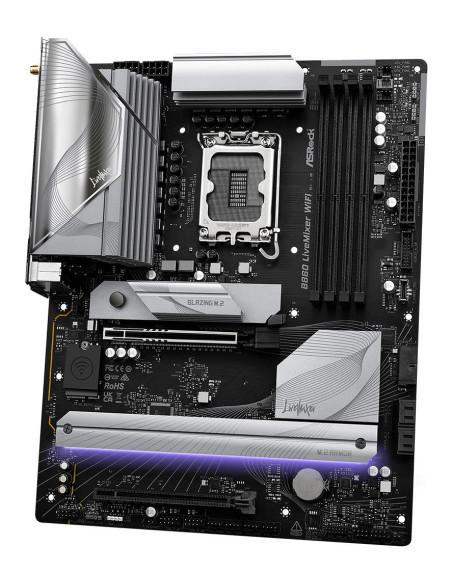

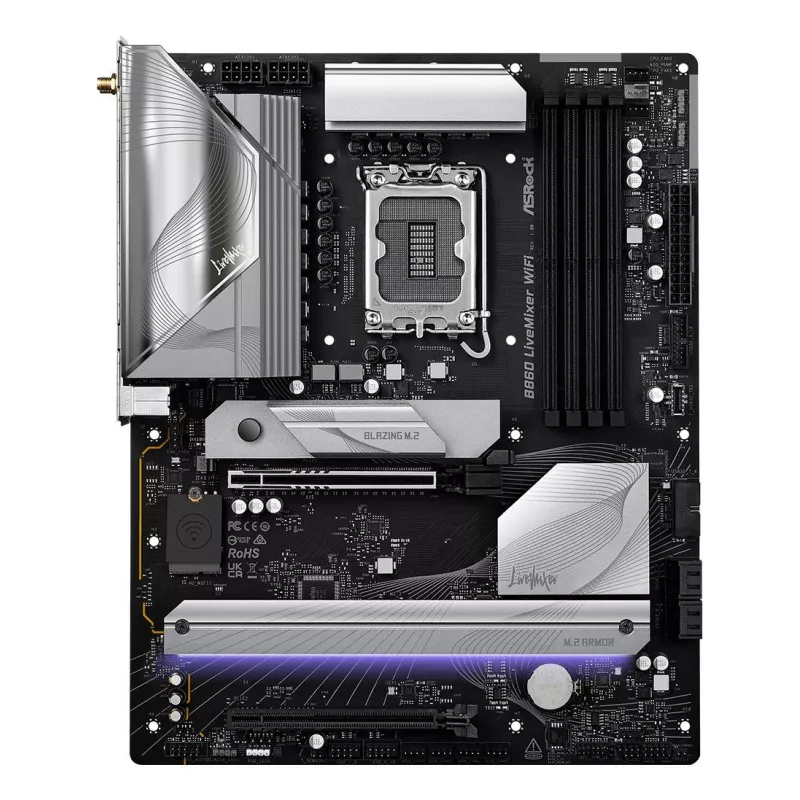

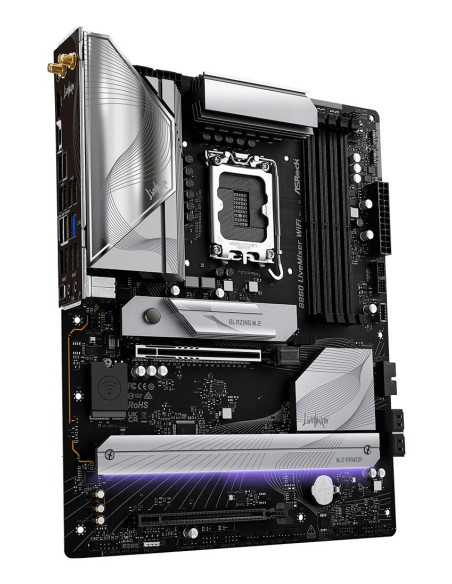

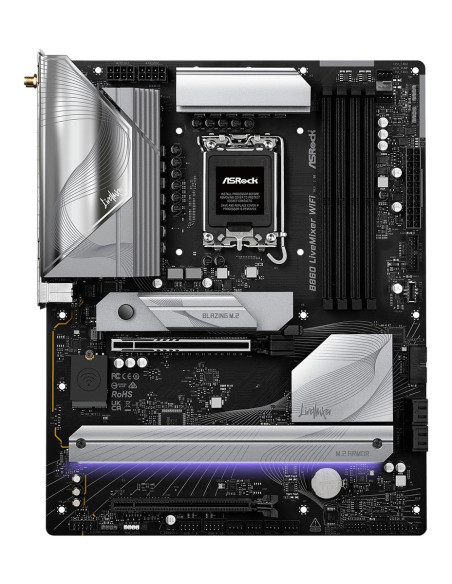

Mainboard, ASROCK, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x,

Mainboard, ASROCK, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x,

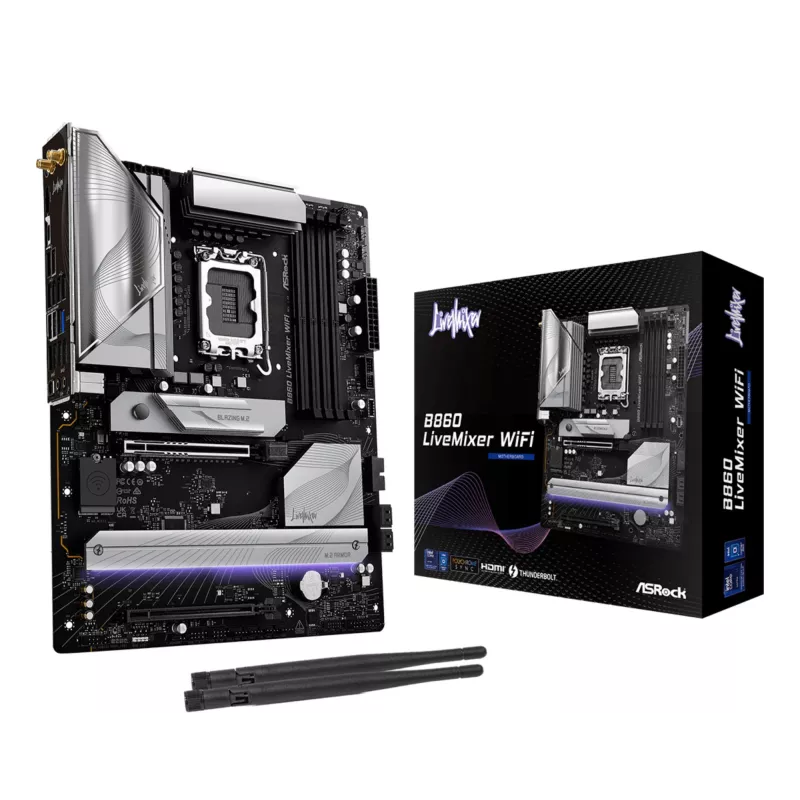

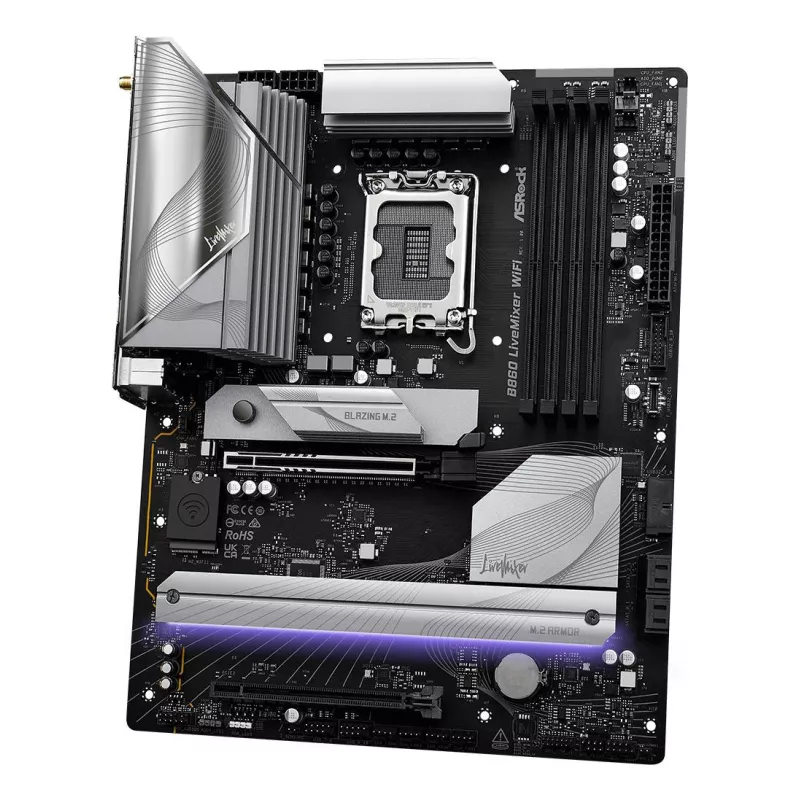

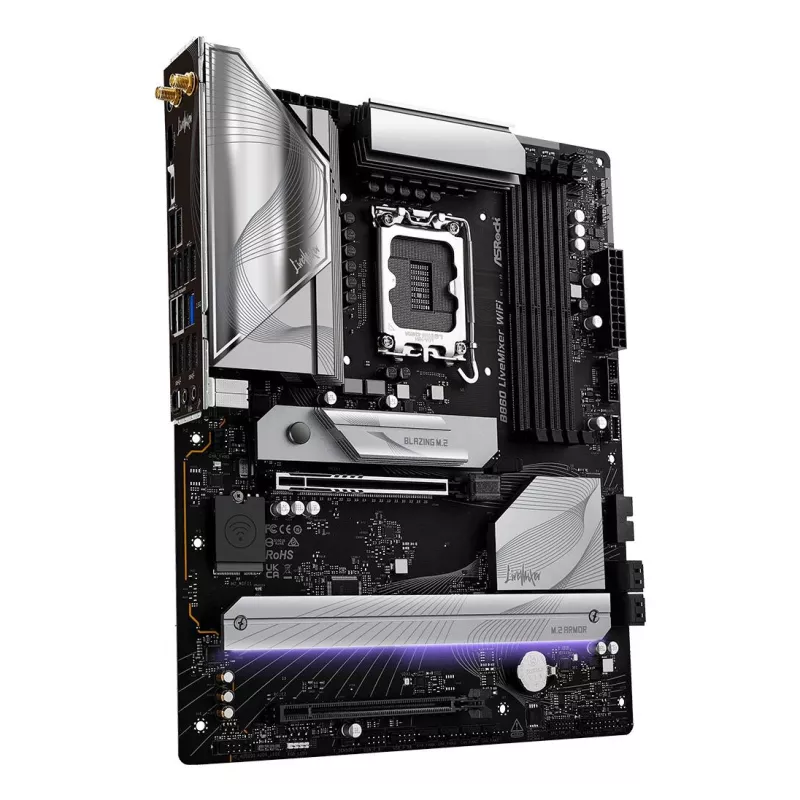

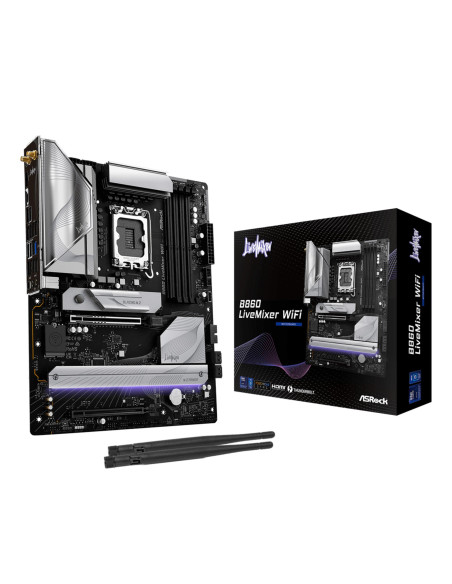

Name: Mainboard, ASROCK, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x,
Brand: ASROCK
SKU: B860 LIVEMIXER WIFI
Price: 180.9 EUR
Availability: InStock

Gamintojas: ASROCK

Kodas B860 LIVEMIXER WIFI

Yra sandėlyje

180,90 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

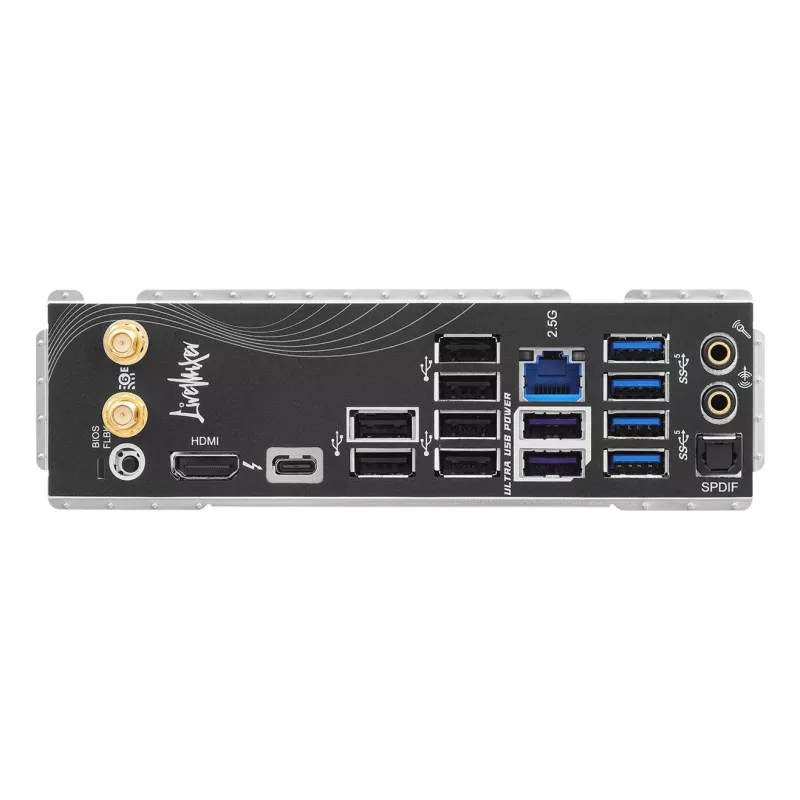

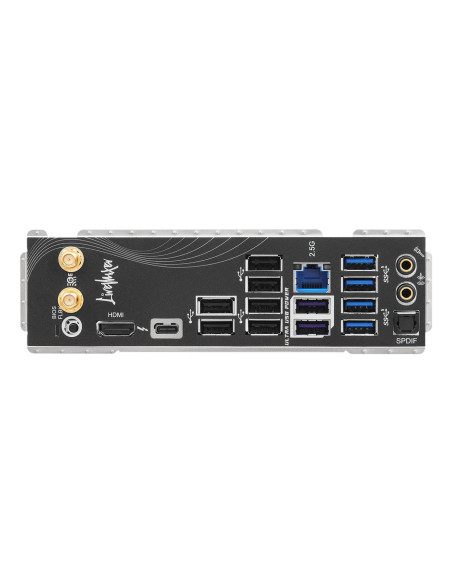

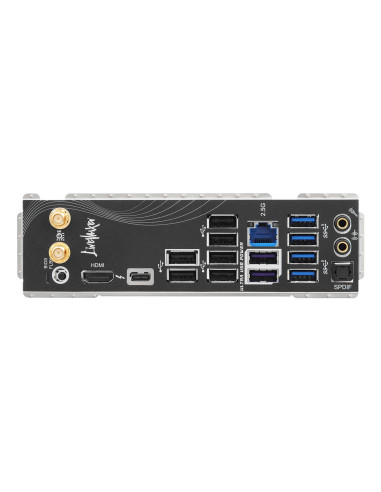

Intel B860 , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2) , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0,SATA III , 7680 x 4320 pixels , 6xUSB 2.0 ports quantity , 6xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , 1xThunderbolt ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASROCK B860 LIVEMIXER WIFI. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2). SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256 GB, MEMORY SLOTS TYPE: DIMM. SUPP
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.075
UNIT BOX LENGTH: 0.35
UNIT BOX WIDTH: 0.28
MODEL: B860 LIVEMIXER WIFI
UNITS PER SHIPPING BOX: 5
UNIT CALCULATED VOLUME, CUBM: 0.008784
UNIT CALCULATED WEIGHT, KG: 2.18
PRODUCT COLOUR: BLACK
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
CABLES INCLUDED: SATA
USB CONNECTOR TYPE: USB TYPE-A/USB TYPE-C
DEPTH, MM: 244
WIDTH, MM: 305
CERTIFICATION: FCC, CE, ERP/EUP
BLUETOOTH: YES
WI-FI: Yes
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
USB 2.0 PORTS QUANTITY: 6
BLUETOOTH VERSION: 5.3
PROCESSOR MANUFACTURER: Intel
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 6
HDMI VERSION: 2.1
HEADPHONE OUTPUTS: 1
HDCP: YES
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM RESOLUTION, PIXELS: 7680 X 4320
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
SUPPORTED PROCESSOR SOCKETS: LGA 1851
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
MAXIMUM INTERNAL MEMORY, GB: 256
SUPPORTED MEMORY TYPES: DDR5-SDRAM
AUDIO CHIP: REALTEK ALC1220
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 5
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 3
MICROPHONE IN: YES
MOTHERBOARD CHIPSET: INTEL B860
THUNDERBOLT PORTS QUANTITY: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
S/PDIF OUT PORT: YES
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
WIFI-AP ANTENNA JACK: 2
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 1
NUMBER OF WATER PUMP CONNECTORS: 1
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
LAN CONTROLLER: DRAGON RTL8125BG
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
ANTENNA INCLUDED: YES
