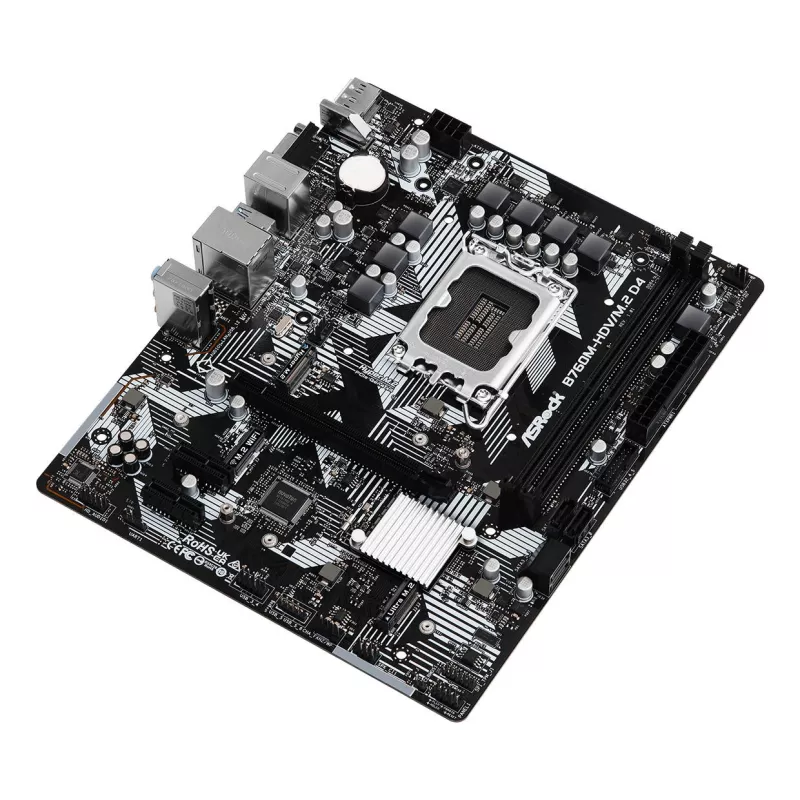

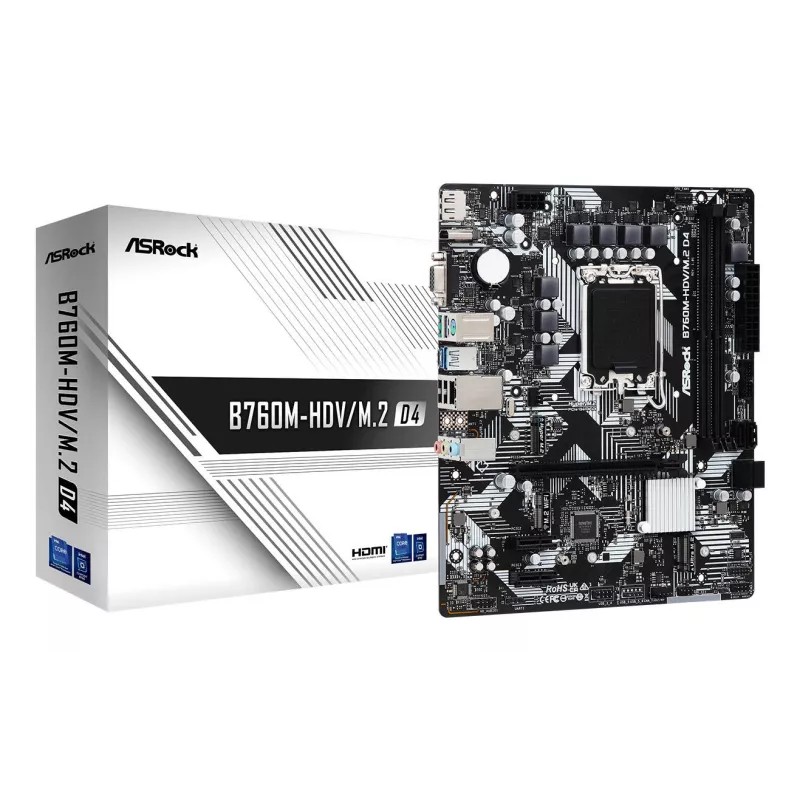

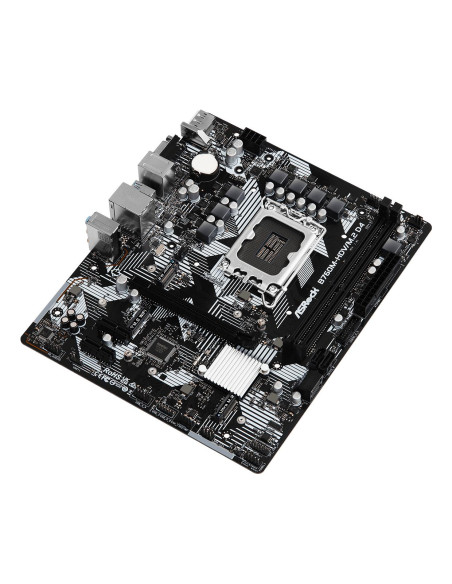

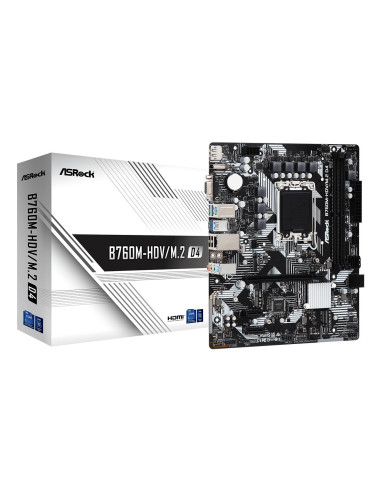

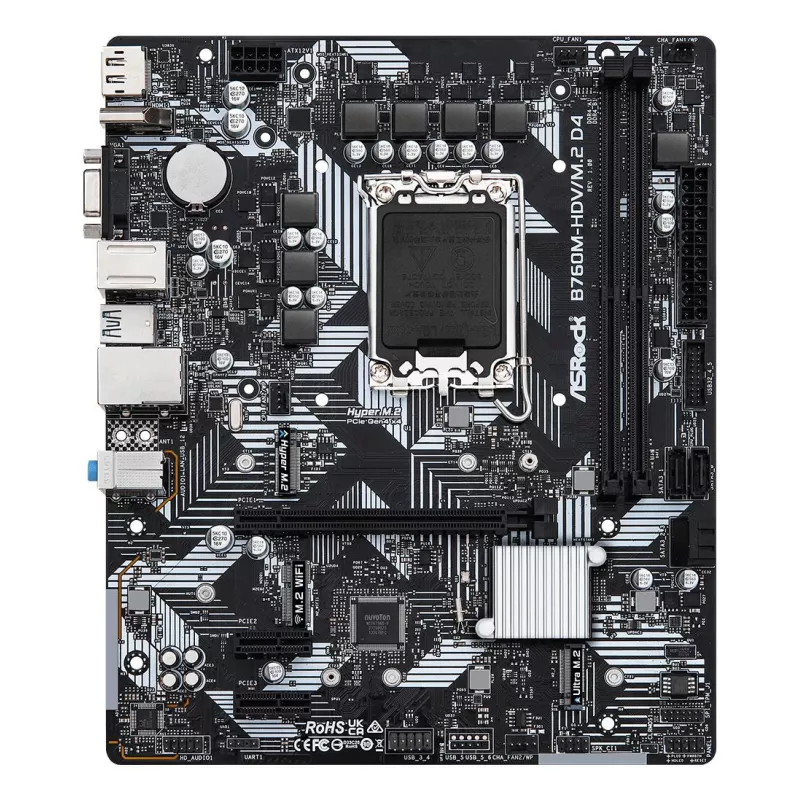

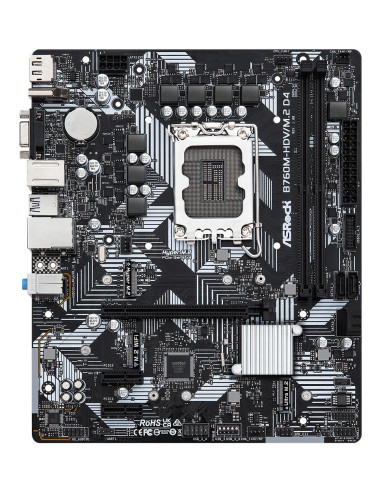

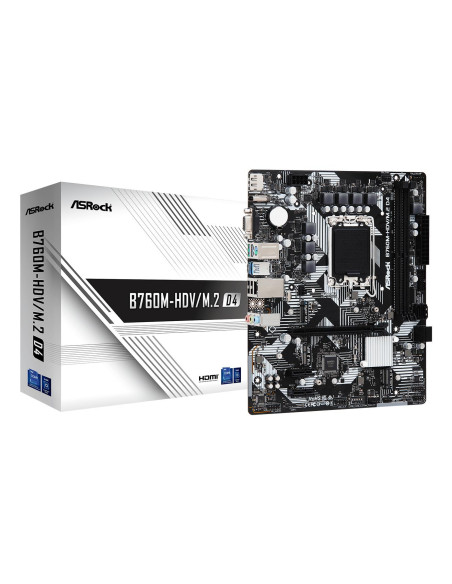

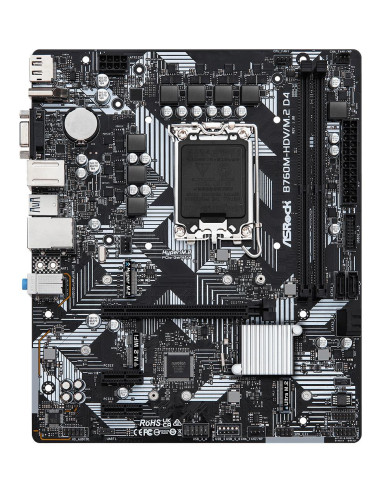

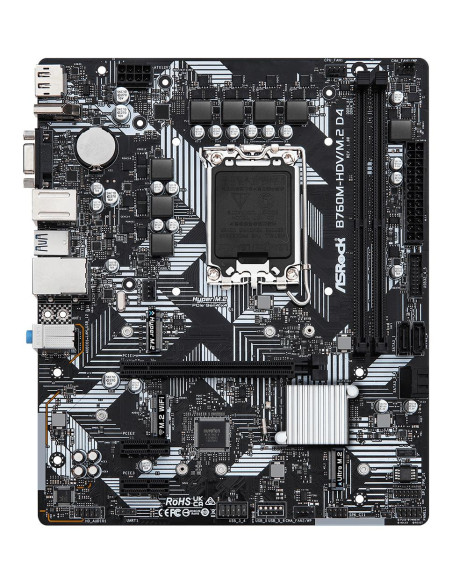

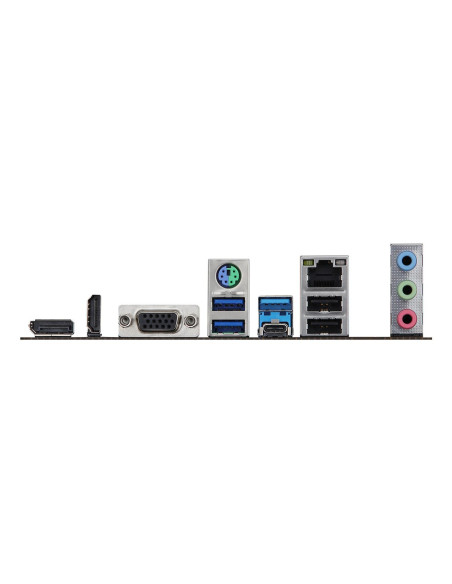

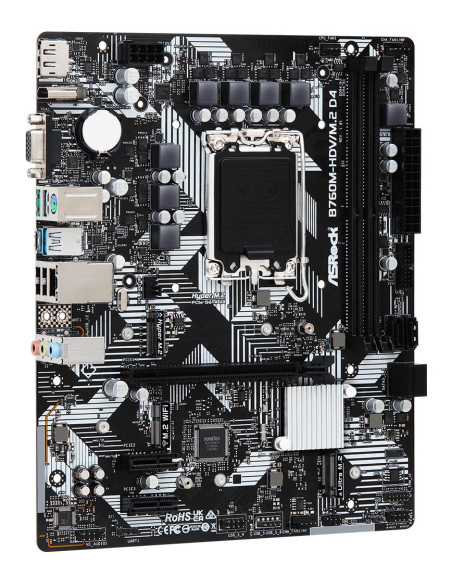

Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0

Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0

Name: Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0
Brand: ASROCK
SKU: B760M-HDV/M.2D4
Price: 78.18 EUR
Availability: InStock

Gamintojas: ASROCK

Kodas B760M-HDV/M.2D4

Yra sandėlyje

78,18 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASROCK B760M-HDV/M.2 D4. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CORE I3, INTEL CORE I5, INTEL CORE I7, INTEL CORE I9. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEMORY: 64 GB, MEMORY SLOTS T
CNCODE: 84733020
UNIT BOX HEIGHT: 0.06
UNIT BOX LENGTH: 0.28
UNIT BOX WIDTH: 0.242
MODEL: B760M-HDV/M.2 D4
CATEGORY CODE: MBI
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.004066
UNIT CALCULATED WEIGHT, KG: 0.76
DEPTH, MM: 201
WIDTH, MM: 244
CABLES INCLUDED: SATA
CERTIFICATION: - FCC, CE - ERP/EUP READY (ERP/EUP READY POWER SUPPLY IS REQUIRED)
HDCP: YES
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 EDUCATION X64/WINDOWS 11 X64
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
WI-FI: No
PROCESSOR MANUFACTURER: Intel
USB 2.0 PORTS QUANTITY: 2
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
VGA (D-SUB) PORTS QUANTITY: 1
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL CORE I9
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 64
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: Intel B760
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL CONNECTOR: YES
MEMORY SLOTS TYPE: DIMM
USB 2.0 CONNECTORS: 3
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
PS/2 PORTS QUANTITY: 1
NUMBER OF M.2 (M) SLOTS: 1
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 3200/4400/5333
CHASSIS INTRUSION CONNECTOR: YES
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8111H
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
MAXIMUM NUMBER OF SMP PROCESSORS: 1
