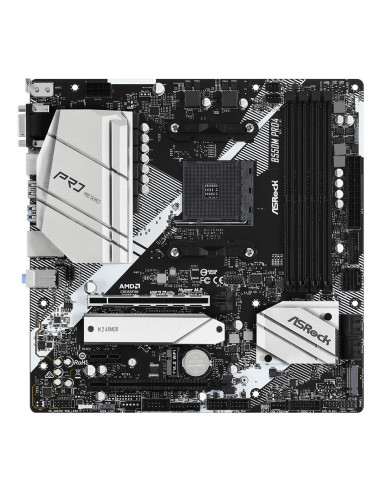

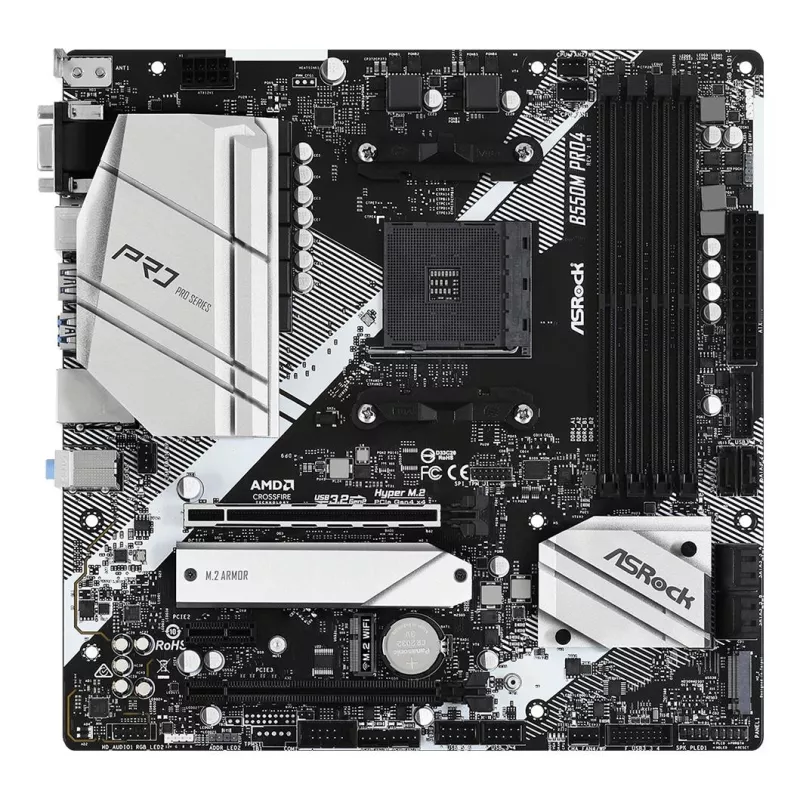

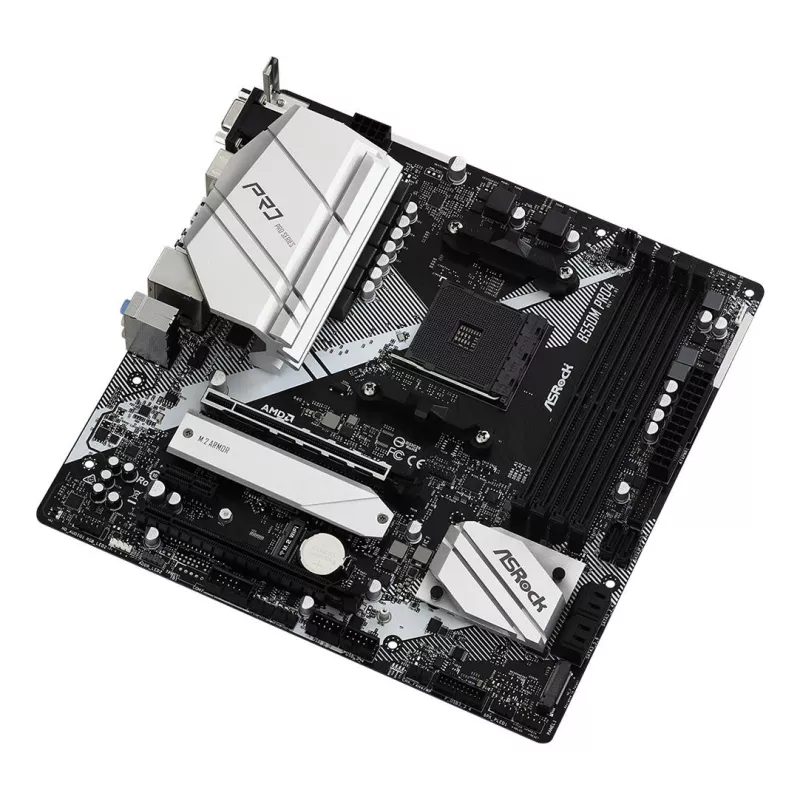

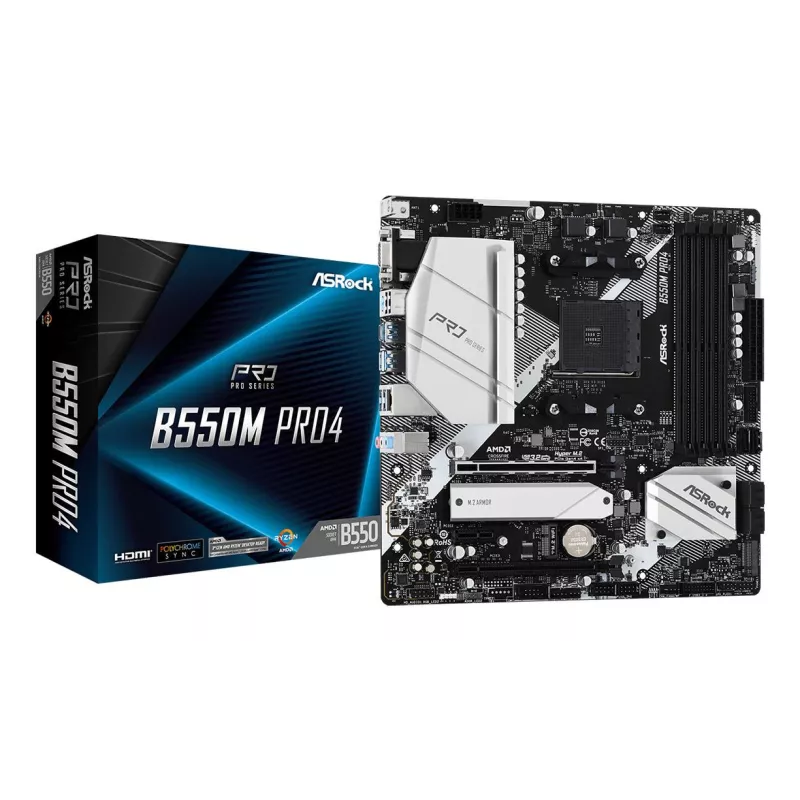

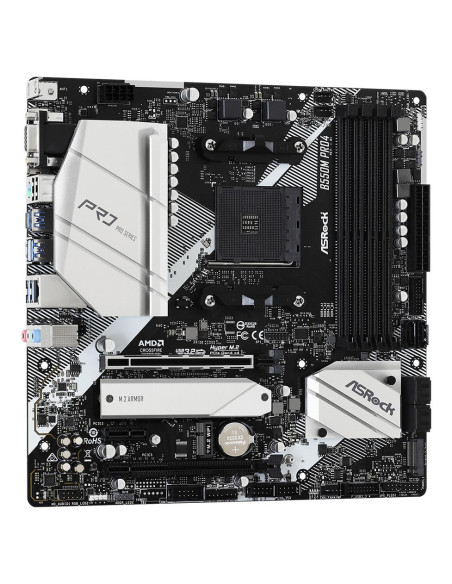

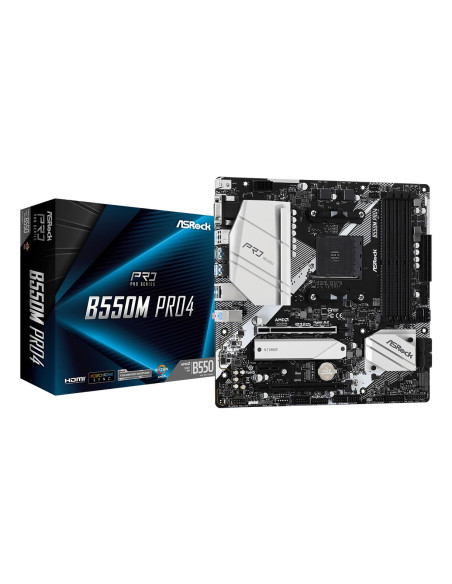

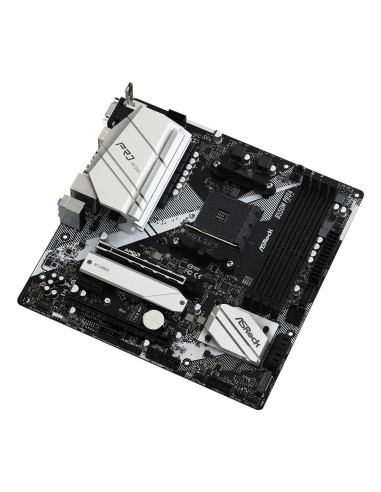

Mainboard, ASROCK, AMD B550, SAM4, MicroATX, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2, 1xPCI-Express 4.0 16x, Memory

Mainboard, ASROCK, AMD B550, SAM4, MicroATX, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2, 1xPCI-Express 4.0 16x, Memory

Name: Mainboard, ASROCK, AMD B550, SAM4, MicroATX, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2, 1xPCI-Express 4.0 16x, Memory
Brand: ASROCK
SKU: B550MPRO4
Price: 94.59 EUR
Availability: InStock

Gamintojas: ASROCK

Kodas B550MPRO4

Yra sandėlyje

94,59 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

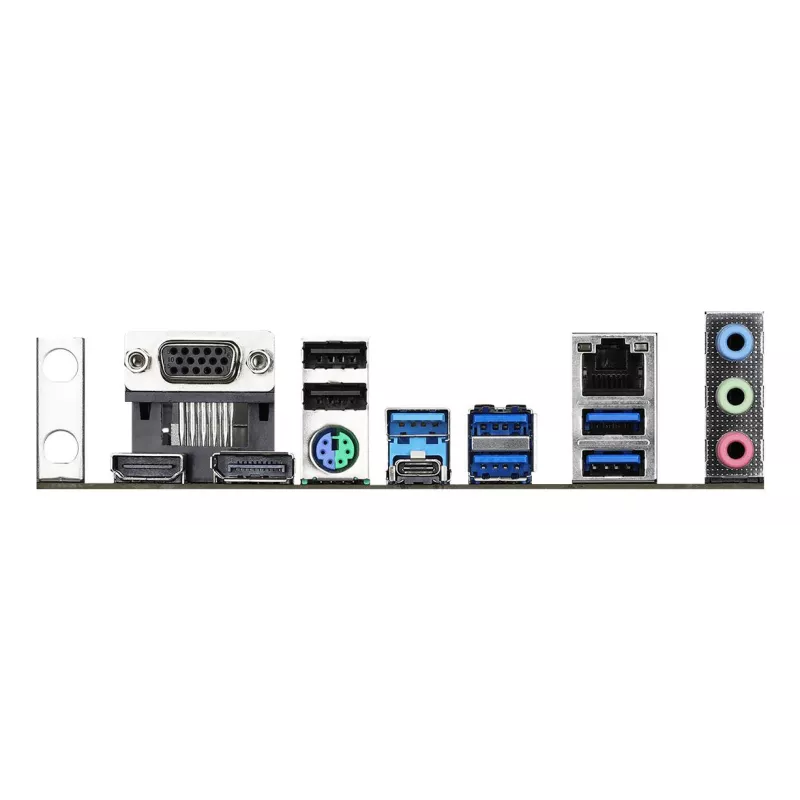

AMD B550 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Series AMD Ryzen 3000 Series , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 5120 x 2880 pixels , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity , Weight 465 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASROCK B550M PRO4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEMORY: 128 GB, MEMORY SLOTS TYPE: DIMM. SUPPORTED STORAGE DRIVE INTERFA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.26
UNIT BOX LENGTH: 0.06
UNIT BOX WIDTH: 0.28
CATEGORY CODE: MBA
UNITS PER SHIPPING BOX: 20
UNIT CALCULATED VOLUME, CUBM: 0.005011
UNIT CALCULATED WEIGHT, KG: 1.39
DEPTH, MM: 244
HEIGHT, MM: 70
WEIGHT, G: 465
WIDTH, MM: 244
CABLES INCLUDED: SATA
HARMONIZED SYSTEM (HS) CODE: 84733020
CERTIFICATION: FCC, CE ERP/EUP READY (ERP/EUP READY POWER SUPPLY IS REQUIRED)
NUMBER OF DISPLAYS SUPPORTED: 3
HDCP: YES
HDMI VERSION: 2.1
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
MAXIMUM RESOLUTION, PIXELS: 5120 X 2880
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
WI-FI: No
DRIVERS INCLUDED: YES
PROCESSOR MANUFACTURER: AMD
USB 2.0 PORTS QUANTITY: 2
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
WAKE-ON-LAN READY: YES
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: CROSSFIREX/QUAD-GPU CROSSFIREX
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
VGA (D-SUB) PORTS QUANTITY: 1
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
PROCESSOR SOCKET: SOCKET AM4
MAXIMUM INTERNAL MEMORY, GB: 128
AUDIO CHIP: REALTEK ALC1200
MOTHERBOARD CHIPSET: AMD B550
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: CPU/FAN/TEMPERATURE/VOLTAGE
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
PS/2 PORTS QUANTITY: 1
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 4733
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733
NUMBER OF COM CONNECTORS: 1
TPM CONNECTOR: YES
SUPPORTED MEMORY MODULE CAPACITIES: 16GB/32GB/4GB/8GB
LAN CONTROLLER: REALTEK RTL8111H
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.1
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.3
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
MAXIMUM NUMBER OF SMP PROCESSORS: 1
NUMBER OF SATA II CONNECTORS: 6
