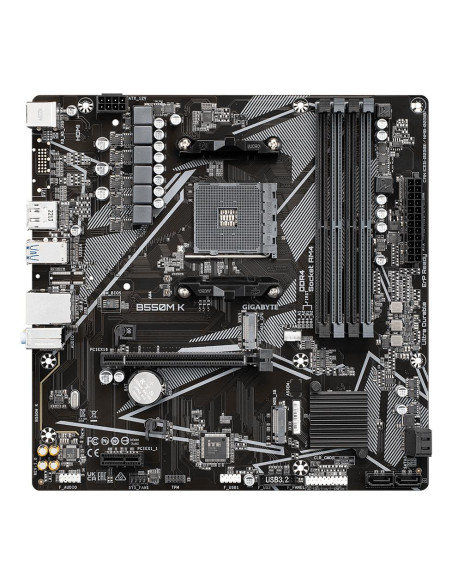

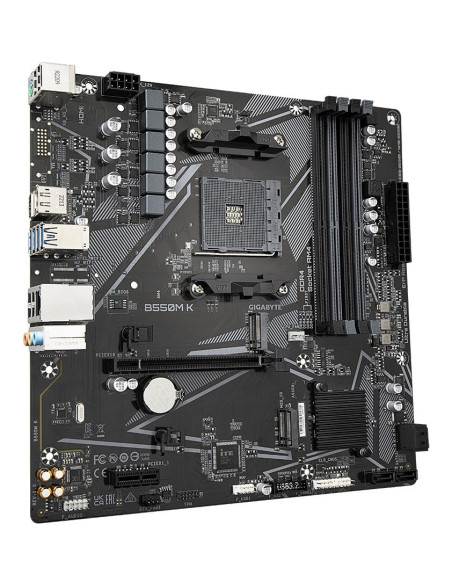

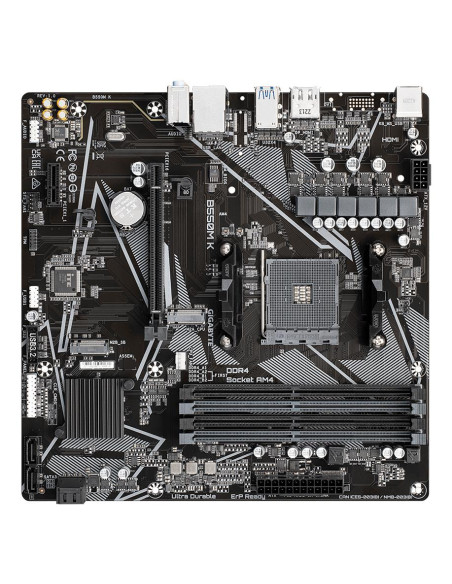

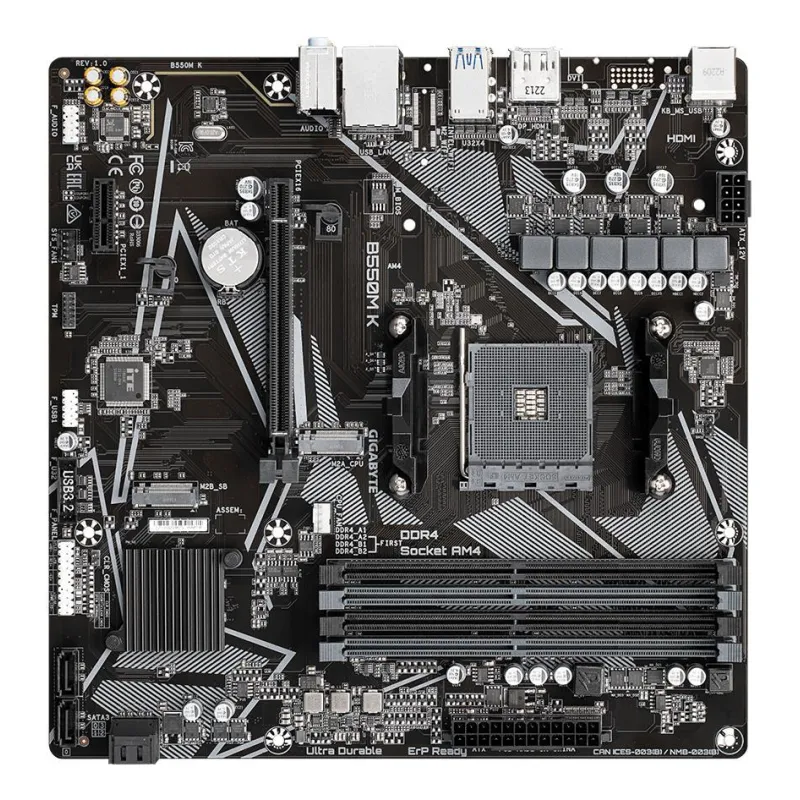

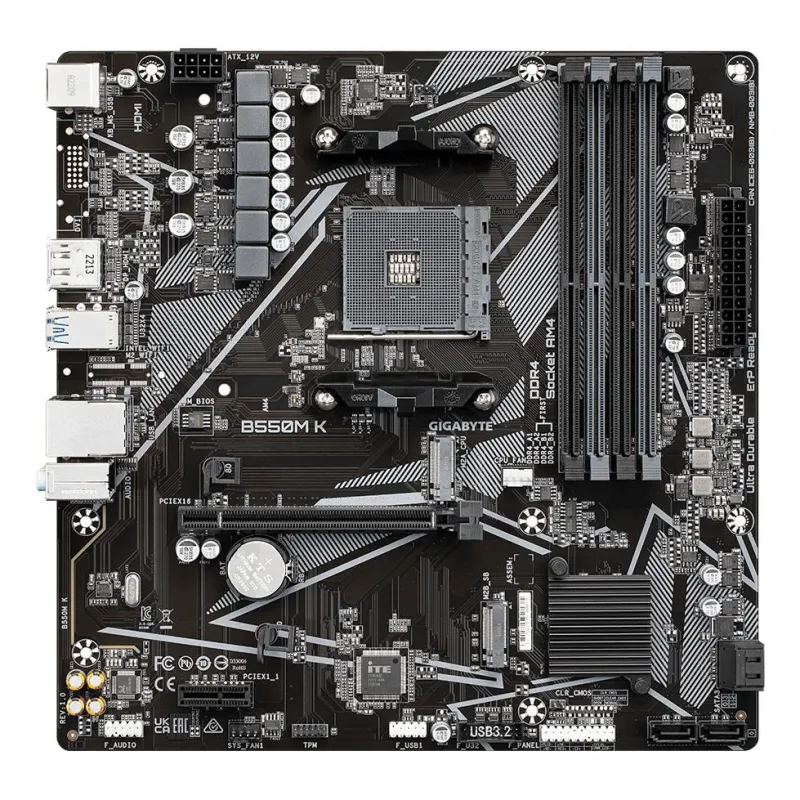

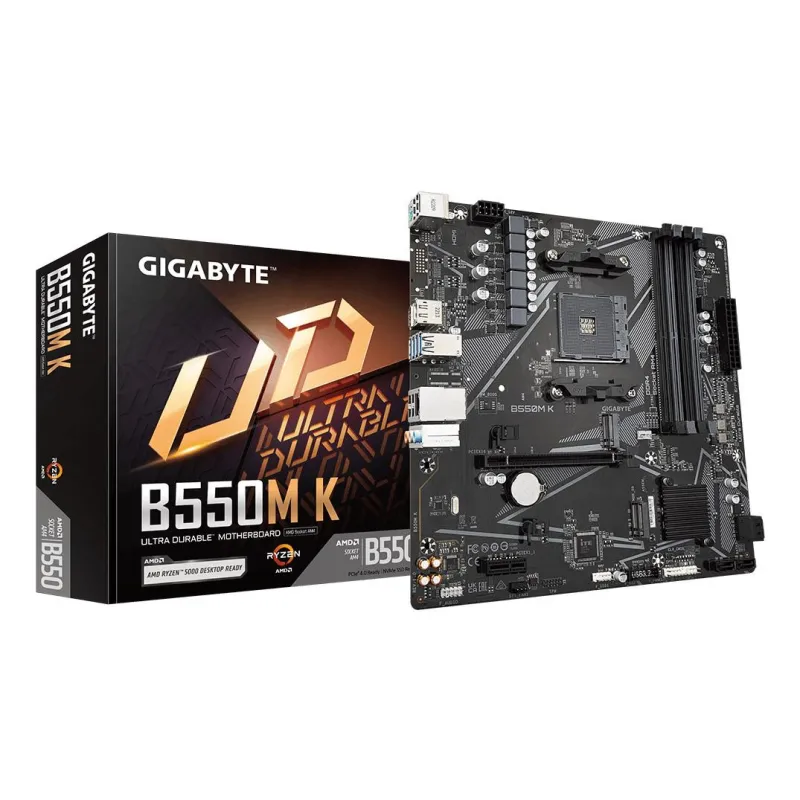

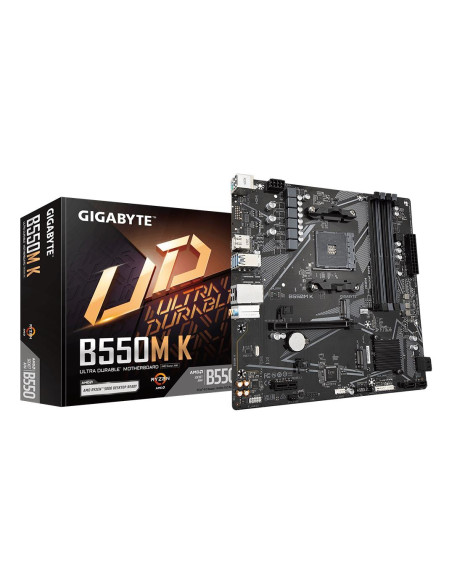

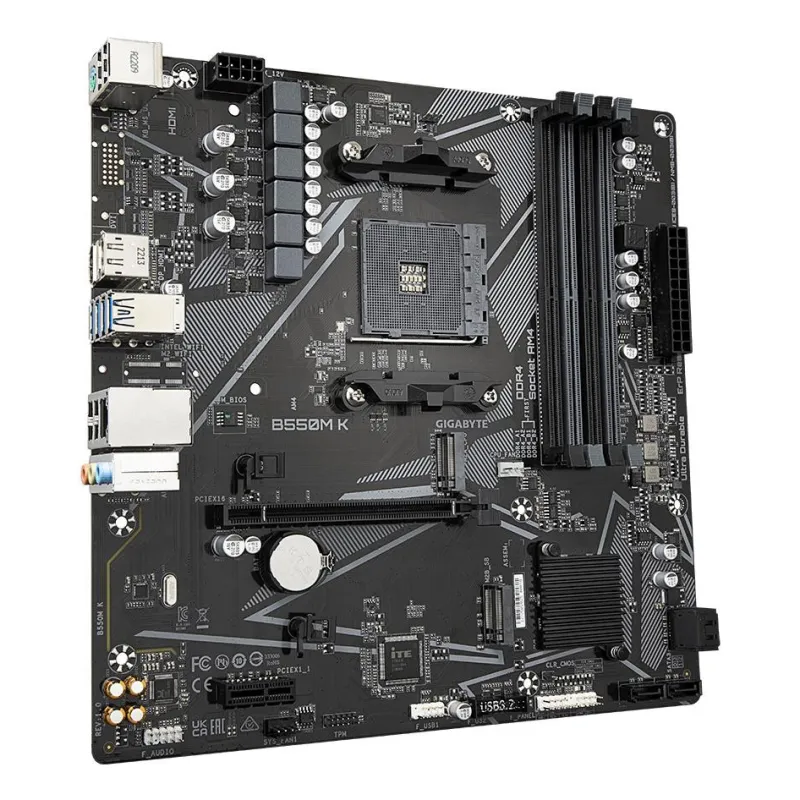

Mainboard, GIGABYTE, AMD B550, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2

Mainboard, GIGABYTE, AMD B550, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2

Name: Mainboard, GIGABYTE, AMD B550, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2
Brand: GIGABYTE
SKU: B550MK
Price: 76.54 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B550MK

Yra sandėlyje

76,54 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD B550 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA , 5120 x 2880 pixels , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B550M K MOTHERBOARD - AMD RYZEN 5000 CPUS, UP TO 4733MHZ DDR4, 1XPCIE 4.0 + 1XPCIE 3.0 M.2, 1GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES, AMD RYZEN 4000 SER
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.27
COMPONENT FOR: PC
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 244
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.004794
UNIT CALCULATED WEIGHT, KG: 0.883
MODEL: B550M K
WARRANTY PERIOD, YEAR(S): 3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 4000 SERIES/AMD RYZEN 5000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
PRODUCT COLOUR: BROWN
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 837
PACKAGE WIDTH, MM: 265
SCREWS INCLUDED: YES
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
COUNTRY OF ORIGIN: CHINA
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM4
MEMORY CHANNELS: DODECA-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 128
COOLING TYPE: PASSIVE
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
MOTHERBOARD CHIPSET: AMD B550
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
PS/2 PORTS QUANTITY: 1
WI-FI: No
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
2ND M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
ETHERNET LAN: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 4733
NUMBER OF HDDS SUPPORTED: 2
MICROPHONE IN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
HDMI VERSION: 2.1
HEADPHONE OUTPUTS: 1
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
POWER SOURCE TYPE: ATX
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
DIRECTX VERSION: 12.0
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 5120 X 2880
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
TPM CONNECTOR: YES
DISPLAYPORT VERSION: 1.4
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERIES INCLUDED: YES
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
DISPLAYPORTS QUANTITY: 1
USB 2.0 PORTS QUANTITY: 4
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
