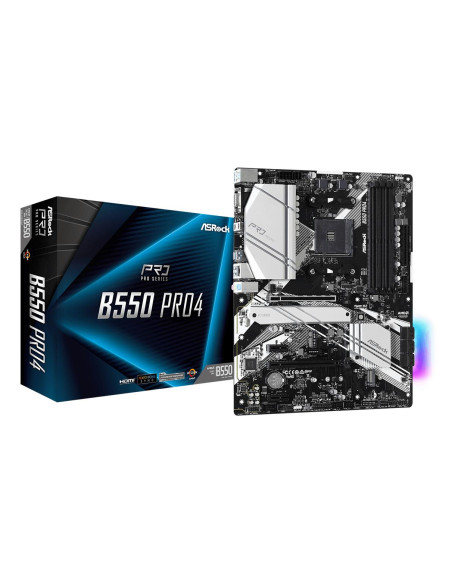

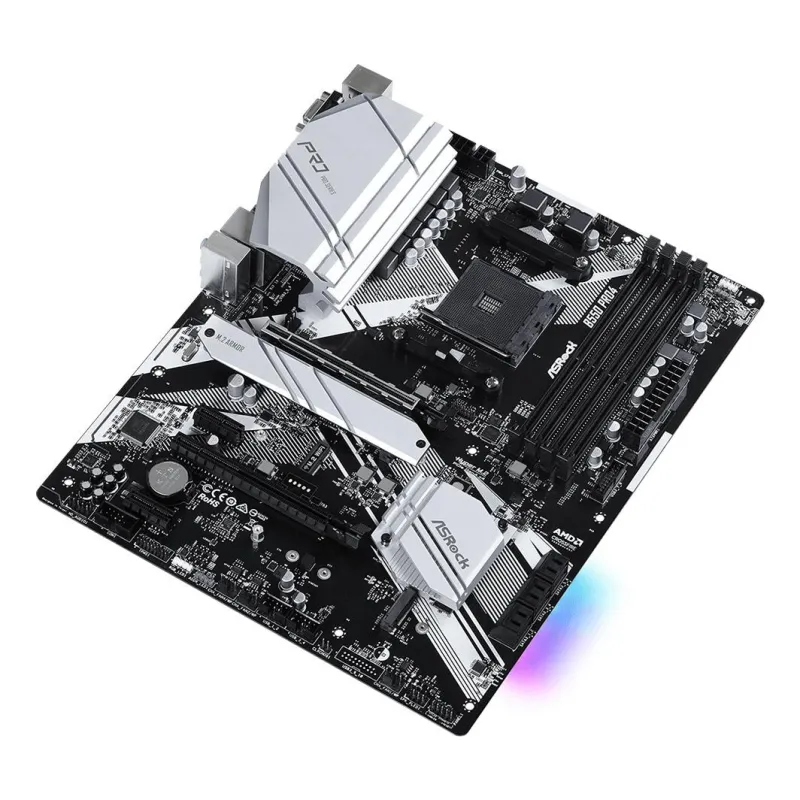

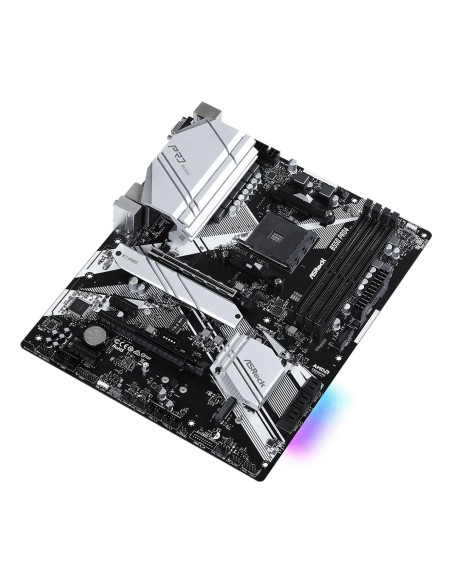

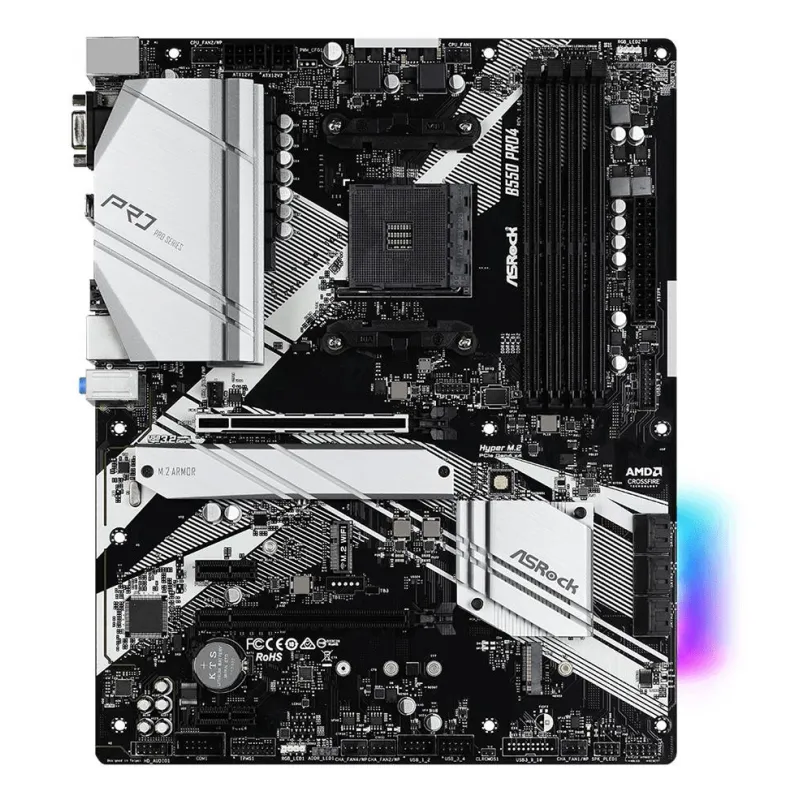

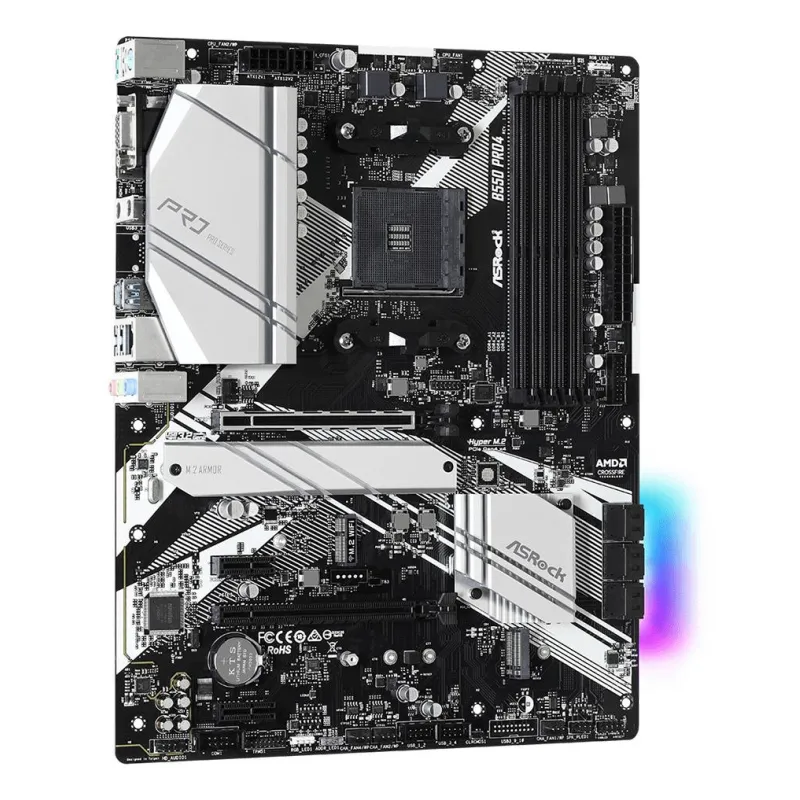

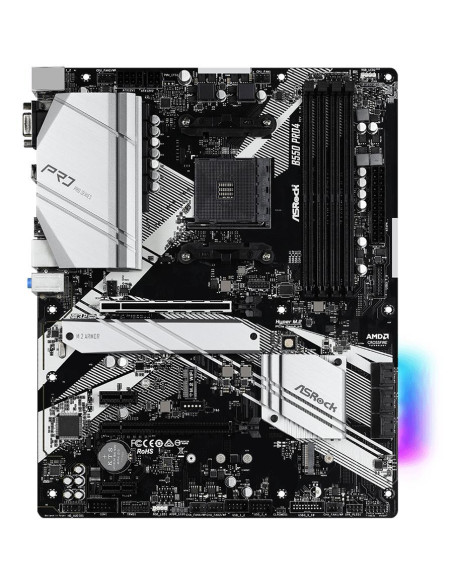

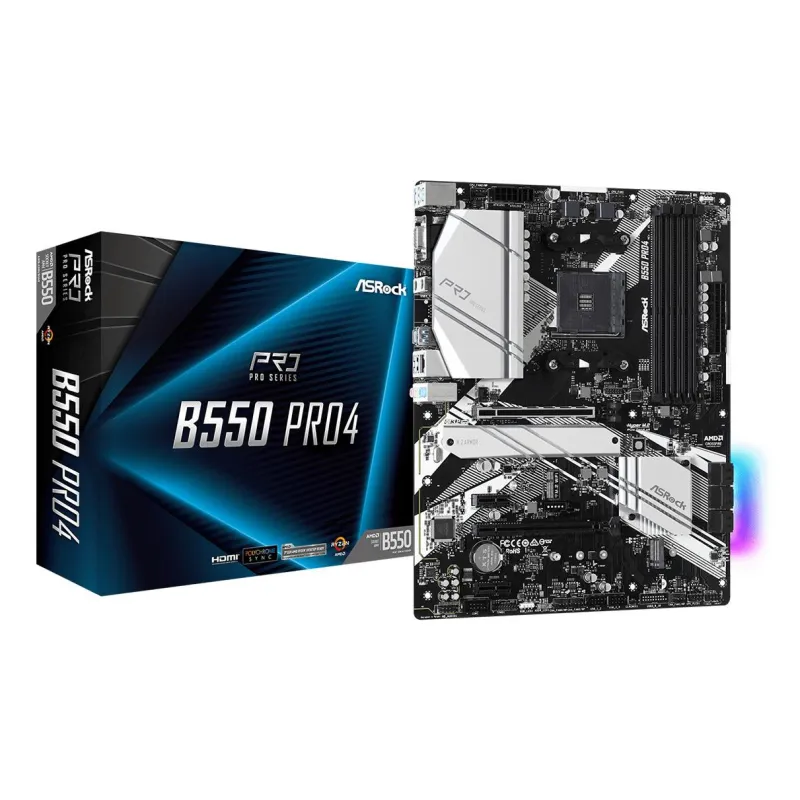

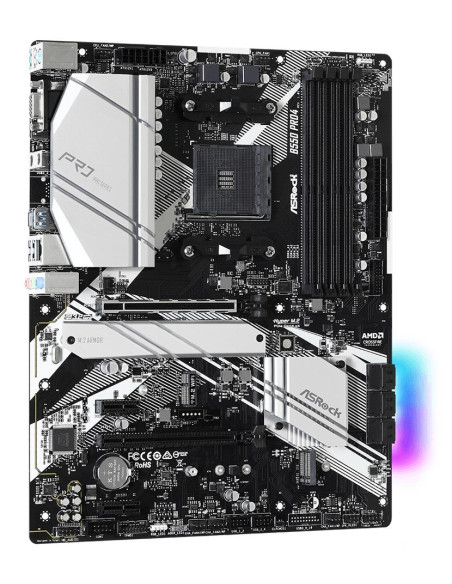

Mainboard, ASROCK, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 2xM.2, 1xPCI-Express 4.0 16x, Memory DDR4,

Mainboard, ASROCK, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 2xM.2, 1xPCI-Express 4.0 16x, Memory DDR4,

Name: Mainboard, ASROCK, AMD B550, SAM4, ATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 2xM.2, 1xPCI-Express 4.0 16x, Memory DDR4,
Brand: ASROCK
SKU: B550PRO4
Price: 95.81 EUR
Availability: InStock

Gamintojas: ASROCK

Kodas B550PRO4

Paskutinė prekė

95,81 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

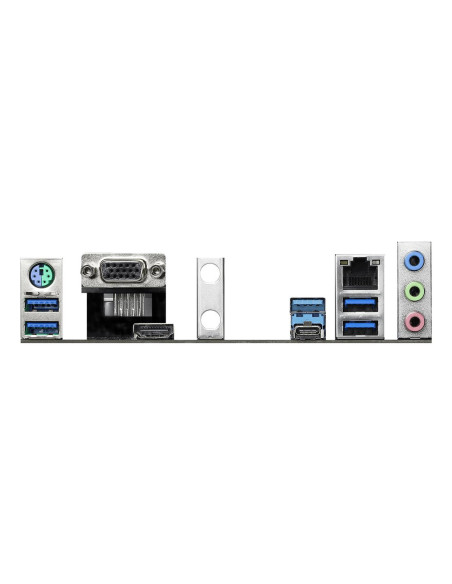

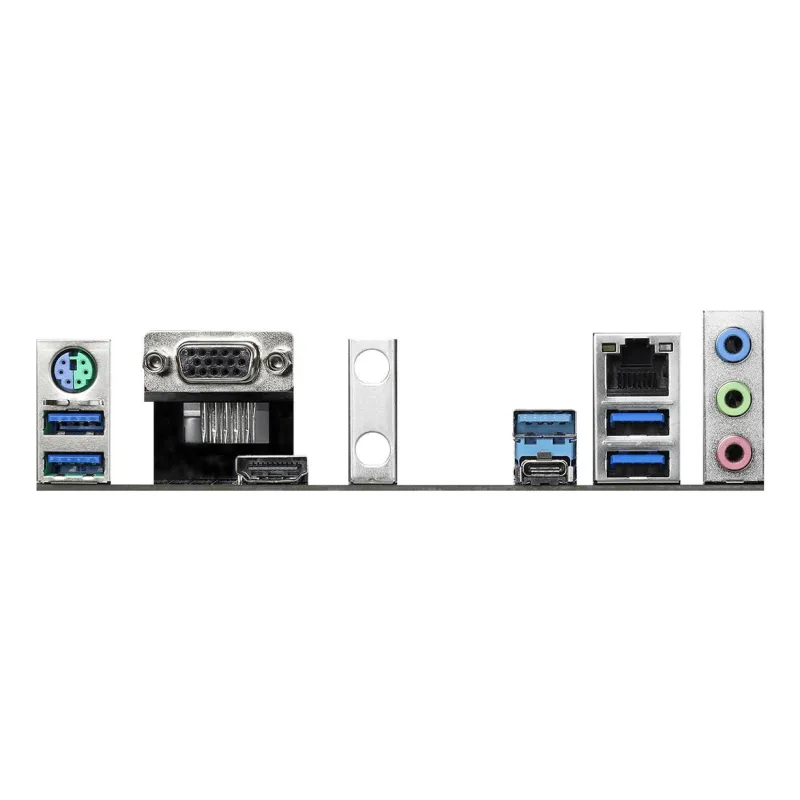

AMD B550 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity , Weight 465 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASROCK B550 PRO4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEMORY: 128 GB, MEMORY SLOTS TYPE: DIMM. SUPPORTED STORAGE DRIVE INTERFAC
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.36
UNIT BOX LENGTH: 0.89
UNIT BOX WIDTH: 0.04
PROCESSOR MANUFACTURER: AMD
MAXIMUM INTERNAL MEMORY, GB: 128
WI-FI: No
ETHERNET LAN (RJ-45) PORTS: 1
MICROPHONE IN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
AUDIO CHIP: REALTEK ALC1200
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: AMD B550
DEPTH, MM: 244
HEIGHT, MM: 87
WEIGHT, G: 465
WIDTH, MM: 305
ETHERNET LAN: YES
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.01282
UNIT CALCULATED WEIGHT, KG: 2
PS/2 PORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
MEMORY SLOTS TYPE: DIMM
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
MEMORY CHANNELS: DUAL-CHANNEL
PROCESSOR SOCKET: SOCKET AM4
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
COMPONENT FOR: PC
CABLES INCLUDED: SATA
HARMONIZED SYSTEM (HS) CODE: 84733020
DRIVERS INCLUDED: YES
WAKE-ON-LAN READY: YES
HDCP: YES
RAID SUPPORT: YES
PARALLEL PROCESSING TECHNOLOGY SUPPORT: CROSSFIREX/QUAD-GPU CROSSFIREX
DIRECTX VERSION: 12.0
VGA (D-SUB) PORTS QUANTITY: 1
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
PC HEALTH MONITORING: CPU/FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 6
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 4533
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533
TPM CONNECTOR: YES
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.1
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.3
NUMBER OF COM CONNECTORS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
SUPPORTED MEMORY MODULE CAPACITIES: 16GB/32GB/4GB/8GB
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
MAXIMUM NUMBER OF SMP PROCESSORS: 1
