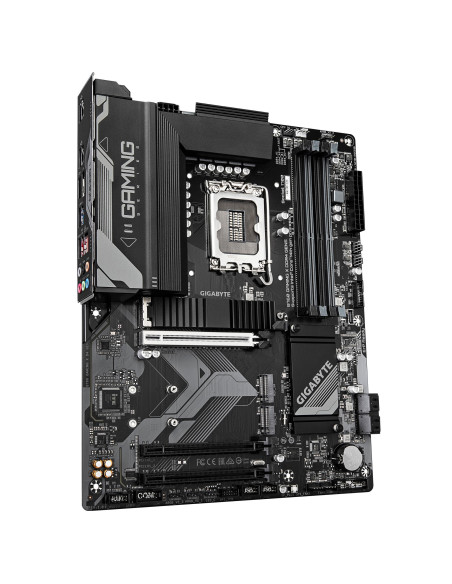

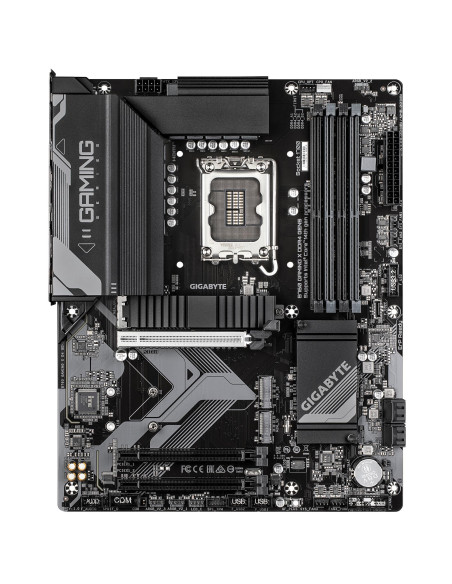

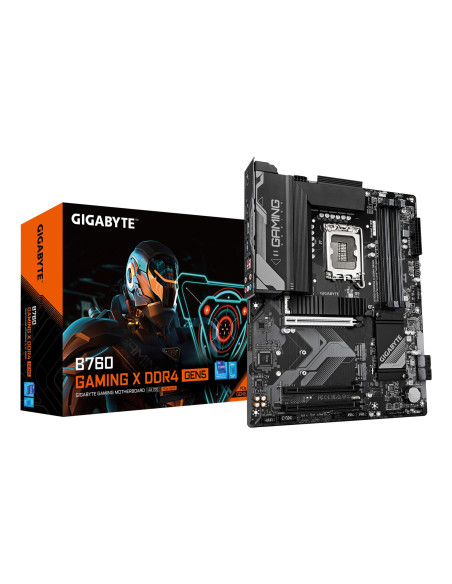

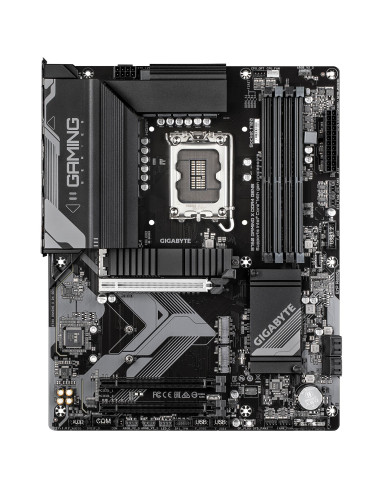

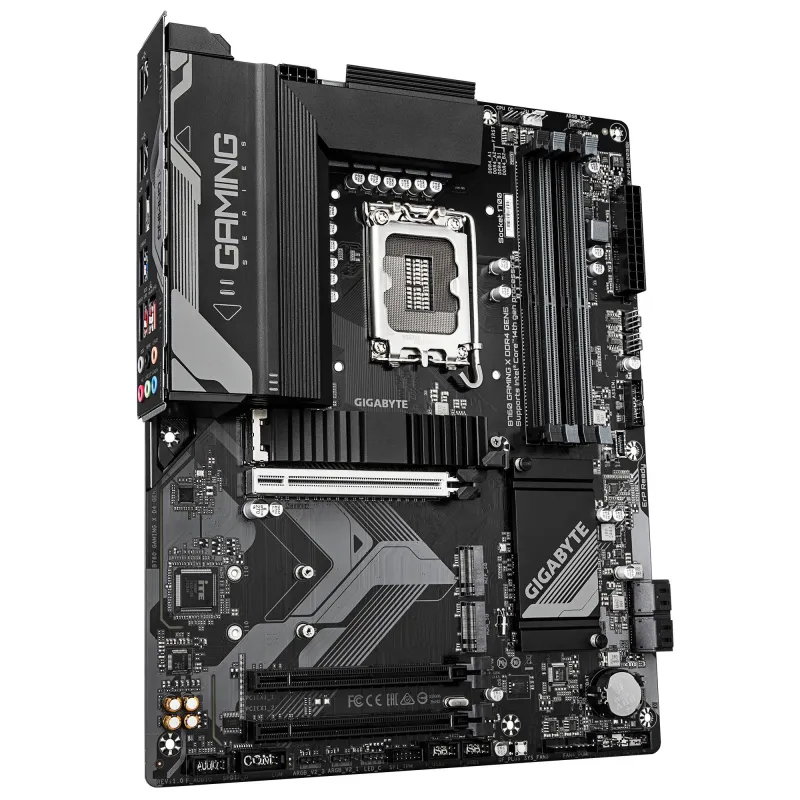

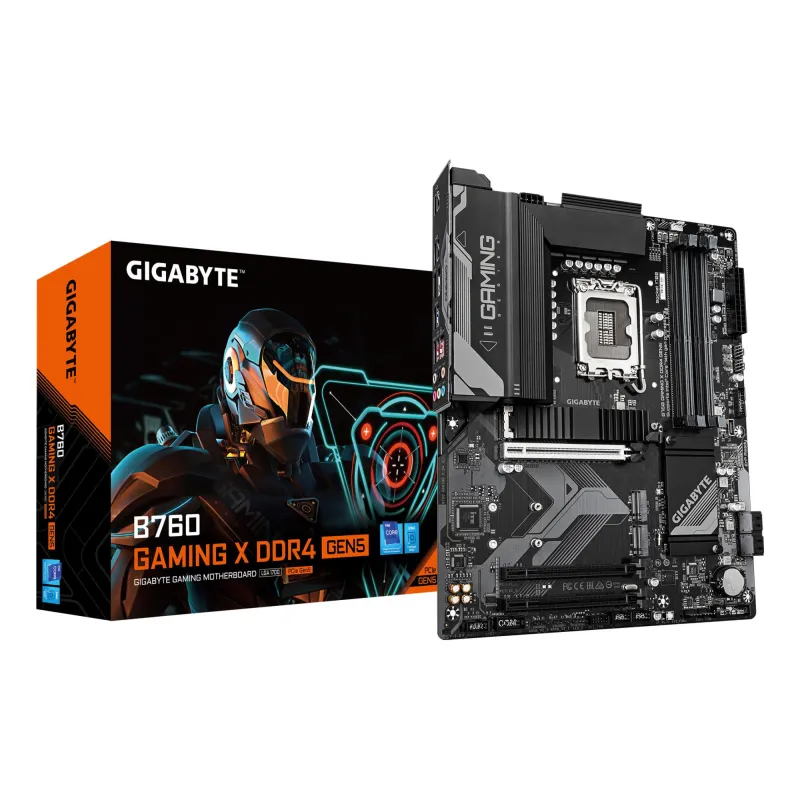

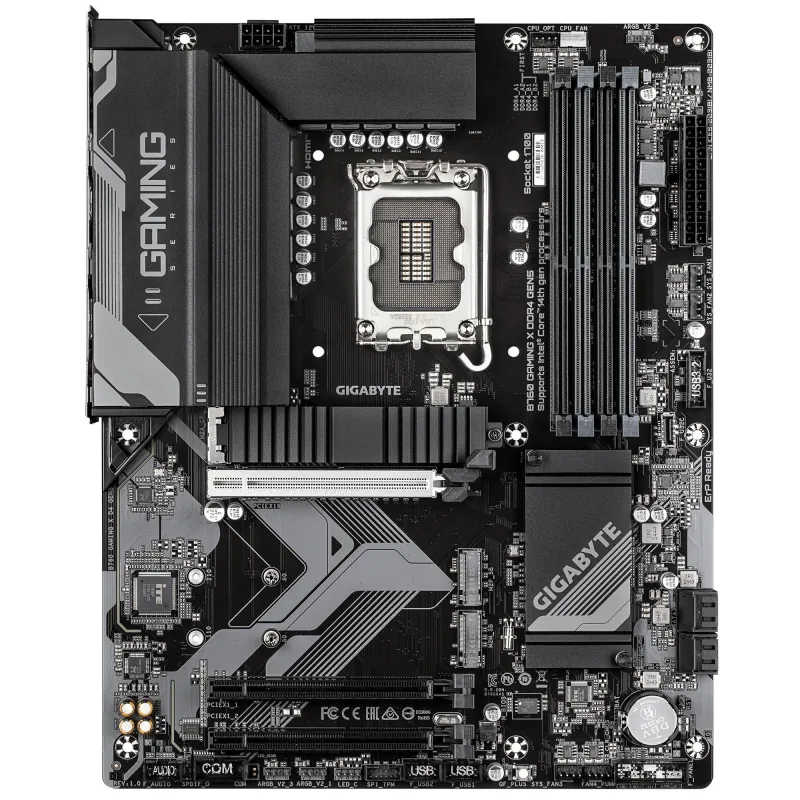

Mainboard, GIGABYTE, Intel B760, LGA 1700, ATX, RAM DDR4-SDRAM, 4xSlots, 3xNumber of M.2 (M) slots, B760GAMINGXD4GEN5

Mainboard, GIGABYTE, Intel B760, LGA 1700, ATX, RAM DDR4-SDRAM, 4xSlots, 3xNumber of M.2 (M) slots, B760GAMINGXD4GEN5

Name: Mainboard, GIGABYTE, Intel B760, LGA 1700, ATX, RAM DDR4-SDRAM, 4xSlots, 3xNumber of M.2 (M) slots, B760GAMINGXD4GEN5
Brand: GIGABYTE
SKU: B760 GAMING X D4 GEN5
Price: 128.85 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760 GAMING X D4 GEN5

Yra sandėlyje

128,85 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2304 pixels , 5xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 1.59 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B760 GAMING X DDR4 GEN5 MOTHERBOARD - SUPPORTS 14TH GEN. INTEL CORE CPUS, 8+1+1 PHASES VRM, UP TO 5333MHZ DDR4 (OC), 3XPCIE 4.0 M.2, 2.5GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.335
PRODUCT COLOUR: DARK BROWN
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 1800
PACKAGE WIDTH, MM: 335
UNIT CALCULATED VOLUME, CUBM: 0.0102
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED WEIGHT, KG: 1.79
HDCP: YES
HDMI VERSION: 2.1
WARRANTY PERIOD, YEAR(S): 3
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
WEIGHT, G: 1590
COUNTRY OF ORIGIN: CHINA
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 305
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERY TYPE: CR2032
BATTERIES INCLUDED: YES
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
POWER SOURCE TYPE: ATX
USB 2.0 PORTS QUANTITY: 5
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
DIRECTX VERSION: 12.0
COOLING TYPE: PASSIVE
WI-FI: No
ETHERNET LAN: YES
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)
COMPONENT FOR: PC
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN/INTEL CELERON
SUPPORTED PROCESSOR SOCKETS: LGA 1700
SCREWS INCLUDED: YES
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 128
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 128
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: Intel B760
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
HEADPHONE OUTPUTS: 1
LINE-IN: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
NUMBER OF M.2 (M) SLOTS: 3
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5333
S/PDIF OUT CONNECTOR: YES
TPM CONNECTOR: YES
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
NUMBER OF HDDS SUPPORTED: 4
FRONT PANEL CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF WATER PUMP CONNECTORS: 2
SERIAL PORT HEADERS: 1
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 22110
PCI EXPRESS X16 (GEN 3.X) SLOTS: 2
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
LAN CONTROLLER: REALTEK RTL8125
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 22110
