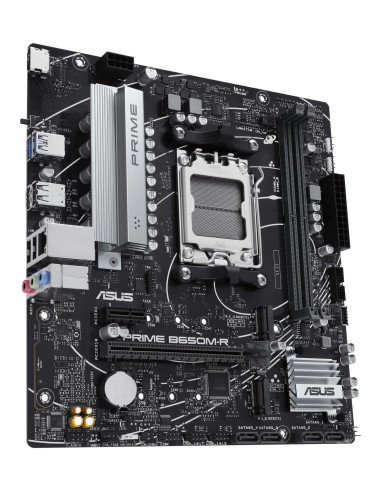

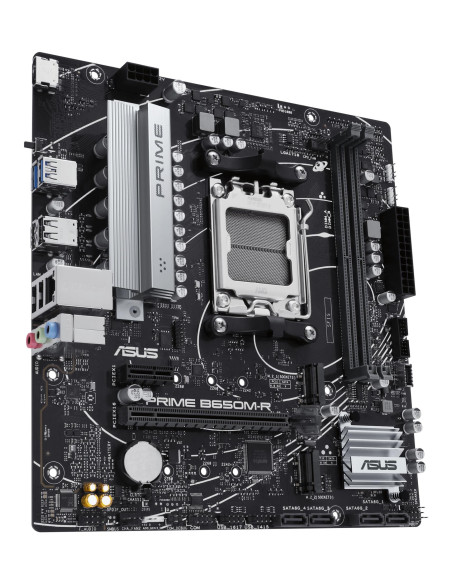

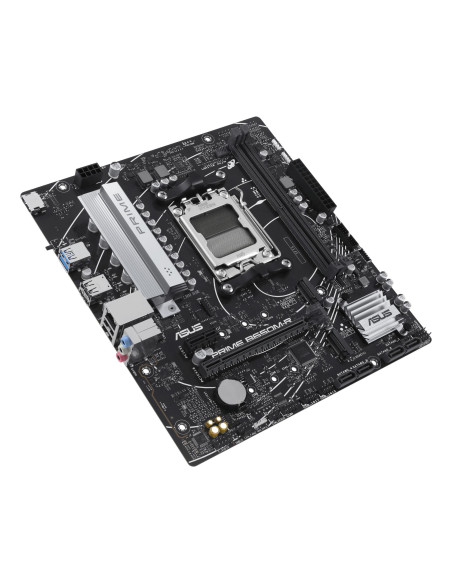

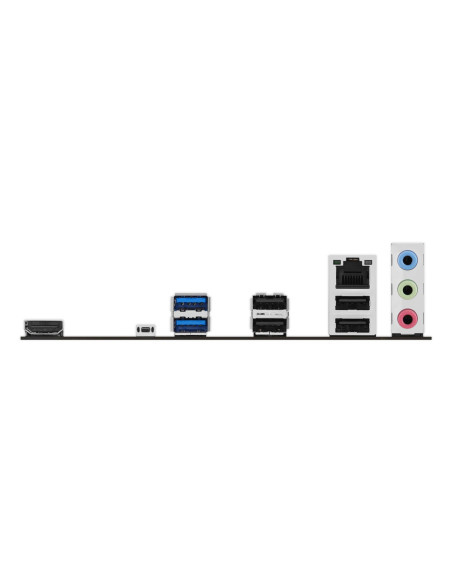

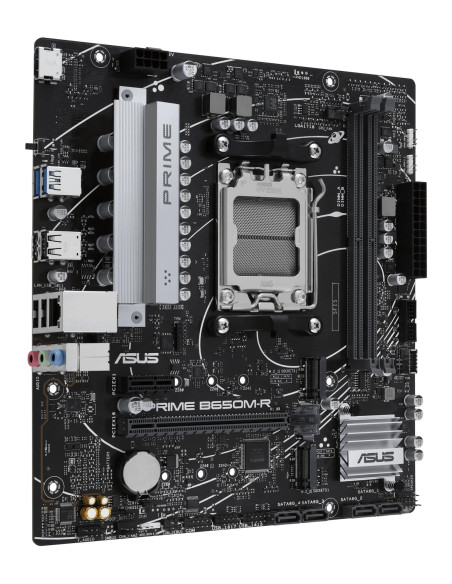

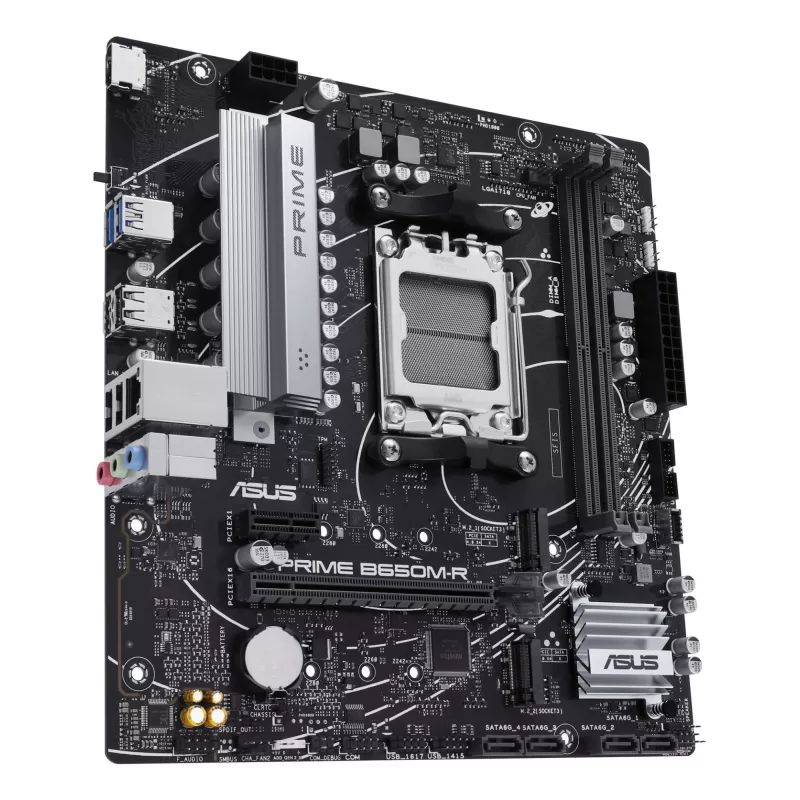

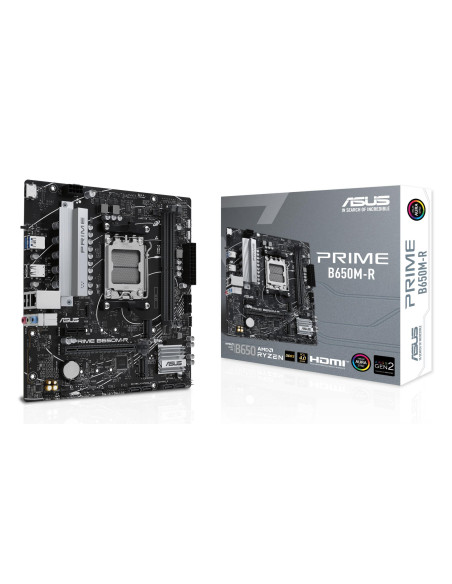

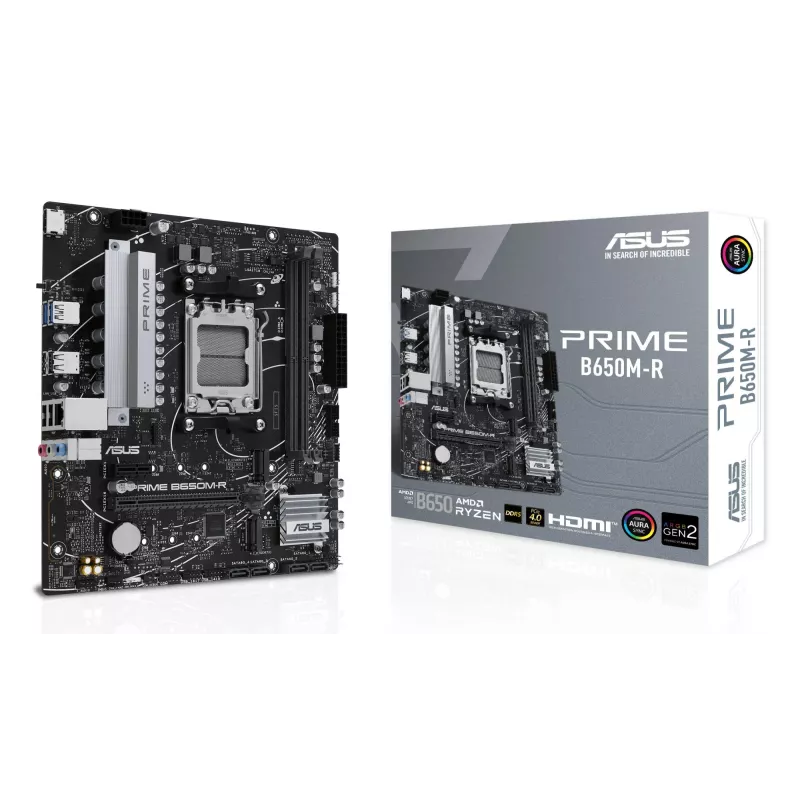

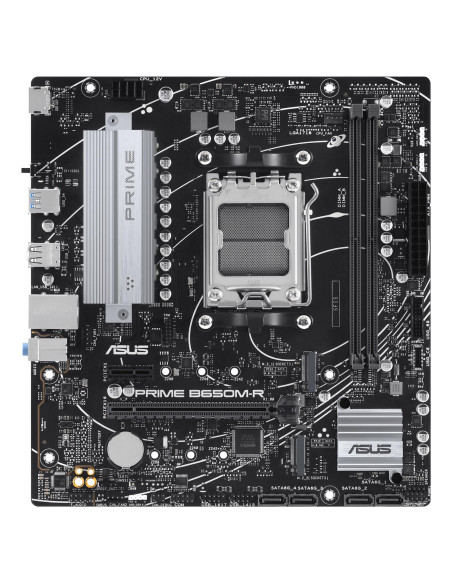

Mainboard, ASUS, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1x

Mainboard, ASUS, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1x

Name: Mainboard, ASUS, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1x
Brand: ASUS
SKU: PRIMEB650M-R
Price: 101.6 EUR
Availability: InStock

Gamintojas: ASUS

Kodas PRIMEB650M-R

Yra sandėlyje

101,60 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

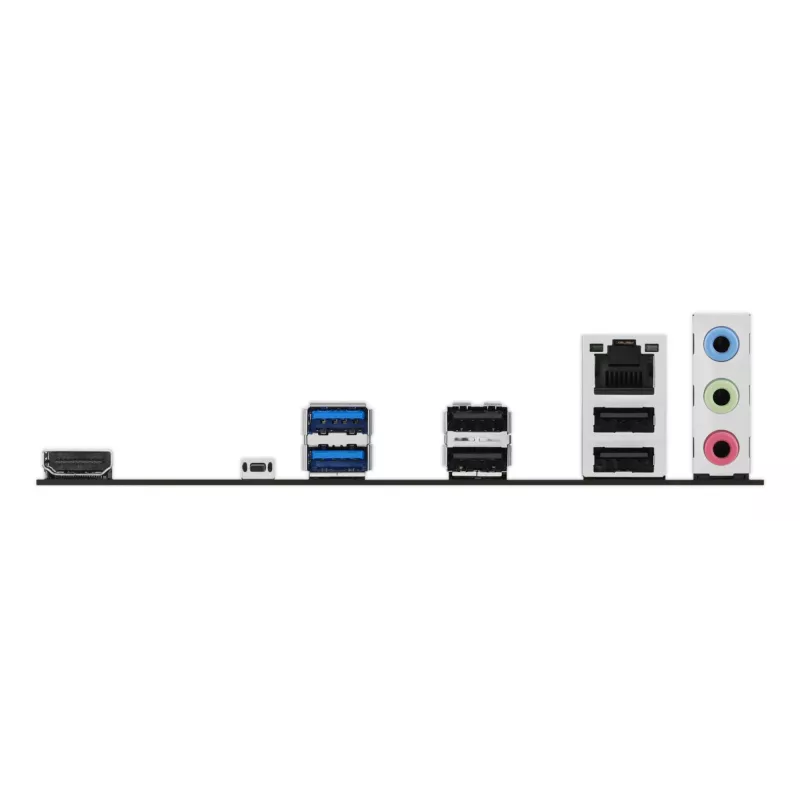

AMD B650 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS PRIME B650M-R. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 8000 SERIES, AMD RYZEN 7000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 96 GB, MEMORY SLOTS TYPE: DIMM. SUPPORTE
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.05
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.26
PRODUCT COLOUR: BLACK
DEPTH, MM: 221
WIDTH, MM: 236
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.004547
UNIT CALCULATED WEIGHT, KG: 1.08
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10/WINDOWS 11
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 51.5
PACKAGE WEIGHT, G: 855
PACKAGE WIDTH, MM: 260
MODEL: PRIME B650M-R
WI-FI: No

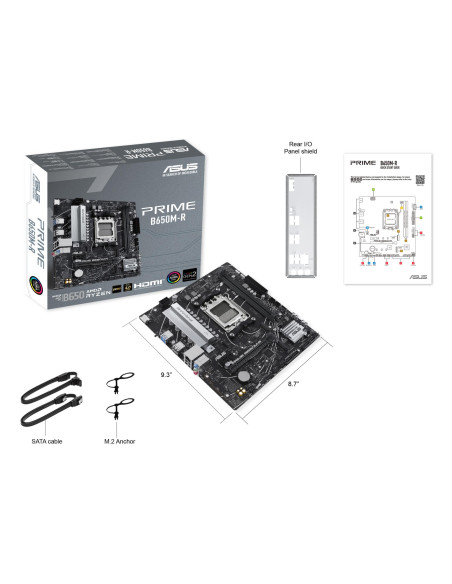

CABLES INCLUDED: SATA
PROCESSOR MANUFACTURER: AMD
USER GUIDE: YES
USB 2.0 PORTS QUANTITY: 4
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
POWER SOURCE TYPE: ATX
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY, GB: 96
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
MOTHERBOARD CHIPSET: AMD B650
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7200
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
LINE-IN: YES
NUMBER OF COM CONNECTORS: 1
PCI EXPRESS X1 (GEN 4.X) SLOTS: 1
S/PDIF OUT CONNECTOR: YES
BACK-TO-BIOS BUTTON: YES
