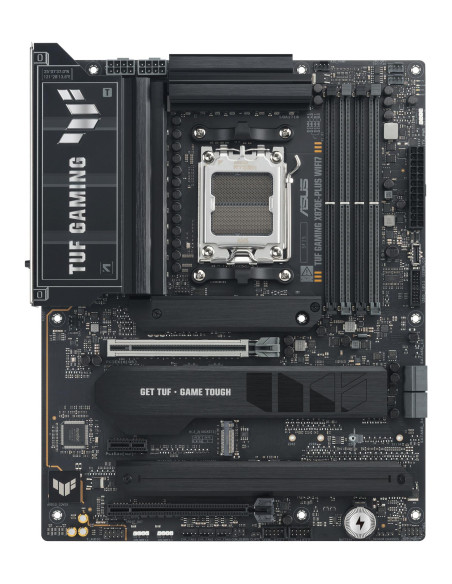

Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 1xPCI-Express

Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 1xPCI-Express

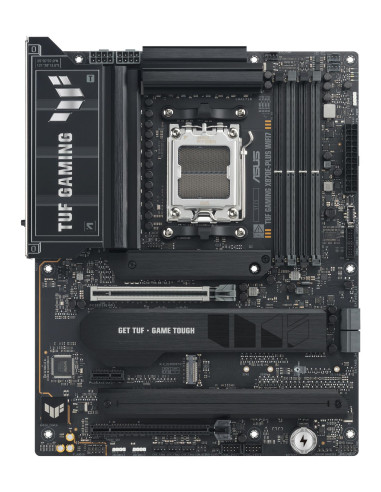

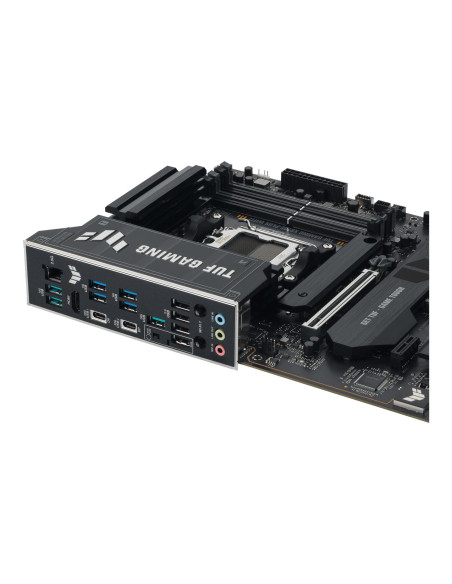

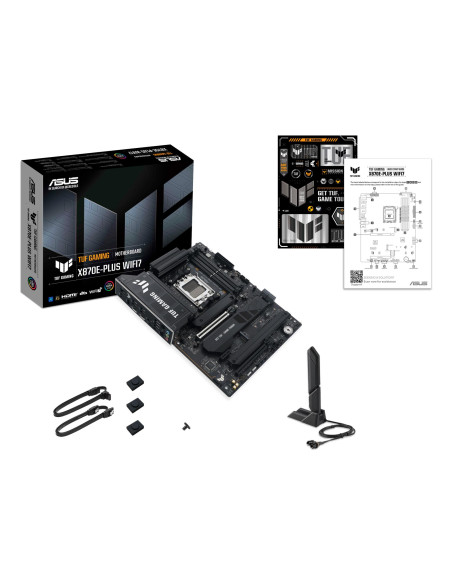

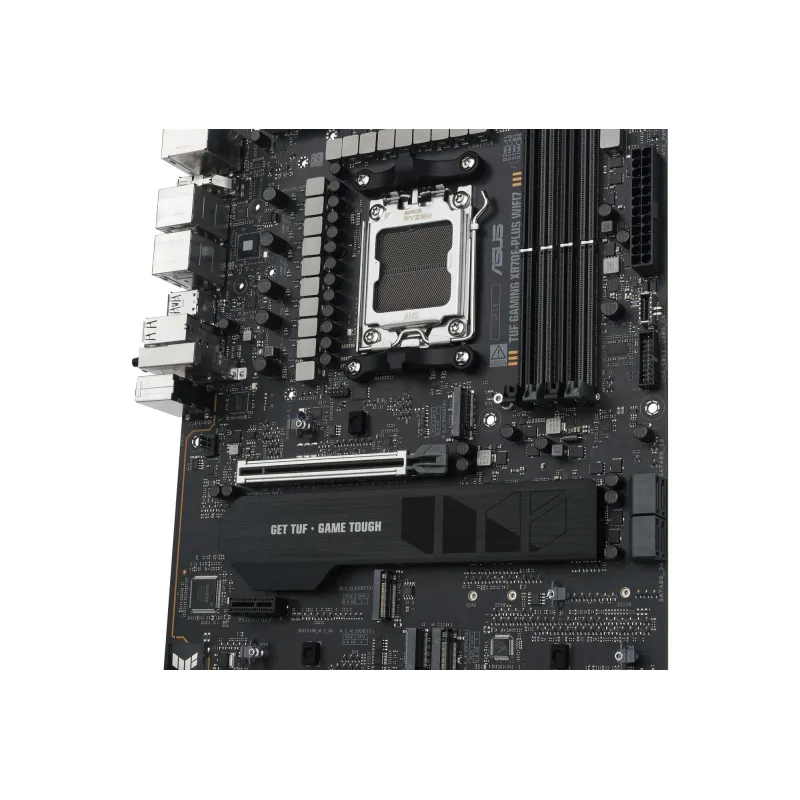

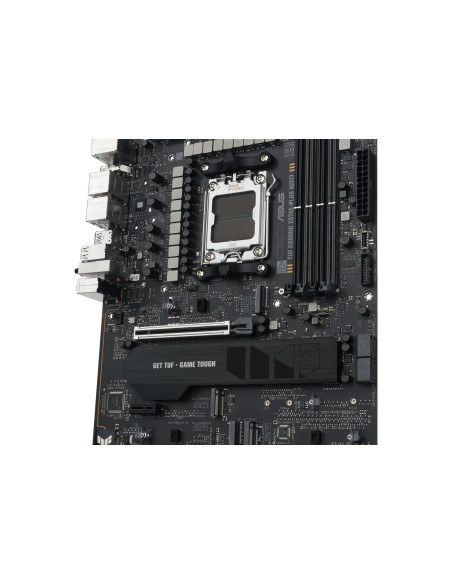

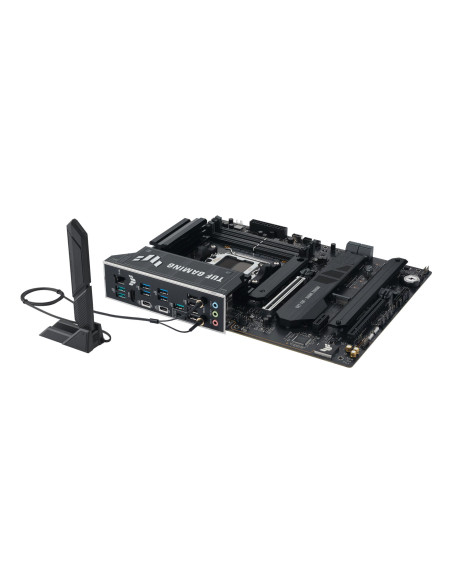

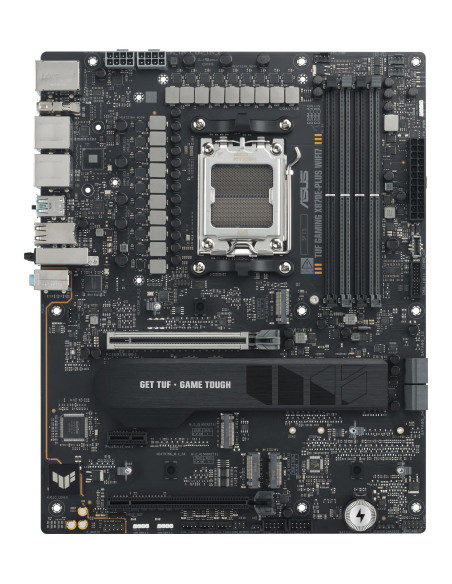

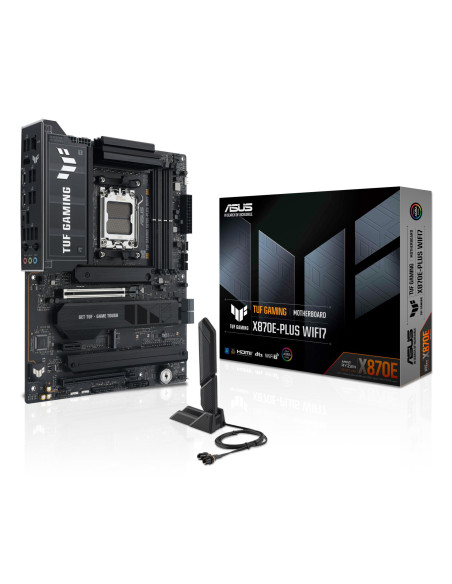

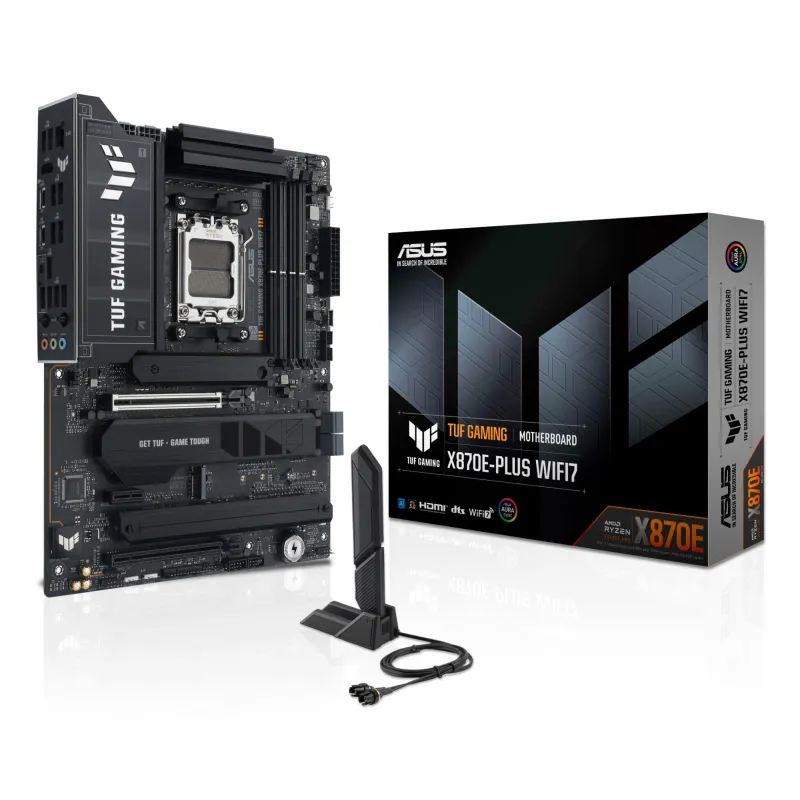

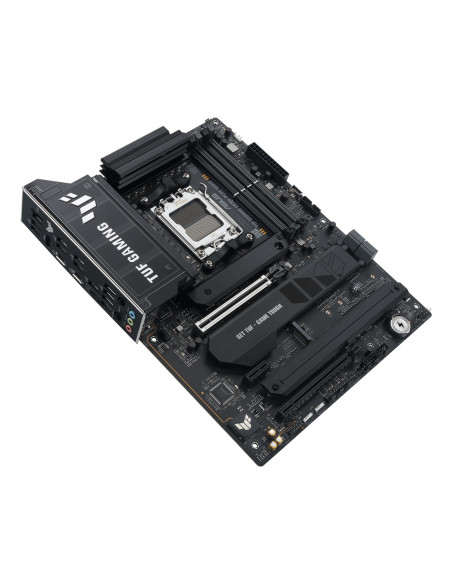

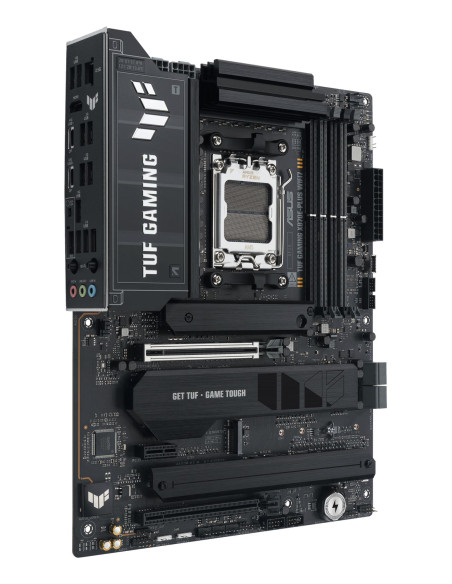

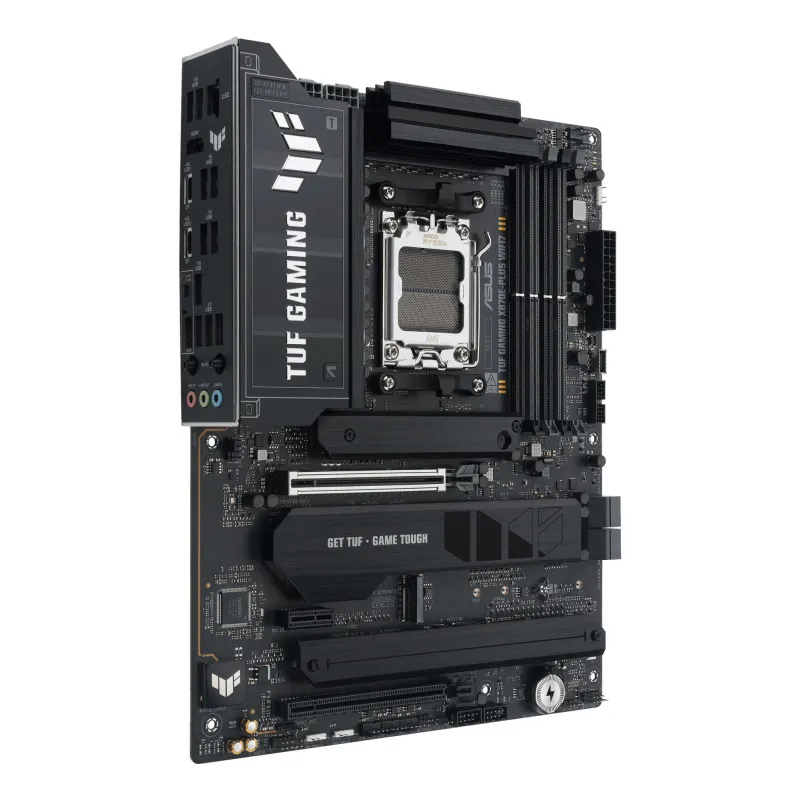

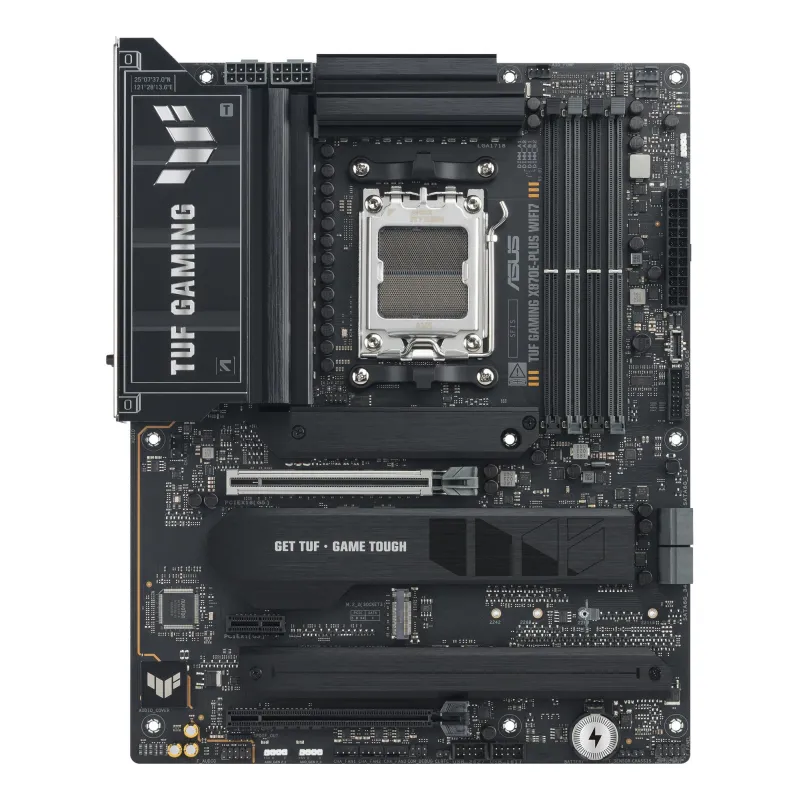

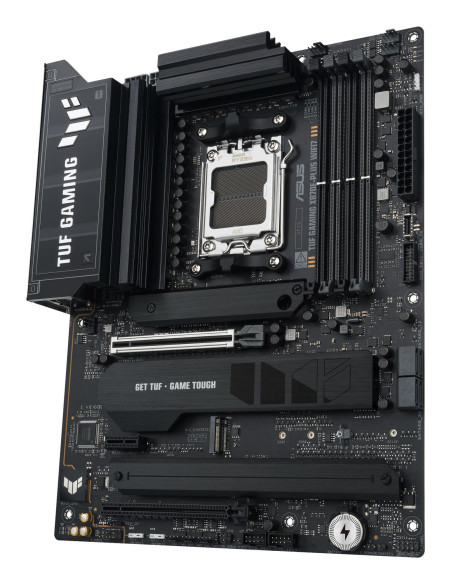

Name: Mainboard, ASUS, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 1xPCI-Express
Brand: ASUS
SKU: TUF GAMING X870E-PLUS WIFI7
Price: 314.56 EUR
Availability: InStock

Gamintojas: ASUS

Kodas TUF GAMING X870E-PLUS WIFI7

Yra sandėlyje

314,56 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

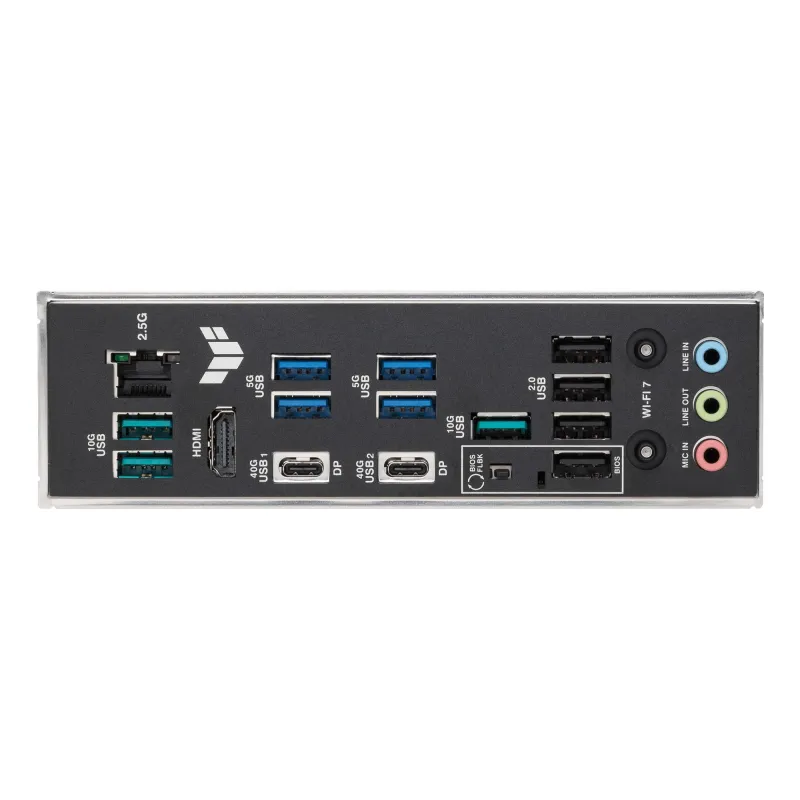

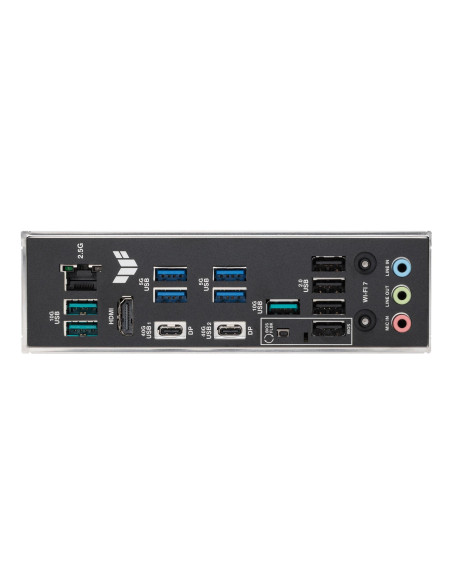

AMD X870E , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.56 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS TUF GAMING X870E-PLUS WIFI7. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 8000 SERIES, AMD RYZEN 9000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.355
UNIT BOX WIDTH: 0.275
PRODUCT COLOUR: GREY
WI-FI: Yes
WI-FI STANDARDS: WI-FI 7 (802.11BE)
DEPTH, MM: 244
HEIGHT, MM: 48
WEIGHT, G: 1560
WIDTH, MM: 305
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.008325
UNIT CALCULATED WEIGHT, KG: 2.45
PACKAGE DEPTH, MM: 273
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 2080
PACKAGE WIDTH, MM: 353
MODEL: TUF GAMING X870E-PLUS WIFI7
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
COMPONENT FOR: PC
CABLES INCLUDED: SATA
QUICK INSTALLATION GUIDE: YES
ETHERNET LAN: YES
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
BLUETOOTH: YES
BLUETOOTH VERSION: 5.4
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
POWER SOURCE TYPE: ATX
MICROPHONE IN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
SCREWS INCLUDED: YES
USB 2.0 PORTS QUANTITY: 4
PROCESSOR MANUFACTURER: AMD
ANTENNA INCLUDED: YES
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
PROCESSOR SOCKET: SOCKET AM5
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 256
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 8
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
MOTHERBOARD CHIPSET: AMD X870E
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 3
WIFI-AP ANTENNA JACK: 2
NUMBER OF M.2 (M) SLOTS: 4
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8000
FRONT PANEL CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF TEMPERATURE SENSOR HEADERS: 1
NUMBER OF WATER PUMP CONNECTORS: 1
RGB LED PIN HEADER: YES
LINE-IN: YES
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
4TH M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
4TH M.2 LARGEST KEY SIZE: 2280
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
USB4 GEN 3X2 PORTS QUANTITY: 2
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
