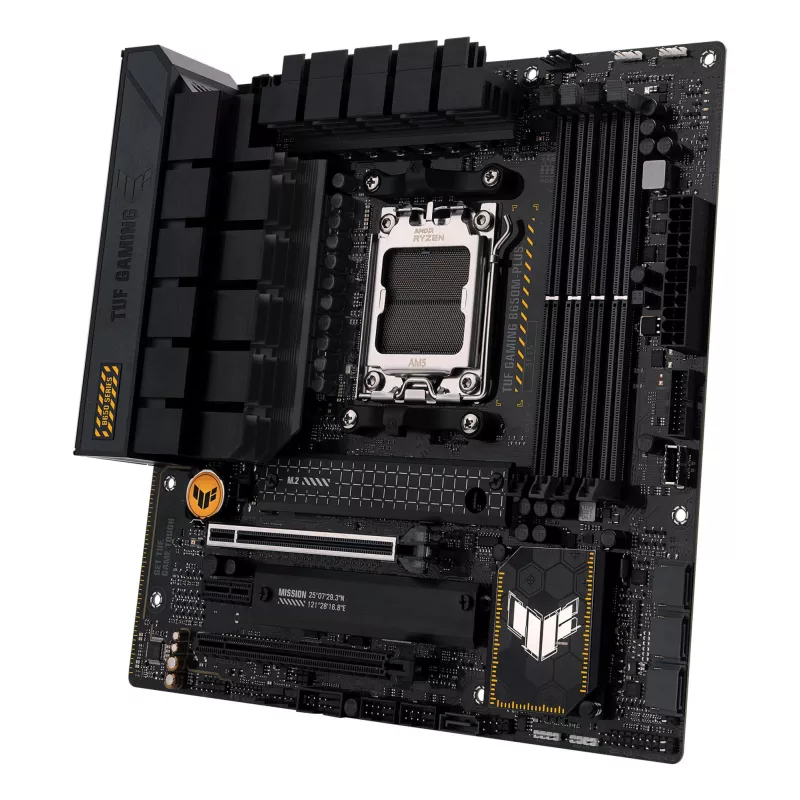

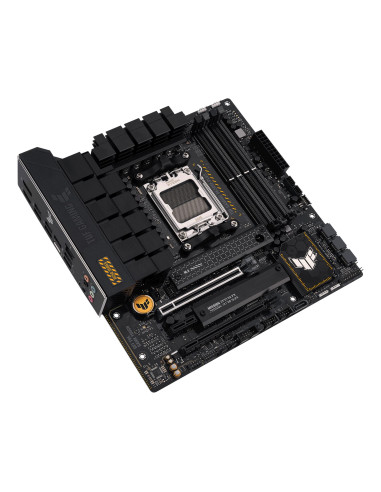

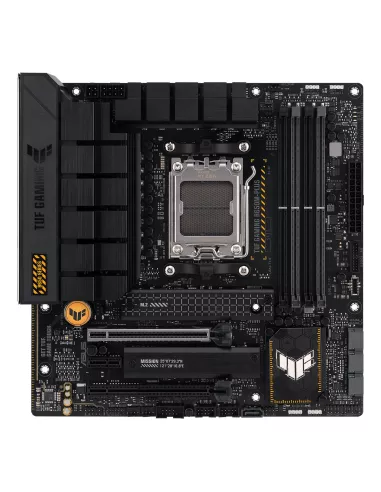

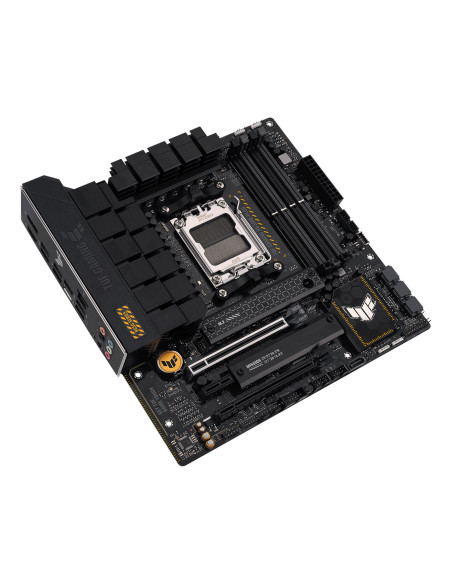

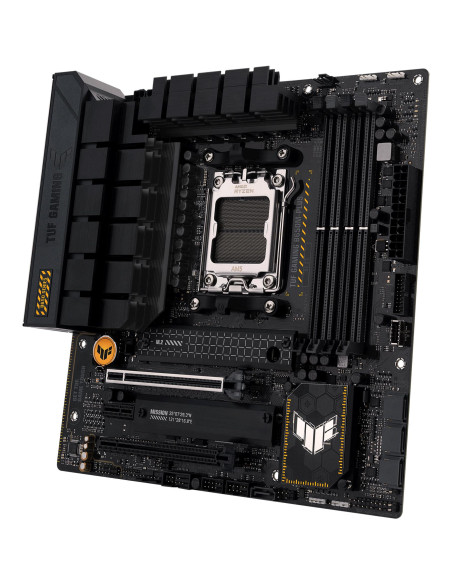

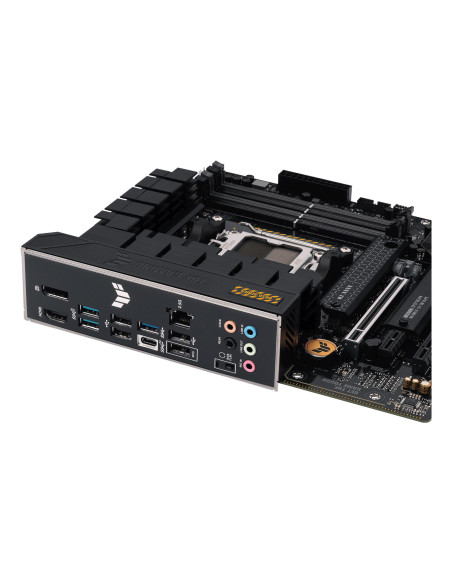

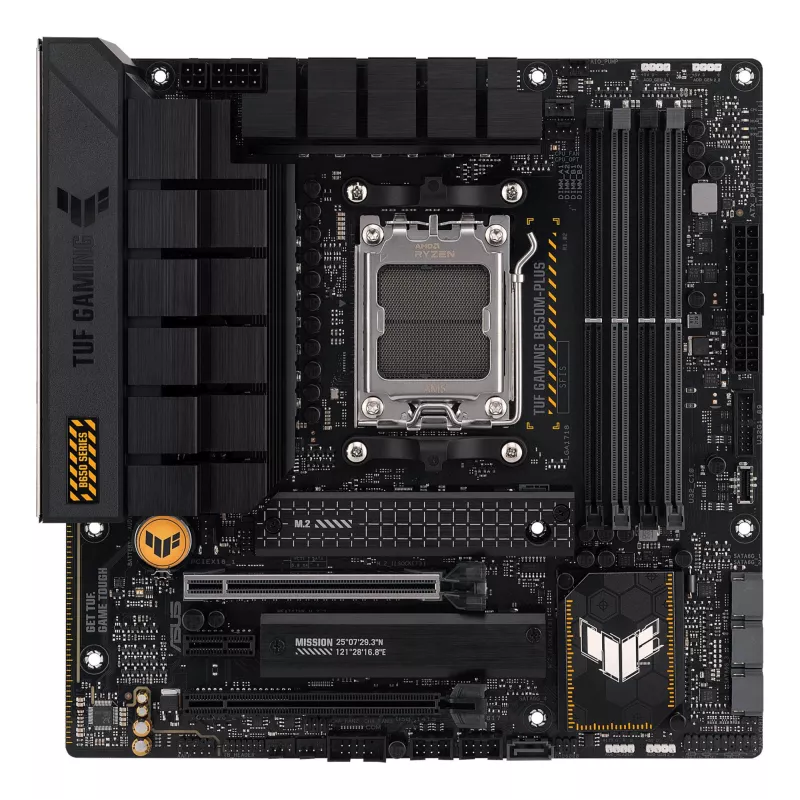

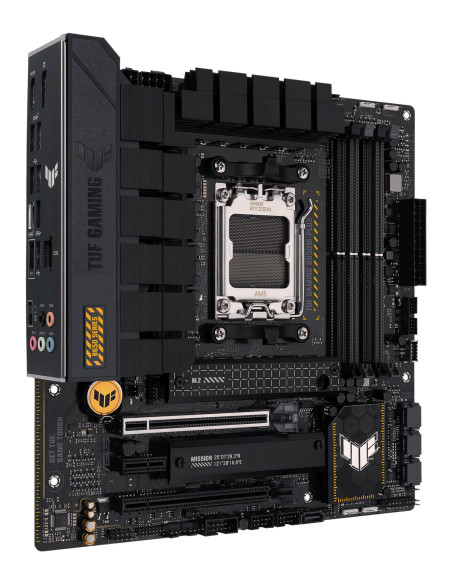

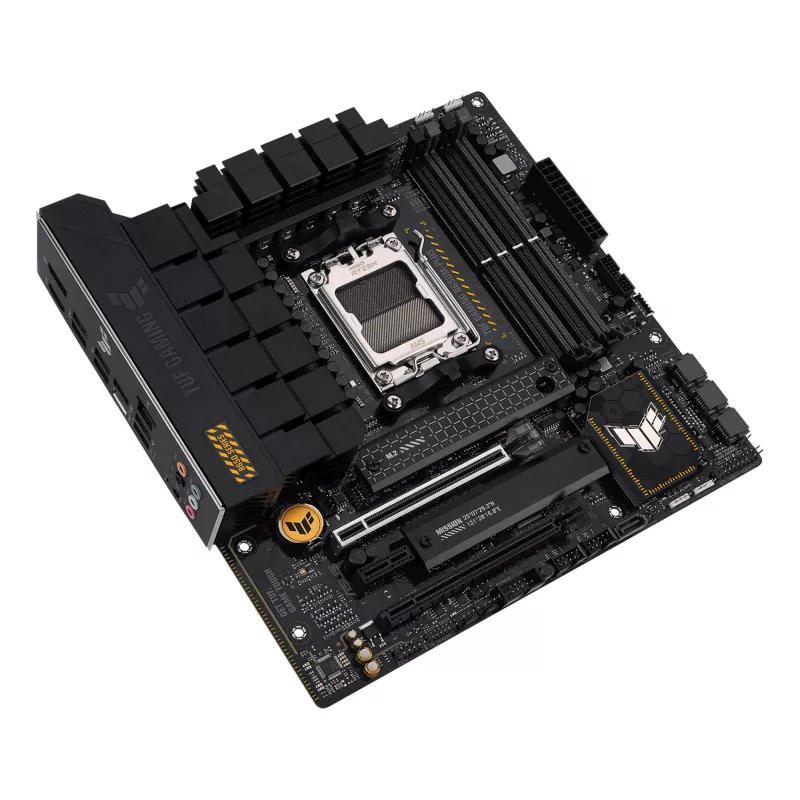

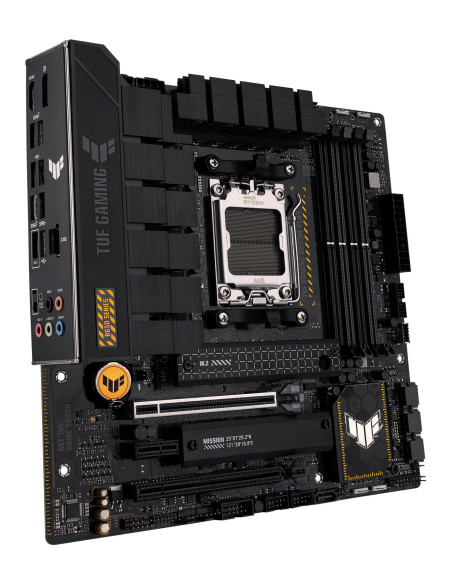

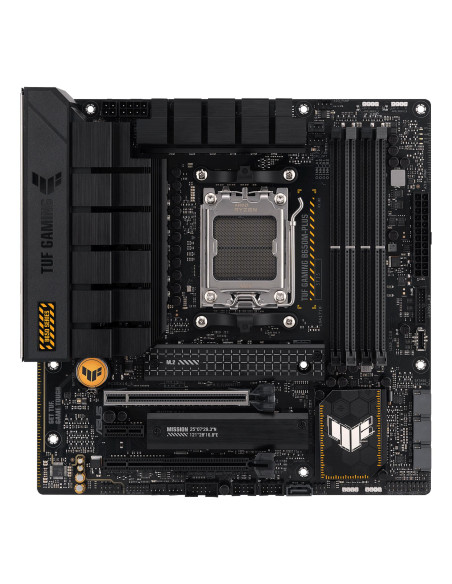

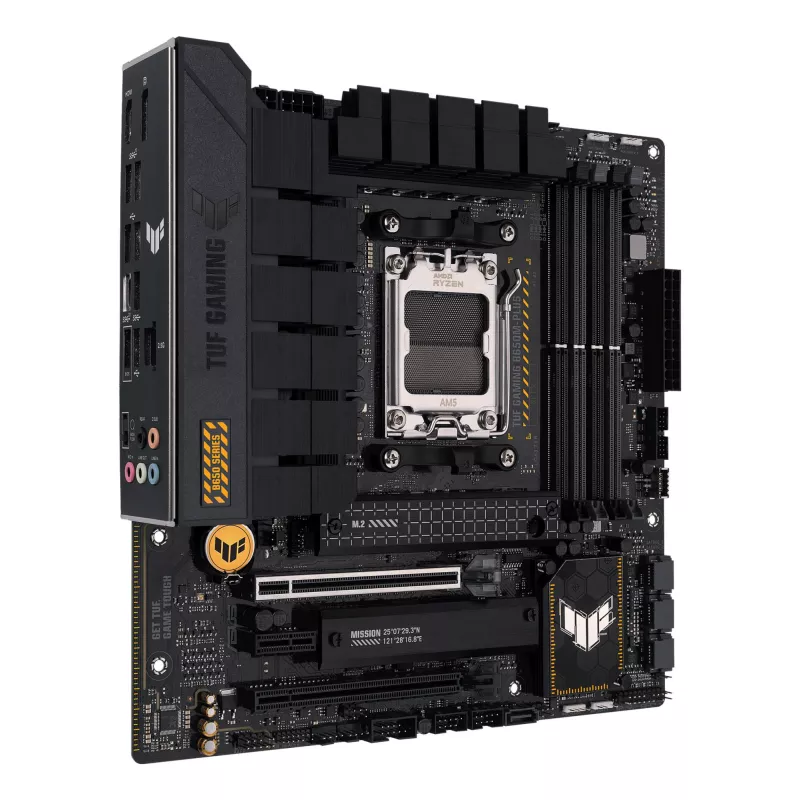

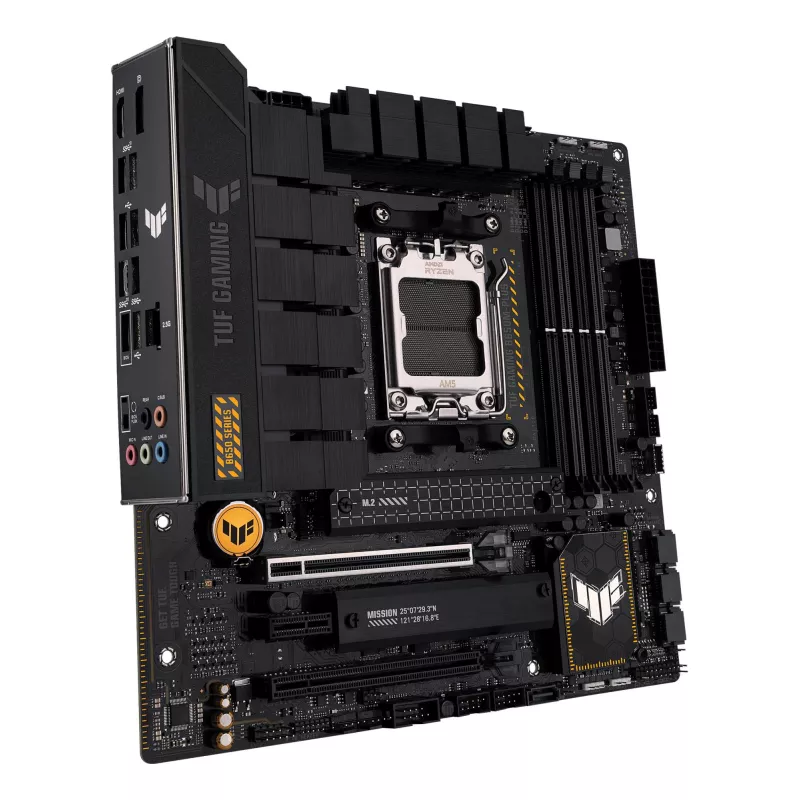

Mainboard, ASUS, AMD B650, SAM5, MicroATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1xH

Mainboard, ASUS, AMD B650, SAM5, MicroATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1xH

Name: Mainboard, ASUS, AMD B650, SAM5, MicroATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1xH
Brand: ASUS
SKU: TUFGAMINGB650M-PLUS
Price: 165.18 EUR
Availability: InStock

Gamintojas: ASUS

Kodas TUFGAMINGB650M-PLUS

Paskutinė prekė

165,18 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

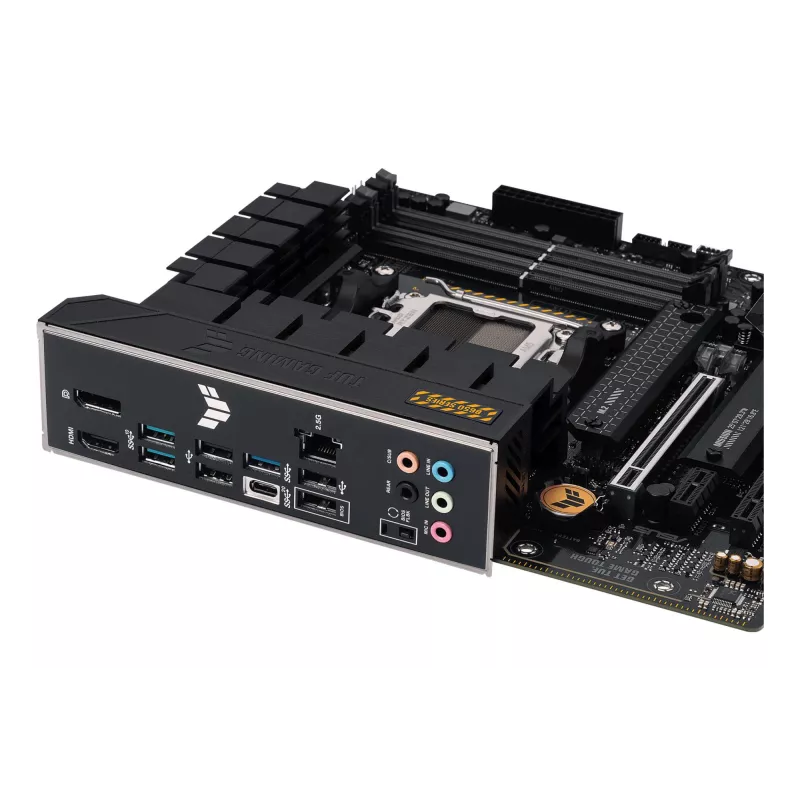

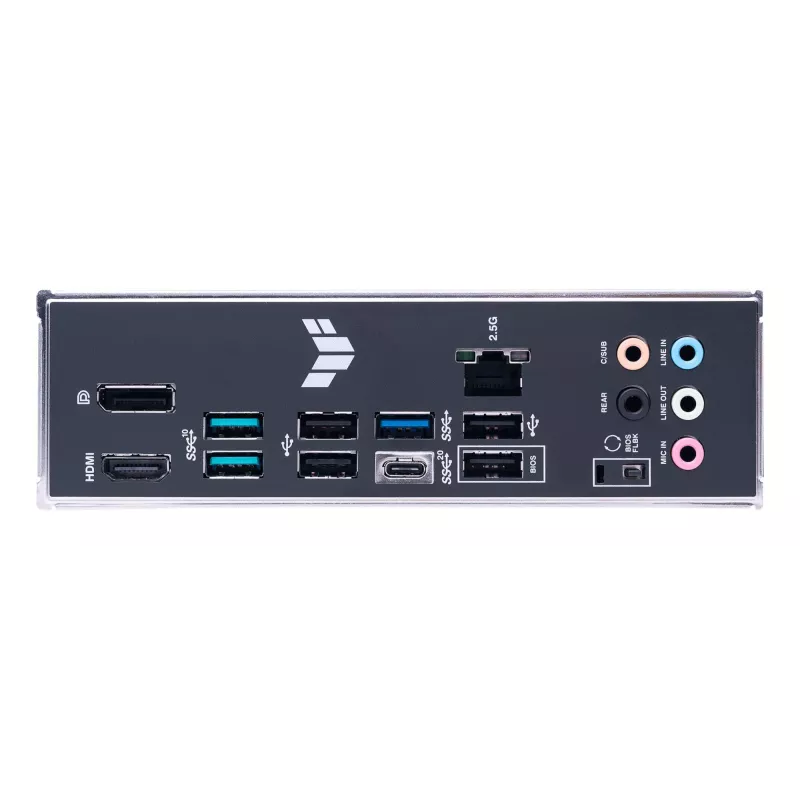

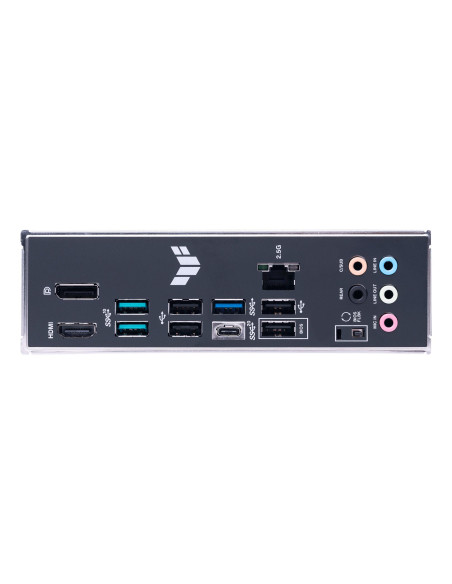

AMD B650 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.275
UNIT BOX WIDTH: 0.275
SUMMARY: ASUS TUF GAMING B650M-PLUS. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 128 GB, MEMORY SLOTS TYPE: DIMM. SUPPORTED STORAGE DRIV
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
USB 2.0 PORTS QUANTITY: 4
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
WI-FI: No
ETHERNET LAN: YES
MODEL: TUF GAMING B650M-PLUS
UNIT CALCULATED VOLUME, CUBM: 0.005294
UNIT CALCULATED WEIGHT, KG: 1.5
HDMI VERSION: 2.1
HEADPHONE OUTPUTS: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 1
UNITS PER SHIPPING BOX: 1
DEPTH, MM: 244
WIDTH, MM: 244
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10/WINDOWS 11 X64
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
POWER SOURCE TYPE: ATX
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY, GB: 128
SUPPORTED MEMORY TYPES: DDR5-SDRAM
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 6400
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
NUMBER OF SATA III CONNECTORS: 4
THUNDERBOLT HEADERS: 1
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
MICROPHONE IN: YES
MOTHERBOARD CHIPSET: AMD B650
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 2
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400
RGB LED PIN HEADER: YES
LINE-IN: YES
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
NUMBER OF COM CONNECTORS: 1
BACK-TO-BIOS BUTTON: YES
PCI EXPRESS X4 (GEN 1.X) SLOTS: 1
