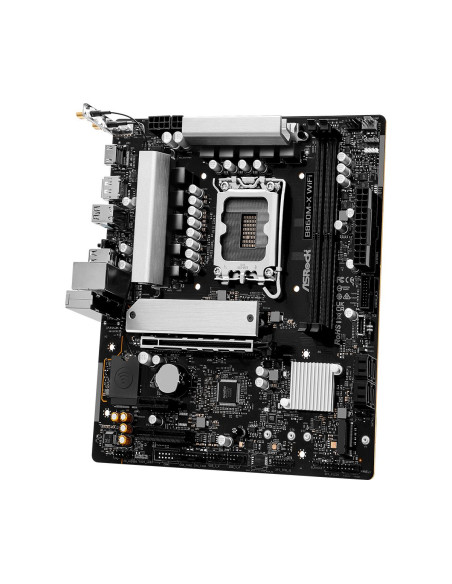

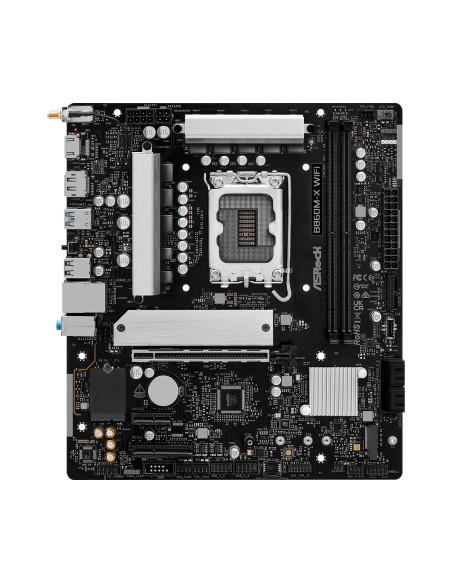

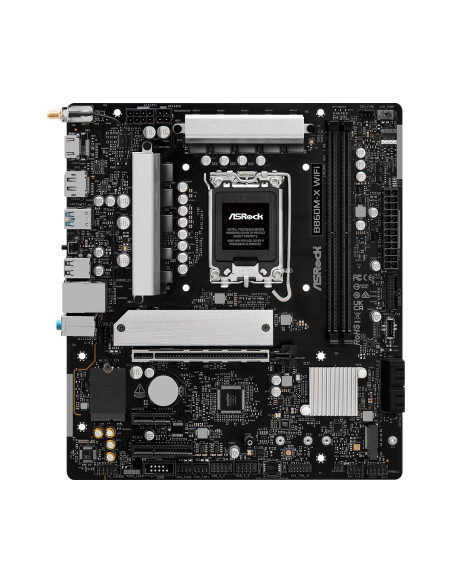

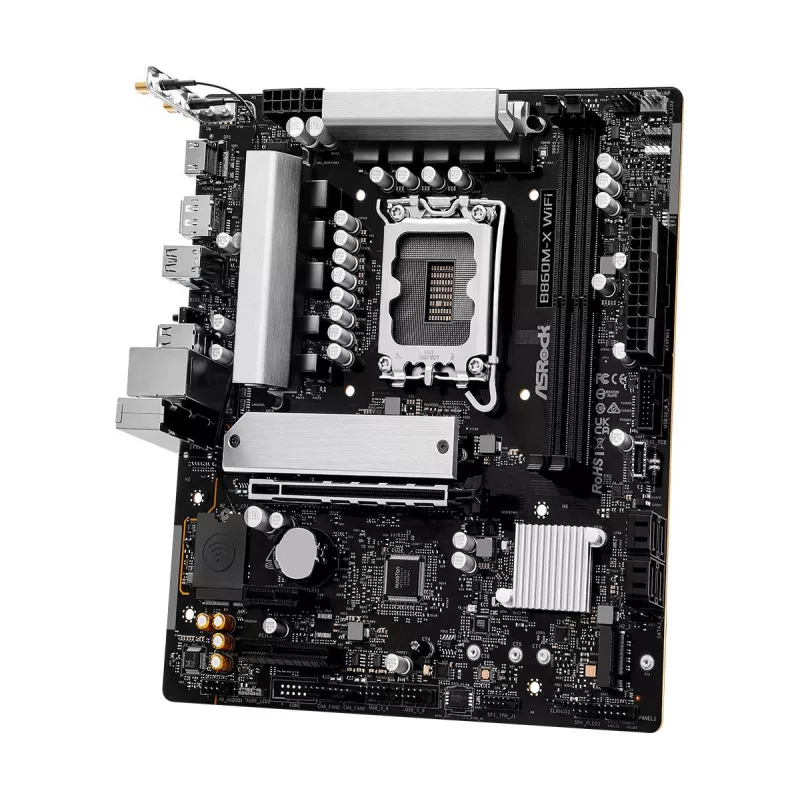

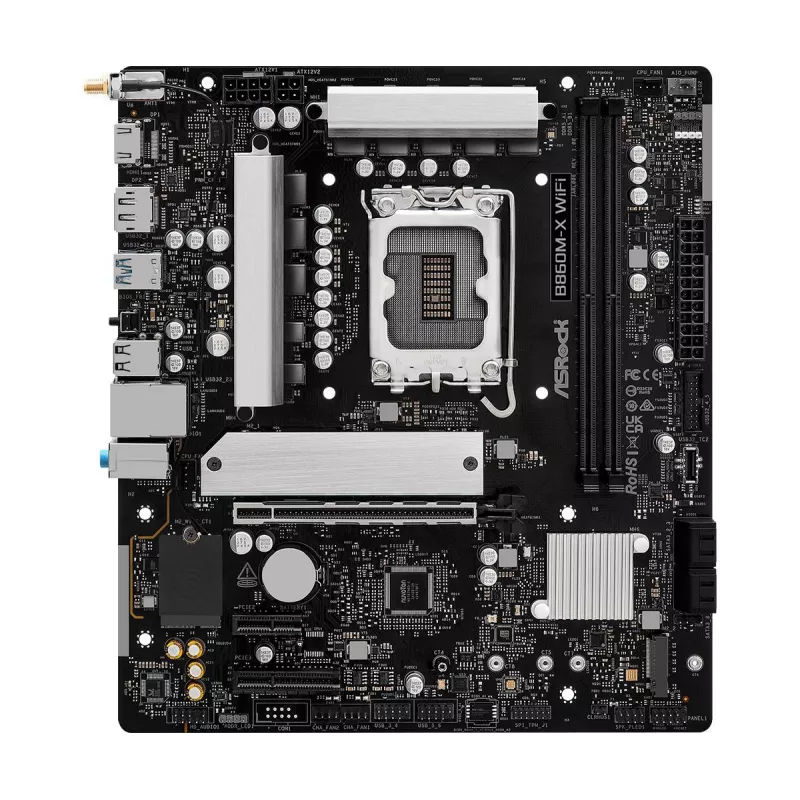

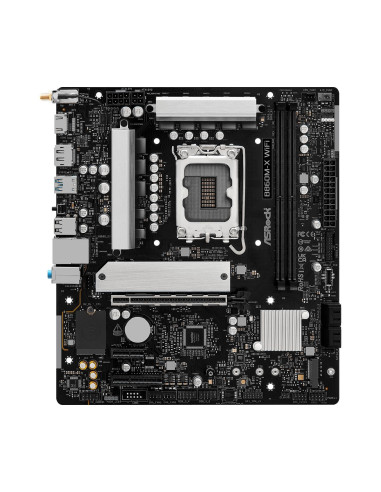

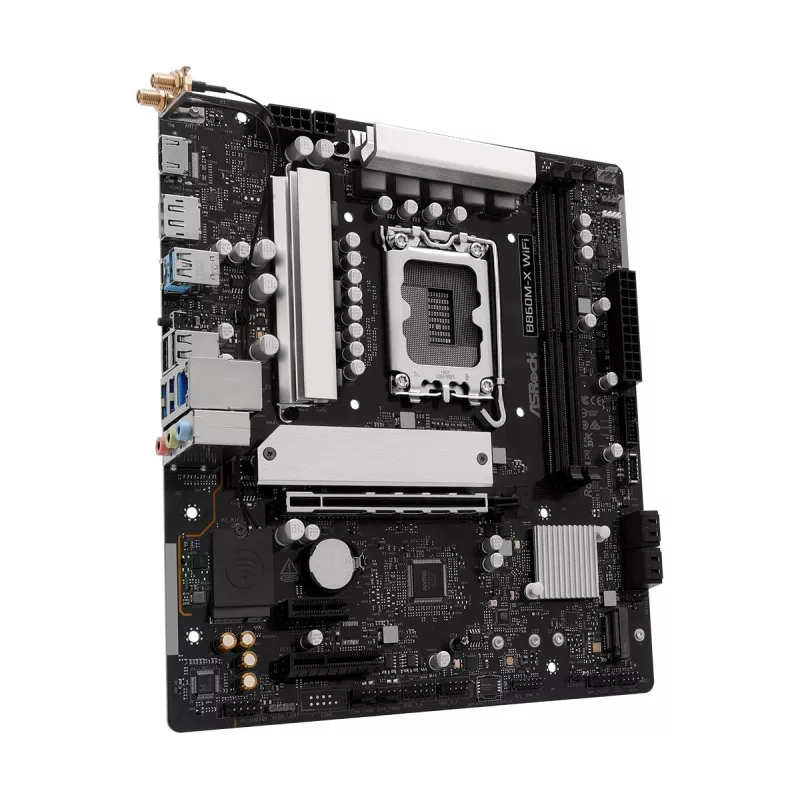

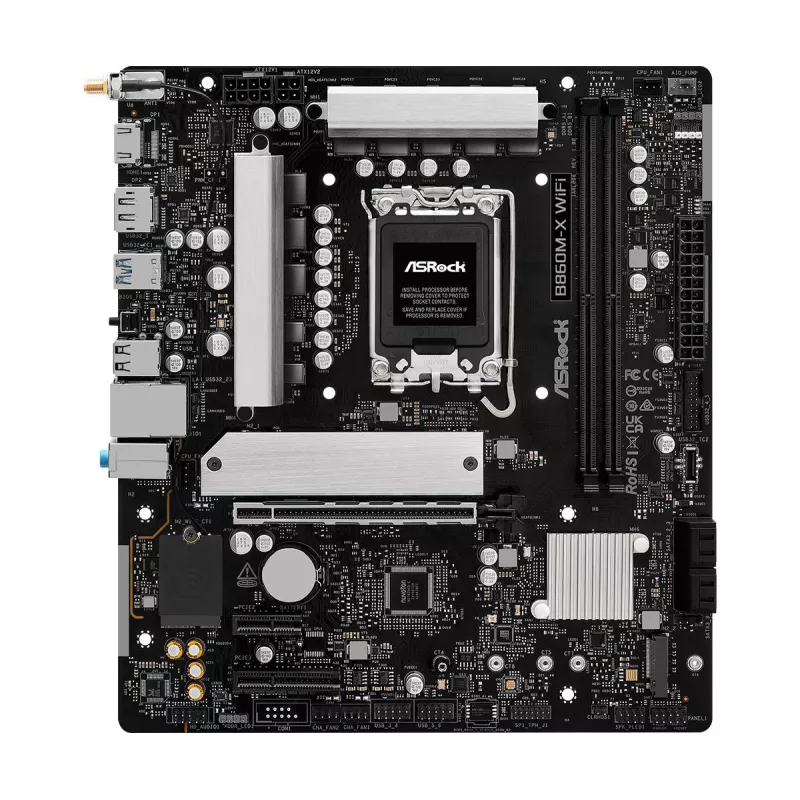

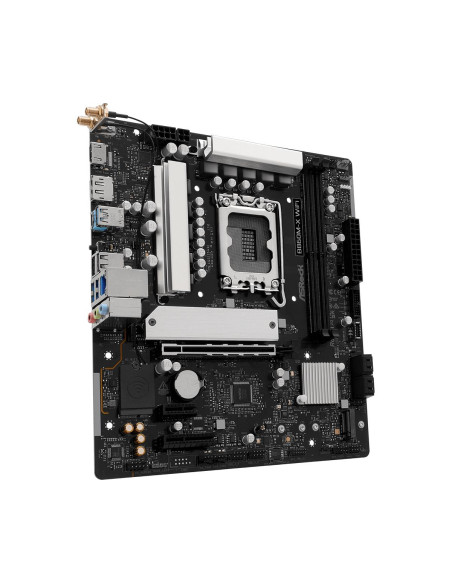

Mainboard, ASROCK, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, B860M-X_WIFI

Mainboard, ASROCK, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, B860M-X_WIFI

Name: Mainboard, ASROCK, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, B860M-X_WIFI
Brand: ASROCK
SKU: B860M-X_WIFI
Price: 117.7 EUR
Availability: InStock

Gamintojas: ASROCK

Kodas B860M-X_WIFI

Paskutinė prekė

117,70 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

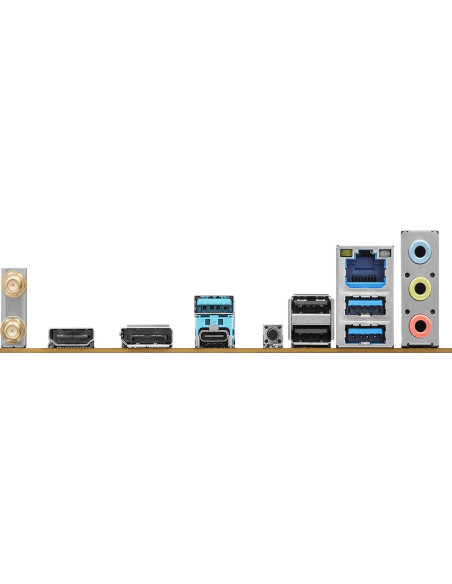

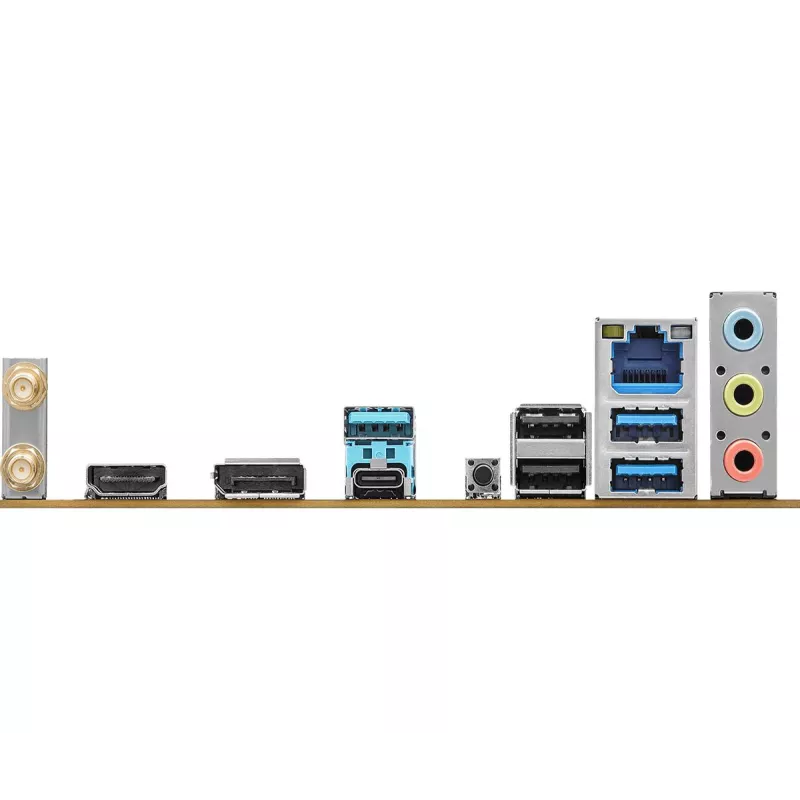

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , On-board graphics card Yes , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASROCK B860M-X WIFI. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2). SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 128 GB, MEMORY SLOTS TYPE: DIMM. SUPPORTED S
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.06
UNIT BOX LENGTH: 0.3
UNIT BOX WIDTH: 0.265
COMPONENT FOR: PC
DEPTH, MM: 218
WIDTH, MM: 244
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.00553
UNIT CALCULATED WEIGHT, KG: 1.22
MODEL: B860M-X WIFI
MEMORY CHANNELS: DUAL-CHANNEL
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
ECC СOMPATIBILITY: NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 128
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 9066
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10/5
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ON-BOARD GRAPHICS CARD: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
MICROPHONE IN: YES
MOTHERBOARD CHIPSET: INTEL B860
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI: Yes
NUMBER OF M.2 (M) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
ETHERNET LAN: YES
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
CABLES INCLUDED: SATA
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
DISPLAYPORT VERSION: 1.4
LINE-IN: YES
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
LAN CONTROLLER: DRAGON RTL8125BG

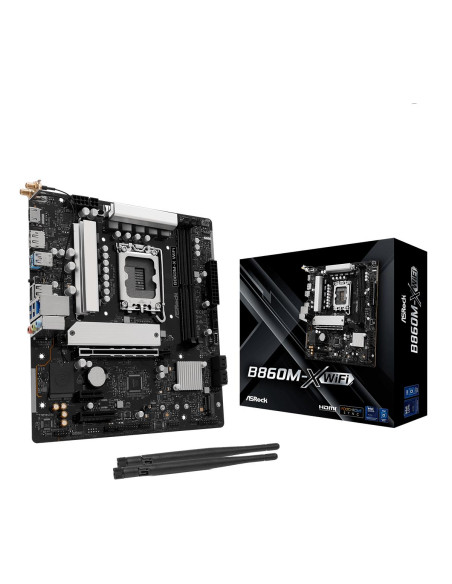

ANTENNA INCLUDED: YES
DISPLAYPORTS QUANTITY: 1
USB 2.0 PORTS QUANTITY: 2
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
