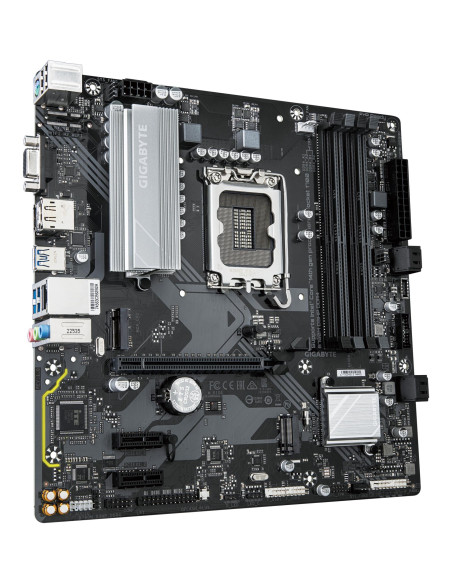

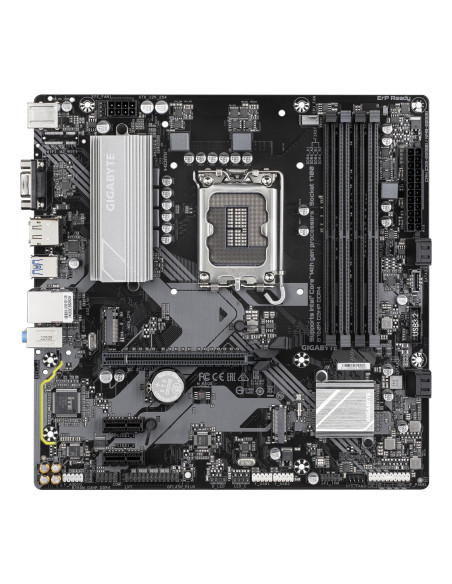

Name: Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4
Brand: GIGABYTE
SKU: B760M D3HP DDR4
Price: 89.03 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760M D3HP DDR4

Yra sandėlyje

89,03 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 Express , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2304 pixels , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B760M D3HP DDR4 MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 4+1+1 PHASES DIGITAL VRM, UP TO 5333MHZ DDR4 (OC), 2XPCIE 4.0 M.2, GBE LAN, USB 3.2 GEN1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INT
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.055
UNIT BOX HEIGHT: 0.275
PRODUCT COLOUR: BROWN
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 244
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WIDTH, MM: 265
COUNTRY OF ORIGIN: CHINA
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.004836
UNIT CALCULATED WEIGHT, KG: 0.993
PACKAGE WEIGHT, G: 990
WARRANTY PERIOD, YEAR(S): 3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10/WINDOWS 11
MODEL: B760M D3HP DDR4
WI-FI: No
PROCESSOR MANUFACTURER: Intel
USB 2.0 PORTS QUANTITY: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
USB CONNECTOR TYPE: USB TYPE-A
BUNDLED SOFTWARE: NORTON INTERNET SECURITY
POWER SOURCE TYPE: ATX
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
BATTERIES INCLUDED: YES
DIGITAL AUDIO OPTICAL OUT: 3
HDCP: YES
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
RAID SUPPORT: YES
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 2
DIRECTX VERSION: 12.0
VGA (D-SUB) PORTS QUANTITY: 1
COMPATIBLE PROCESSOR SERIES: INTEL CELERON /INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL CORE I9/INTEL PENTIUM GOLD
SUPPORTED PROCESSOR SOCKETS: LGA 1700
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 128
MAXIMUM INTERNAL MEMORY, GB: 128
MOTHERBOARD CHIPSET: INTEL B760 EXPRESS
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
LINE-IN: YES
MICROPHONE IN: YES
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5333
12V POWER CONNECTOR: YES
S/PDIF OUT CONNECTOR: YES
TPM CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
NUMBER OF HDDS SUPPORTED: 4
FRONT PANEL CONNECTOR: YES
SERIAL PORT HEADERS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
TOTAL NUMBER OF SATA CONNECTORS: 4
PCI EXPRESS X16 SLOTS: 1
PCI EXPRESS X4 SLOTS: 1
SUPPORTED MEMORY MODULE CAPACITIES: 12GB/16GB/1GB/2GB/32GB/4GB/8GB
POWER FAN CONNECTOR: YES
AUDIO CONNECTOR: YES
PARALLEL CONNECTOR: YES
NUMBER OF PARALLEL ATA CONNECTORS: 1
PCI EXPRESS X1 SLOTS: 1
