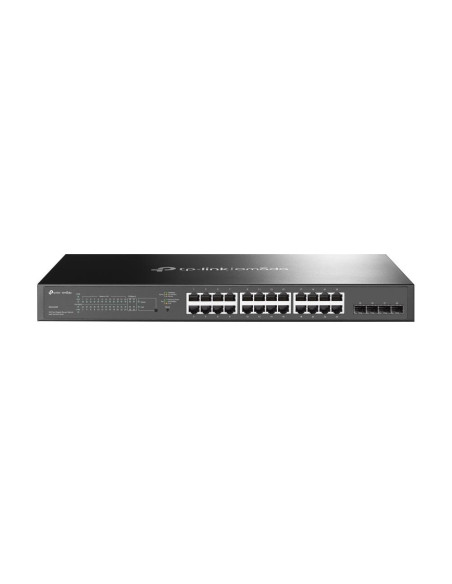

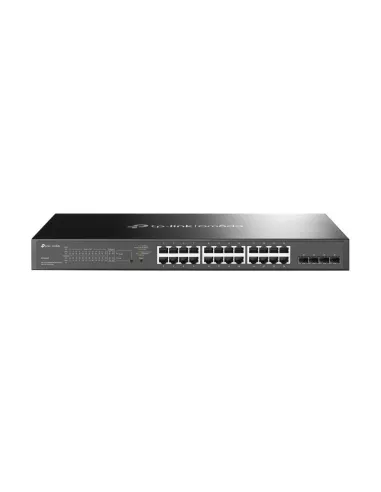

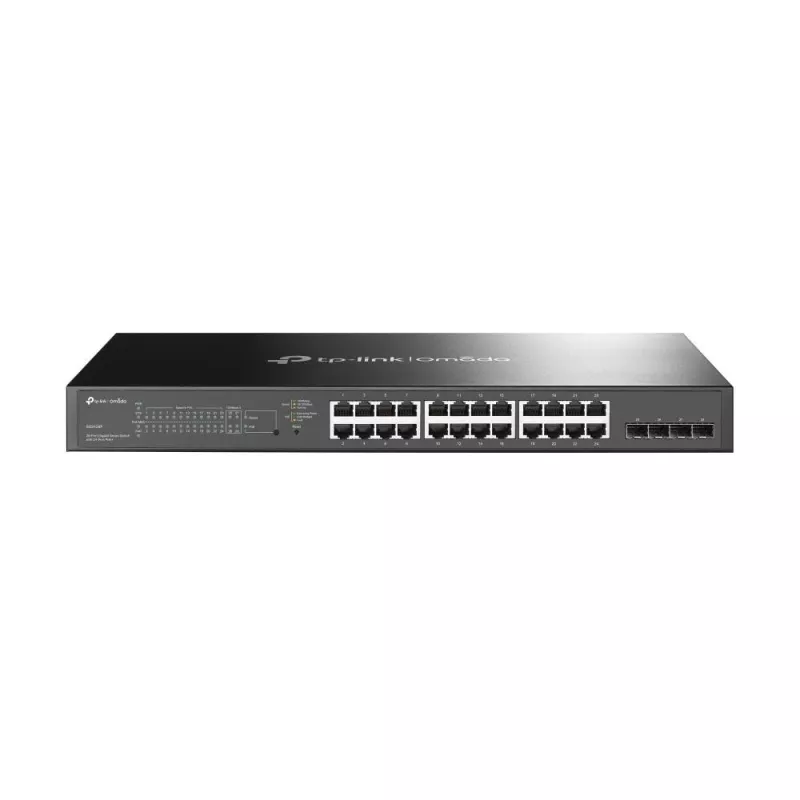

Switch, TP-LINK, Omada, TL-SG2428P, Type L2+, 24x10Base-T / 100Base-TX / 1000Base-T, 4xSFP, PoE+ ports 24, 250 Watts, TL-SG2428

Name: Switch, TP-LINK, Omada, TL-SG2428P, Type L2+, 24x10Base-T / 100Base-TX / 1000Base-T, 4xSFP, PoE+ ports 24, 250 Watts, TL-SG2428
Brand: TP-LINK
SKU: TL-SG2428P
Price: 312.77 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas TL-SG2428P

Yra sandėlyje

312,77 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , TL-SG2428P , Type Managed , Switch layer L2/L2+ , Quality of Service (QoS) support Yes , Web-based management Yes , 24xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , 4xSFP module slots quantity , Port mirroring Yes , Fiber ethernet cabling technology 1000BASE-X , Switching capacity 56 Gbit/s , Forwarding rate 41.66 Mpps , Rack mounting Yes , Form factor 1U , Product colour Black , Power source AC , Power supply included Yes , Power over Ethernet (PoE) Yes , 24xPower over Ethernet plus (PoE+) ports quantity , Power over Ethernet (PoE) power per port 30 W , Total Power over Ethernet (PoE) budget 250 W , Width 440 mm , Depth 220 mm , Height 44 mm

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA 28-PORT GIGABIT SMART SWITCH WITH 24-PORT POE+. SWITCH TYPE: MANAGED, SWITCH LAYER: L2/L2+. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24. MAC ADDRESS TABLE: 8000
CNCODE: 85176200
CATEGORY CODE: SWI
UNIT BOX HEIGHT: 0.105
UNIT BOX LENGTH: 0.53
UNIT BOX WIDTH: 0.335
PRODUCT COLOUR: BLACK
DEPTH, MM: 220
HEIGHT, MM: 44
WIDTH, MM: 440
CABLES INCLUDED: AC
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.02104
UNIT CALCULATED WEIGHT, KG: 4.22
USER GUIDE: YES
CERTIFICATION: CE, FCC, ROHS
SECURITY ALGORITHMS: HTTPS/SNMP/SNMPV2/SNMPV3/SSH/SSH-2/SSL/TLS
OPERATING TEMPERATURE (T-T), °C: 0 - 50
POWER CONSUMPTION (MAX), W: 301.1
STORAGE TEMPERATURE (T-T), °C: -40 - 70
MODEL NAME: TL-SG2428P
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
NUMBER OF FANS, FAN(S): 2
AC INPUT VOLTAGE, V: 100 - 240
AC INPUT FREQUENCY, HZ: 50/60
POWER SOURCE: AC
FORM FACTOR: 1U
POWER SUPPLY INCLUDED: YES
RACK MOUNTING: YES
NETWORKING STANDARDS: IEEE 802.1D/IEEE 802.1P/IEEE 802.1Q/IEEE 802.1S/IEEE 802.1W/IEEE 802.1X/IEEE 802.3AB/IEEE 802.3AD/IEEE 802.3AF/IEEE 802.3AT/IEEE 802.3AZ/IEEE 802.3I/IEEE 802.3U/IEEE 802.3X/IEEE 802.3Z
SERIES: OMADA
SWITCH TYPE: MANAGED
10G SUPPORT: NO
POWER OVER ETHERNET (POE): YES
SWITCH LAYER: L2/L2+
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24
WEB-BASED MANAGEMENT: YES
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
QUALITY OF SERVICE (QOS) SUPPORT: YES
FORWARDING RATE, MPPS: 41.66
SWITCHING CAPACITY, GBIT/S: 56
GIGABIT ETHERNET (COPPER) PORTS QUANTITY: 24
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
NUMBER OF VLANS: 4000
PORT MIRRORING: YES
RATE LIMITING: YES
VIRTUAL LAN FEATURES: MAC ADDRESS-BASED VLAN/PROTOCOL-BASED VLAN/VOICE VLAN
VLAN SUPPORT: YES
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 8000
PACKET BUFFER MEMORY, MB: 4.1
DHCP FEATURES: DHCP CLIENT/DHCP RELAY/DHCP SERVER/DHCP SNOOPING/DHCPV6 CLIENT
IGMP SNOOPING: YES
POWER OVER ETHERNET (POE) POWER PER PORT, W: 30
POWER OVER ETHERNET PLUS (POE+) PORTS QUANTITY: 24
TOTAL POWER OVER ETHERNET (POE) BUDGET, W: 250
HEAT DISSIPATION, BTU/H: 1052.94
RACK MOUNT KIT: YES
ARP INSPECTION: YES
SYSTEM EVENT LOG: YES
LINK AGGREGATION: YES
SPANNING TREE PROTOCOL: YES
JUMBO FRAMES: 9000
ACCESS CONTROL LIST (ACL): YES
BPDU FILTERING/PROTECTION: YES
IP-MAC-PORT BINDING: YES
SSH/SSL SUPPORT: YES
MULTICAST SUPPORT: YES
AUTHENTICATION TYPE: RADIUS
MIB SUPPORT: Y
NUMBER OF QUEUES: 8
QUEUE SCHEDULING ALGORITHMS: SP/WEIGHTED ROUND ROBIN (WRR)/WRR+SP
MANAGEMENT PROTOCOLS: SNMPV1/V2C/V3, SNTP
SFP MODULE SLOTS QUANTITY: 4
COPPER ETHERNET CABLING TECHNOLOGY: 1000BASE-T/10BASE-T
FIRMWARE UPGRADEABLE: YES
CABLE TYPES SUPPORTED: CAT3/CAT4/CAT5/CAT5E
FIBER ETHERNET CABLING TECHNOLOGY: 1000BASE-X
