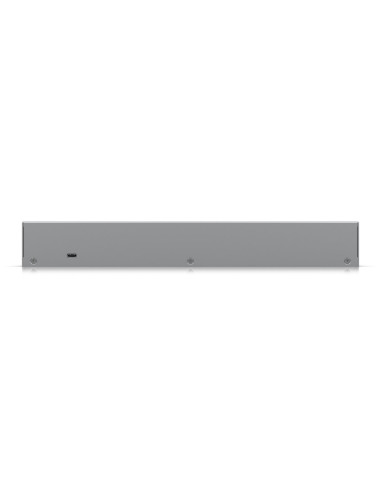

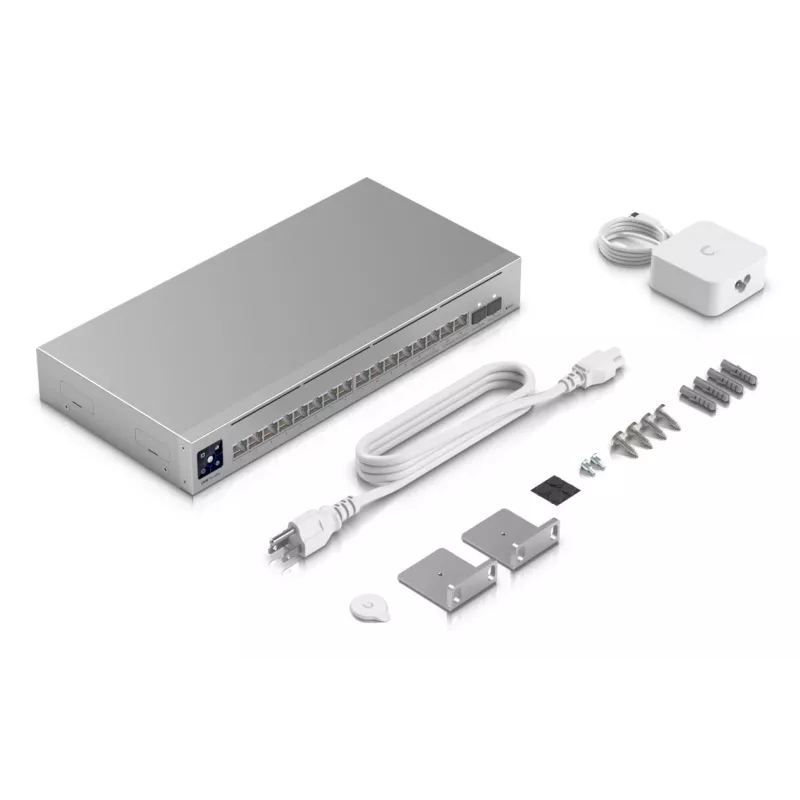

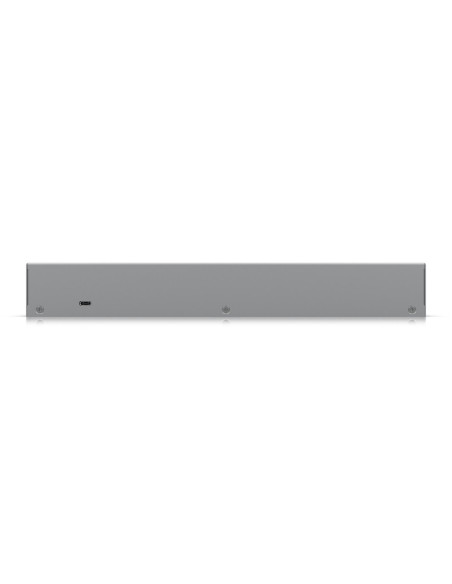

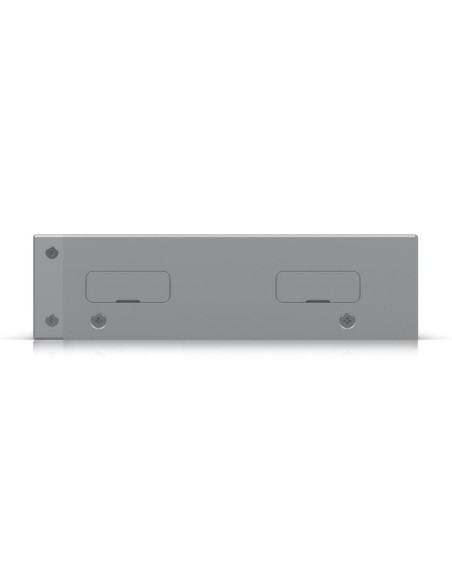

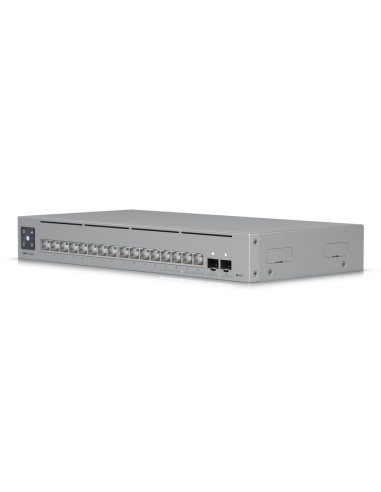

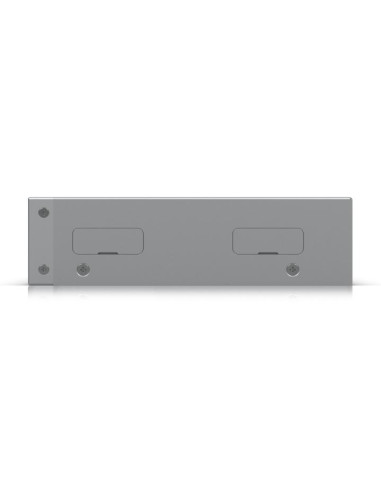

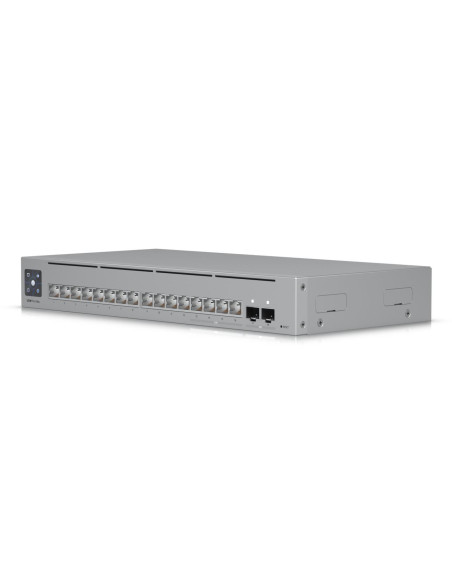

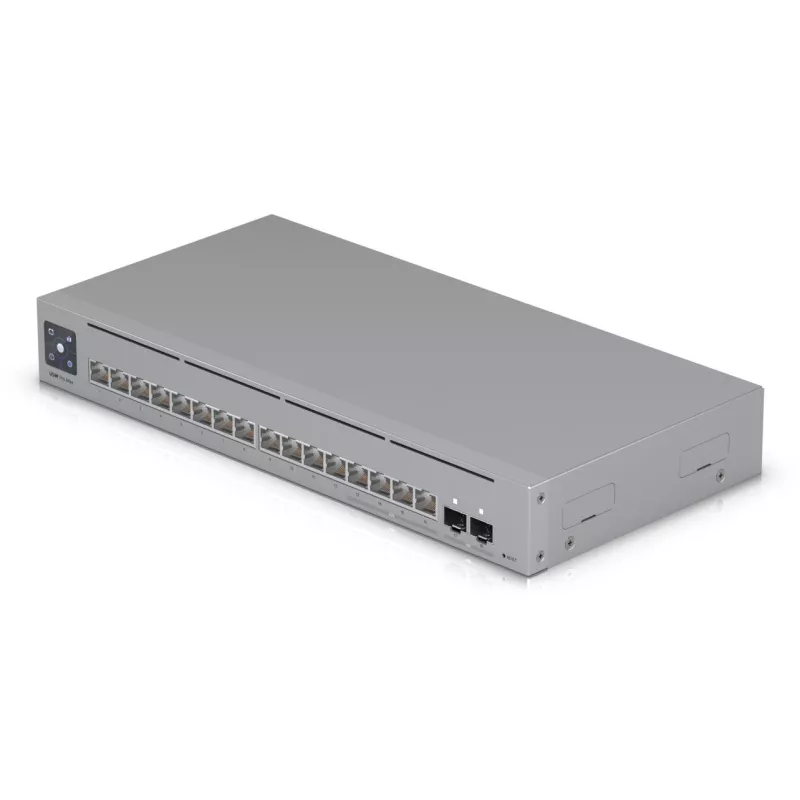

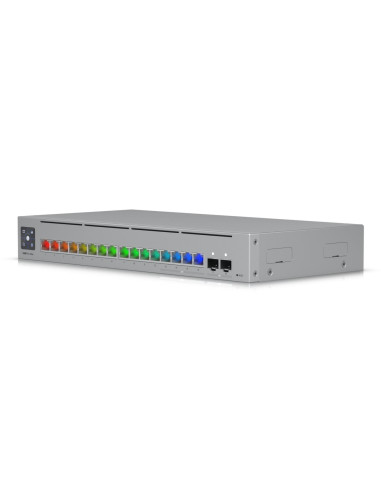

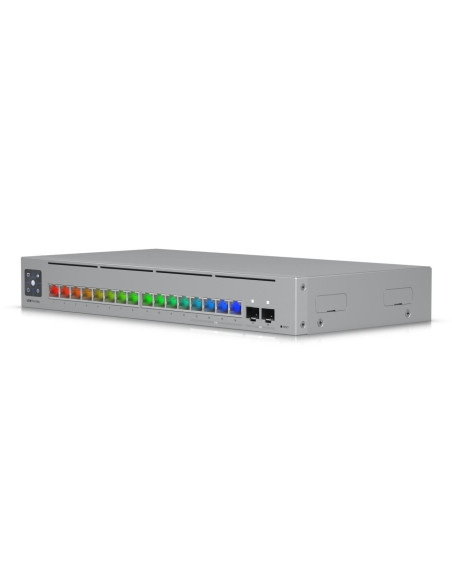

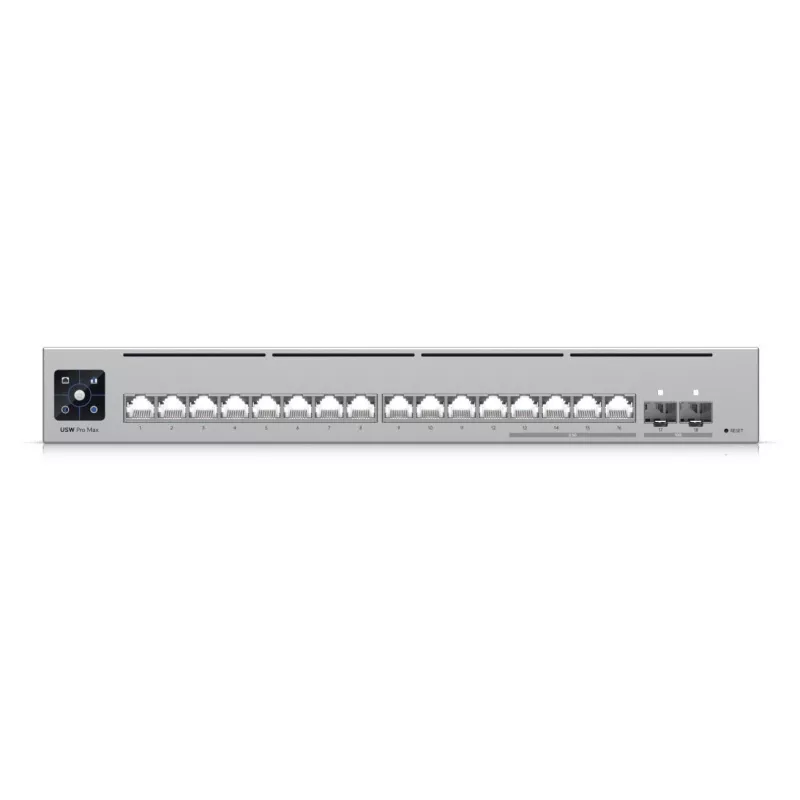

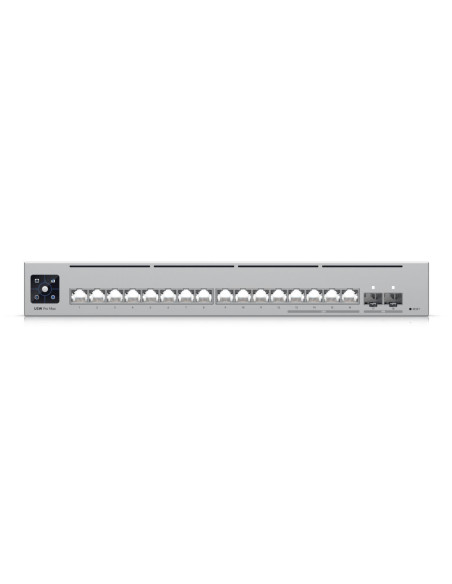

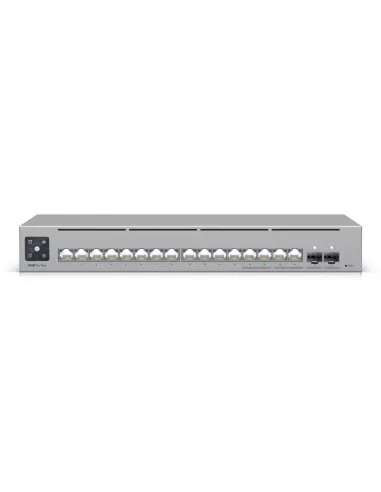

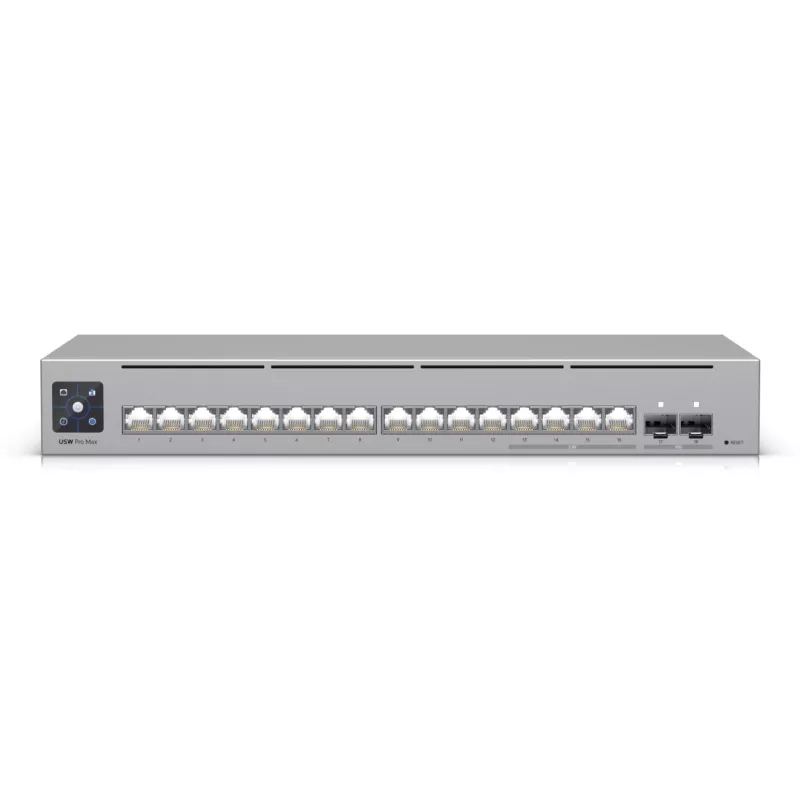

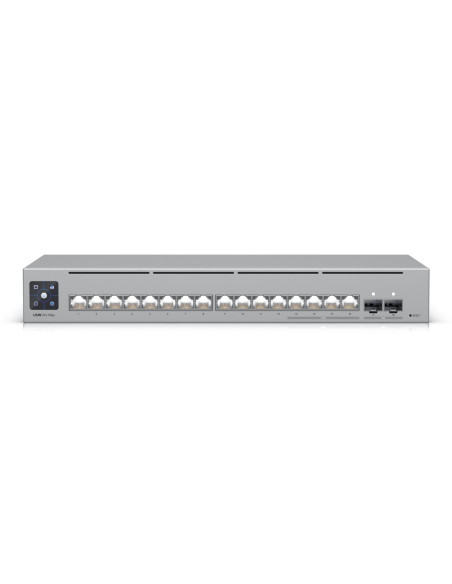

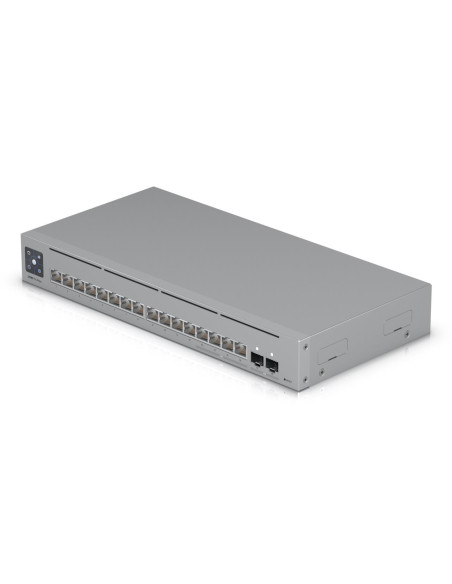

Switch, UBIQUITI, Pro Max 16, Type L3, USW-PRO-MAX-16

Switch, UBIQUITI, Pro Max 16, Type L3, USW-PRO-MAX-16

Name: Switch, UBIQUITI, Pro Max 16, Type L3, USW-PRO-MAX-16
Brand: UBIQUITI
SKU: USW PRO MAX 16
Price: 272.89 EUR
Availability: InStock

Gamintojas: UBIQUITI

Kodas USW PRO MAX 16

Yra sandėlyje

272,89 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Pro Max 16 , Switch layer L3 , Quality of Service (QoS) support Yes , 16xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) , 2xSFP+ module slots quantity , Yes , Port mirroring Yes , Switching capacity 84 Gbit/s , Throughput 42 Gbit/s , Forwarding rate 62 Mpps , Rack mounting Yes , Stackable Yes , Form factor 1U , Product colour Grey , Power supply included Yes , Width 325.1 mm , Depth 160 mm , Height 43.7 mm , Weight 1950 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: UBIQUITI PRO MAX 16. SWITCH LAYER: L3. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: 2.5G ETHERNET (100/1000/2500), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 16. MAC ADDRESS TABLE: 16000 ENTRIES, SWITCHING CAPACITY: 84 GBIT/S. NETWORKING STANDARDS: IEEE
CNCODE: 85176200
CATEGORY CODE: SWI
UNIT BOX HEIGHT: 0.245
UNIT BOX LENGTH: 0.51
UNIT BOX WIDTH: 0.11
NETWORKING STANDARDS: IEEE 802.1X
LED INDICATORS: LINK/NETWORK/SPEED/STATUS
PRODUCT COLOUR: GREY
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
OPERATING TEMPERATURE (T-T), °C: -5 - 40
DEPTH, MM: 160
HEIGHT, MM: 43.7
WIDTH, MM: 325.1

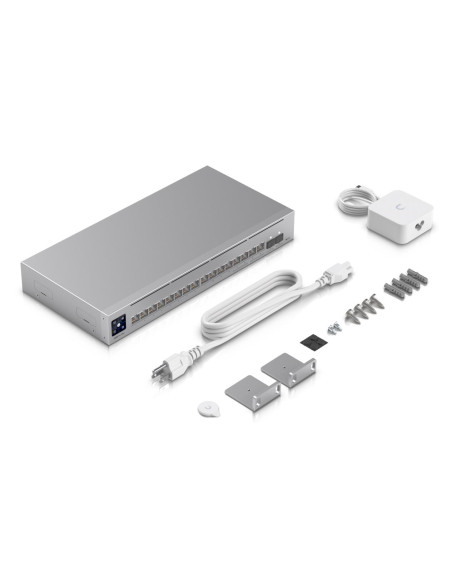

CABLES INCLUDED: POWER
COMPLIANCE CERTIFICATES: CE/FEDERAL COMMUNICATIONS COMMISSION (FCC)/INDUSTRY CANADA (IC)/NATIONAL DEFENSE AUTHORIZATION ACT (NDAA)
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.0167344
UNIT CALCULATED WEIGHT, KG: 3.4625
MODEL: USW-PRO-MAX-16
WEIGHT, G: 1950
HOUSING MATERIAL: SGCC
DISPLAY TYPE: LCM
INPUT CURRENT, A: 5
INPUT VOLTAGE, V: 4.8 - 5.2
MODEL NAME: PRO MAX 16
FORM FACTOR: 1U
10G SUPPORT: YES
RACK MOUNTING: YES
POWER CONSUMPTION (MAX), W: 25
POWER SUPPLY INCLUDED: YES
POWER OVER ETHERNET (POE): NO
QUALITY OF SERVICE (QOS) SUPPORT: YES
SWITCH LAYER: L3
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 16
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: 2.5G ETHERNET (100/1000/2500)
POWER CONNECTOR: AC/DC
2.5G ETHERNET (COPPER) PORTS QUANTITY: 4
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
IPV4 ROUTES: 512
NUMBER OF VLANS: 1000
PORT MIRRORING: YES
RATE LIMITING: YES
VIRTUAL LAN FEATURES: VOICE VLAN
VLAN SUPPORT: YES
FORWARDING RATE, MPPS: 62
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 16000
PACKET BUFFER MEMORY, MB: 1.5
STATIC ROUTE: YES
SWITCHING CAPACITY, GBIT/S: 84
THROUGHPUT, GBIT/S: 42
DHCP FEATURES: DHCP GUARDING/DHCP RELAY/DHCP SERVER/DHCP SNOOPING
IGMP SNOOPING: YES
LOOP PROTECTION: YES
RESET BUTTON: YES
STACKABLE: YES
REDUNDANT POWER SUPPLY (RPS) SUPPORT: YES
RACK MOUNT KIT: YES
SFP+ MODULE SLOTS QUANTITY: 2
LINK AGGREGATION: YES
ACCESS CONTROL LIST (ACL): YES
HEAT DISSIPATION, BTU/H: 85.3
AUTHENTICATION TYPE: IEEE 802.1X
GIGABIT ETHERNET (COPPER) PORTS QUANTITY: 12
FANLESS: YES
