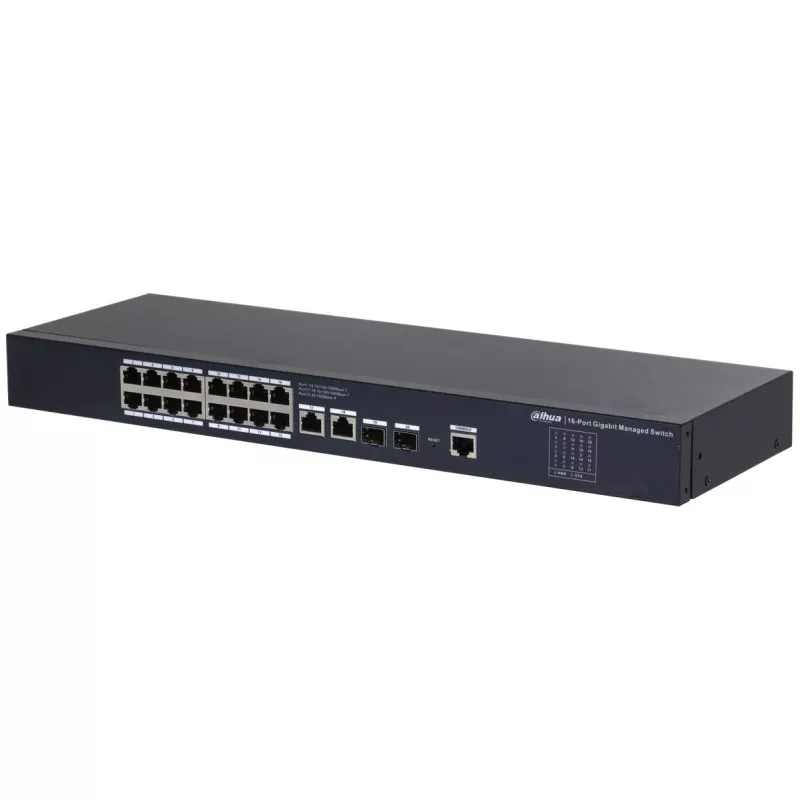

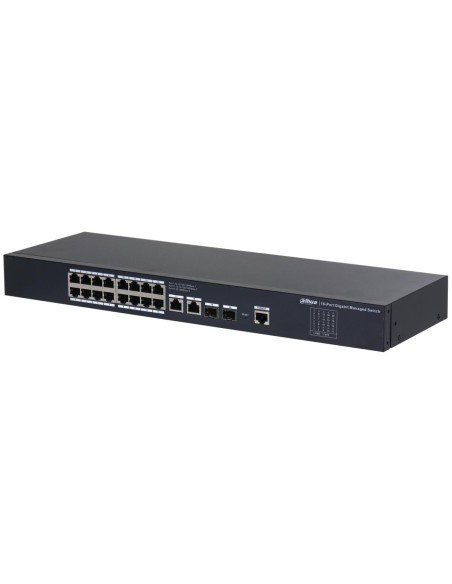

Switch, DAHUA, DH-SG4020, SG4020

Name: Switch, DAHUA, DH-SG4020, SG4020
Brand: DAHUA
SKU: SG4020
Price: 122.15 EUR
Availability: InStock

Gamintojas: DAHUA

Kodas SG4020

Yra sandėlyje

122,15 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

DH-SG4020 , Type Managed , Switch layer L2 , Quality of Service (QoS) support Yes , Web-based management Yes , 18xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , 2xSFP module slots quantity , Console port RJ-45 , Full duplex Yes , Switching capacity 56 Gbit/s , Forwarding rate 29.76 Mpps , Rack mounting Yes , Form factor 1U , Product colour Black , Power source DC , Power supply included Yes , Width 163.85 mm , Depth 440 mm , Height 43.65 mm , Weight 1570 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: DAHUA TECHNOLOGY SG4020. SWITCH TYPE: MANAGED, SWITCH LAYER: L2. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 18, CONSOLE PORT: RJ-45. FULL DUPLEX. MAC ADDRESS TABLE: 8000 ENTRIE
CNCODE: 85176200
CATEGORY CODE: SWI
UNIT BOX HEIGHT: 0.11
UNIT BOX LENGTH: 0.52
UNIT BOX WIDTH: 0.275
ETHERNET LAN DATA RATES, MBIT/S: 10,100,1000
NETWORKING STANDARDS: IEEE 802.1X/IEEE 802.3/IEEE 802.3AB/IEEE 802.3AD/IEEE 802.3U/IEEE 802.3X/IEEE 802.3Z
LED INDICATORS: YES
PRODUCT COLOUR: BLACK
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
OPERATING TEMPERATURE (T-T), °C: -10 - 55
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 95
SUSTAINABILITY COMPLIANCE: YES
DEPTH, MM: 440
HEIGHT, MM: 43.65
WIDTH, MM: 163.85
PACKAGE DEPTH, MM: 520
PACKAGE HEIGHT, MM: 107
PACKAGE WEIGHT, G: 2250
PACKAGE WIDTH, MM: 271
COMPLIANCE CERTIFICATES: CE
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.01864
UNIT CALCULATED WEIGHT, KG: 2.95
STORAGE TEMPERATURE (T-T), °C: -40 - 75
WEIGHT, G: 1570
MODEL NAME: DH-SG4020
QUALITY OF SERVICE (QOS) SUPPORT: YES
FORM FACTOR: 1U
SWITCH TYPE: MANAGED
SWITCH LAYER: L2
CONSOLE PORT: RJ-45
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 18
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
10G SUPPORT: NO
FLOW CONTROL SUPPORT: YES
NUMBER OF VLANS: 4000
VIRTUAL LAN FEATURES: PORT-BASED VLAN/TAGGED VLAN
VLAN SUPPORT: YES
FORWARDING RATE, MPPS: 29.76
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 8000
PACKET BUFFER MEMORY, MB: 4.1
SWITCHING CAPACITY, GBIT/S: 56
DHCP FEATURES: DHCP CLIENT/DHCP SERVER/DHCP SNOOPING
IGMP SNOOPING: YES
MULTICAST SUPPORT: YES
RACK MOUNTING: YES
RESET BUTTON: YES
POWER CONSUMPTION (MAX), W: 24
POWER SOURCE: DC
POWER SUPPLY INCLUDED: YES
POWER OVER ETHERNET (POE): NO
MEAN TIME BETWEEN FAILURES (MTBF), H: 467125.73
CLOUD-MANAGED: NO
FULL DUPLEX: YES
SPANNING TREE PROTOCOL: YES
DC INPUT VOLTAGE, V: 12
WEB-BASED MANAGEMENT: YES
LINK AGGREGATION: YES
JUMBO FRAMES: 10000
GIGABIT ETHERNET (COPPER) PORTS QUANTITY: 18
SFP MODULE SLOTS QUANTITY: 2
FANLESS: YES
COPPER ETHERNET CABLING TECHNOLOGY: 1000BASE-T/100BASE-TX/10BASE-T
