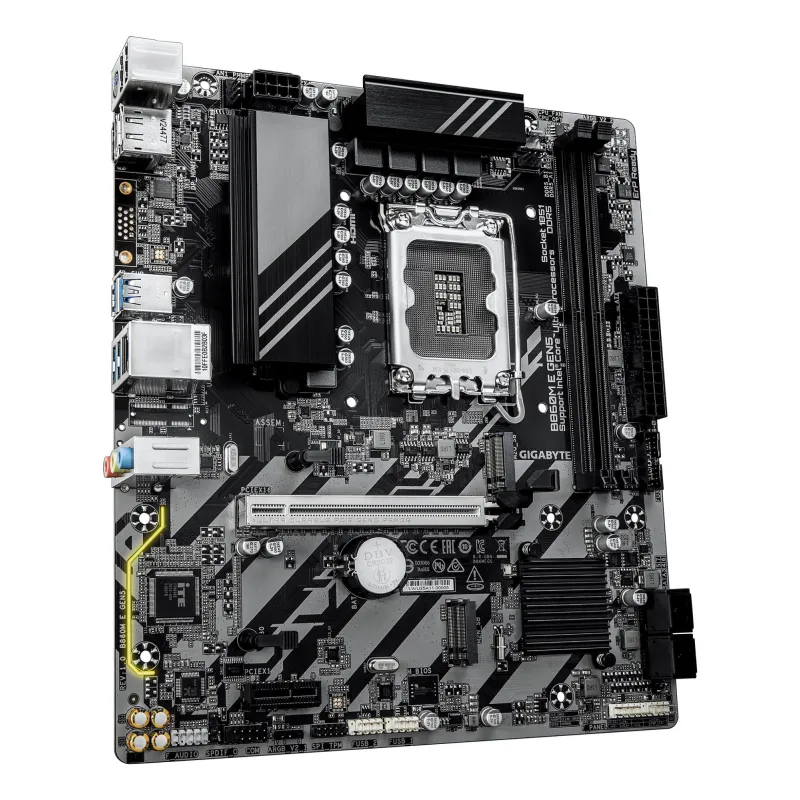

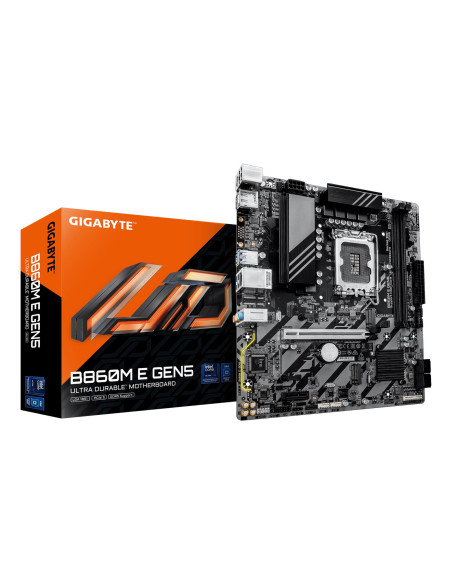

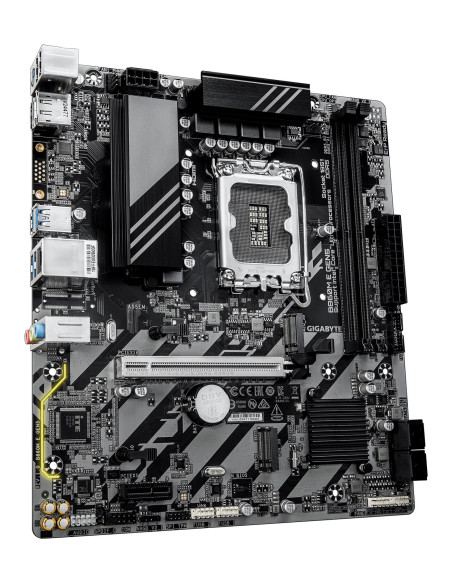

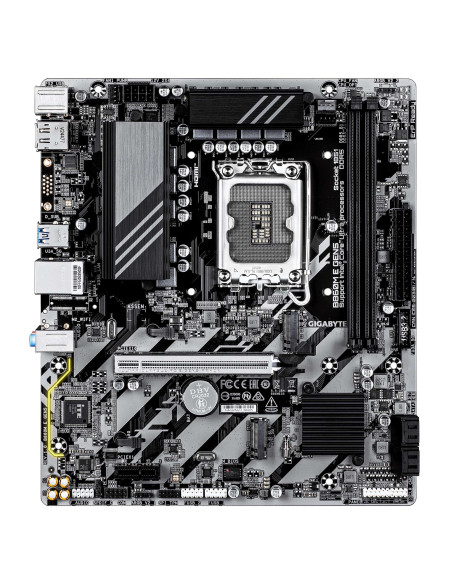

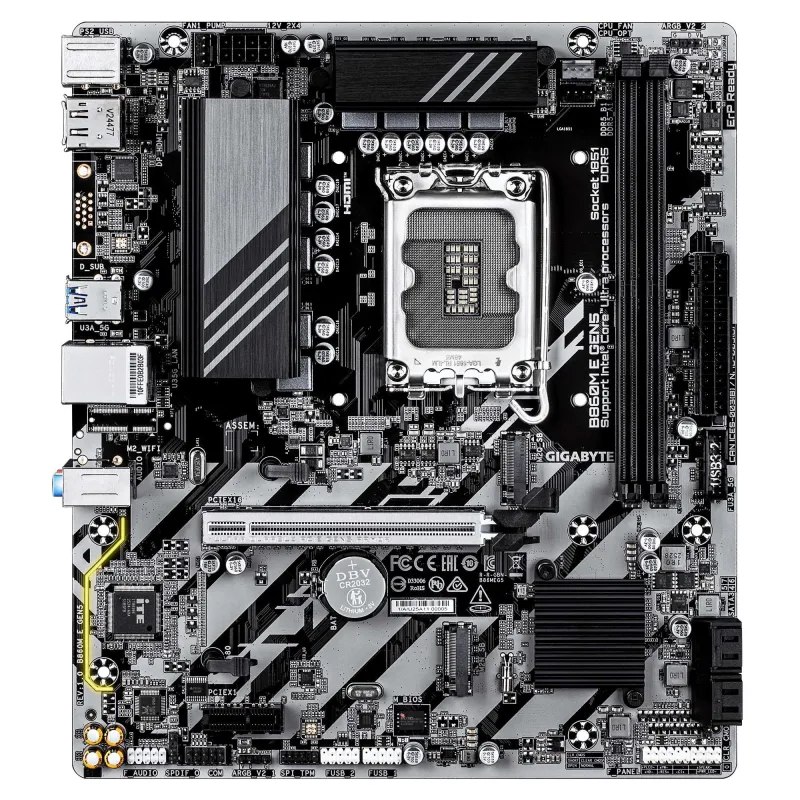

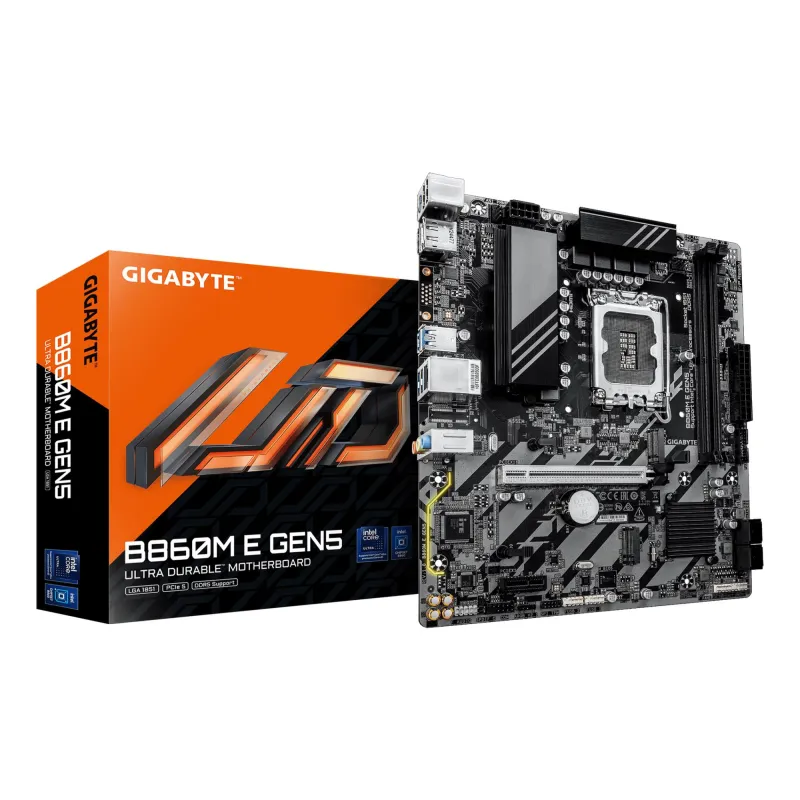

Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN

Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN

Name: Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN
Brand: GIGABYTE
SKU: B860M E GEN5
Price: 112.64 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B860M E GEN5

Yra sandėlyje

112,64 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 910 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B860M E GEN5 MOTHERBOARD - INTEL CORE ULTRA SERIES CPUS, 4+1+2 PHASES VRM, UP TO 8800MHZ DDR5 (O.C.), 2XPCIE 4.0 M.2, 1GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INT
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.265
UNIT BOX WIDTH: 0.27
POWER SOURCE TYPE: ATX
USB 2.0 PORTS QUANTITY: 2
PRODUCT COLOUR: DARK BROWN
WEIGHT, G: 910
PACKAGE WIDTH, MM: 265
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 988
COUNTRY OF ORIGIN: CHINA
UNIT CALCULATED WEIGHT, KG: 0.97
UNIT CALCULATED VOLUME, CUBM: 0.004794
UNITS PER SHIPPING BOX: 10
SHIPPING BOX WEIGHT, KG: 10
UNIT WIDTH, CM: 27
SHIPPING BOX HEIGHT, CM: 28.5
SHIPPING BOX DEPTH, CM: 58
UNIT DEPTH, CM: 26.5
SHIPPING BOX WIDTH, CM: 29
NAME: MB B860 S1851 MATX/B860M E GEN5 GIGABYTE
UNIT HEIGHT, CM: 5.5
WIDTH, MM: 244
DEPTH, MM: 215
HEIGHT, MM: 35
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
WARRANTY PERIOD, YEAR(S): 3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
HDMI VERSION: 2.1
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
HDCP VERSION: 2.3
BATTERY CAPACITY, MAH: 220
BATTERY WEIGHT, G: 3
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
HEADPHONE OUTPUTS: 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 2.1
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
WI-FI: No
ETHERNET LAN: YES
SUPPORTED PROCESSOR SOCKETS: LGA 1851
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
SCREWS INCLUDED: YES
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
MAXIMUM INTERNAL MEMORY, GB: 128
MOTHERBOARD CHIPSET: INTEL B860
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: INTEL
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 2
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: ECC & NON-ECC
UNBUFFERED MEMORY: YES
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID SUPPORT: YES
RAID LEVELS: 0/1/10/5
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 1
EPS POWER CONNECTOR (8-PIN): YES
RGB LED PIN HEADER: YES
NUMBER OF RGB LED PIN HEADERS: 2
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 2
1ST M.2 LARGEST KEY SIZE: 2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8800
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
SERIAL PORT HEADERS: 1
S/PDIF OUT CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
