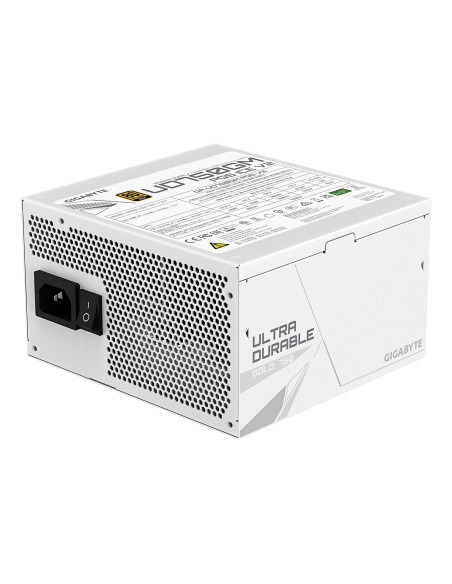

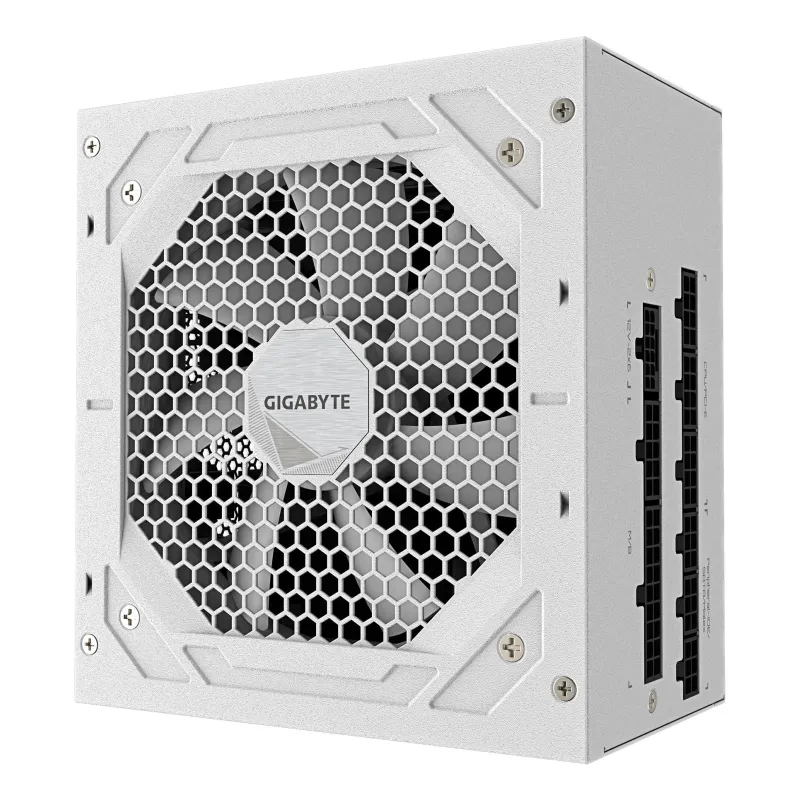

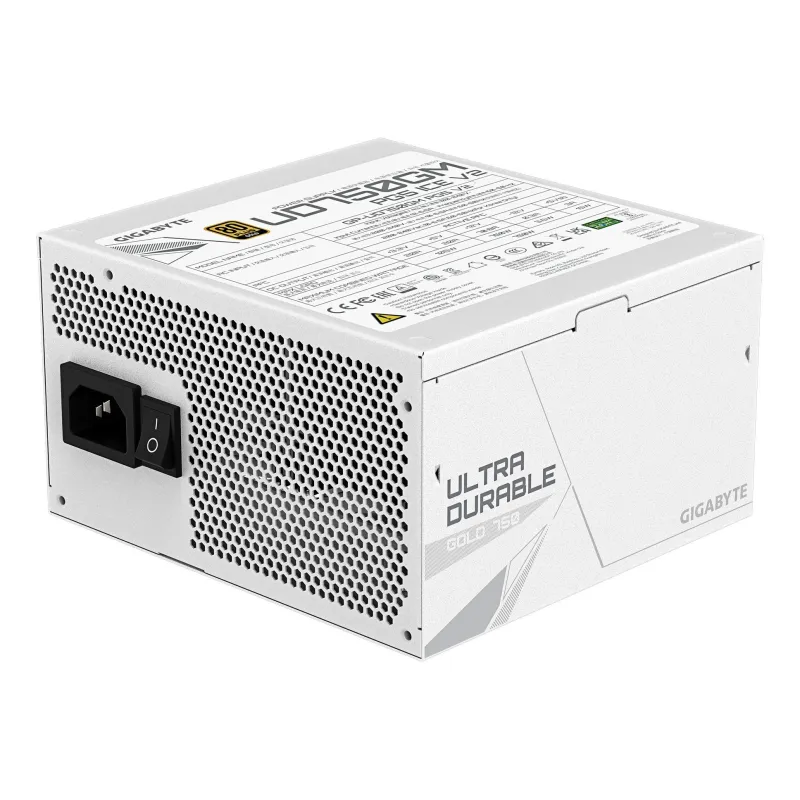

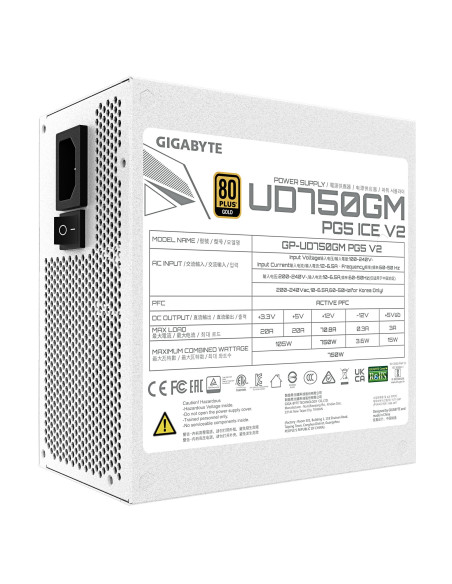

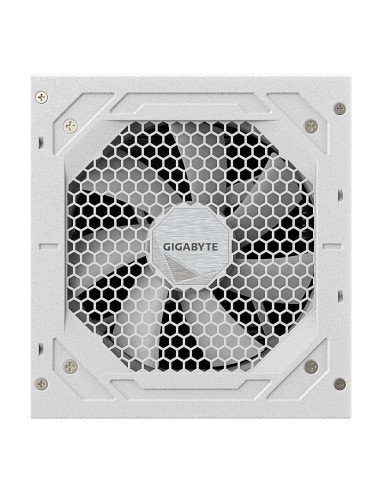

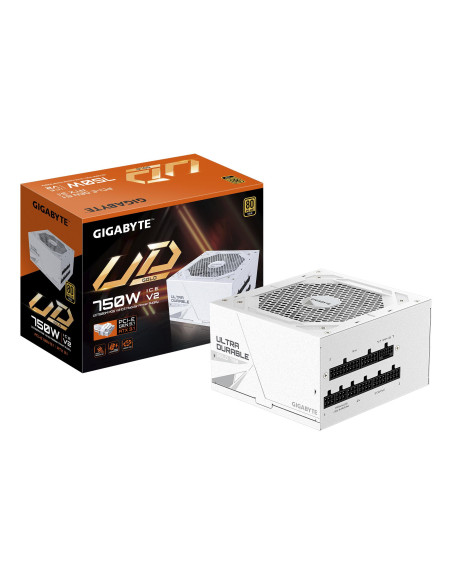

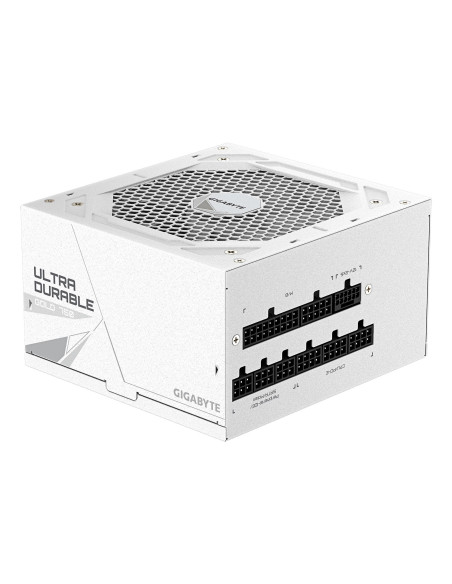

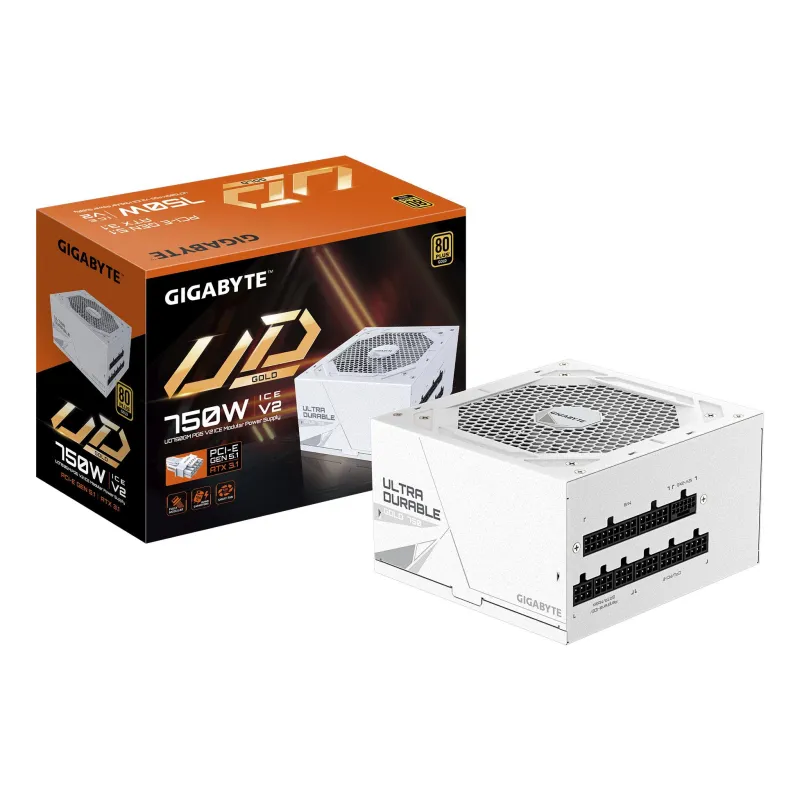

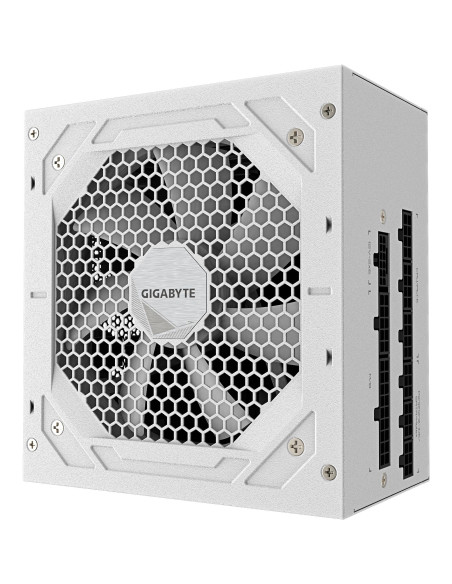

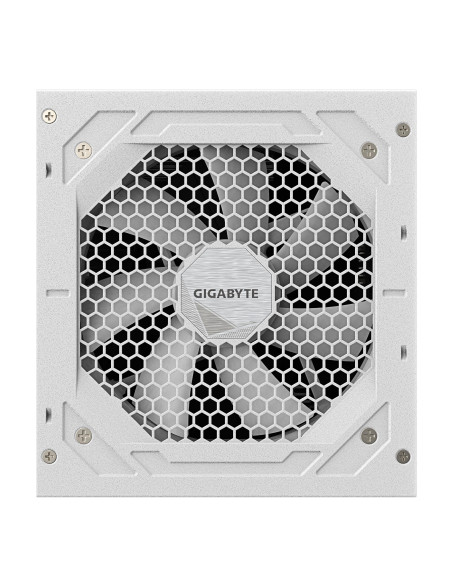

Power Supply, GIGABYTE, UD750GM PG5 ICE, ATX 3.1, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD750GM

Power Supply, GIGABYTE, UD750GM PG5 ICE, ATX 3.1, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD750GM

Name: Power Supply, GIGABYTE, UD750GM PG5 ICE, ATX 3.1, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD750GM
Brand: GIGABYTE
SKU: GP-UD750GM PG5 ICE
Price: 88.81 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas GP-UD750GM PG5 ICE

Yra sandėlyje

88,81 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

750 W , 100 - 240 V , Efficiency 90 % , 80 PLUS certification 80 PLUS Gold , PC , ATX , Fan diameter 120 mm , Weight 2.34 kg , Package type Box , UD750GM PG5 ICE

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE UD750GM PG5 V2 ICE POWER SUPPLY UNIT- PCIE GEN 5.1, 80 PLUS GOLD, FULLY MODULAR DESIGN, 120MM FAN, ATX 3.1 COMPATIBLE, EU PLUG. TOTAL POWER: 750 W, AC INPUT VOLTAGE: 100 - 240 V, AC INPUT FREQUENCY: 50/60 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN
CNCODE: 85044095
CATEGORY CODE: PSU
UNIT BOX HEIGHT: 0.21
UNIT BOX LENGTH: 0.12
UNIT BOX WIDTH: 0.255
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/UNDER VOLTAGE
PRODUCT COLOUR: WHITE
INPUT CURRENT, A: 12 - 6.5
WIDTH, MM: 150
DEPTH, MM: 140
HEIGHT, MM: 86
WEIGHT, G: 2340
PACKAGE WIDTH, MM: 618
PACKAGE DEPTH, MM: 269
PACKAGE HEIGHT, MM: 211
PACKAGE TYPE: BOX
UNIT CALCULATED WEIGHT, KG: 2.53
PRODUCT NET WEIGHT, KG: 2
UNIT CALCULATED VOLUME, CUBM: 0.007986
UNITS PER SHIPPING BOX: 5
SHIPPING BOX WEIGHT, KG: 12.65
UNIT WIDTH, CM: 25.5
SHIPPING BOX HEIGHT, CM: 28
UNIT DEPTH, CM: 12
SHIPPING BOX DEPTH, CM: 62
UNIT HEIGHT, CM: 21
SHIPPING BOX WIDTH, CM: 23
NAME: CASE PSU ATX3.1 750W/GP-UD750GM PG5 ICE GIGABYTE
PACKAGE WEIGHT, G: 2500
MODEL NAME: UD750GM PG5 ICE
WARRANTY PERIOD, YEAR(S): 5
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
COOLING TYPE: ACTIVE
AC INPUT FREQUENCY, HZ: 50/60
ON/OFF SWITCH: YES
PURPOSE: PC
NUMBER OF FANS, FAN(S): 1

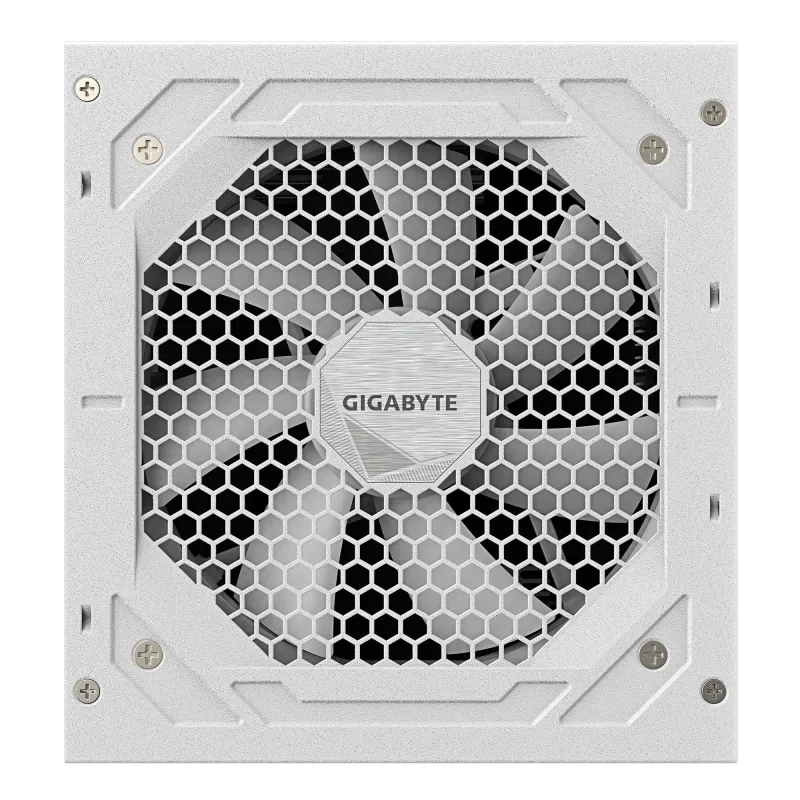

FAN DIAMETER, MM: 120
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 3
AC INPUT VOLTAGE, V: 100 - 240
TOTAL POWER, W: 750

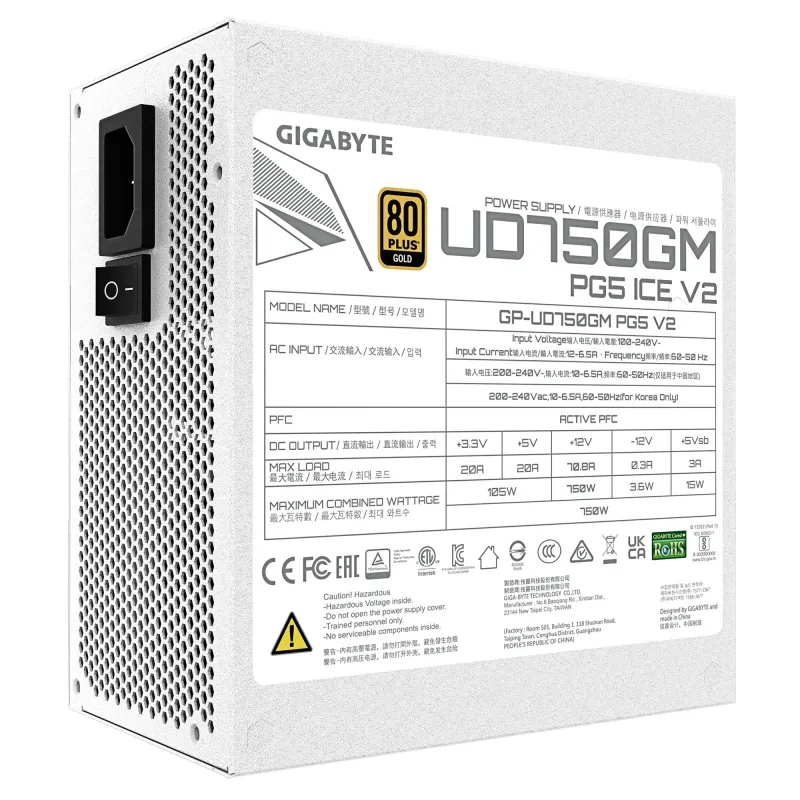

COMBINED POWER (+3.3V), W: 105
COMBINED POWER (+12V), W: 750
COMBINED POWER (+5V), W: 105
COMBINED POWER (-12V), W: 3.6
COMBINED POWER (+5VSB), W: 15
MAX OUTPUT CURRENT (+3.3V), A: 20
MAX OUTPUT CURRENT (+12V), A: 62.5
MAX OUTPUT CURRENT (+5V), A: 20
MAX OUTPUT CURRENT (-12V), A: 0.3
MAX OUTPUT CURRENT (+5VSB), A: 3
EFFICIENCY, %: 90
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 8
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 4

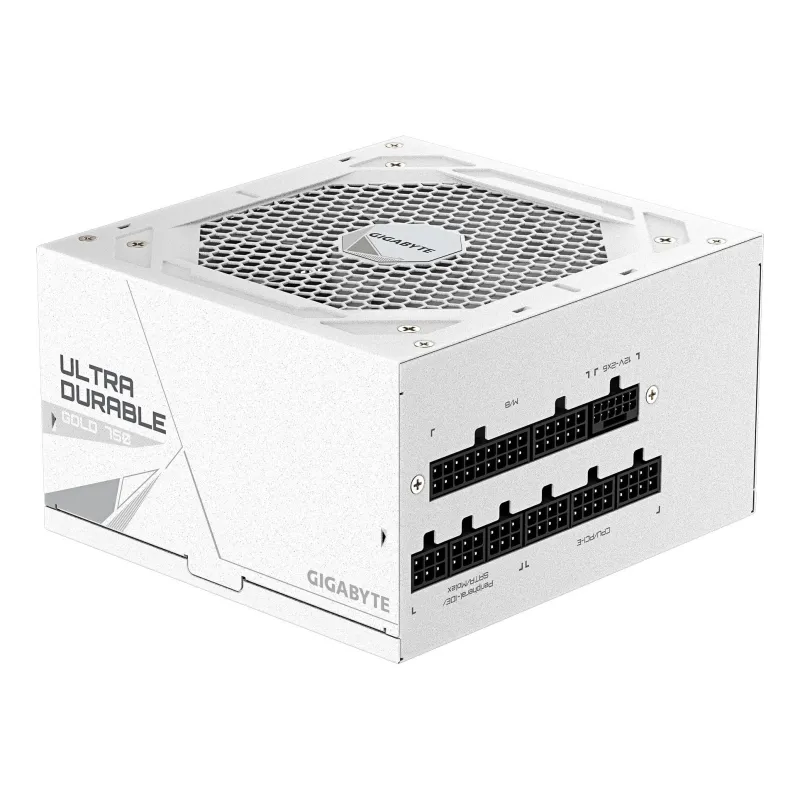

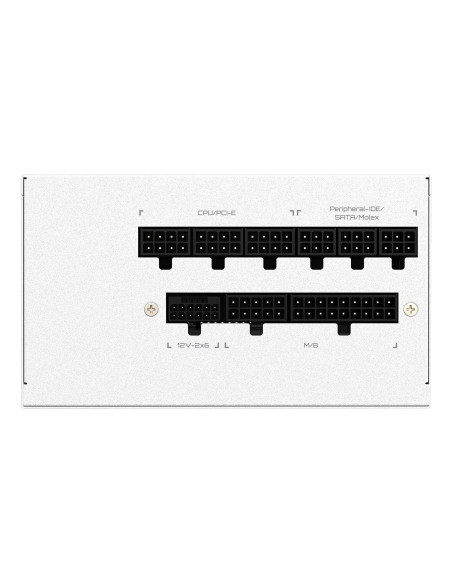

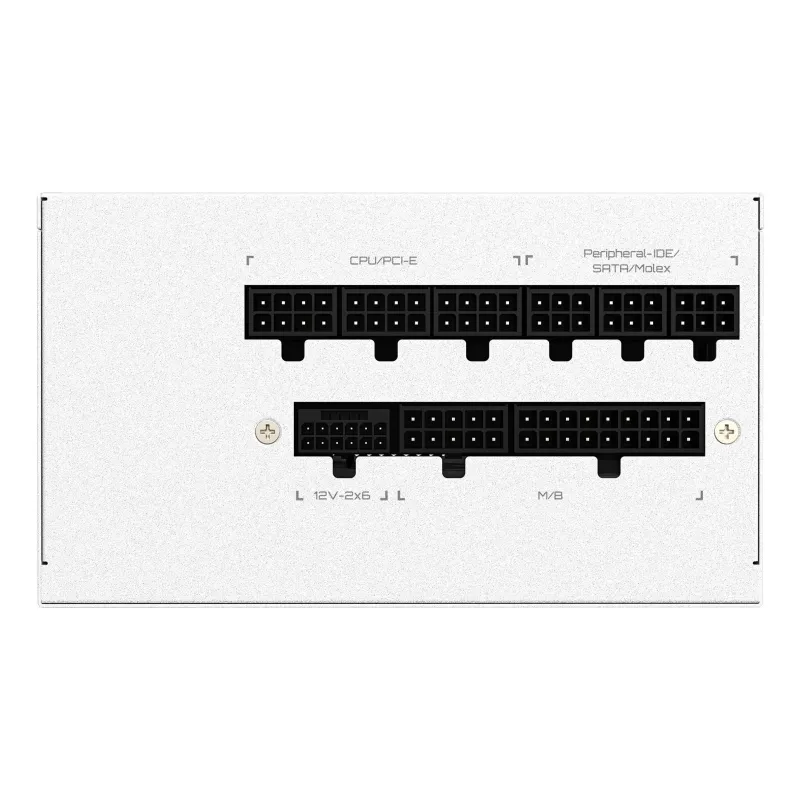

CABLING TYPE: FULLY-MODULAR
80 PLUS CERTIFICATION: 80 PLUS GOLD
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
BEARING TECHNOLOGY: HYB
POWER FACTOR: 0.9
HOLD TIME, MS: 16
MOTHERBOARD POWER CABLE LENGTH, MM: 610
PCI EXPRESS POWER CABLE LENGTH, MM: 600
CPU POWER CABLE LENGTH, MM: 650
PCI EXPRESS CONNECTOR: YES
ATX VERSION: 3.1
CPU POWER CONNECTOR (4+4 PIN): YES
FLOPPY DRIVE POWER CONNECTOR: 1
PCI EXPRESS POWER CONNECTORS (12+4 PIN): 1
NUMBER OF EPS CONNECTORS: 2
PCI EXPRESS POWER CONNECTORS (12+4 PIN) CABLE LENGTH, MM: 700
