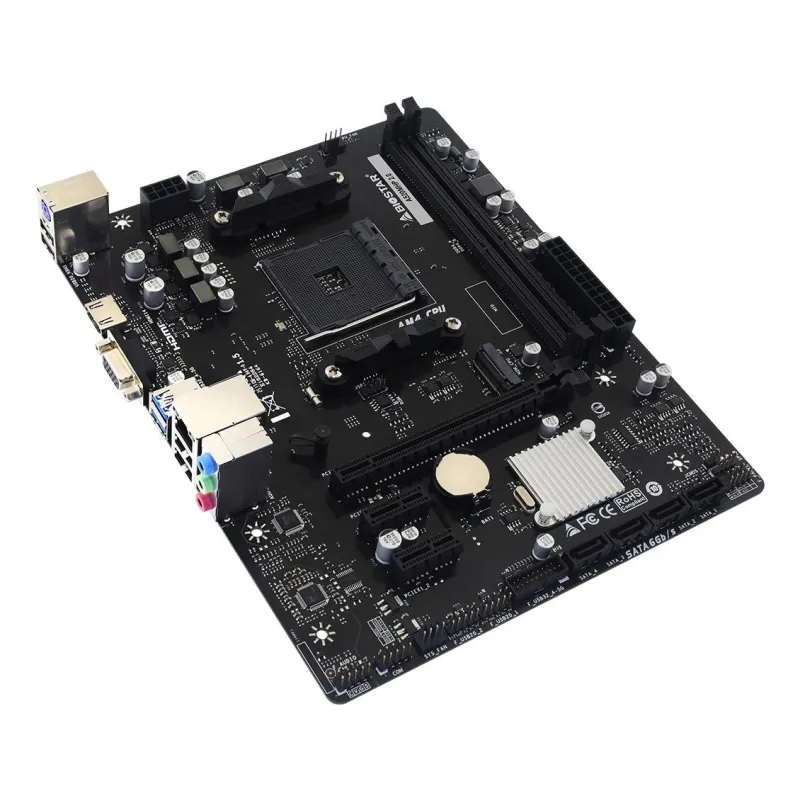

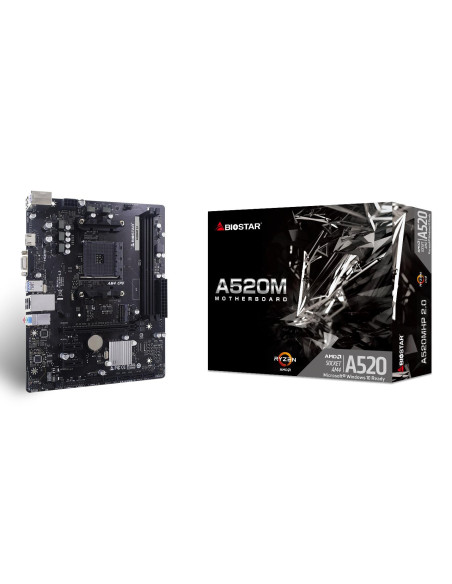

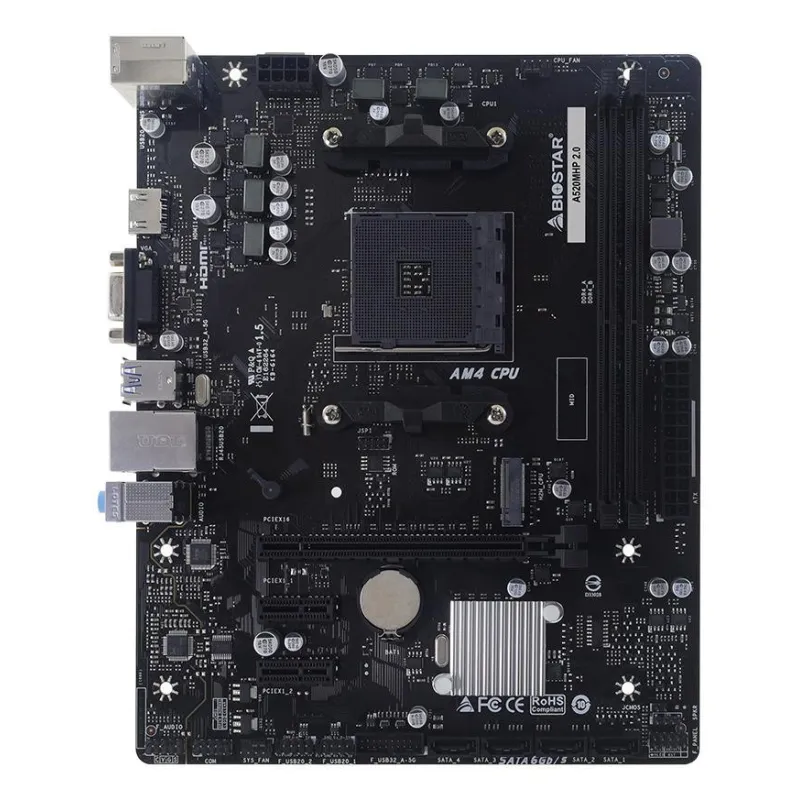

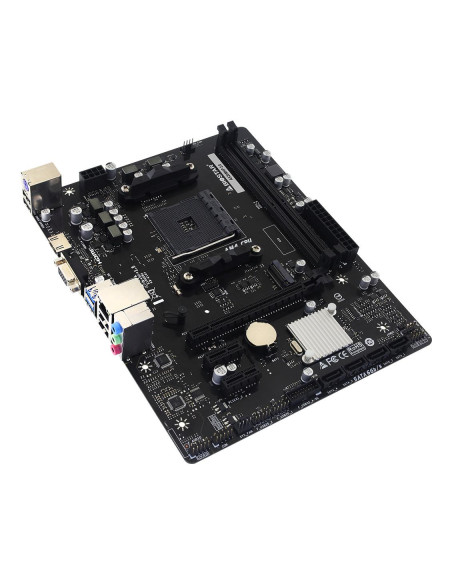

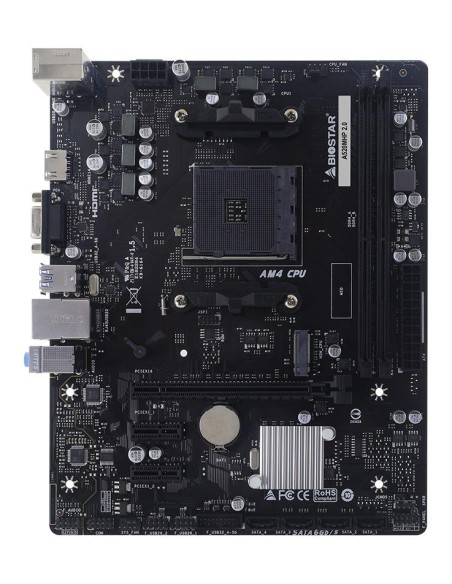

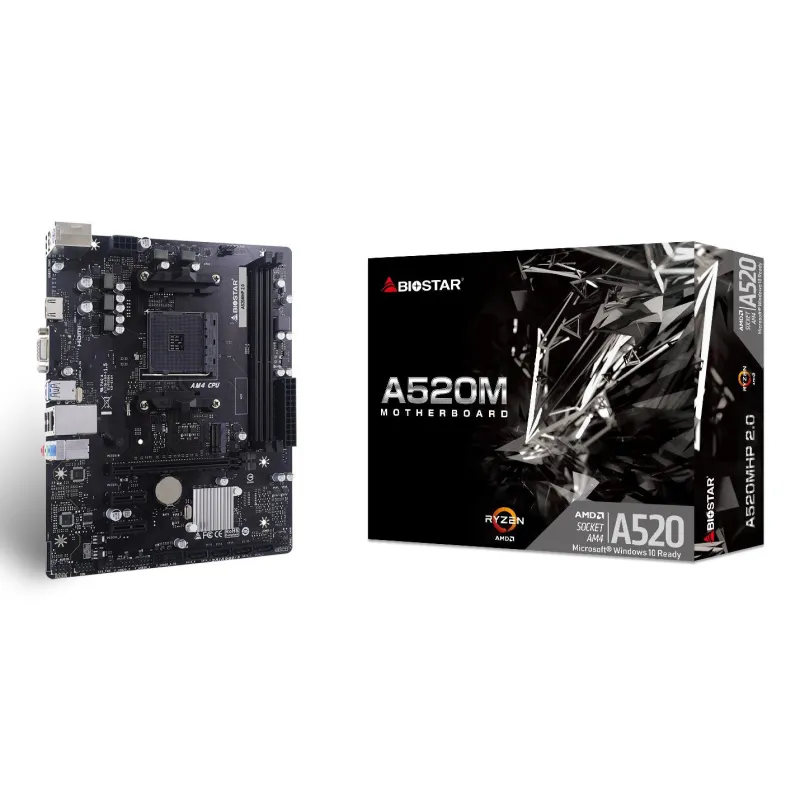

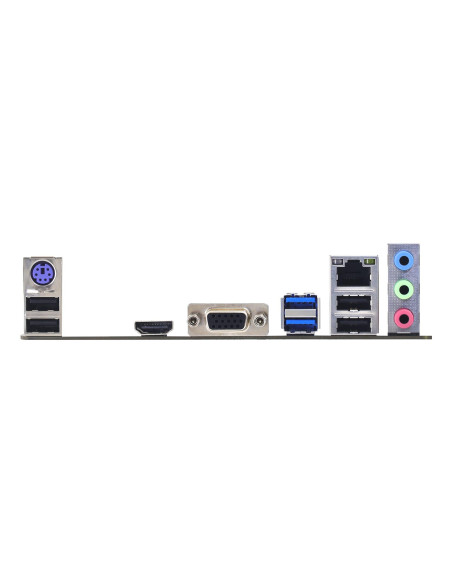

Mainboard, BIOSTAR, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MHP2.0

Mainboard, BIOSTAR, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MHP2.0

Name: Mainboard, BIOSTAR, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MHP2.0
Brand: BIOSTAR
SKU: A520MHP 2.0
Price: 48.62 EUR
Availability: InStock

Gamintojas: BIOSTAR

Kodas A520MHP 2.0

Yra sandėlyje

48,62 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

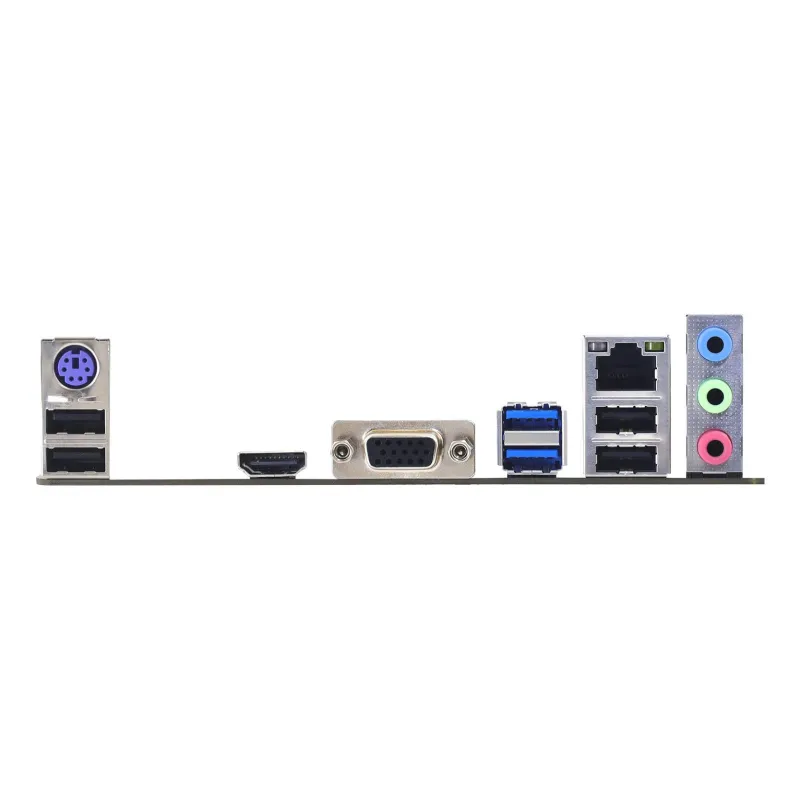

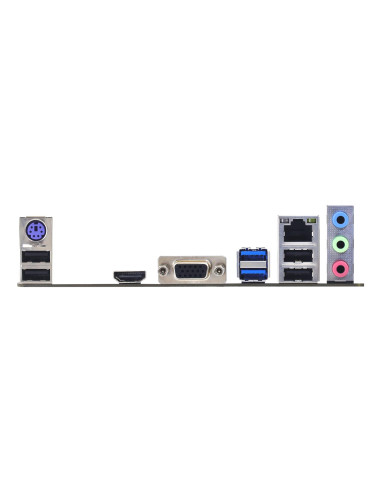

AMD A520 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces PCI Express 3.0,SATA III , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: BIOSTAR A520MHP 2.0. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 5000 SERIES, AMD RYZEN 4000 SERIES, AMD RYZEN 3000 SERIES. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEMORY: 64 GB, MEMORY SL
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.225
UNIT BOX LENGTH: 0.265
UNIT BOX WIDTH: 0.06
USB 2.0 PORTS QUANTITY: 4
PRODUCT COLOUR: BLACK
WIDTH, MM: 190
DEPTH, MM: 235
UNIT CALCULATED WEIGHT, KG: 0.715
PRODUCT NET WEIGHT, KG: 0.68
UNIT CALCULATED VOLUME, CUBM: 0.004298
UNITS PER SHIPPING BOX: 20
SHIPPING BOX WEIGHT, KG: 14.3
UNIT WIDTH, CM: 6
SHIPPING BOX HEIGHT, CM: 47.5
UNIT DEPTH, CM: 26.5
SHIPPING BOX DEPTH, CM: 63.5
UNIT HEIGHT, CM: 22.5
SHIPPING BOX WIDTH, CM: 28.5
NAME: MB AMD A520 SAM4 MATX/A520MHP 2.0 BIOSTAR
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
CABLES INCLUDED: SATA
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
ETHERNET INTERFACE TYPE: FAST ETHERNET/GIGABIT ETHERNET
HDCP: YES
USB CONNECTOR TYPE: USB TYPE-A
HEADPHONE OUTPUTS: 3
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DIRECTX VERSION: 12.0
VGA (D-SUB) PORTS QUANTITY: 1
DRIVERS INCLUDED: YES
WI-FI: No
ETHERNET LAN: YES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 4000 SERIES/AMD RYZEN 5000 SERIES
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM4
MAXIMUM INTERNAL MEMORY, GB: 64
MOTHERBOARD CHIPSET: AMD A520
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: AMD
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 2
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: NON-ECC
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: PCI EXPRESS 3.0,SATA III
NUMBER OF STORAGE DRIVES SUPPORTED: 5
RAID SUPPORT: YES
RAID LEVELS: 0/1/10
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
NUMBER OF M.2 (M) SLOTS: 1
1ST M.2 LARGEST KEY SIZE: 2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
BIOS TYPE: UEFI
MICROPHONE IN: YES
NUMBER OF COM CONNECTORS: 1
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3600/3800/4000/4133/4266/4400
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 4400
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
LAN CONTROLLER: REALTEK RTL8111H
CLEAR CMOS JUMPER: YES
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
AUDIO CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
MEMORY SLOT PIN COUNT: 288
