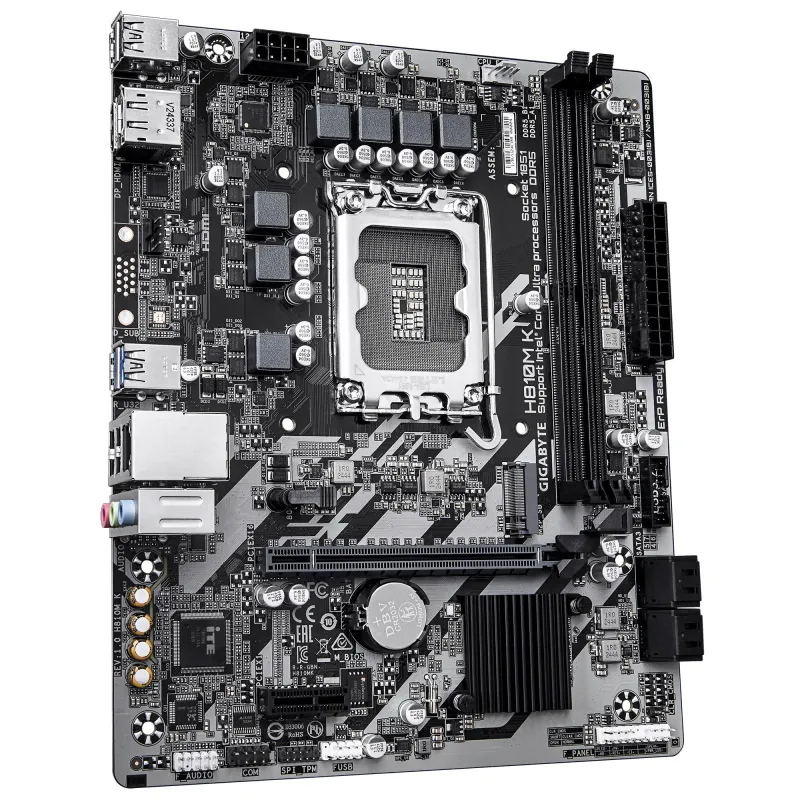

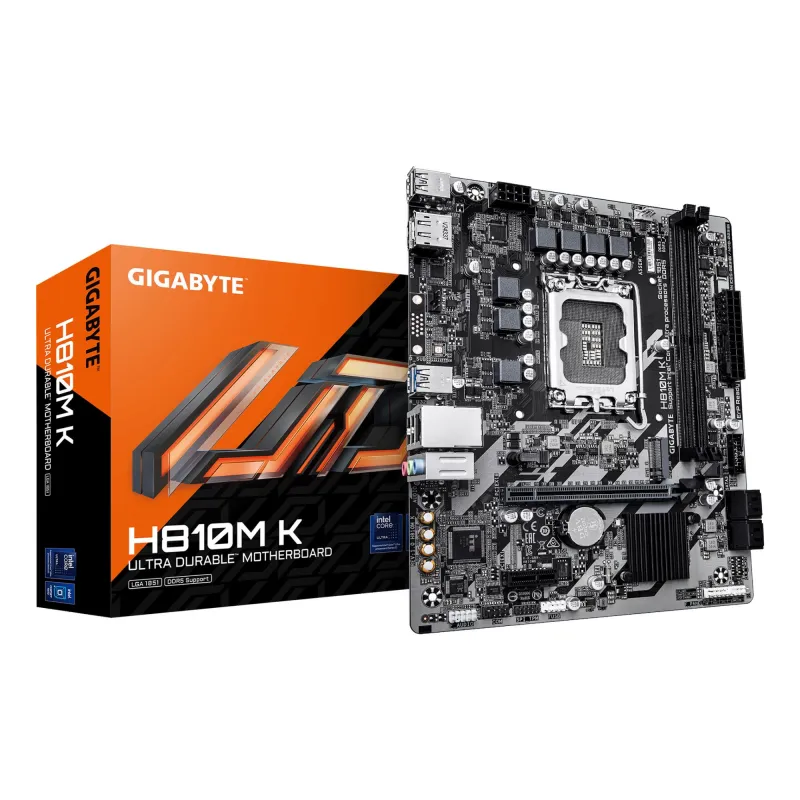

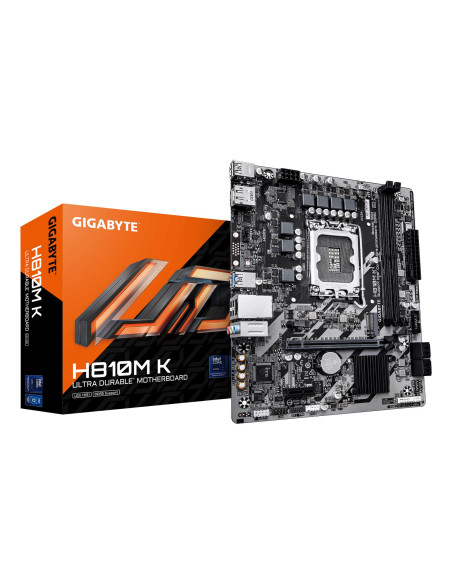

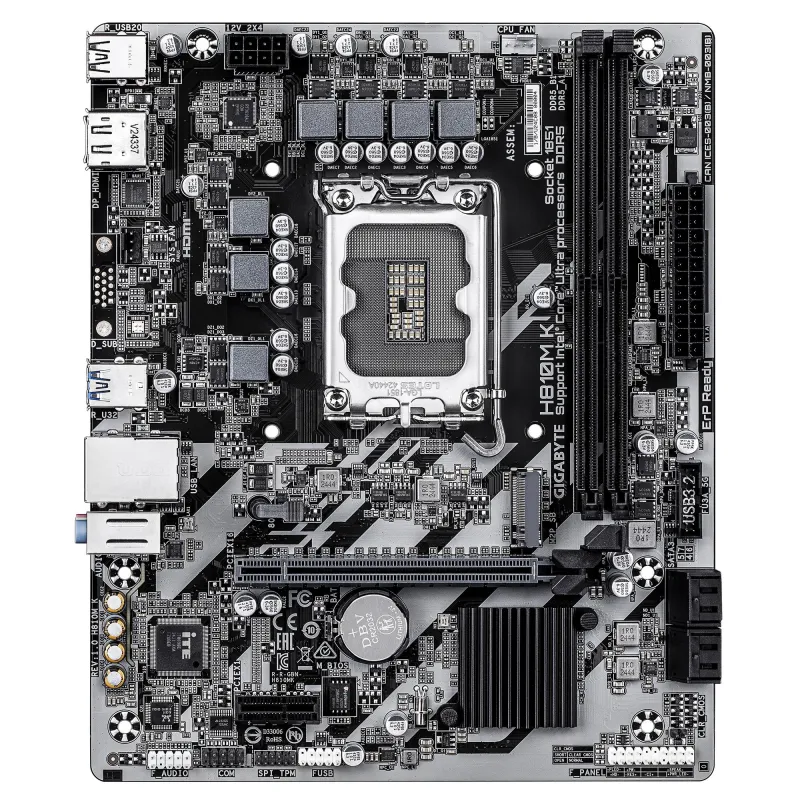

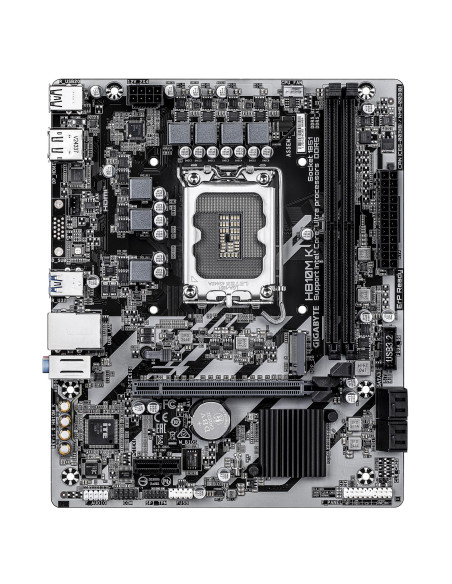

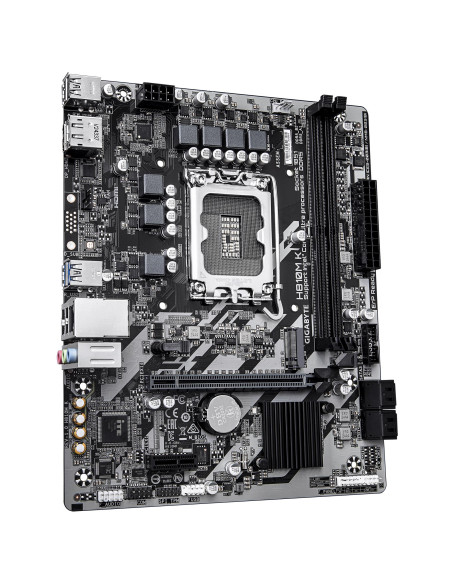

Mainboard, GIGABYTE, Intel H810, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, H810MK1.0

Mainboard, GIGABYTE, Intel H810, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, H810MK1.0

Name: Mainboard, GIGABYTE, Intel H810, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, H810MK1.0
Brand: GIGABYTE
SKU: H810M K 1.0
Price: 91.94 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas H810M K 1.0

Yra sandėlyje

91,94 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

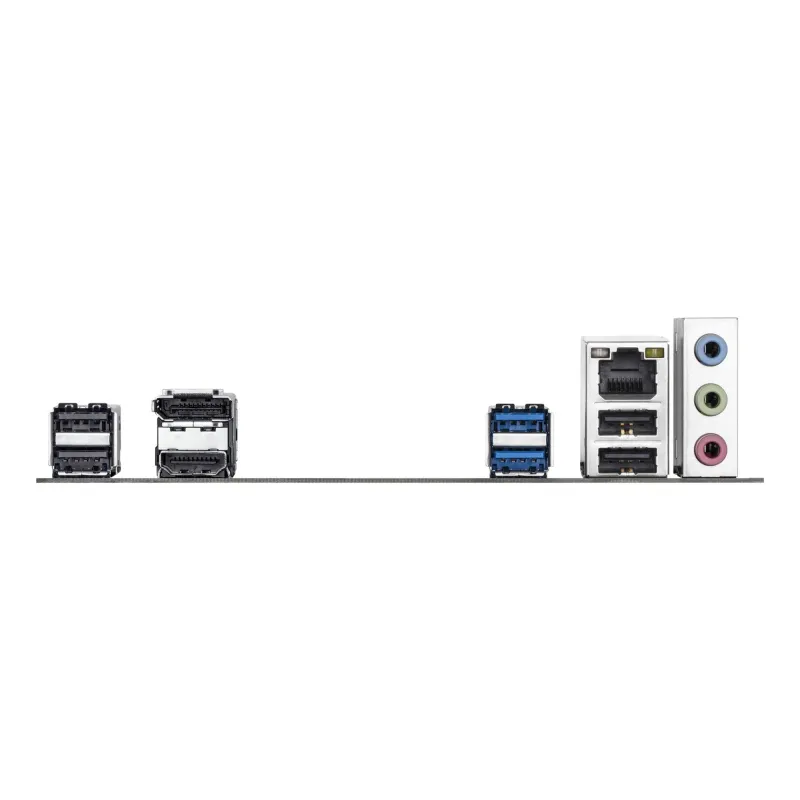

Intel H810 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 688 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE H810M K MOTHERBOARD - INTEL CORE ULTRA (SERIES 2) CPUS, 3+1+2 PHASES VRM, UP TO 6400MHZ DDR5, 1XPCIE 4.0 M.2, 1GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.265
UNIT BOX WIDTH: 0.235
PRODUCT COLOUR: DARK BROWN
PACKAGE WIDTH, MM: 265
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
COUNTRY OF ORIGIN: CHINA
UNIT CALCULATED WEIGHT, KG: 0.687
PRODUCT NET WEIGHT, KG: 0.58
UNIT CALCULATED VOLUME, CUBM: 0.003425
UNITS PER SHIPPING BOX: 1
SHIPPING BOX WEIGHT, KG: 0.687
UNIT WIDTH, CM: 23.5
SHIPPING BOX HEIGHT, CM: 5.5
UNIT DEPTH, CM: 26.5
SHIPPING BOX DEPTH, CM: 26.5
UNIT HEIGHT, CM: 5.5
SHIPPING BOX WIDTH, CM: 23.5
NAME: MB H810 S1851 MATX/H810M K 1.0 GIGABYTE
MODEL: H810M K
WIDTH, MM: 226
DEPTH, MM: 185
HEIGHT, MM: 35
WEIGHT, G: 688
PACKAGE WEIGHT, G: 766.6
HDMI VERSION: 2.1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
WARRANTY PERIOD, YEAR(S): 3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERY WEIGHT, G: 3
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
WI-FI: No
POWER SOURCE TYPE: ATX
BATTERY TYPE: CR2032
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
ETHERNET LAN (RJ-45) PORTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: Intel
USB 2.0 PORTS QUANTITY: 4
SCREWS INCLUDED: YES
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
BATTERIES INCLUDED: YES
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 2.1
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
SUPPORTED PROCESSOR SOCKETS: LGA 1851
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
MAXIMUM INTERNAL MEMORY, GB: 128
MOTHERBOARD CHIPSET: INTEL H810
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: INTEL
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 2
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: ECC & NON-ECC
UNBUFFERED MEMORY: YES
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 5
RAID SUPPORT: YES
RAID LEVELS: 0/1/10/5
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 1
EPS POWER CONNECTOR (8-PIN): YES
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 1
1ST M.2 LARGEST KEY SIZE: 2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 5600/6400
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 6400
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
SERIAL PORT HEADERS: 1
