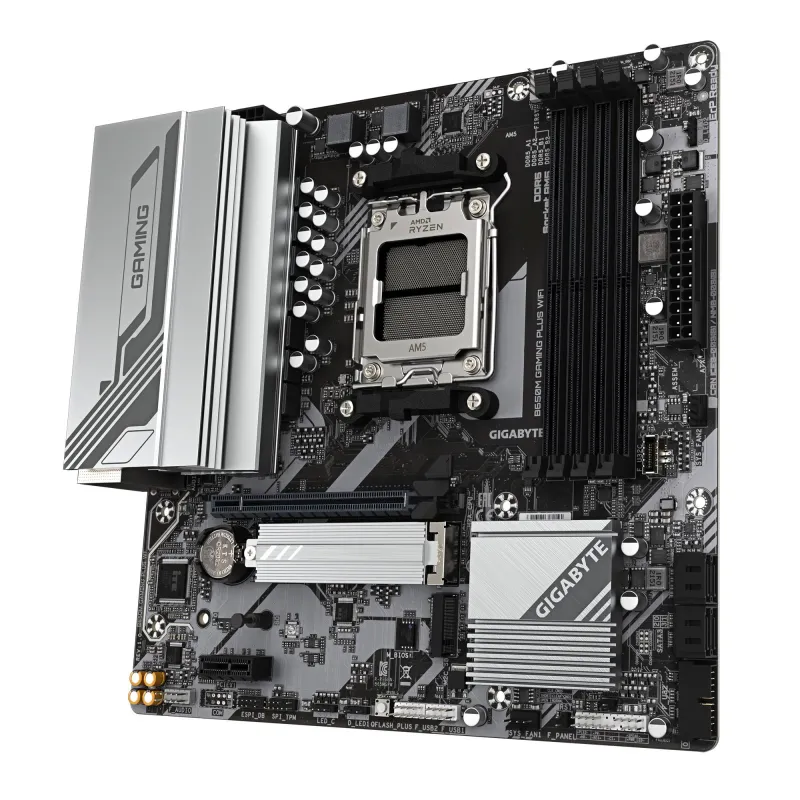

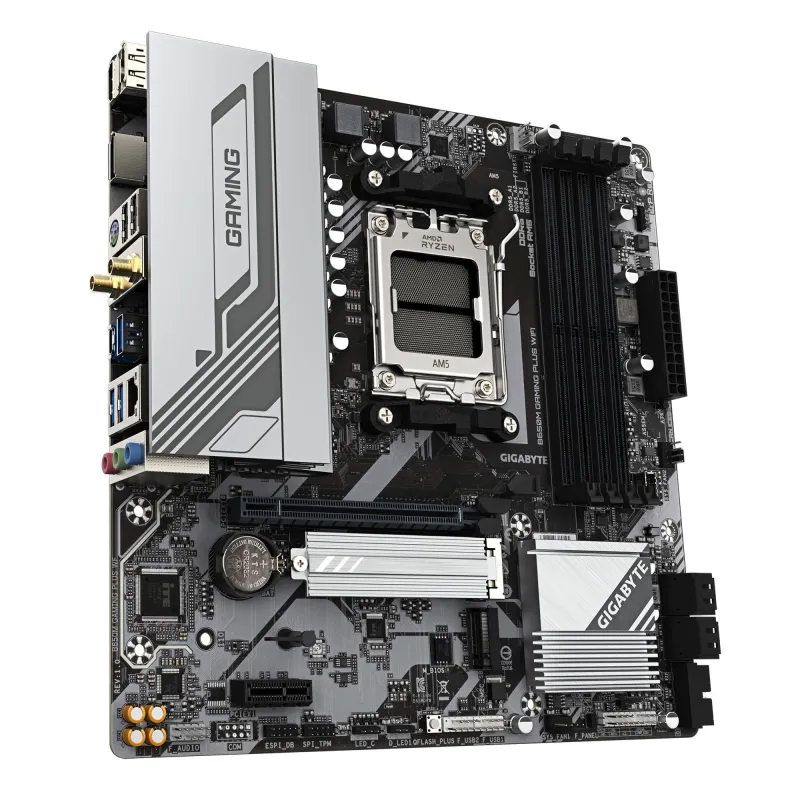

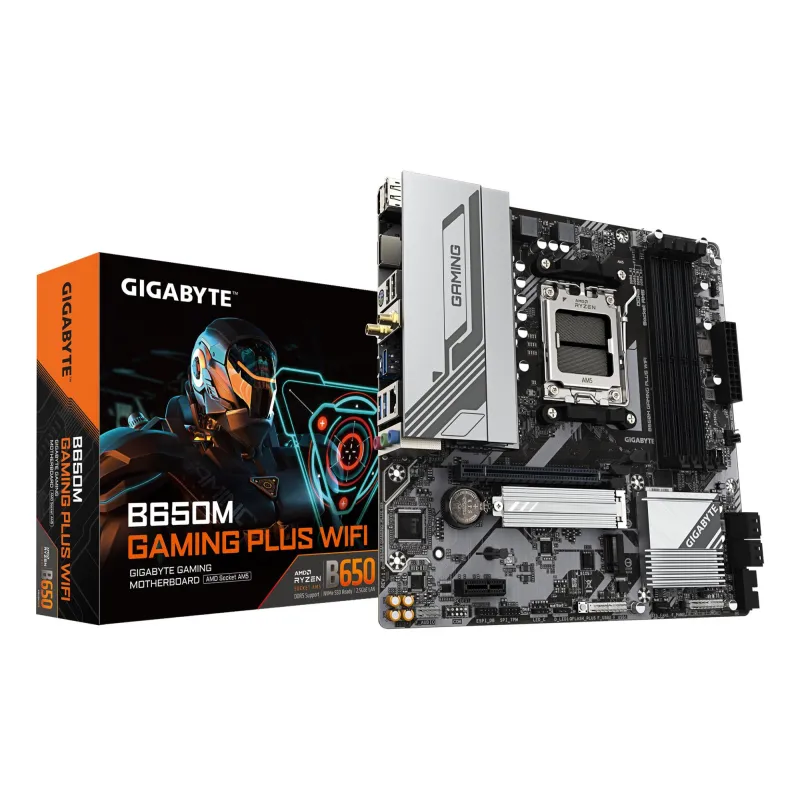

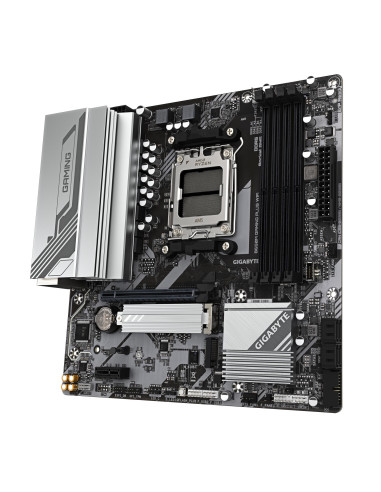

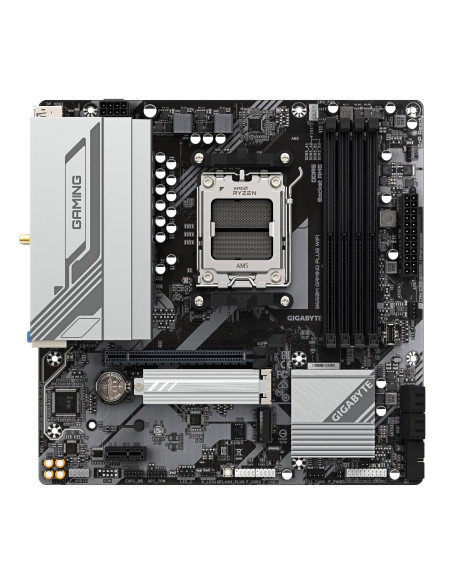

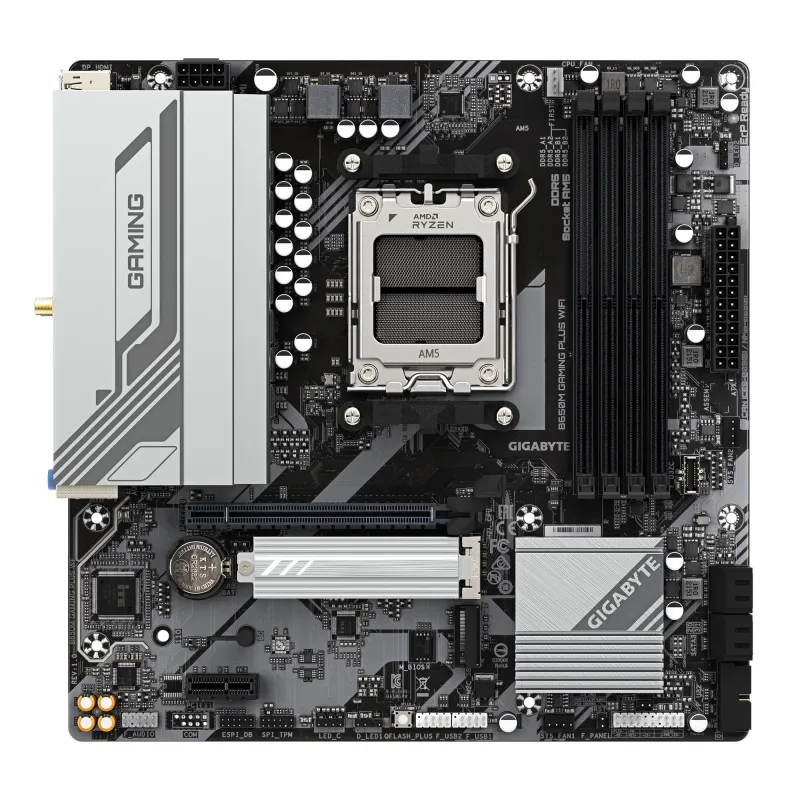

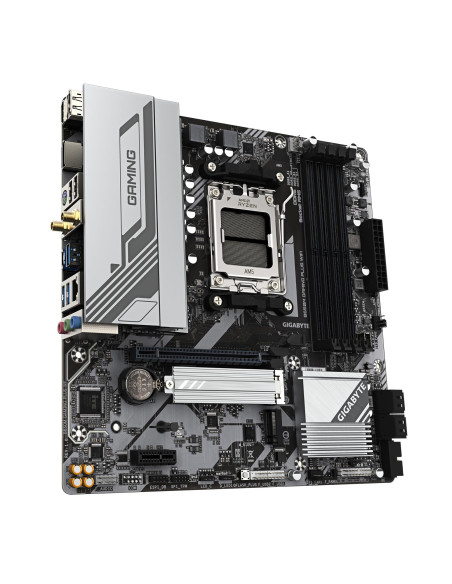

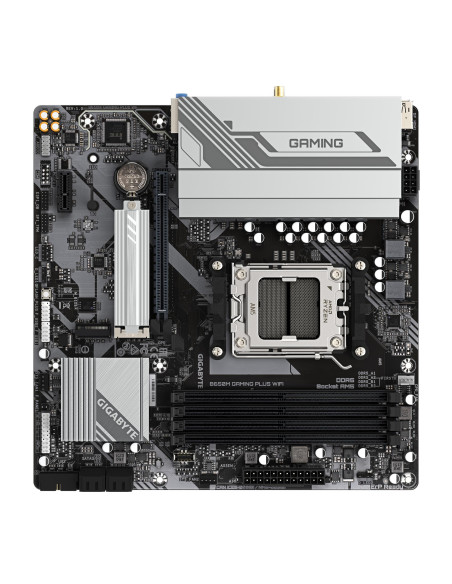

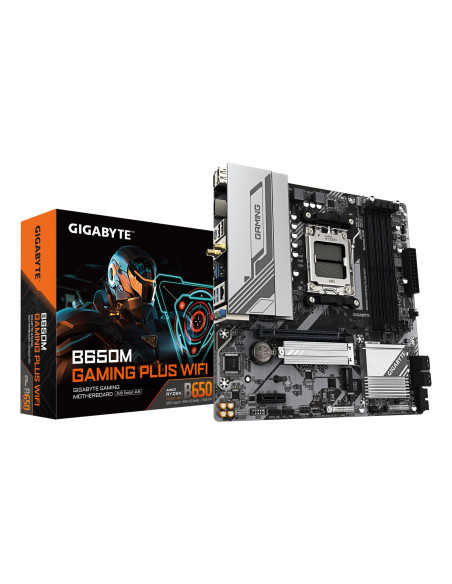

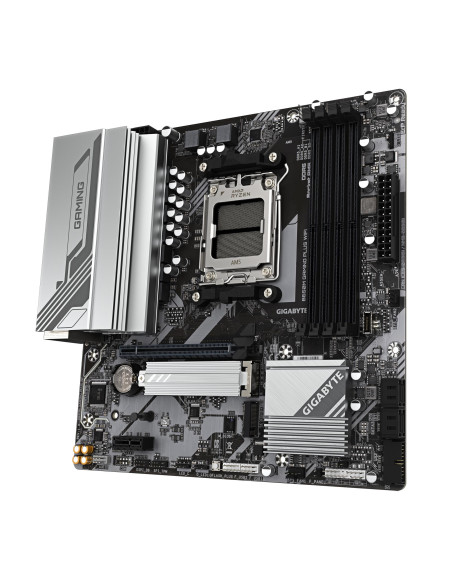

Mainboard, GIGABYTE, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B650MGAMINGPLUSWF1.3

Mainboard, GIGABYTE, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B650MGAMINGPLUSWF1.3

Name: Mainboard, GIGABYTE, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B650MGAMINGPLUSWF1.3
Brand: GIGABYTE
SKU: B650M GAMING PLUS WF 1.3
Price: 135.13 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B650M GAMING PLUS WF 1.3

Yra sandėlyje

135,13 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD B650 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.44 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B650M GAMING PLUS WIFI MOTHERBOARD - AMD RYZEN 9000 CPUS, 5+2+2 PHASES VRM, UP TO 8000MHZ DDR5, 2XPCIE 4.0 M.2, 2.5GBE LAN, WIFI 6E, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.27
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
PRODUCT COLOUR: DARK BROWN
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1438
WIDTH, MM: 244
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1530
PACKAGE WIDTH, MM: 270
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.0063
UNIT CALCULATED WEIGHT, KG: 1.51
MODEL: B650M GAMING PLUS WIFI (REV. 1.3)
WARRANTY PERIOD, YEAR(S): 3
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
WI-FI: Yes
PROCESSOR MANUFACTURER: AMD
SCREWS INCLUDED: YES

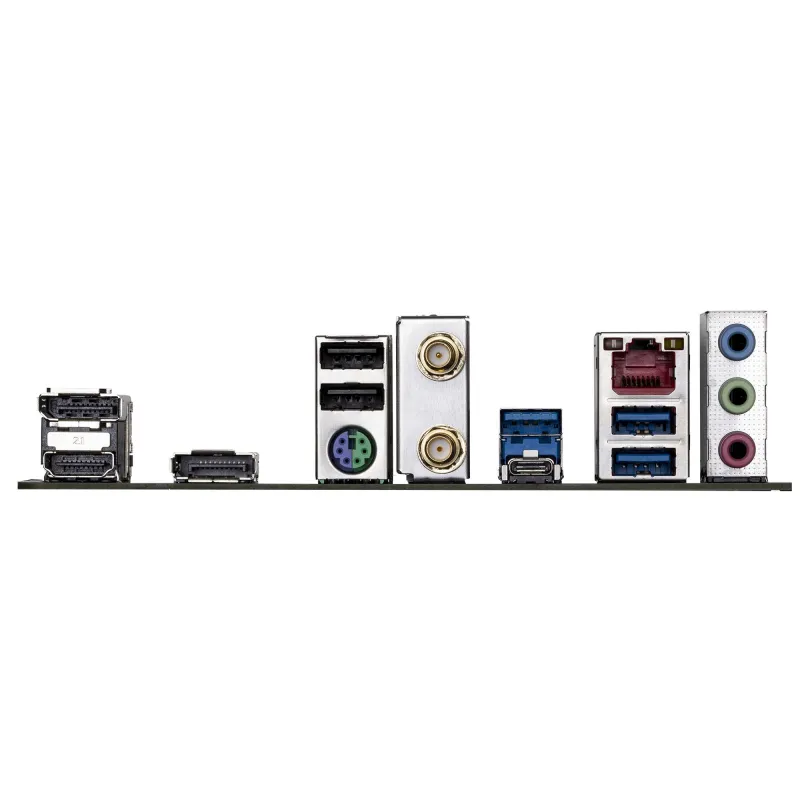

USB 2.0 PORTS QUANTITY: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
POWER SOURCE TYPE: ATX
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
ANTENNA INCLUDED: YES
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
BATTERIES INCLUDED: YES
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
HDCP: YES
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORTS QUANTITY: 2
DISPLAYPORT VERSION: 1.4
DIRECTX VERSION: 12.0
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: AMD B650
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8000
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
MEMORY SLOTS TYPE: DIMM
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
MICROPHONE IN: YES
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000
WLAN CONTROLLER MODEL: REALTEK RTL8852CE
WIFI-AP ANTENNA JACK: 2
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
FRONT PANEL CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 3
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8125
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2580
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 22110
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
PS/2 PORTS QUANTITY: 1
