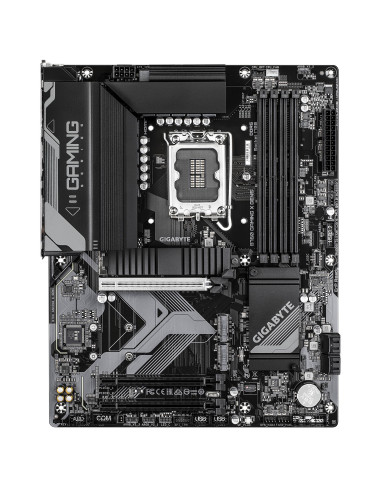

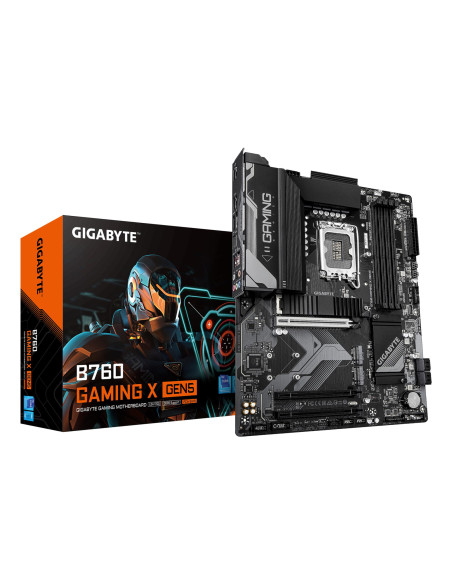

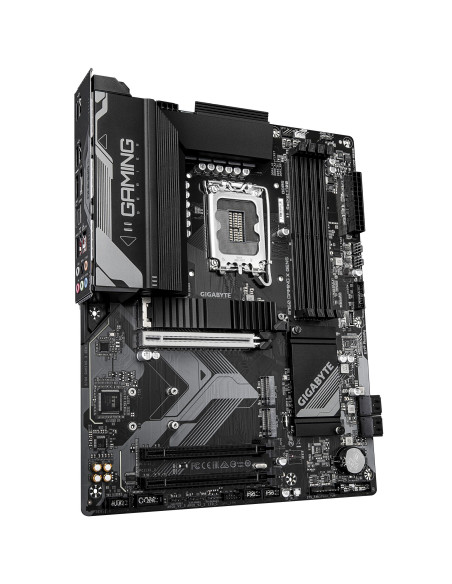

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5

Name: Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5
Brand: GIGABYTE
SKU: B760 GAMING X GEN5
Price: 133.35 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760 GAMING X GEN5

Yra sandėlyje

133,35 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2304 pixels , 5xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 1.56 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B760 GAMING X GEN5 MOTHERBOARD - SUPPORTS 14TH GEN. INTEL CORE CPUS, 8+1+1 PHASES VRM, UP TO 5600MHZ DDR5, 3XPCIE 4.0 M.2, 2.5 GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL C
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.335
UNIT BOX WIDTH: 0.27
PRODUCT COLOUR: DARK BROWN
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1560
WIDTH, MM: 305
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.007236
UNIT CALCULATED WEIGHT, KG: 1.55
MODEL: B760 GAMING X GEN5
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 1
PROCESSOR MANUFACTURER: Intel
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WIDTH, MM: 335
PACKAGE WEIGHT, G: 1800
SCREWS INCLUDED: YES
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
WI-FI: No
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
POWER SOURCE TYPE: ATX
USB 2.0 PORTS QUANTITY: 5
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
COUNTRY OF ORIGIN: CHINA
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
BATTERIES INCLUDED: YES
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
HEADPHONE OUTPUTS: 1
HDCP: YES
WARRANTY PERIOD, YEAR(S): 3
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN/INTEL CELERON
SUPPORTED PROCESSOR SOCKETS: LGA 1700
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
MOTHERBOARD CHIPSET: Intel B760
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 22110
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5600
NUMBER OF HDDS SUPPORTED: 4
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8125
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 2
S/PDIF OUT CONNECTOR: YES
SERIAL PORT HEADERS: 1
