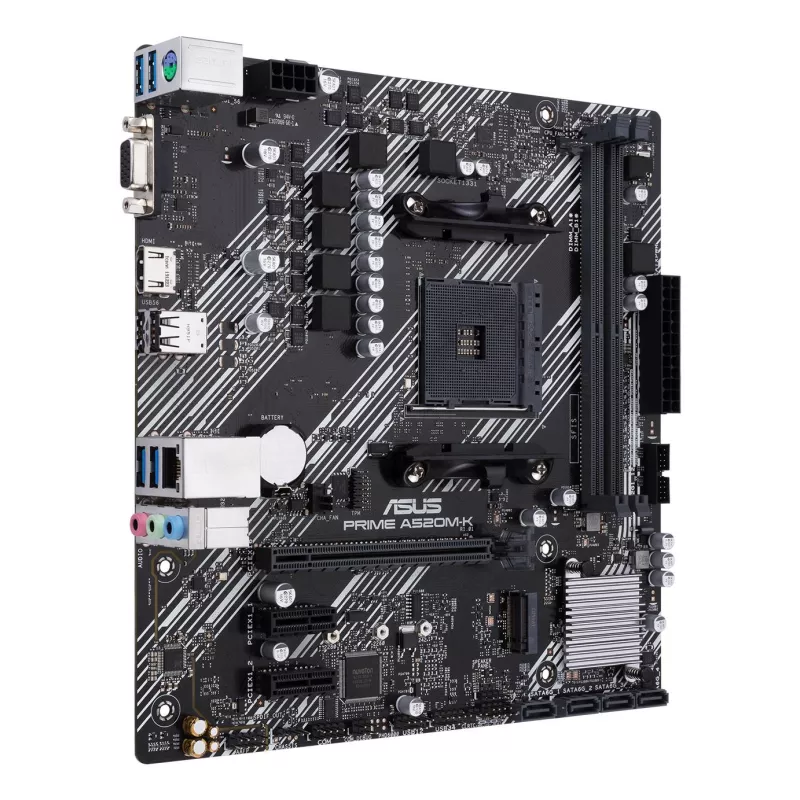

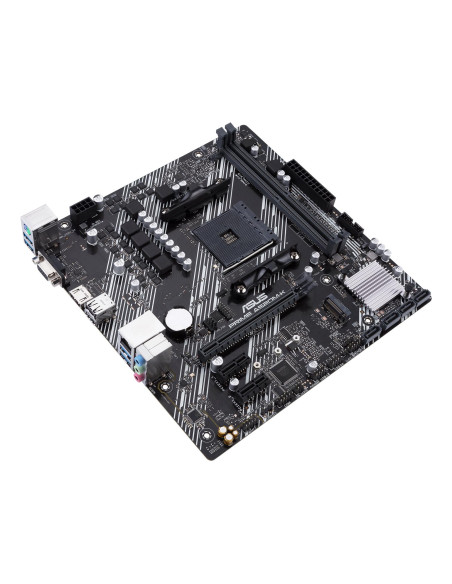

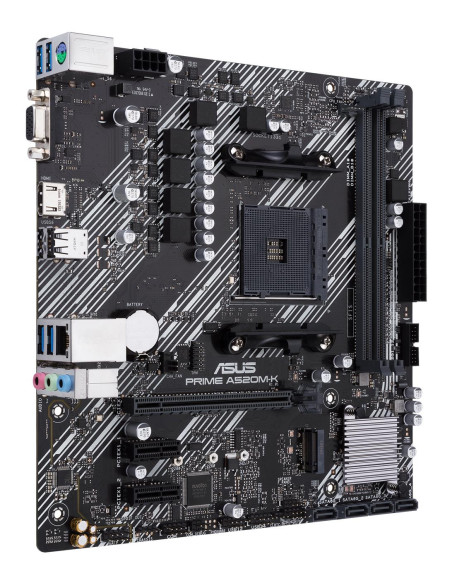

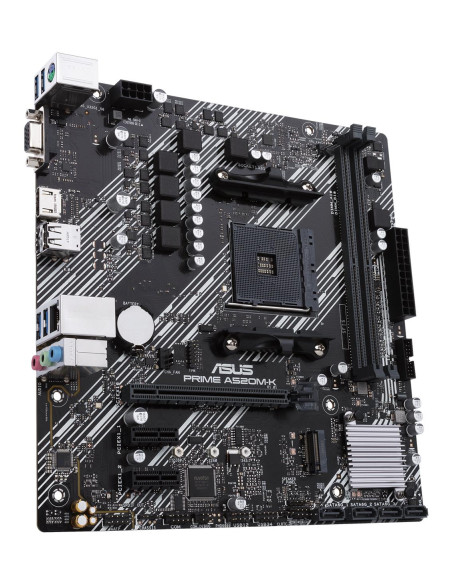

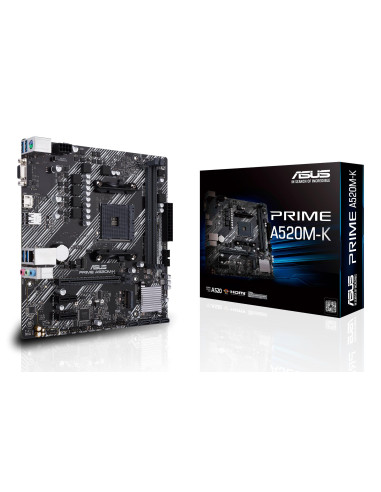

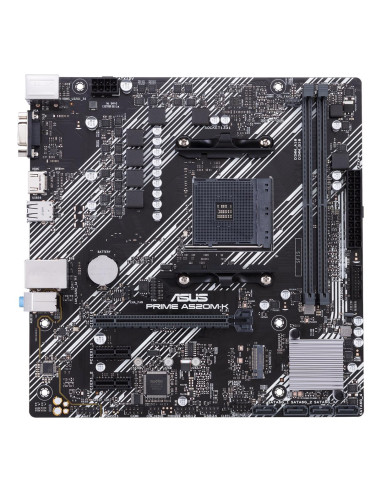

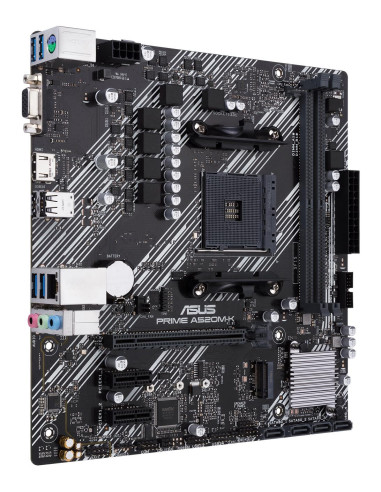

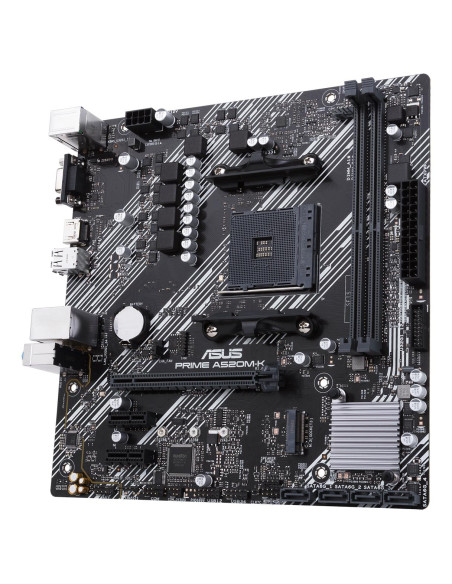

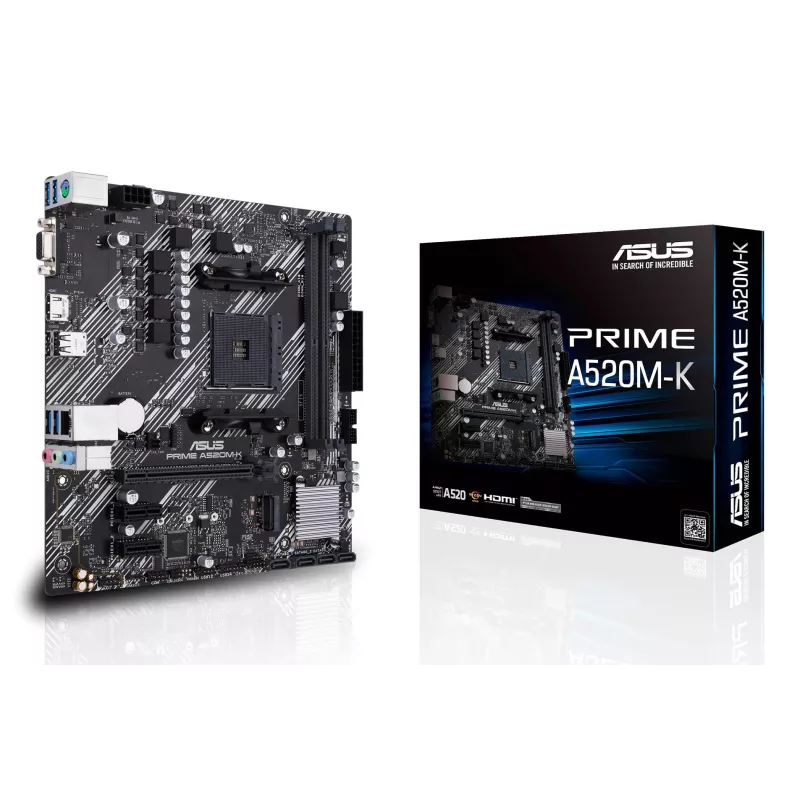

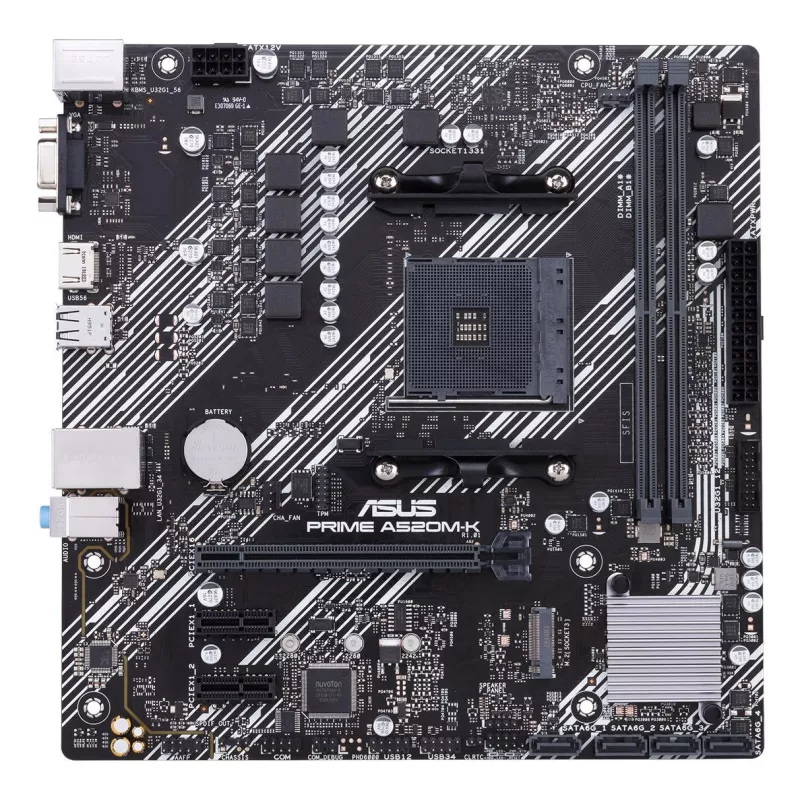

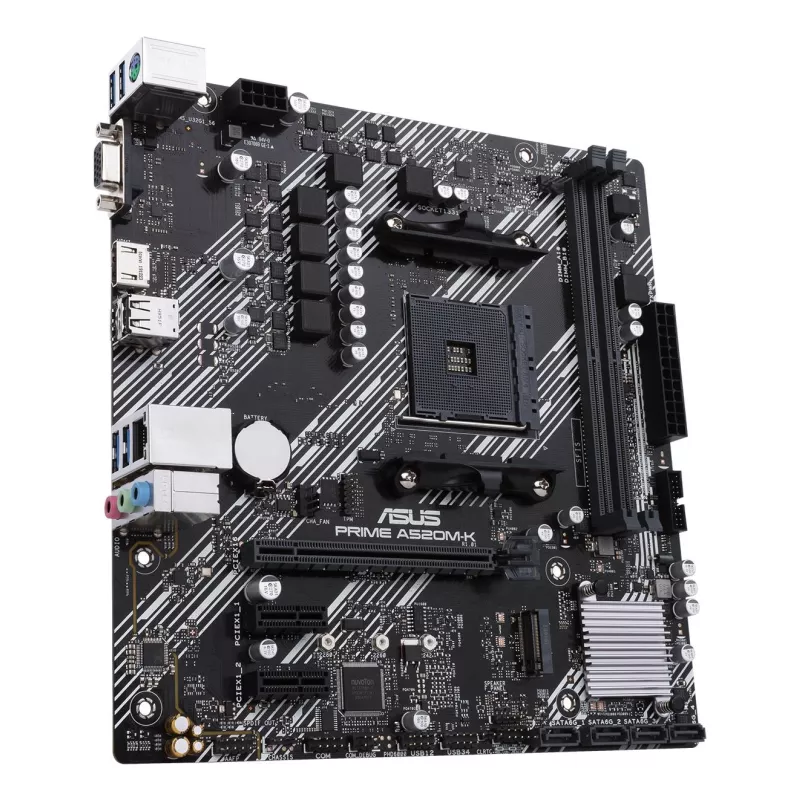

Mainboard, ASUS, AMD A520, SAM4, MicroATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2, Memory DDR4, Memory slots 2, 1x1

Mainboard, ASUS, AMD A520, SAM4, MicroATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2, Memory DDR4, Memory slots 2, 1x1

Name: Mainboard, ASUS, AMD A520, SAM4, MicroATX, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2, Memory DDR4, Memory slots 2, 1x1
Brand: ASUS
SKU: PRIMEA520M-K
Price: 56.06 EUR
Availability: InStock

Gamintojas: ASUS

Kodas PRIMEA520M-K

Yra sandėlyje

56,06 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

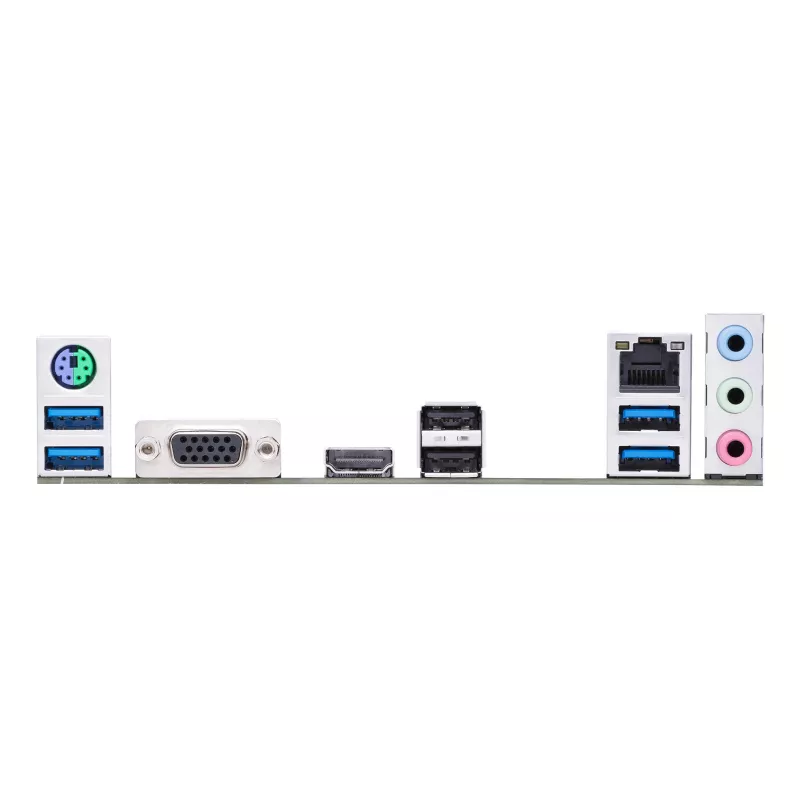

AMD A520 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Series AMD Ryzen™ 5/AMD Ryzen™ 7/AMD Ryzen™ 3 , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS PRIME A520M-K. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3, AMD RYZEN 5, AMD RYZEN 7. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEMORY: 64 GB, MEMORY SLOTS TYPE: DIMM. SUPPORTED STORA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.05
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.265
CATEGORY CODE: MBA
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.003577
UNIT CALCULATED WEIGHT, KG: 0.83
DEPTH, MM: 221
WIDTH, MM: 226
CABLES INCLUDED: SATA
HARMONIZED SYSTEM (HS) CODE: 84733020
HDMI VERSION: 2.1
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11
PROCESSOR MANUFACTURER: AMD
USB 2.0 PORTS QUANTITY: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
WI-FI: No
ETHERNET LAN: YES
USB CONNECTOR TYPE: USB TYPE-A
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
HEADPHONE OUTPUTS: 3
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
VGA (D-SUB) PORTS QUANTITY: 1
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3/AMD RYZEN 5/AMD RYZEN 7
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
PROCESSOR SOCKET: SOCKET AM4
MAXIMUM INTERNAL MEMORY, GB: 64
SUPPORTED MEMORY TYPES: DDR4-SDRAM
AUDIO CHIP: REALTEK ALC887 / REALTEK ALC897
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 2
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 5
RAID LEVELS: 0/1/10
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
MICROPHONE IN: YES
MOTHERBOARD CHIPSET: AMD A520
NUMBER OF M.2 (M) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4866
TPM CONNECTOR: YES
LAN CONTROLLER: REALTEK RTL8111H
CLEAR CMOS JUMPER: YES
NUMBER OF COM CONNECTORS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
S/PDIF OUT CONNECTOR: YES
NUMBER OF EATX POWER CONNECTORS: 2
PS/2 PORTS QUANTITY: 1
WAKE-ON-LAN READY: YES
