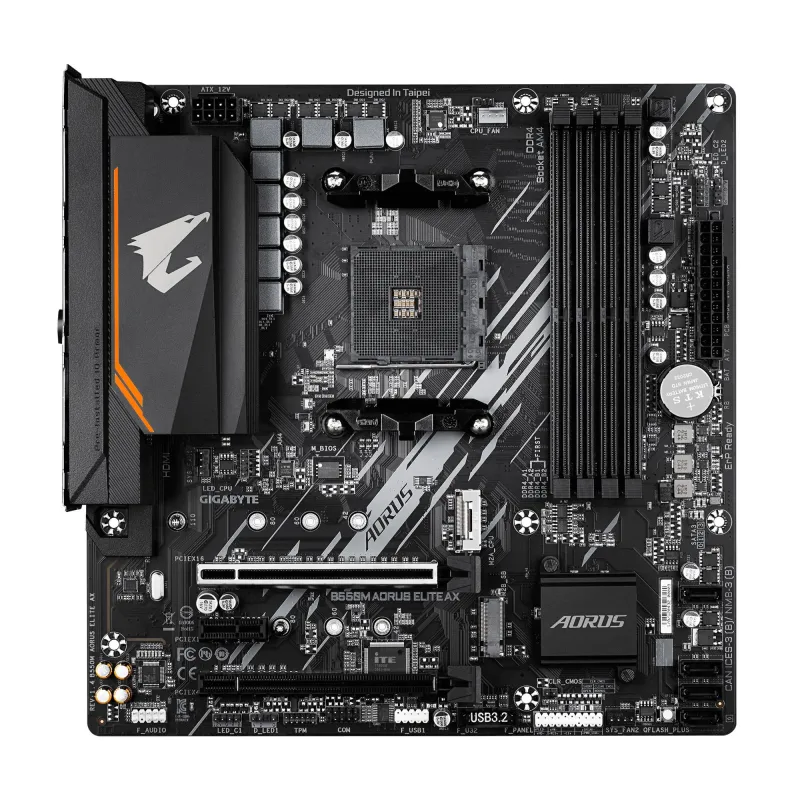

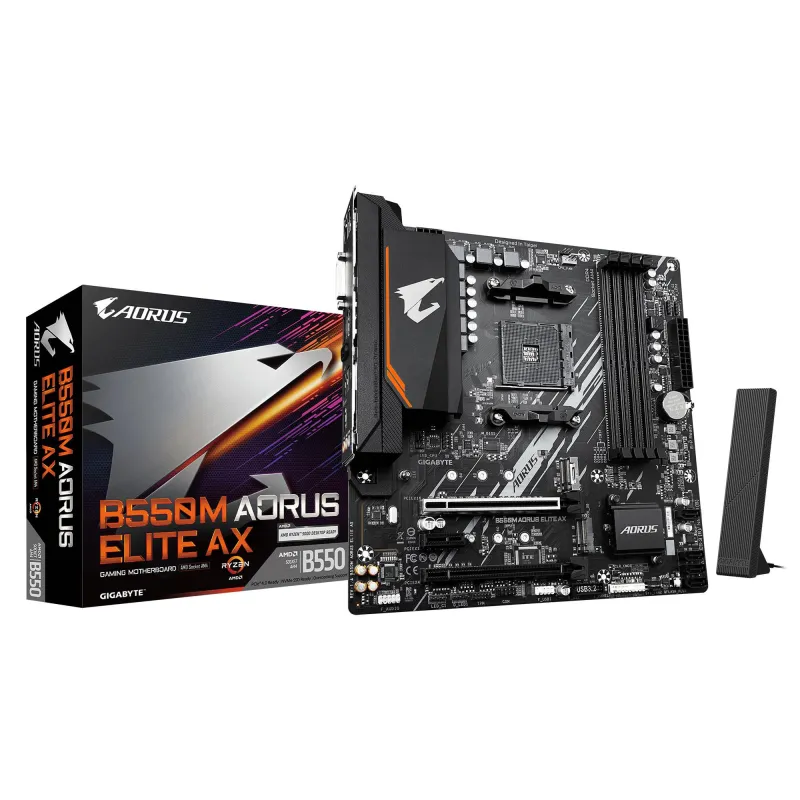

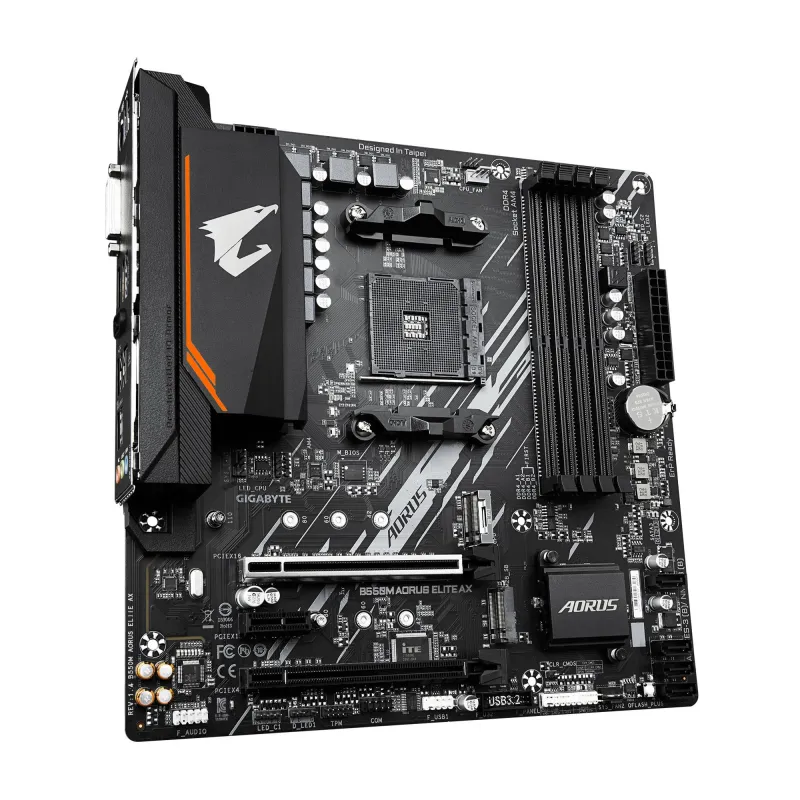

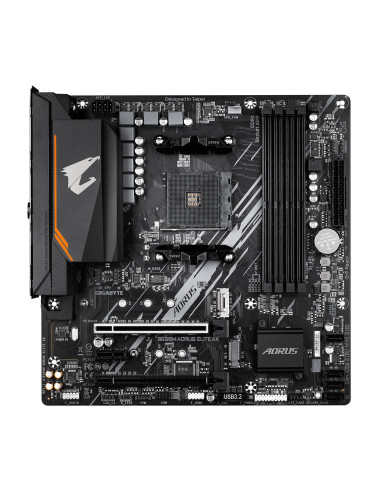

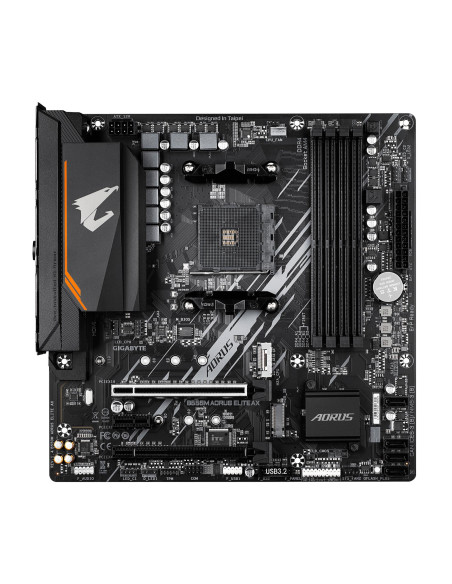

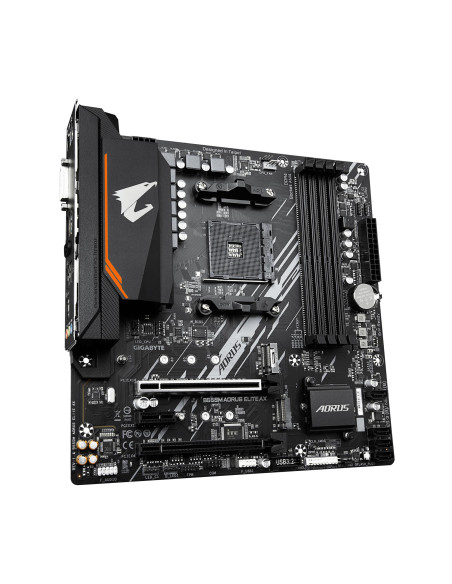

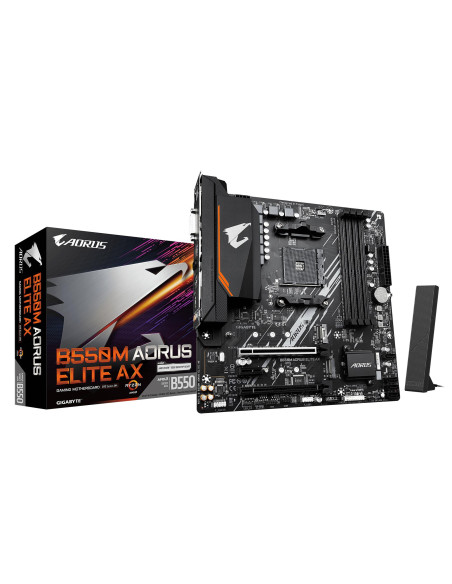

Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 2xNumber of M.2 (M) sl

Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 2xNumber of M.2 (M) sl

Name: Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 2xNumber of M.2 (M) sl
Brand: GIGABYTE
SKU: B550M AORUS ELITE AX REV 1 4
Price: 98.16 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B550M AORUS ELITE AX REV 1 4

Yra sandėlyje

98,16 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

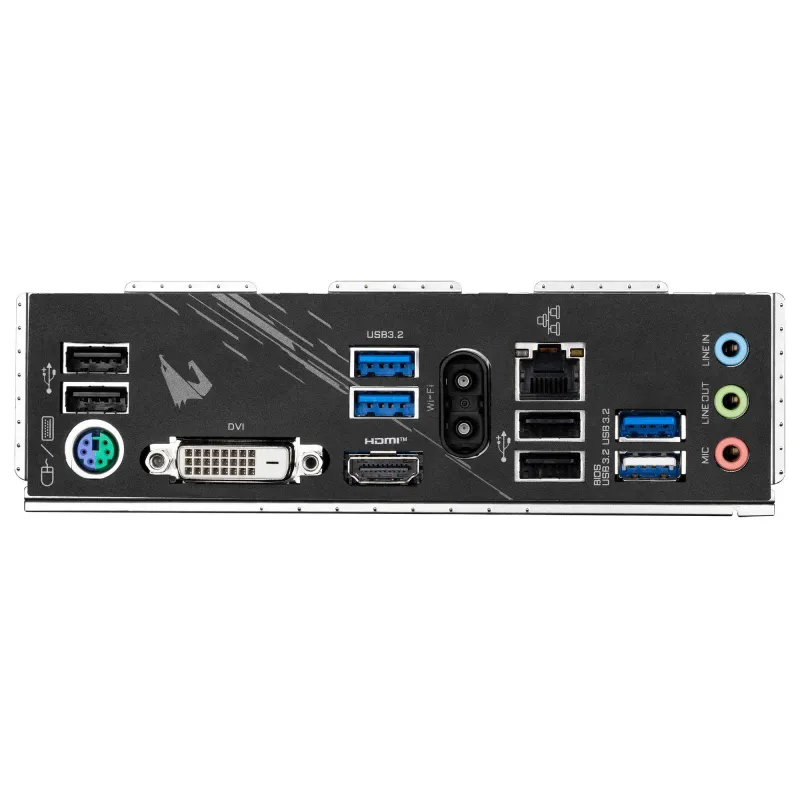

AMD B550 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , 1xDVI-D ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

LONG DESCRIPTION: GIGABYTE B550M AORUS ELITE AX (REV. 1.4). PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES, AMD RYZEN 4000 SERIES, AMD RYZEN 5000 SERIES. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEM
SUMMARY: GIGABYTE B550M AORUS ELITE AX (REV. 1.4). PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES, AMD RYZEN 4000 SERIES, AMD RYZEN 5000 SERIES. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEM
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.265
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
COMPONENT FOR: PC
PRODUCT COLOUR: BROWN
DEPTH, MM: 244
WIDTH, MM: 244
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 65
PACKAGE WEIGHT, G: 1273
PACKAGE WIDTH, MM: 265
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.006165
UNIT CALCULATED WEIGHT, KG: 1.26
ETHERNET LAN: YES
WI-FI: Yes
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI STANDARDS: WI-FI 6E (802.11AX)
MODEL: B550M AORUS ELITE AX (REV. 1.4)
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
WARRANTY PERIOD, YEAR(S): 3
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
COUNTRY OF ORIGIN: CHINA
HDCP: YES
BULLET POINTS: UL LI SUPPORTS AMD RYZEN&TRADE 5000 SERIES/ RYZEN&TRADE 5000 G-SERIES/ RYZEN&TRADE 4000 G-SERIES/ RYZEN&TRADE 3000 AND RYZEN&TRADE 3000 G-SERIES PROCESSORS /LI LI DUAL CHANNEL ECC/ NON-ECC UNBUFFERED DDR4, 4 DIMMS /LI LI 5+3 PHASES PURE DIGITAL VRM SOLUT
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: AMD
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
SCREWS INCLUDED: YES
USB 2.0 PORTS QUANTITY: 4
POWER SOURCE TYPE: ATX
ANTENNA INCLUDED: YES
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DIRECTX VERSION: 12.0
DVI-D PORTS QUANTITY: 1
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 4000 SERIES/AMD RYZEN 5000 SERIES
PROCESSOR SOCKET: SOCKET AM4
MAXIMUM INTERNAL MEMORY, GB: 128
MOTHERBOARD CHIPSET: AMD B550
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
LINE-IN: YES
MICROPHONE IN: YES
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 4733
12V POWER CONNECTOR: YES
TPM CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
WIFI-AP ANTENNA JACK: 2
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
AUDIO CHIP: REALTEK ALC897
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 5
NUMBER OF WATER PUMP CONNECTORS: 2
LAN CONTROLLER: REALTEK RTL8111H
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
2ND M.2 LARGEST KEY SIZE: 2280
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
NUMBER OF HDDS SUPPORTED: 4
FRONT PANEL CONNECTOR: YES
SERIAL PORT HEADERS: 1
WLAN CONTROLLER MODEL: REALTEK RTL8852CE
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
MAXIMUM NUMBER OF SMP PROCESSORS: 1
