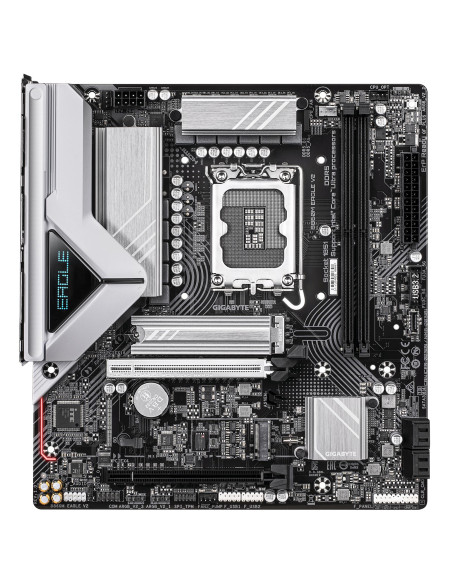

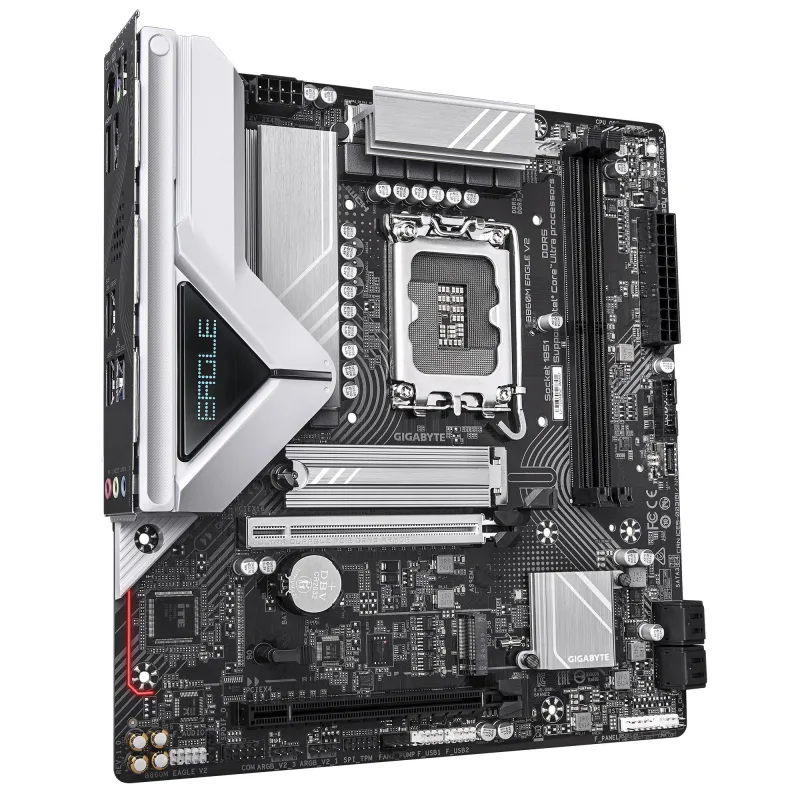

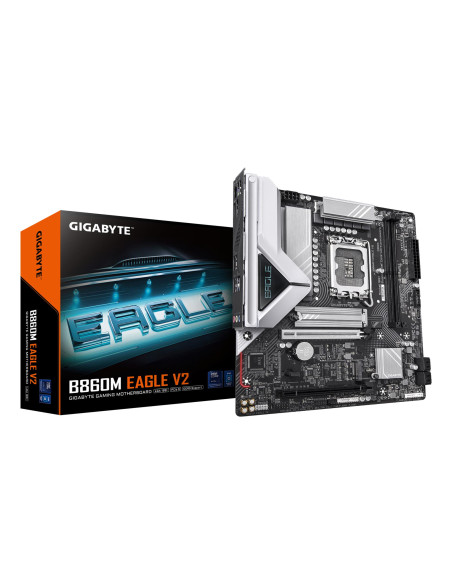

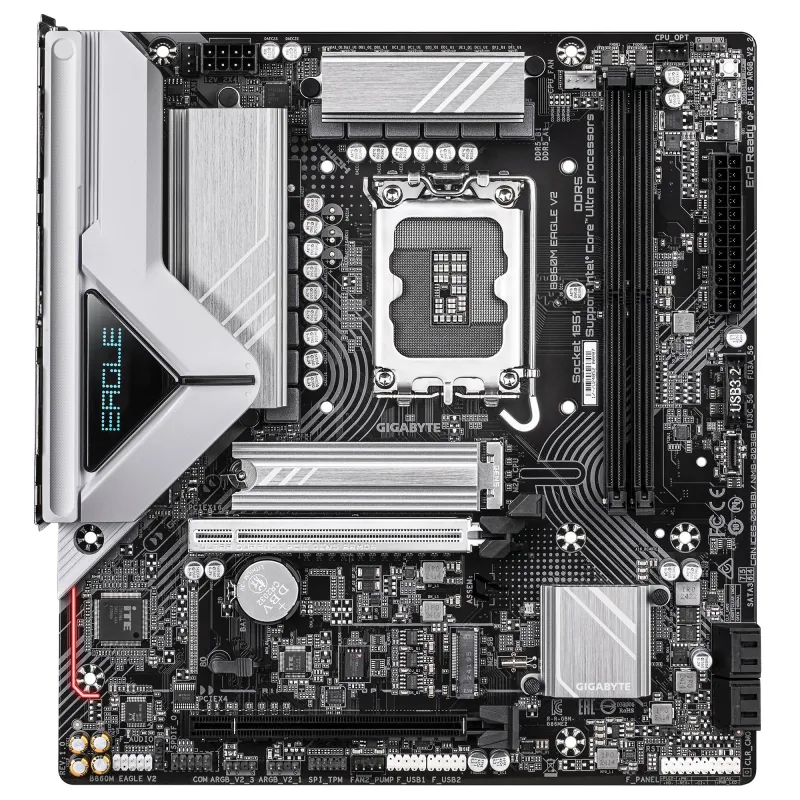

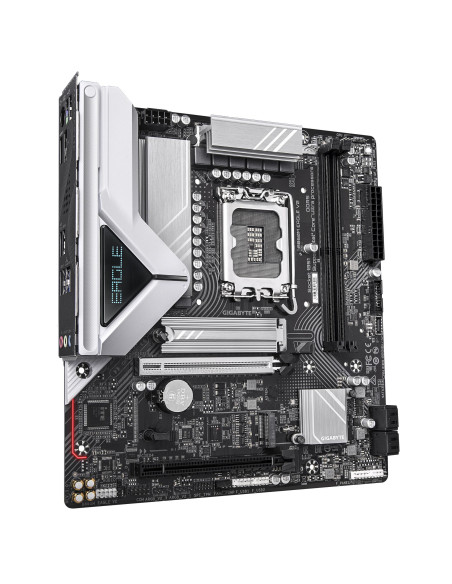

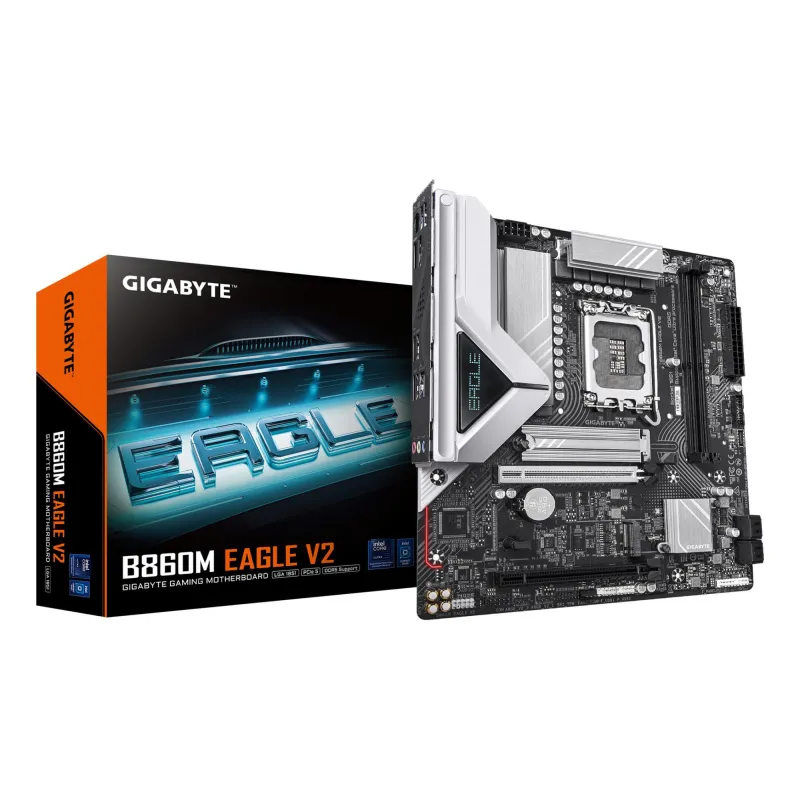

Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, B860MEAGLEV2

Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, B860MEAGLEV2

Name: Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, B860MEAGLEV2
Brand: GIGABYTE
SKU: B860M EAGLE V2
Price: 130.08 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B860M EAGLE V2

Yra sandėlyje

130,08 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III , 4096 x 2160 pixels , 3xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 1.01 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B860M EAGLE V2 MOTHERBOARD - INTEL CORE ULTRA SERIES CPUS, 6+1+2 PHASES VRM, UP TO 9066MHZ DDR5, 1XPCIE 5.0 + 1XPCIE 4.0 M.2, 2.5GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR S
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.271
UNIT BOX WIDTH: 0.267
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
COMPONENT FOR: PC
PRODUCT COLOUR: DARK BROWN
DEPTH, MM: 225
HEIGHT, MM: 35
WIDTH, MM: 244
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 1198
PACKAGE WIDTH, MM: 265
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.006278
UNIT CALCULATED WEIGHT, KG: 1.2
ETHERNET LAN: YES
WI-FI: No
MODEL: B860M EAGLE V2
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
WEIGHT, G: 1012
WARRANTY PERIOD, YEAR(S): 3
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY WEIGHT, G: 3
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
HDCP: YES
PROCESSOR MANUFACTURER: Intel
SCREWS INCLUDED: YES
USB 2.0 PORTS QUANTITY: 3
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
POWER SOURCE TYPE: ATX
HDMI PORTS QUANTITY: 1
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
HEADPHONE OUTPUTS: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 2.1
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
SUPPORTED PROCESSOR SOCKETS: LGA 1851
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
MAXIMUM INTERNAL MEMORY, GB: 128
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: INTEL B860
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
LINE-IN: YES
MICROPHONE IN: YES
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 9066
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF WATER PUMP CONNECTORS: 2
LAN CONTROLLER: REALTEK RTL8125
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
S/PDIF OUT CONNECTOR: YES
SERIAL PORT HEADERS: 1
PS/2 PORTS QUANTITY: 1
