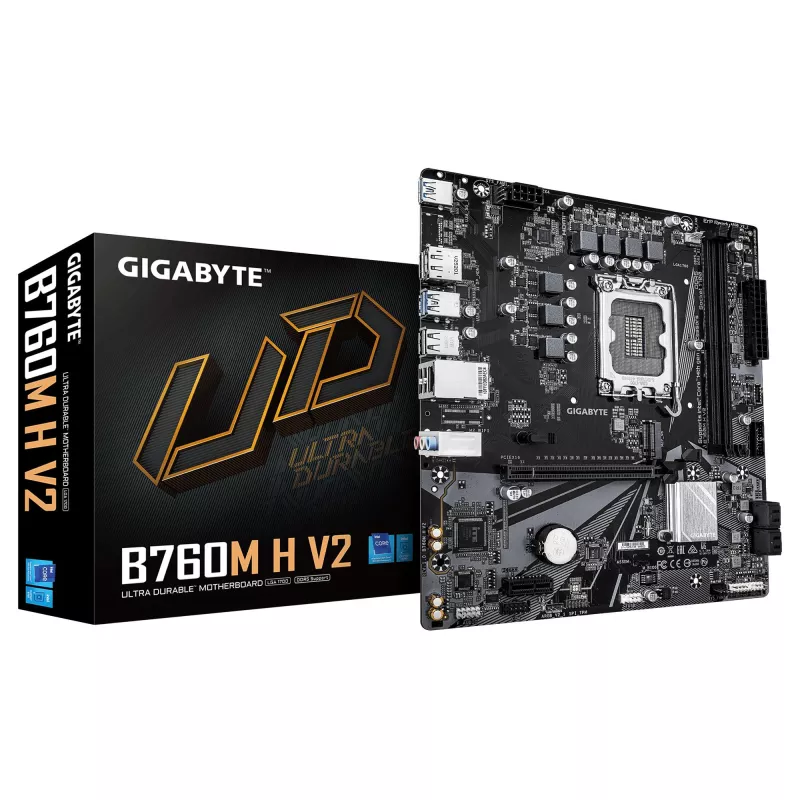

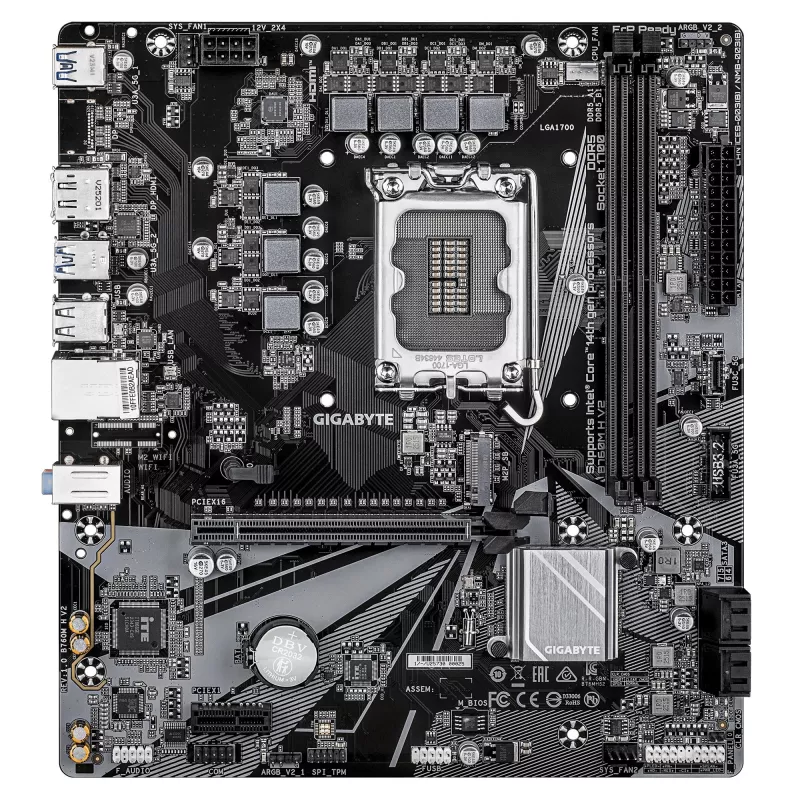

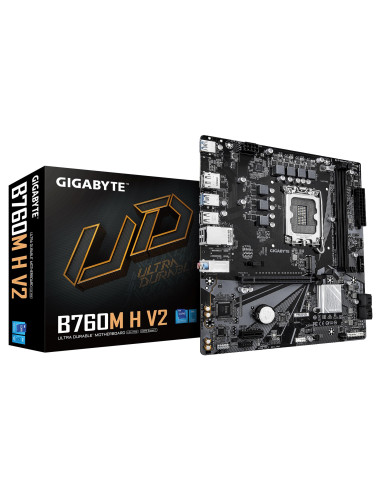

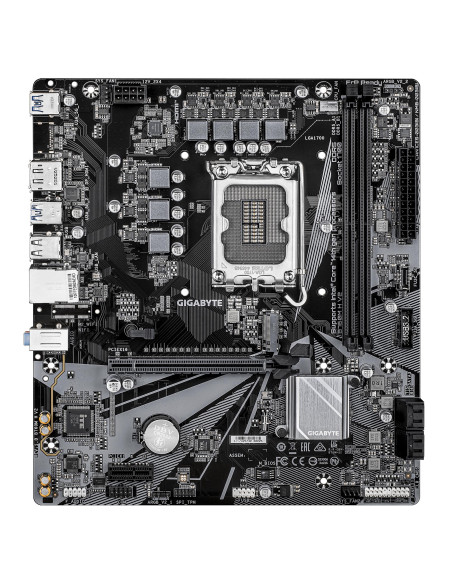

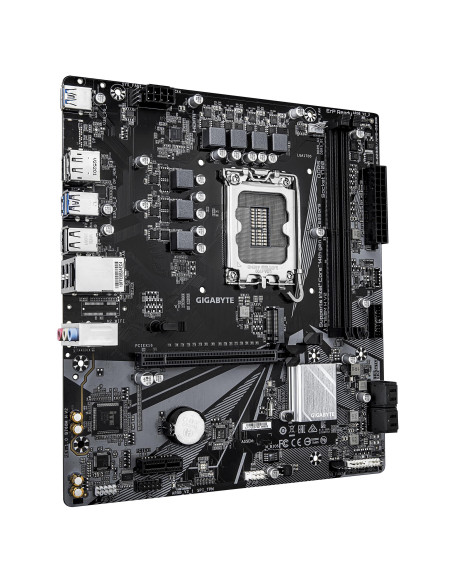

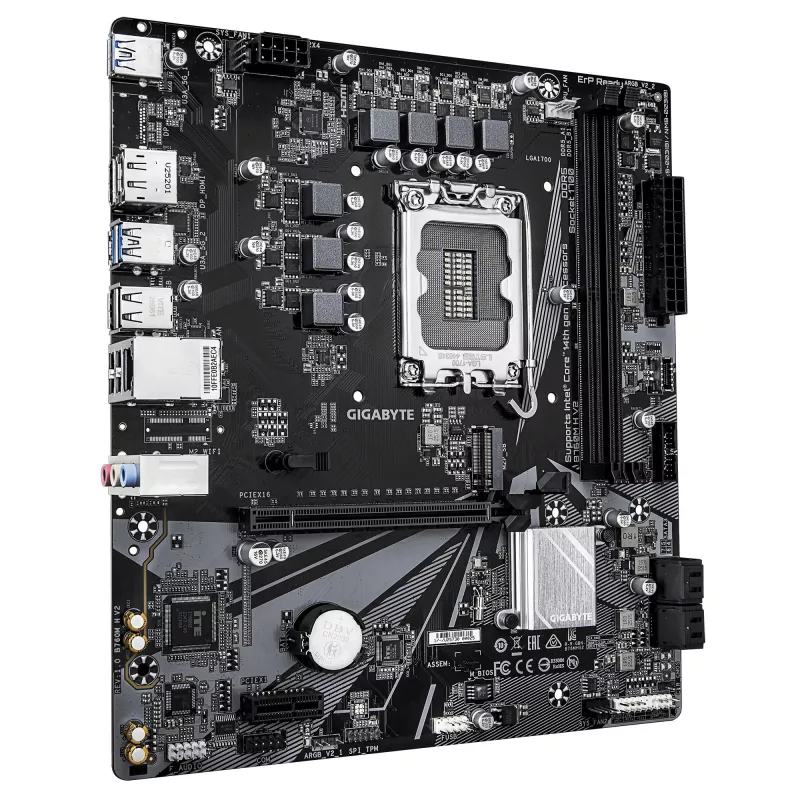

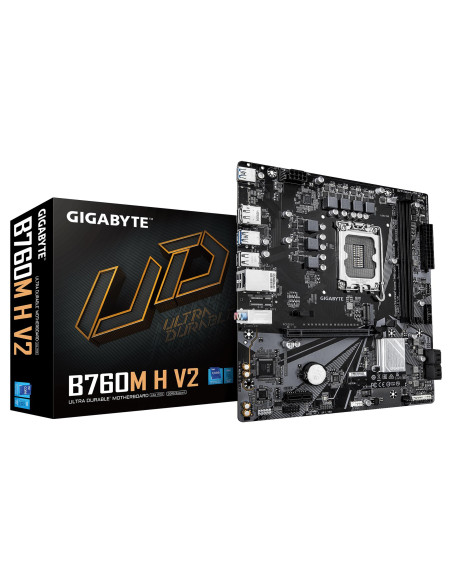

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, B760MHV21.0

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, B760MHV21.0

Name: Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, B760MHV21.0
Brand: GIGABYTE
SKU: B760M H V2 1.0
Price: 95.31 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760M H V2 1.0

Yra sandėlyje

95,31 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

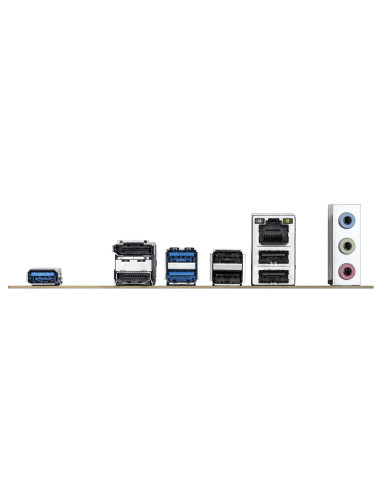

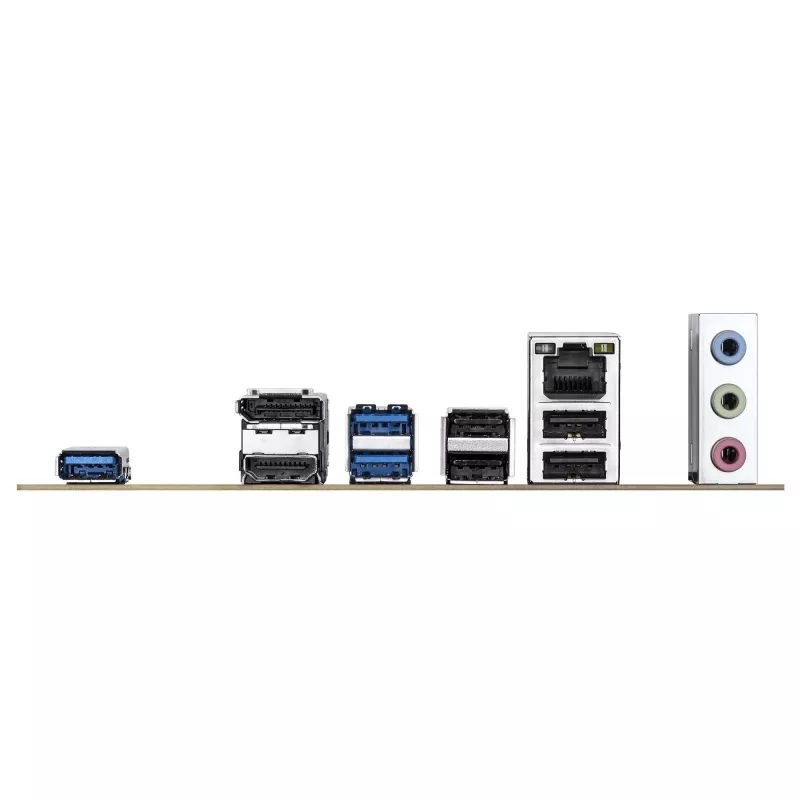

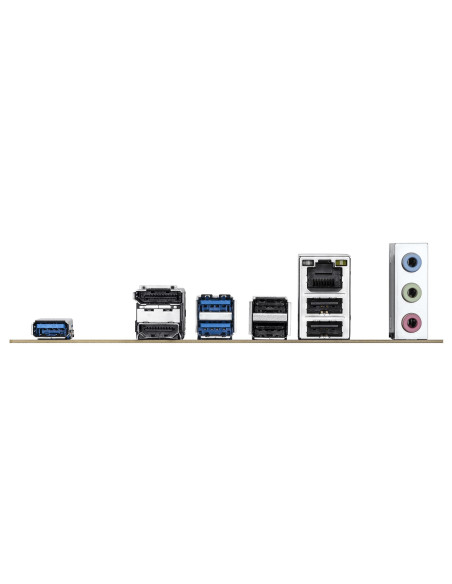

Intel B760 Express , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2304 pixels , 4xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 770 g

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.26
UNIT BOX LENGTH: 0.265
UNIT BOX WIDTH: 0.055
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.004669
UNIT CALCULATED WEIGHT, KG: 0.85
MODEL: B760M H V2
DEPTH, MM: 220
HEIGHT, MM: 35
WIDTH, MM: 244
SUMMARY: GIGABYTE B760M H V2 MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 5+1+1 PHASES DIGITAL VRM, UP TO 8000MHZ DDR5 (O.C.), 1XPCIE 4.0 M.2, 1GBE LAN, USB 3.2 GEN1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL
COMPONENT FOR: PC
WEIGHT, G: 770
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 850
PACKAGE WIDTH, MM: 265
COUNTRY OF ORIGIN: CHINA
MEMORY CHANNELS: DUAL-CHANNEL
COOLING TYPE: PASSIVE
PRODUCT COLOUR: DARK BROWN
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
POWER SOURCE TYPE: ATX
BATTERY CAPACITY, MAH: 220
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
WARRANTY PERIOD, YEAR(S): 3
BATTERY TYPE: CR2032
BATTERIES INCLUDED: YES
BATTERY WEIGHT, G: 3
HEADPHONE OUTPUTS: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
USB 2.0 PORTS QUANTITY: 4
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
HDMI VERSION: 2.1
DIRECTX VERSION: 12.0
HDCP: YES
HDCP VERSION: 2.3
HDMI PORTS QUANTITY: 1
COMPATIBLE PROCESSOR SERIES: INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN/INTEL CELERON
PROCESSOR SOCKET: LGA 1700
SUPPORTED PROCESSOR SOCKETS: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 128
PROCESSOR MANUFACTURER: Intel
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 5
RAID LEVELS: 0/1/10/5
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
ETHERNET LAN (RJ-45) PORTS: 1
NUMBER OF SATA III CONNECTORS: 4
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
WI-FI: No
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: INTEL B760 EXPRESS
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 1
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
ETHERNET LAN: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8000
MICROPHONE IN: YES
NUMBER OF HDDS SUPPORTED: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 2
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8111H
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
SCREWS INCLUDED: YES
ECC СOMPATIBILITY: ECC & NON-ECC
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)
SERIAL PORT HEADERS: 1
