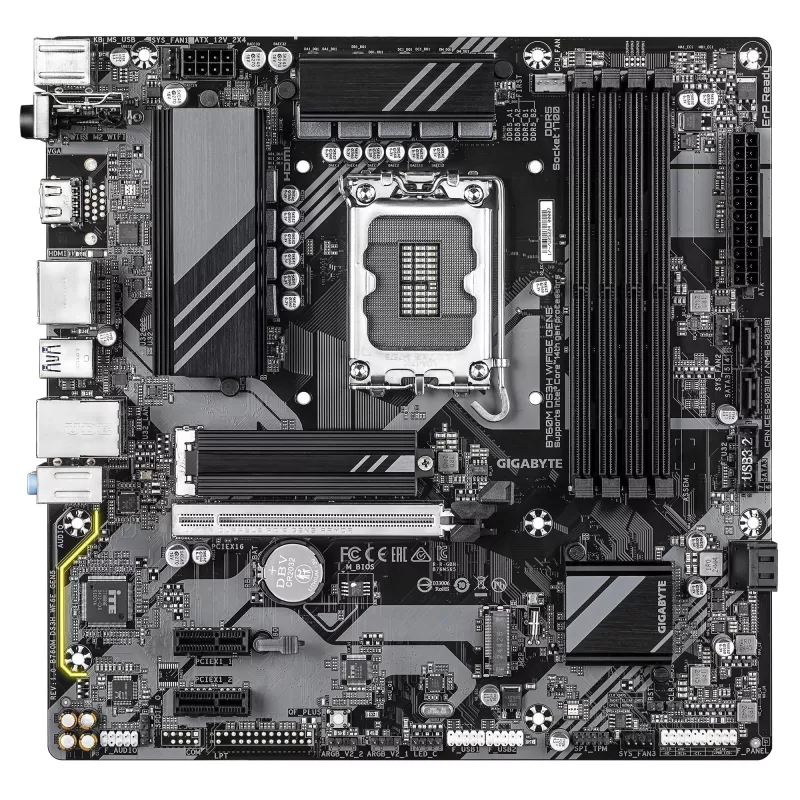

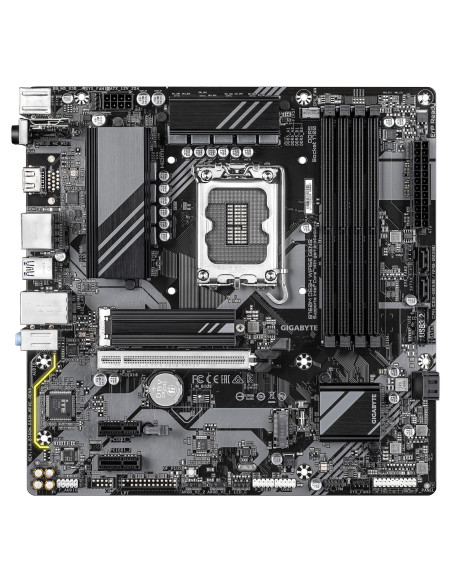

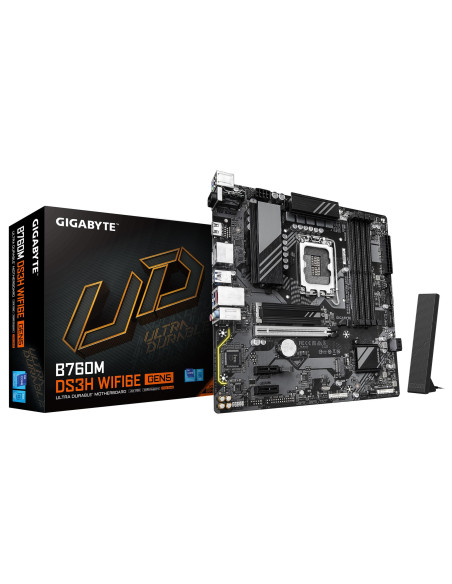

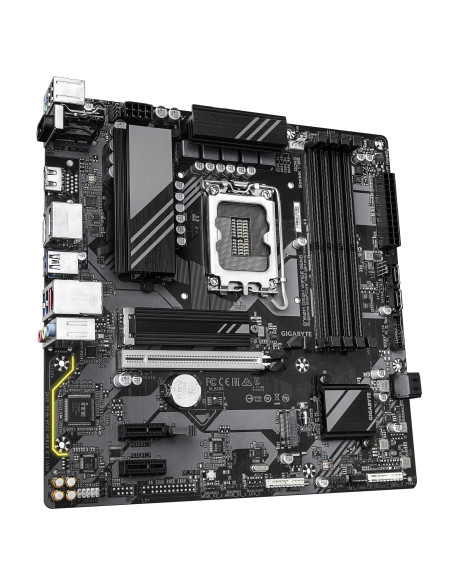

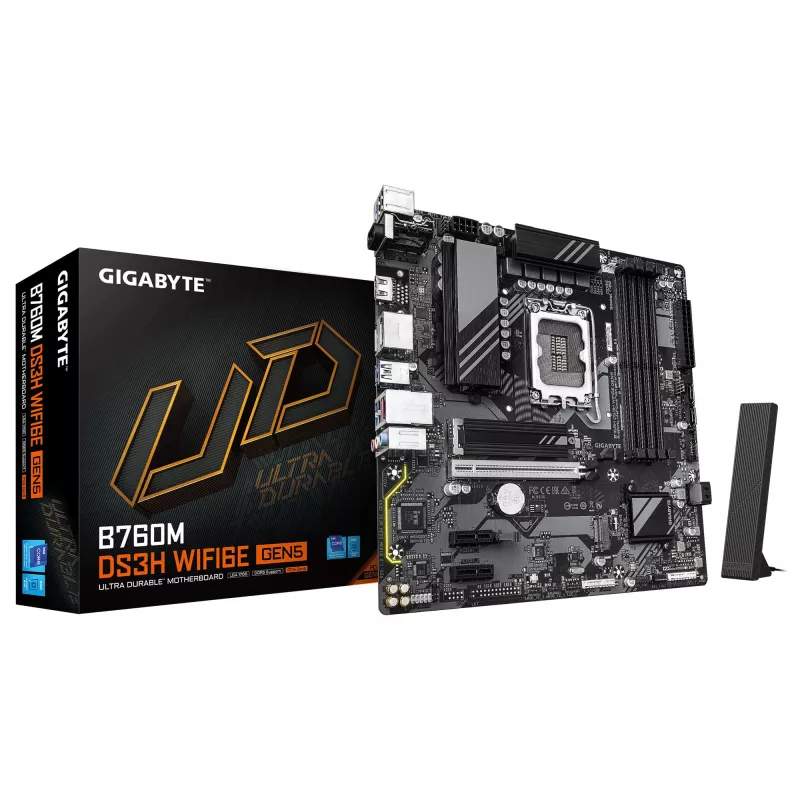

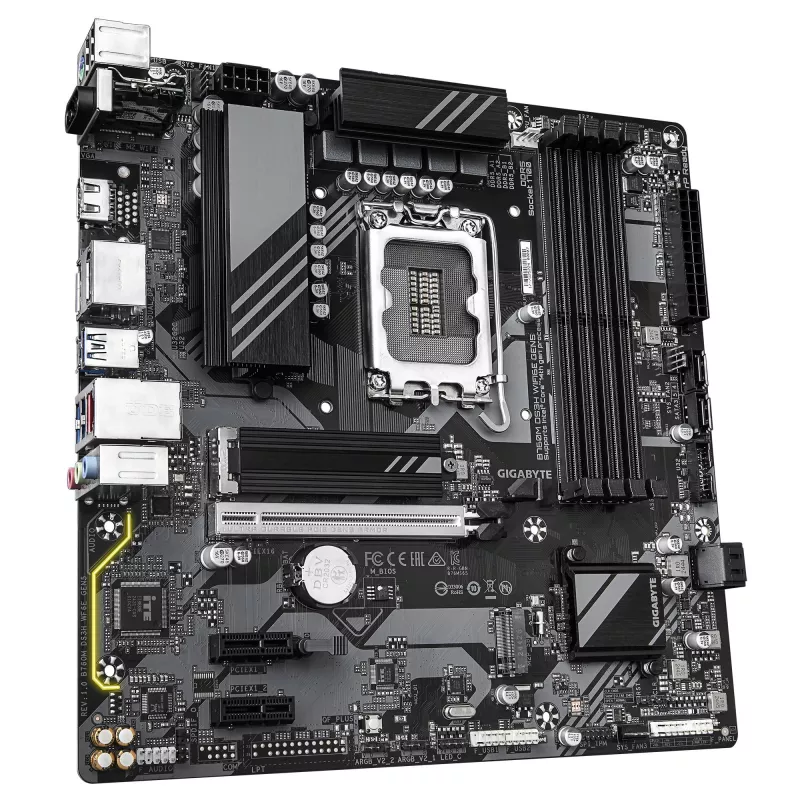

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MDS3HWF6EGEN5

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MDS3HWF6EGEN5

Name: Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MDS3HWF6EGEN5
Brand: GIGABYTE
SKU: B760M DS3H WF6E GEN5
Price: 135.33 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760M DS3H WF6E GEN5

Paskutinė prekė

135,33 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 Express , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2304 pixels , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.1 kg

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX LENGTH: 0.27
UNIT BOX HEIGHT: 0.07
UNIT BOX WIDTH: 0.27
MODEL: B760M DS3H WIFI6E GEN5
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.005103
PRODUCT NET WEIGHT, KG: 0.5
UNIT CALCULATED WEIGHT, KG: 1.1
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 244
SUMMARY: GIGABYTE B760M DS3H WIFI6E GEN5 MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 6+2+1 PHASES DIGITAL VRM, UP TO 5600MHZ DDR5, 2XPCIE 4.0 M.2, WI-FI 6E, 2.5GBE LAN, USB 3.2 GEN2. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCES
COMPONENT FOR: PC
WEIGHT, G: 1100
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1200
PACKAGE WIDTH, MM: 270
COUNTRY OF ORIGIN: CHINA
MEMORY CHANNELS: DUAL-CHANNEL
COOLING TYPE: PASSIVE
PRODUCT COLOUR: DARK BROWN
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
BLUETOOTH VERSION: 5.3
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
POWER SOURCE TYPE: ATX
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
WARRANTY PERIOD, YEAR(S): 3
BATTERY TYPE: CR2032
BATTERIES INCLUDED: YES
BLUETOOTH: YES
BATTERY WEIGHT, G: 3
HEADPHONE OUTPUTS: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
USB 2.0 PORTS QUANTITY: 2
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 2
HDMI VERSION: 2.1
DIRECTX VERSION: 12.0
HDCP: YES
HDMI PORTS QUANTITY: 1
COMPATIBLE PROCESSOR SERIES: INTEL CELERON/INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN
PROCESSOR SOCKET: LGA 1700
SUPPORTED PROCESSOR SOCKETS: LGA 1700
ECC ?OMPATIBILITY: ECC & NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 256
PROCESSOR MANUFACTURER: Intel
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
WIFI-AP ANTENNA JACK: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
PS/2 PORTS QUANTITY: 1
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI: Yes
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: INTEL B760 EXPRESS
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
ANTENNA INCLUDED: YES
ETHERNET LAN: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5600
MICROPHONE IN: YES
NUMBER OF HDDS SUPPORTED: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600
WLAN CONTROLLER MODEL: INTEL WI-FI 6E AX210
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 3
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8125
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
SCREWS INCLUDED: YES
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)
S/PDIF OUT CONNECTOR: YES
