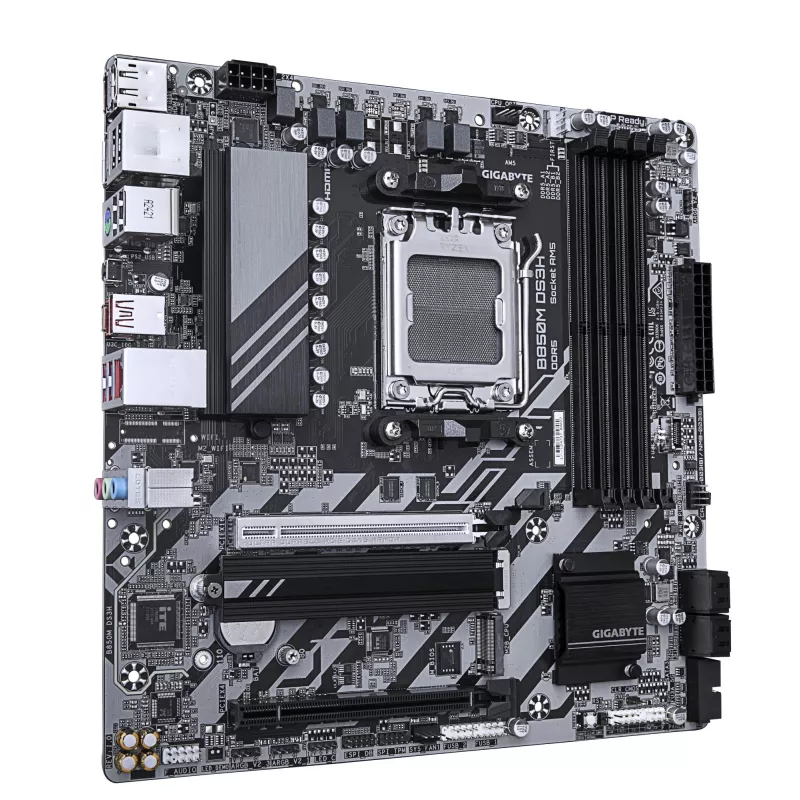

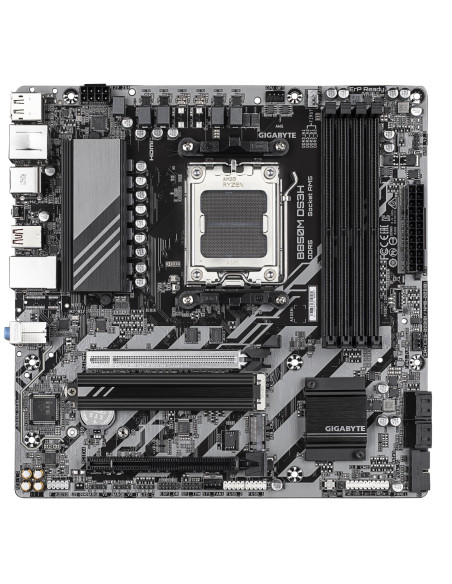

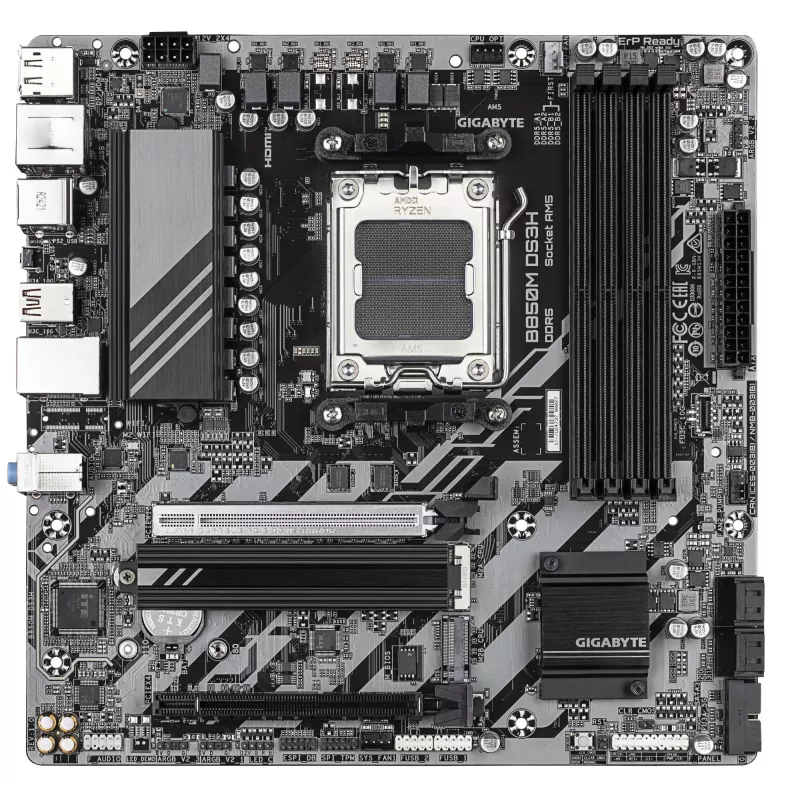

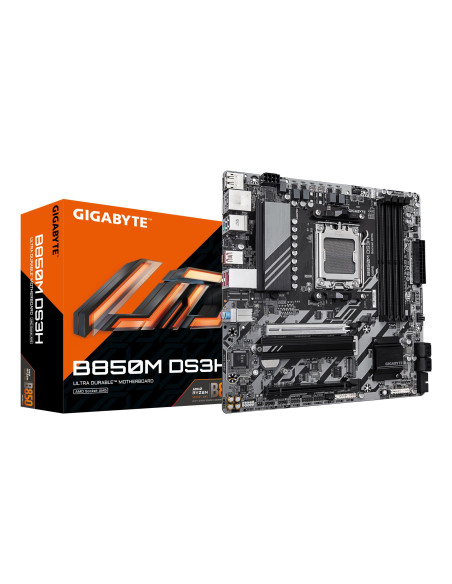

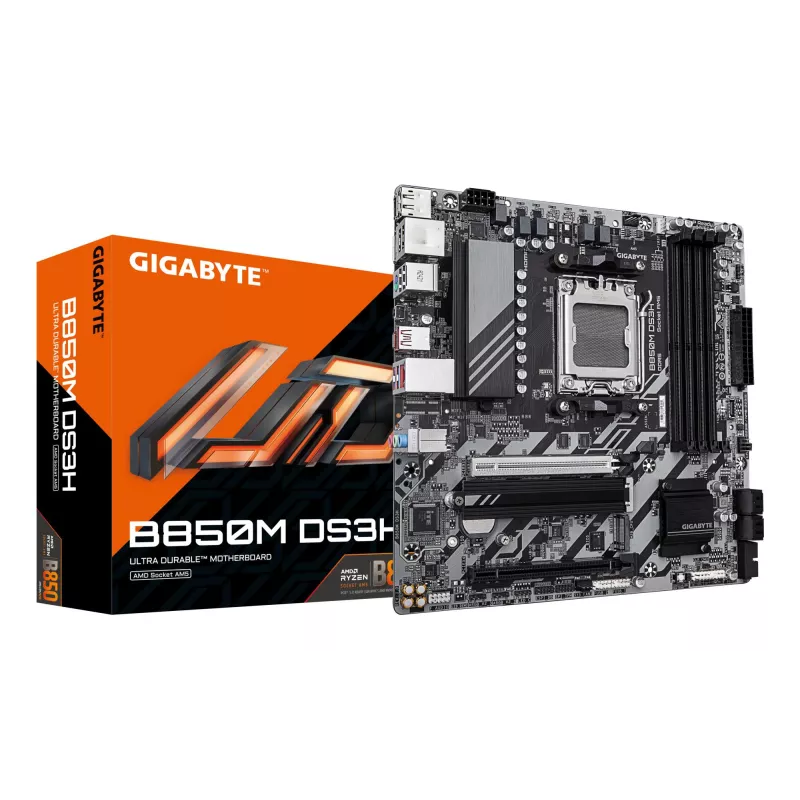

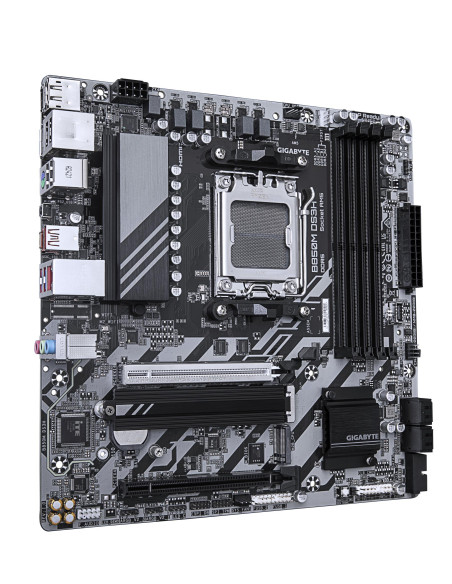

Mainboard, GIGABYTE, AMD B850, Socket AM5, micro ATX, RAM DDR5-SDRAM, 4xSlots, 2xNumber of M.2 (M) slots, B850MDS3H1.2

Mainboard, GIGABYTE, AMD B850, Socket AM5, micro ATX, RAM DDR5-SDRAM, 4xSlots, 2xNumber of M.2 (M) slots, B850MDS3H1.2

Name: Mainboard, GIGABYTE, AMD B850, Socket AM5, micro ATX, RAM DDR5-SDRAM, 4xSlots, 2xNumber of M.2 (M) slots, B850MDS3H1.2
Brand: GIGABYTE
SKU: B850M DS3H 1.2
Price: 138.63 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B850M DS3H 1.2

Yra sandėlyje

138,63 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

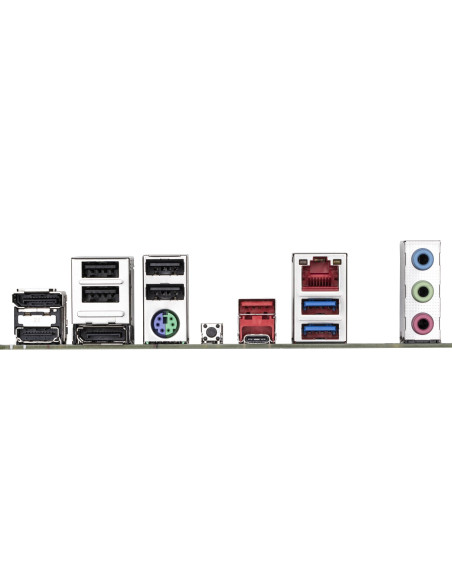

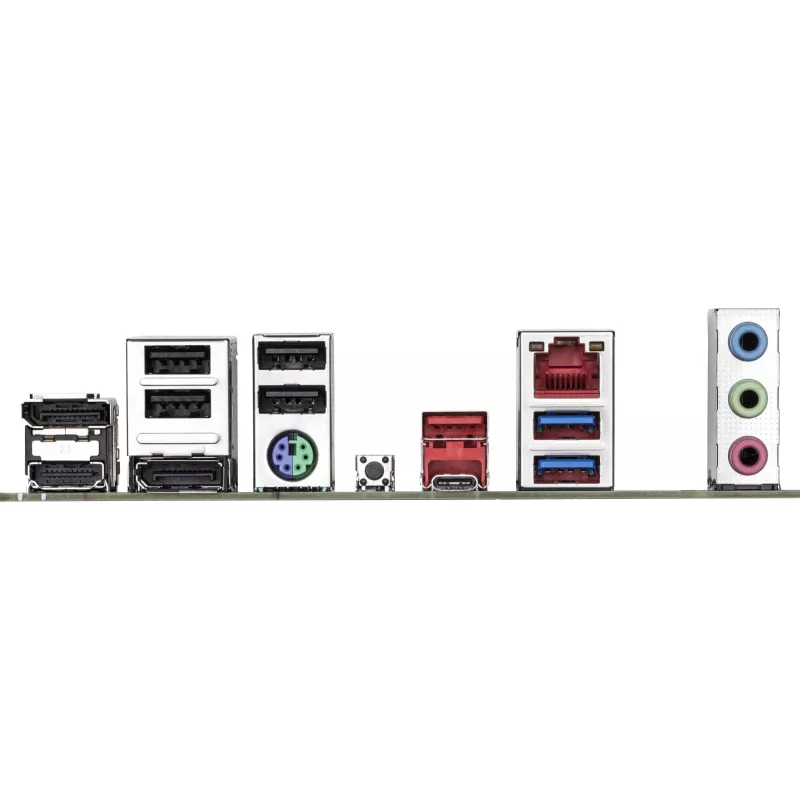

AMD B850 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Antenna included Yes , Weight 1.14 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B850M DS3H MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 16+2+2 PHASES DIGITAL VRM, UP TO 8200MHZ DDR5 (OC), 1XPCIE 5.0 + 1XPCIE 4.0 M.2, 2.5 LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES:
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.265
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.07
NUMBER OF STORAGE DRIVES SUPPORTED: 6
PRODUCT COLOUR: BROWN
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1135
WIDTH, MM: 244
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1337
PACKAGE WIDTH, MM: 270
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.006161
UNIT CALCULATED WEIGHT, KG: 1.25
USB 2.0 PORTS QUANTITY: 4
NUMBER OF HDDS SUPPORTED: 4
SCREWS INCLUDED: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
WARRANTY PERIOD, YEAR(S): 3
PROCESSOR MANUFACTURER: AMD
COUNTRY OF ORIGIN: CHINA
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
HDMI PORTS QUANTITY: 1
MAXIMUM INTERNAL MEMORY, GB: 256
WI-FI: No
HDMI VERSION: 2.1
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
HEADPHONE OUTPUTS: 1
MICROPHONE IN: YES
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: AMD B850
DISPLAYPORTS QUANTITY: 2
MEMORY CHANNELS: DUAL-CHANNEL
TOTAL NUMBER OF SATA CONNECTORS: 4
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
DISPLAYPORT VERSION: 2.1
NUMBER OF SATA III CONNECTORS: 4
MEMORY SLOTS TYPE: DIMM
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
NUMBER OF BATTERY CELLS: 1
BATTERY WEIGHT, G: 3
PROCESSOR SOCKET: SOCKET AM5
HDCP: YES
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
POWER SOURCE TYPE: ATX
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
COMPONENT FOR: PC
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DIRECTX VERSION: 12.0
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
RAID SUPPORT: YES
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200
SUPPORTED MEMORY TYPES: DDR5-SDRAM
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 25110
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.0
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
UNBUFFERED MEMORY: YES
12V POWER CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
RGB LED PIN HEADER: YES
WIFI-AP ANTENNA JACK: 2
ANTENNA INCLUDED: YES
CLEAR CMOS BUTTON: YES
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 4
TPM CONNECTOR: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
SERIAL PORT HEADERS: 1
