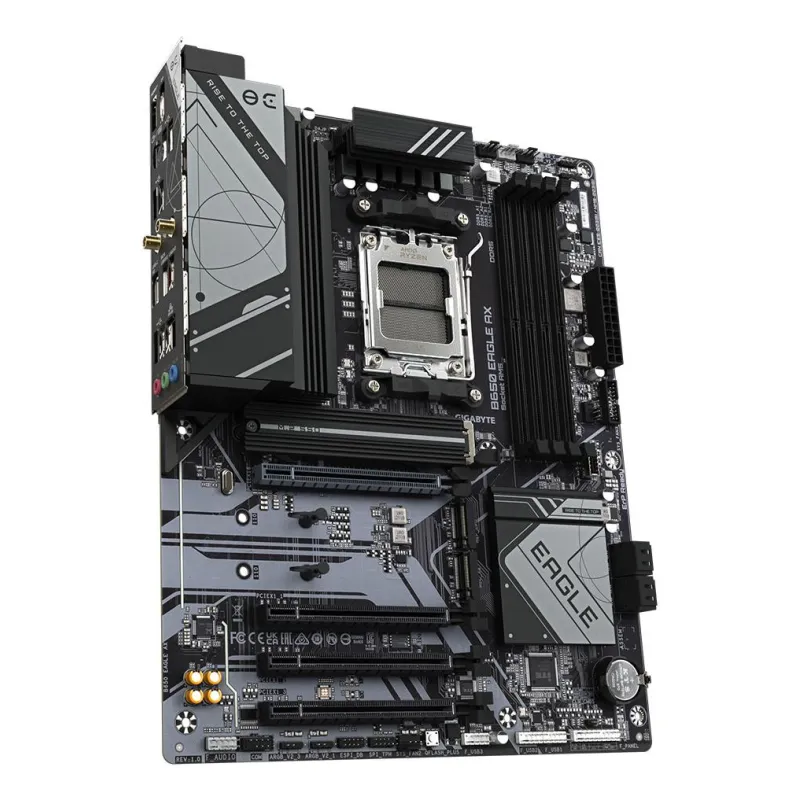

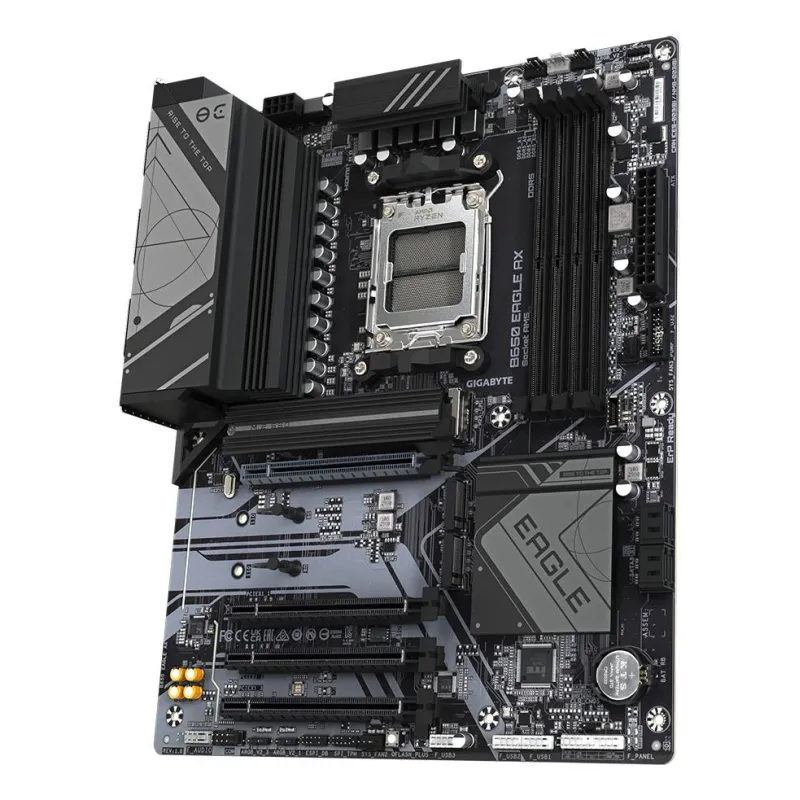

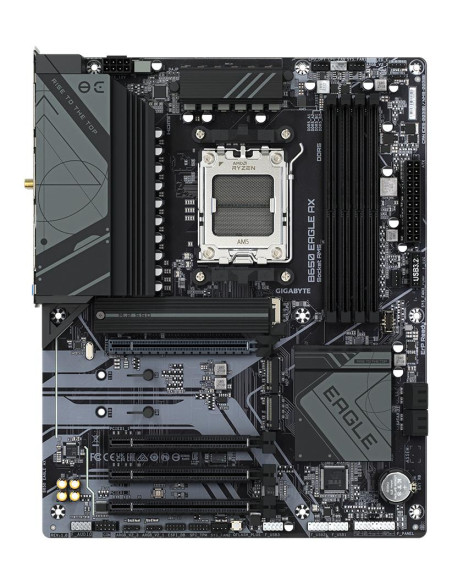

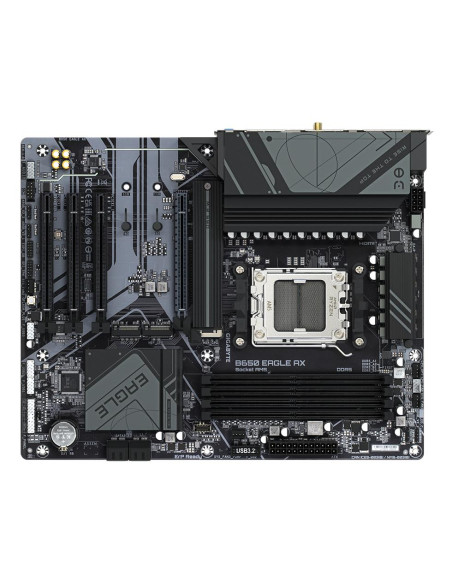

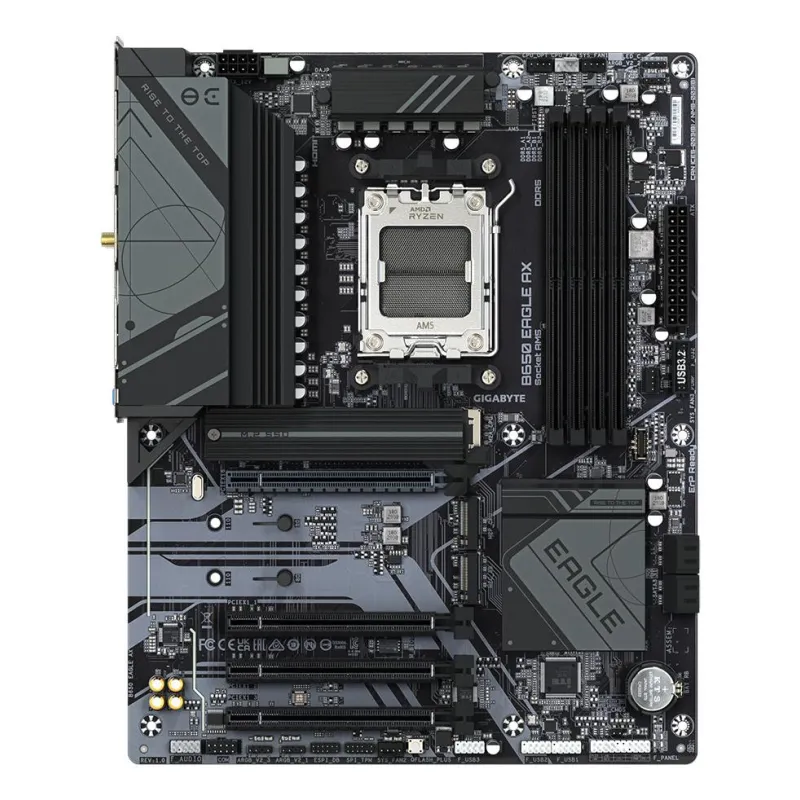

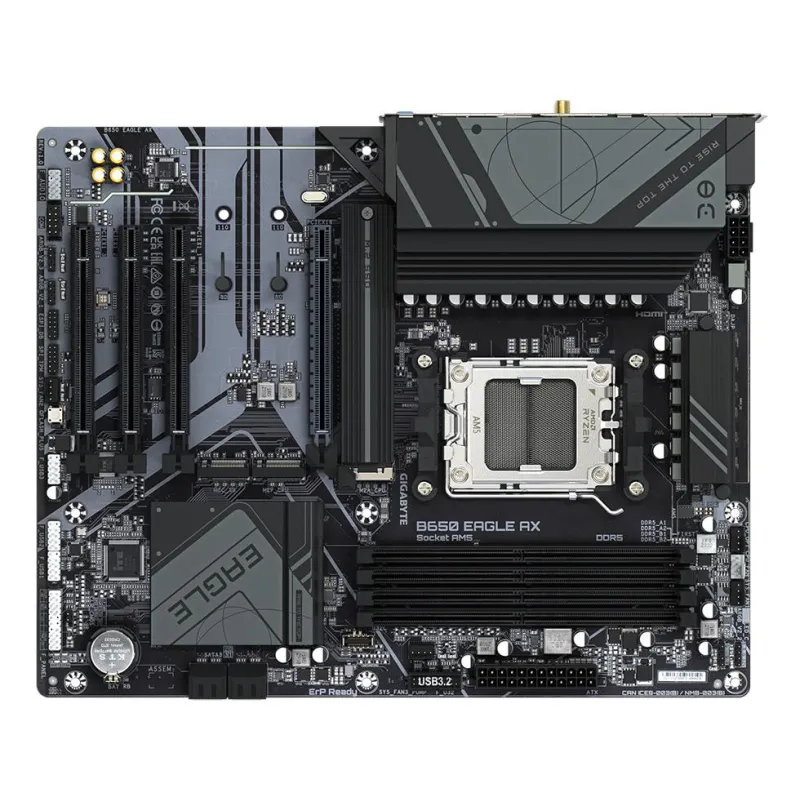

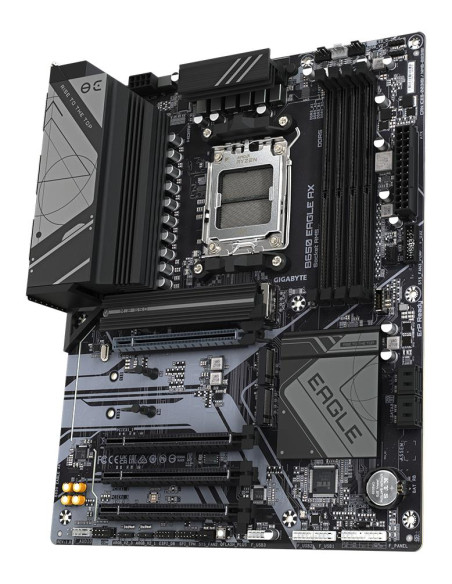

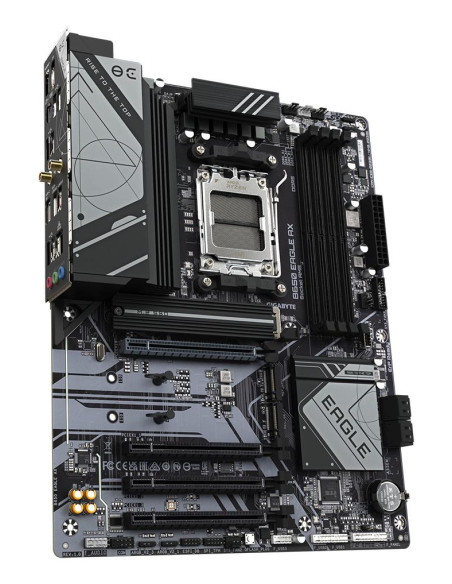

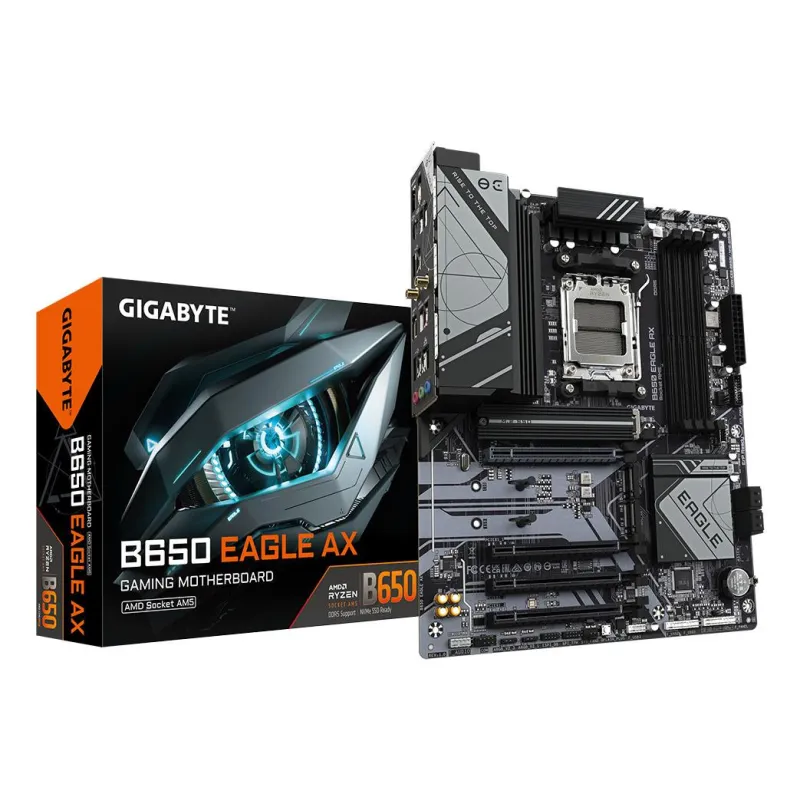

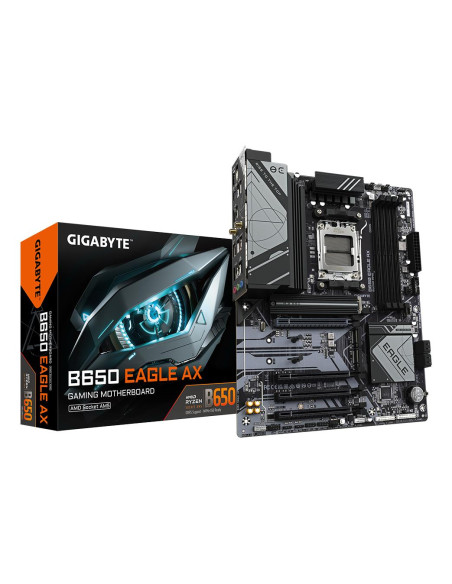

Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, G

Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, G

Name: Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, G
Brand: GIGABYTE
SKU: B650 EAGLE AX 1.2
Price: 136.21 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B650 EAGLE AX 1.2

Yra sandėlyje

136,21 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

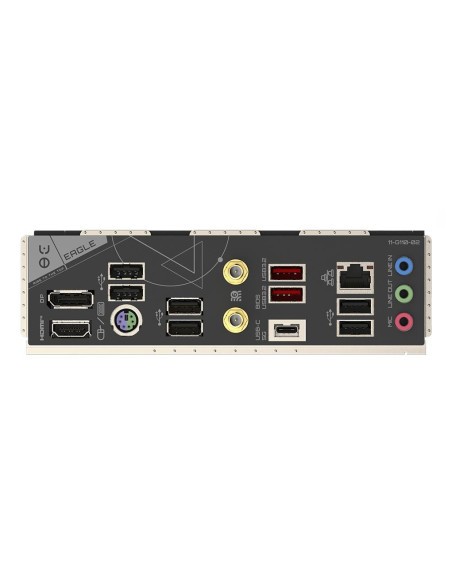

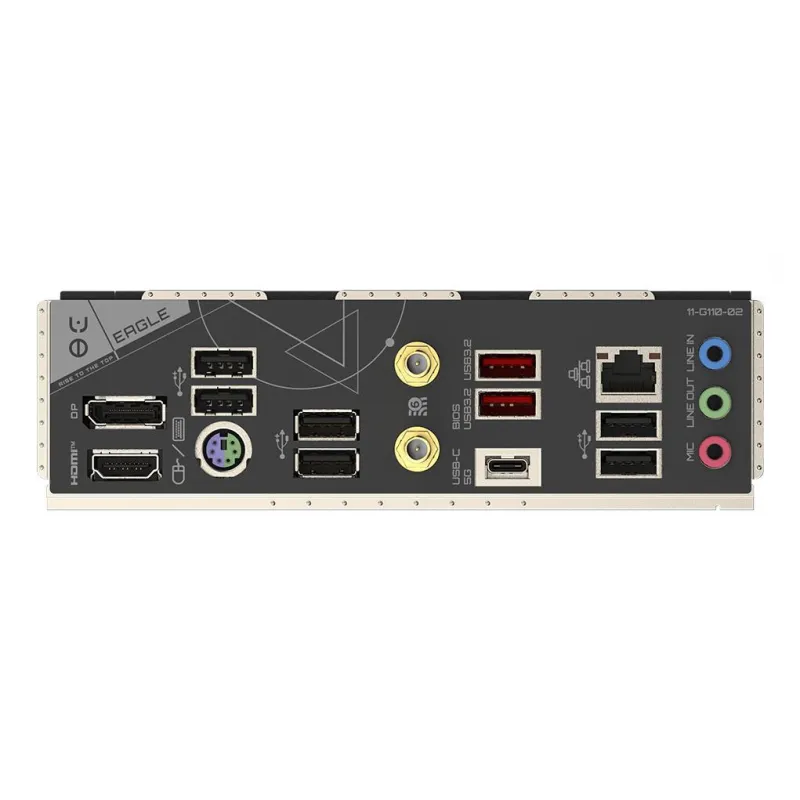

AMD B650 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , Discrete graphics support Yes , 6xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B650 EAGLE AX MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 12+2+2 PHASES VRM, UP TO 7600MHZ DDR5 (OC), 1XPCIE 5.0 + 2XPCIE 4.0 M.2, GBE LAN, WIFI 6E, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERI
BLUETOOTH: YES
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.34
BLUETOOTH VERSION: 5.3
PRODUCT COLOUR: BROWN
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 305
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 1943
PACKAGE WIDTH, MM: 335
COUNTRY OF ORIGIN: CHINA
WARRANTY PERIOD, YEAR(S): 3
MODEL: GIGABYTE B650 EAGLE AX
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.009973
UNIT CALCULATED WEIGHT, KG: 1.92
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERIES INCLUDED: YES
POWER SOURCE TYPE: ATX
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
BATTERY WEIGHT, G: 3
HEADPHONE OUTPUTS: 1
USB 2.0 PORTS QUANTITY: 6
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
DIRECTX VERSION: 12.0
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
WI-FI: Yes
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
ETHERNET LAN: YES
COMPONENT FOR: PC
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
SCREWS INCLUDED: YES
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: AMD B650
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 3
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
WIFI-AP ANTENNA JACK: 2
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
PS/2 PORTS QUANTITY: 1
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 22110
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
ANTENNA INCLUDED: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7600
MICROPHONE IN: YES
NUMBER OF HDDS SUPPORTED: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600
WLAN CONTROLLER MODEL: REALTEK RTL8852CE
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 3
SERIAL PORT HEADERS: 1
DISCRETE GRAPHICS SUPPORT: YES
