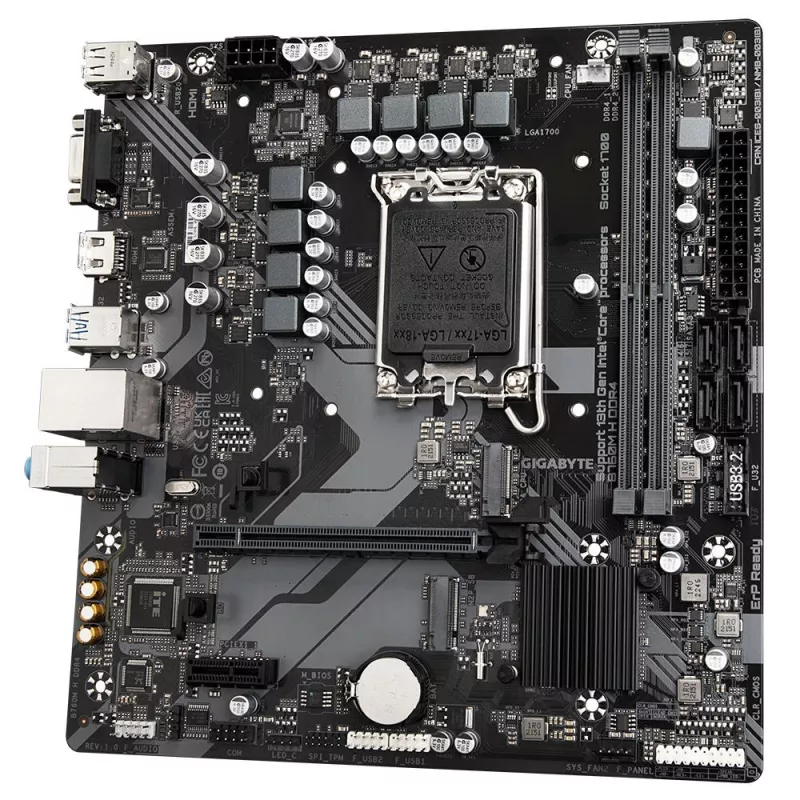

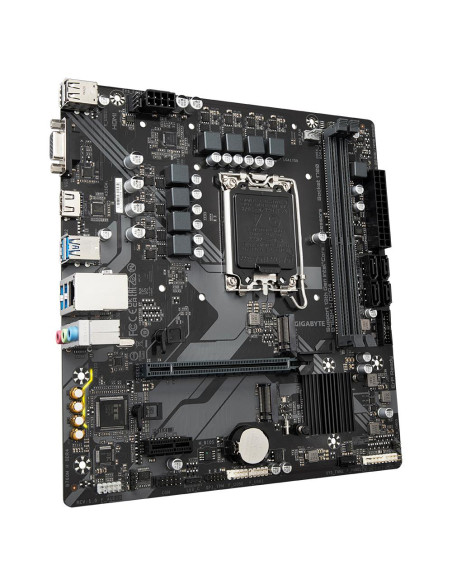

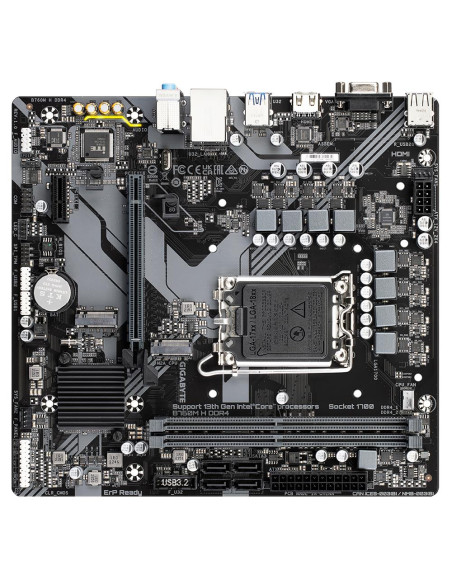

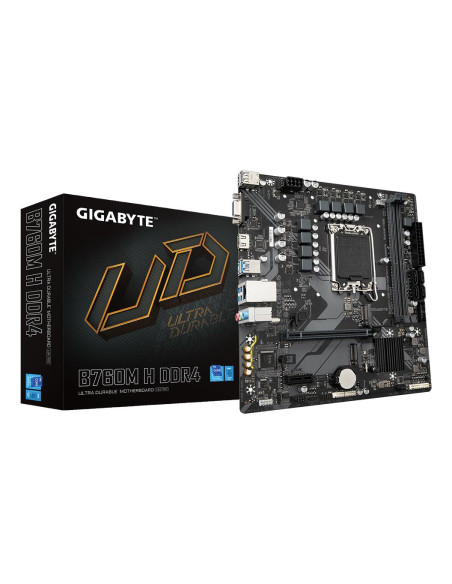

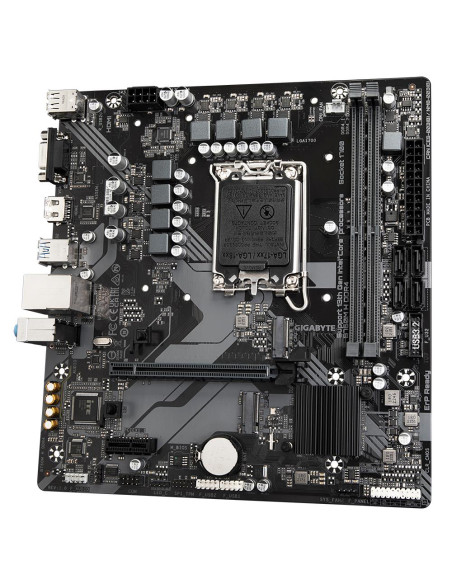

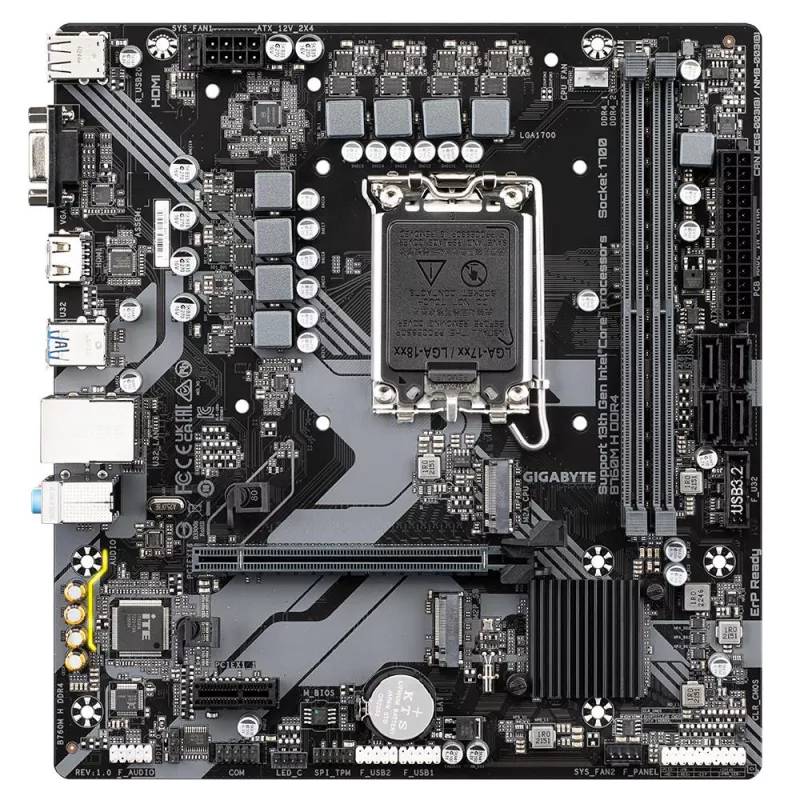

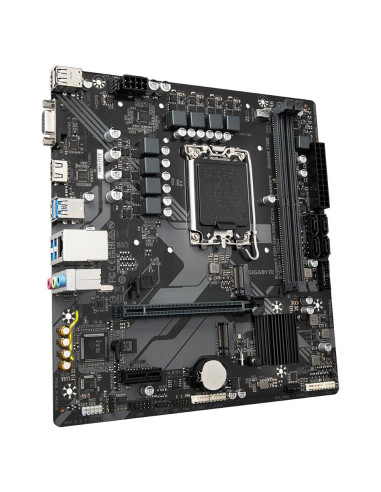

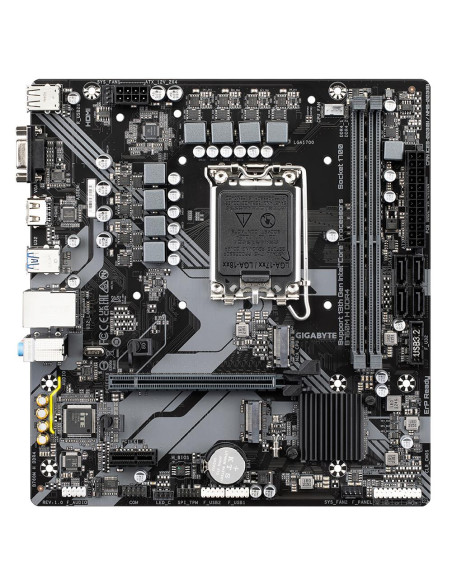

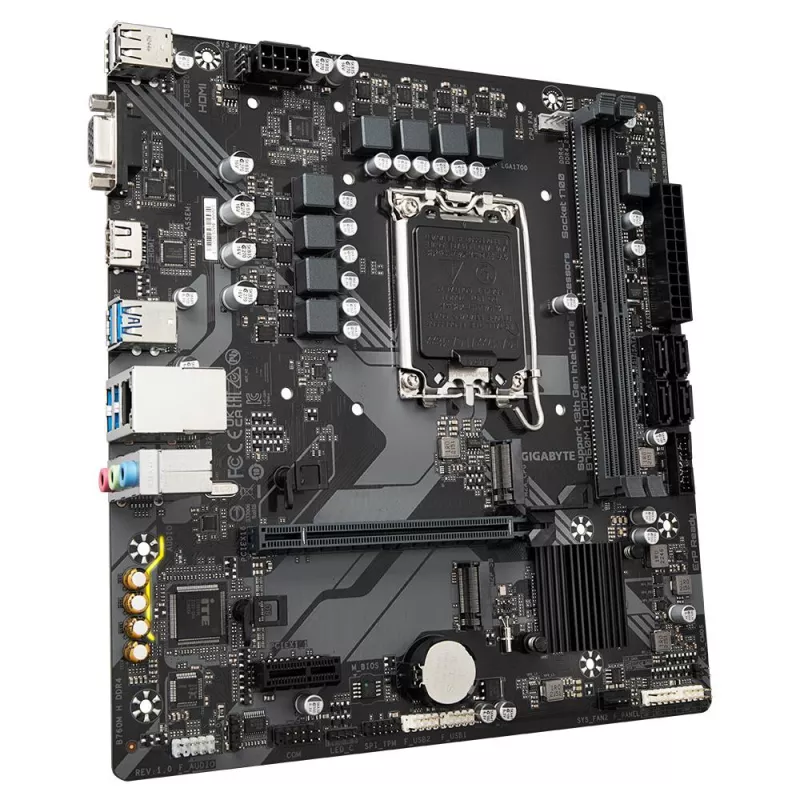

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 4

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 4

Name: Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 4
Brand: GIGABYTE
SKU: B760MHDDR4
Price: 84.37 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760MHDDR4

Yra sandėlyje

84,37 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

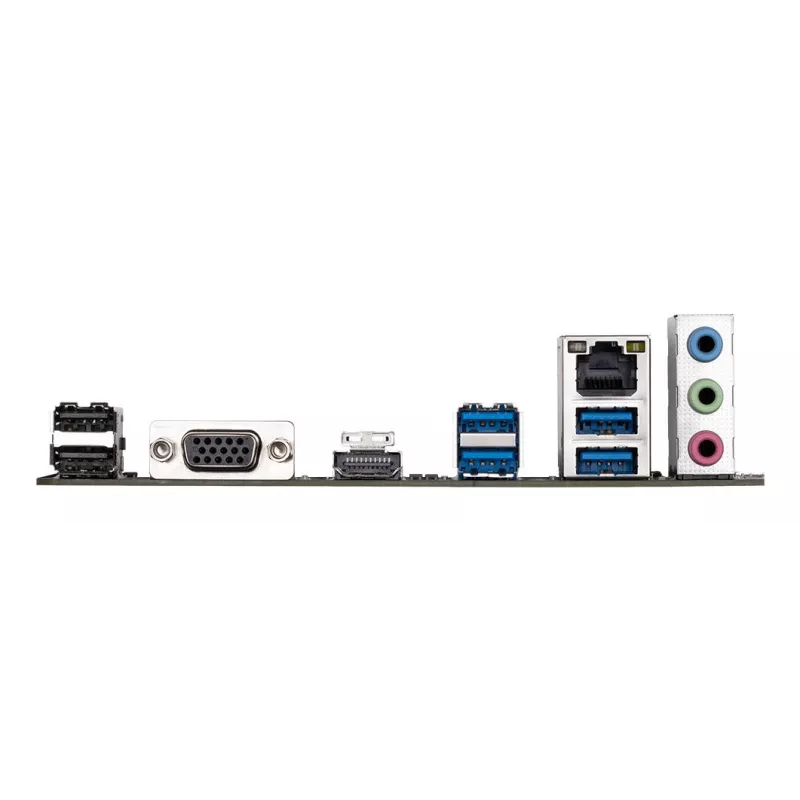

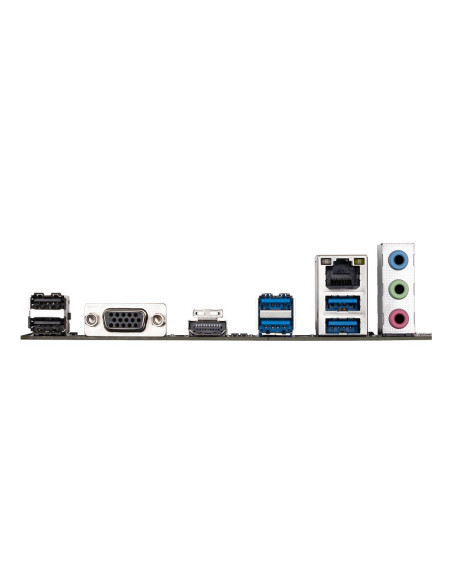

Intel B760 Express , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Pentium® Gold , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

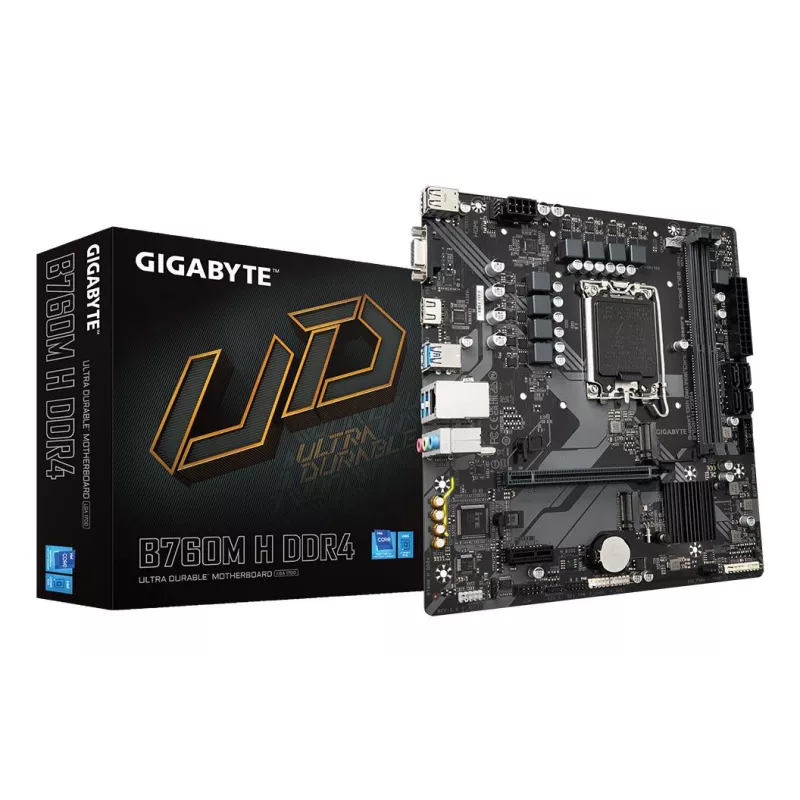

SUMMARY: GIGABYTE B760M H DDR4 MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 6+1+1 PHASES DIGITAL VRM, UP TO 3200MHZ DDR4 (OC), 2XPCIE 4.0 M.2, GBE LAN, USB 3.2 GEN1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.265
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 1.4
DIRECTX VERSION: 12.1
WARRANTY PERIOD, YEAR(S): 3
PRODUCT COLOUR: BROWN
DEPTH, MM: 215
HEIGHT, MM: 35
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 825
PACKAGE WIDTH, MM: 265
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MODEL: B760M H DDR4 (REV. 1.0)
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.003935
UNIT CALCULATED WEIGHT, KG: 0.752
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10/WINDOWS 11
RAID SUPPORT: YES
VGA (D-SUB) PORTS QUANTITY: 1
WI-FI: No
WIDTH, MM: 230
COUNTRY OF ORIGIN: CHINA
ETHERNET LAN: YES
COMPONENT FOR: PC
COMPATIBLE PROCESSOR SERIES: INTEL CELERON /INTEL PENTIUM GOLD
SUPPORTED PROCESSOR SOCKETS: LGA 1700
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 64
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 64
SUPPORTED MEMORY TYPES: DDR4-SDRAM
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: INTEL B760 EXPRESS
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 2
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
NUMBER OF SATA III CONNECTORS: 4
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 3200
NUMBER OF HDDS SUPPORTED: 4
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2933/3000/3200
TOTAL NUMBER OF SATA CONNECTORS: 4
POWER SOURCE TYPE: ATX
TPM CONNECTOR: YES
USB 2.0 PORTS QUANTITY: 2
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERIES INCLUDED: YES
SUPPORTED MEMORY MODULE CAPACITIES: 12GB/16GB/1GB/2GB/32GB/4GB/8GB
SERIAL PORT HEADERS: 1
MAXIMUM NUMBER OF SMP PROCESSORS: 1
