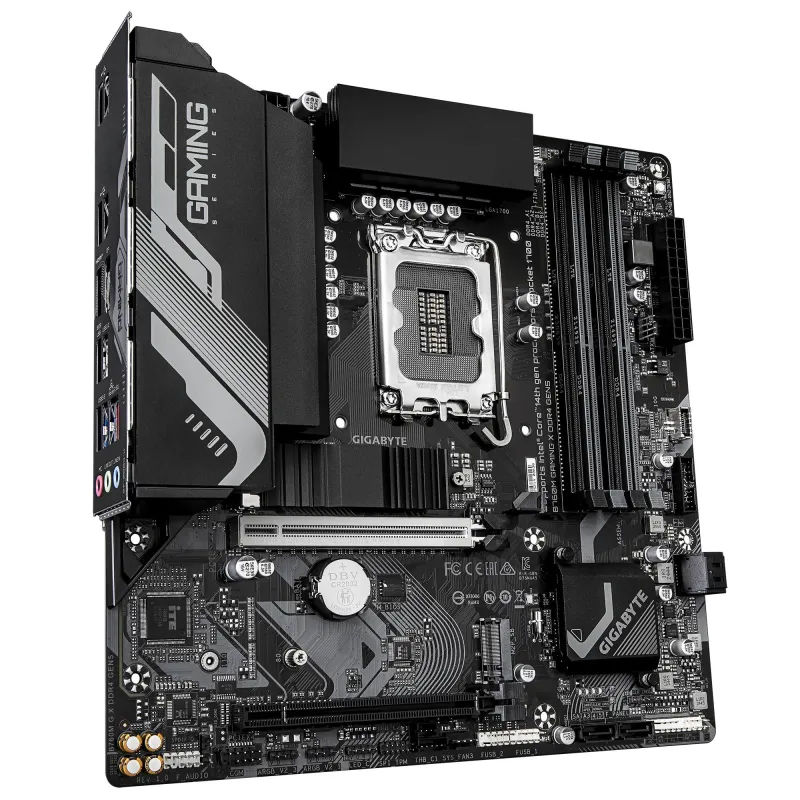

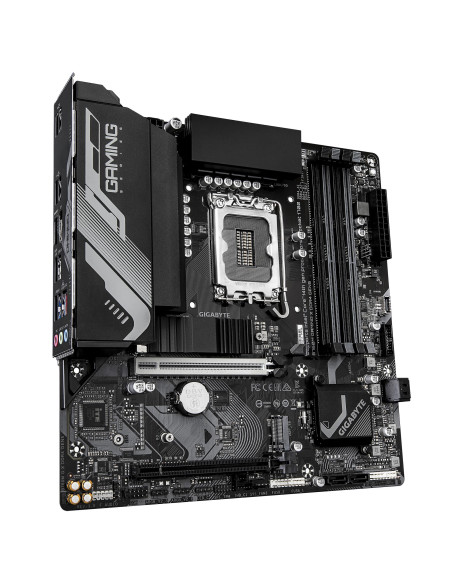

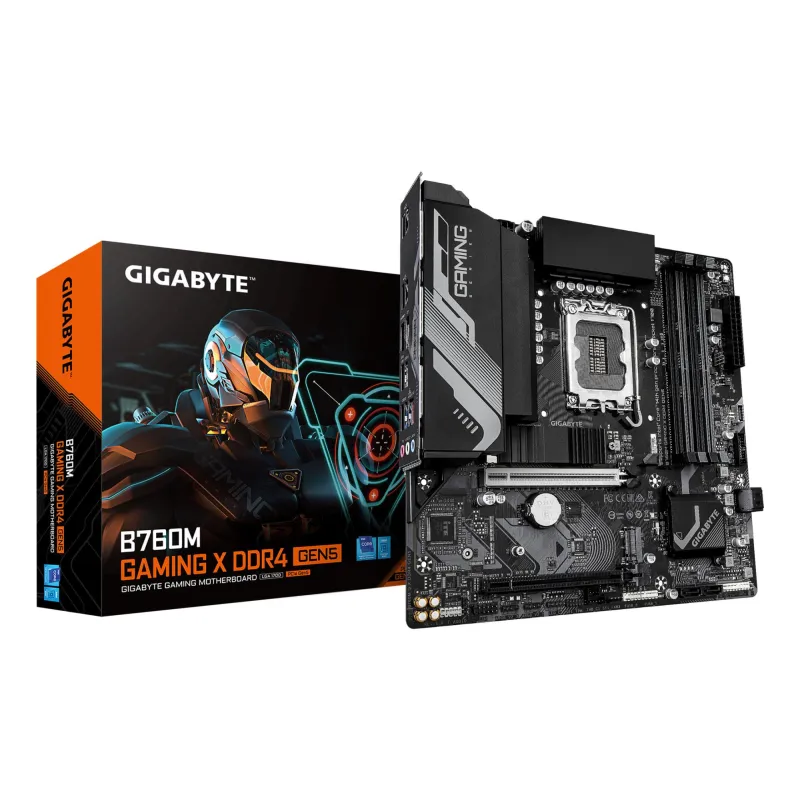

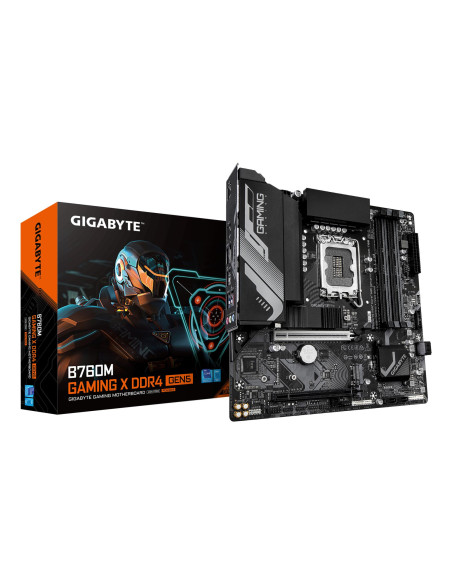

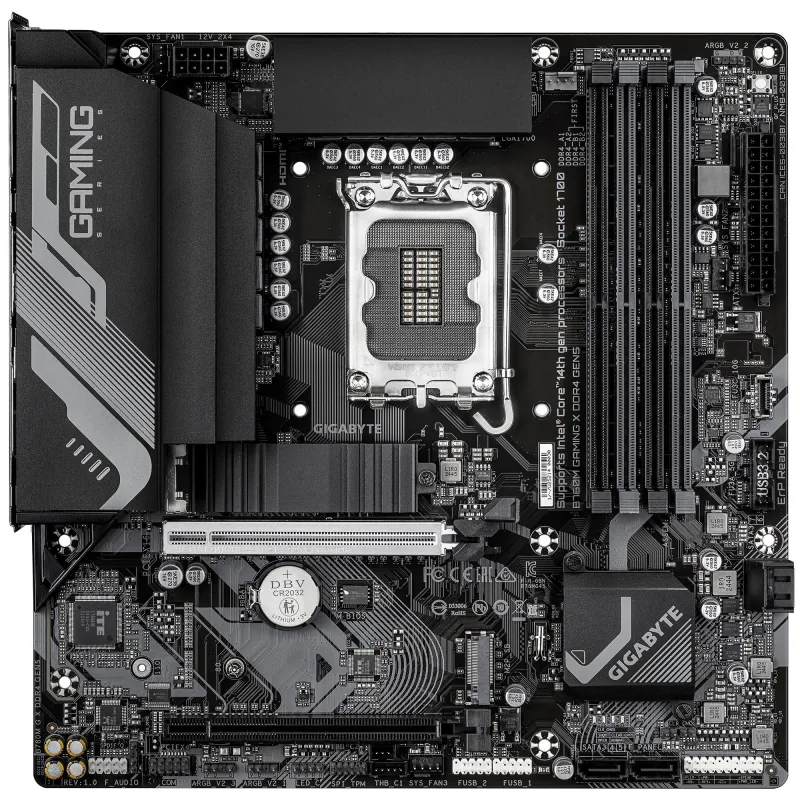

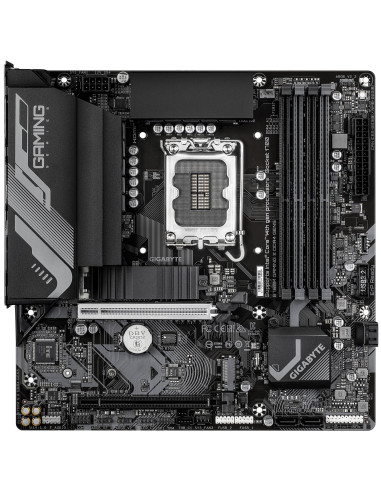

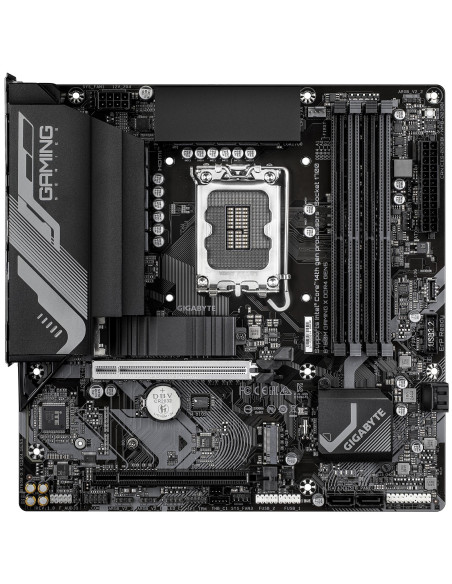

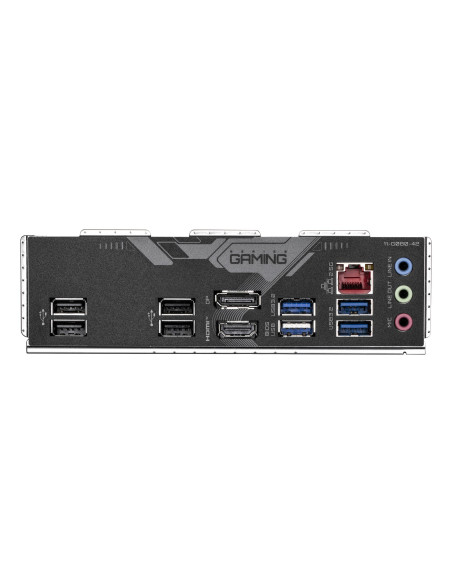

Mainboard, GIGABYTE, GIGABYTE B760M GAMING X DDR4 GEN5, Intel B760, LGA 1700, micro ATX, RAM DDR4-SDRAM, 4xSlots, 2xNumber of M

Mainboard, GIGABYTE, GIGABYTE B760M GAMING X DDR4 GEN5, Intel B760, LGA 1700, micro ATX, RAM DDR4-SDRAM, 4xSlots, 2xNumber of M

Name: Mainboard, GIGABYTE, GIGABYTE B760M GAMING X DDR4 GEN5, Intel B760, LGA 1700, micro ATX, RAM DDR4-SDRAM, 4xSlots, 2xNumber of M
Brand: GIGABYTE
SKU: B760M G X DDR4 GEN5
Price: 119.4 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760M G X DDR4 GEN5

Yra sandėlyje

119,40 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2304 pixels , 5xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 1.19 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B760M GAMING X DDR4 GEN5 MOTHERBOARD - SUPPORTS 14TH GEN. INTEL CORE CPUS, 8+1+1 PHASES VRM, UP TO 3200MHZ DDR4, 2XPCIE 4.0 M.2, 2.5 GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: I
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.275
MODEL: GIGABYTE B760M GAMING X DDR4 GEN5
CATEGORY CODE: MBI
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.00713
UNIT CALCULATED WEIGHT, KG: 1.61
PRODUCT COLOUR: DARK BROWN
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1600
PACKAGE WIDTH, MM: 270
COUNTRY OF ORIGIN: CHINA
DEPTH, MM: 244
WEIGHT, G: 1190
HEIGHT, MM: 35
WIDTH, MM: 244
POWER SOURCE TYPE: ATX
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
WARRANTY PERIOD, YEAR(S): 3
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
HEADPHONE OUTPUTS: 1

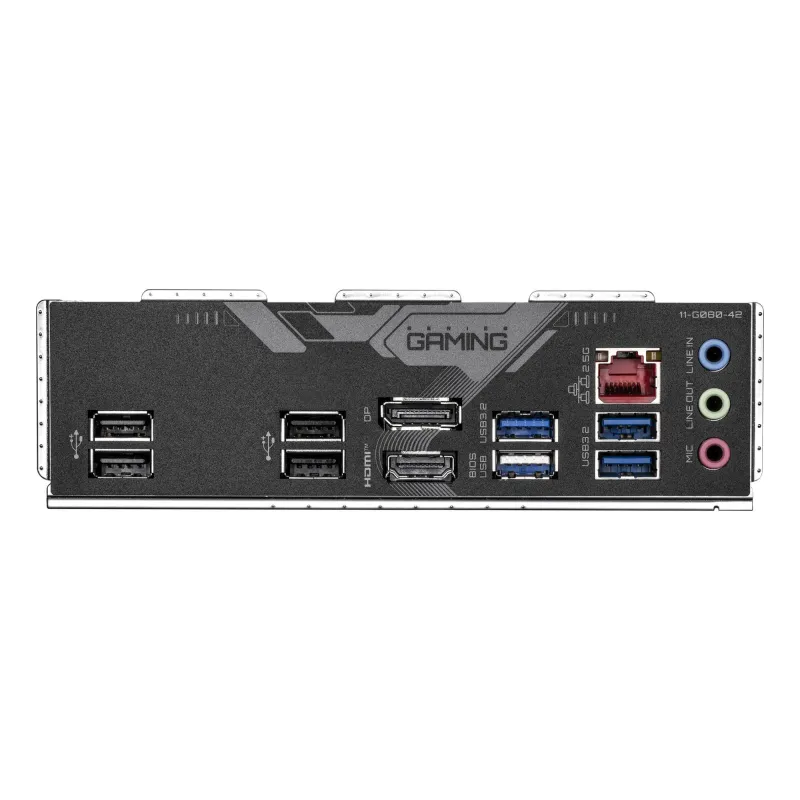

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
USB 2.0 PORTS QUANTITY: 5
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
COOLING TYPE: PASSIVE
DIRECTX VERSION: 12.0
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
WI-FI: No
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
ETHERNET LAN: YES
COMPONENT FOR: PC
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN/INTEL CELERON
SUPPORTED PROCESSOR SOCKETS: LGA 1700
SCREWS INCLUDED: YES
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1700
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 128
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: Intel B760
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
NUMBER OF SATA III CONNECTORS: 4
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 22110
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 3200
THUNDERBOLT HEADERS: 2
MICROPHONE IN: YES
NUMBER OF HDDS SUPPORTED: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2933/3000/3200
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 4
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8125
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
S/PDIF OUT CONNECTOR: YES
SERIAL PORT HEADERS: 1
