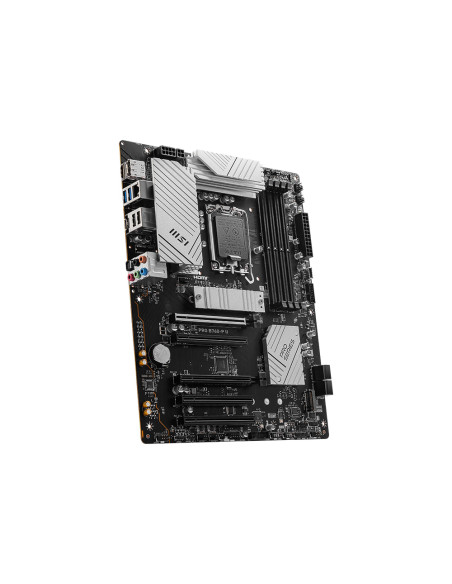

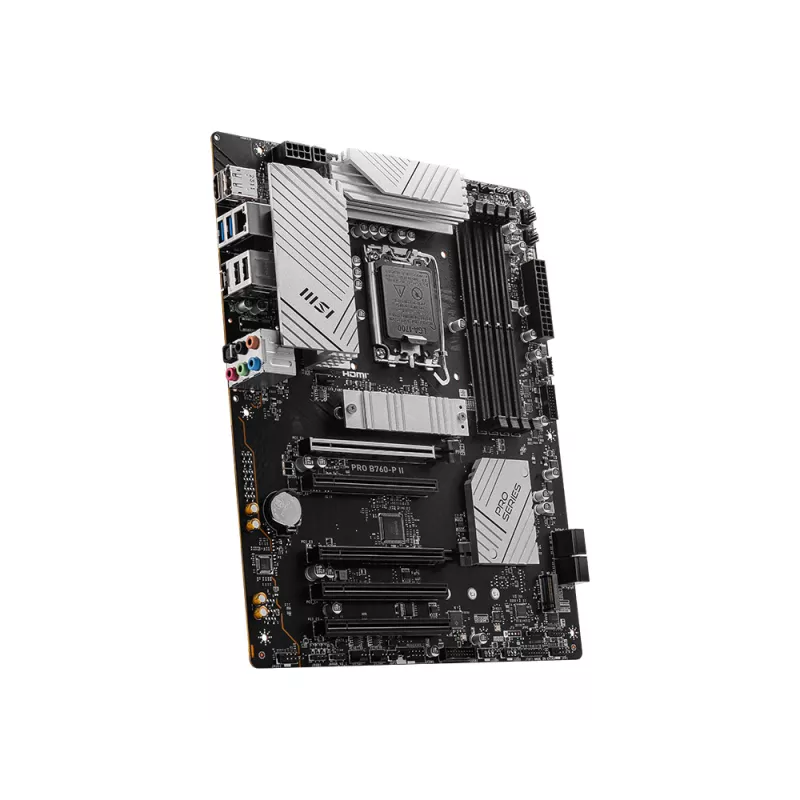

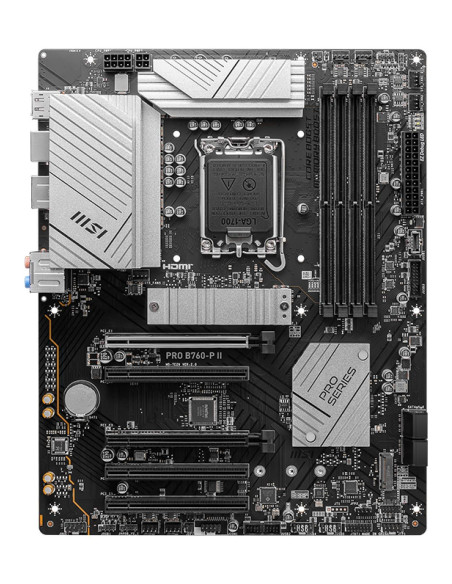

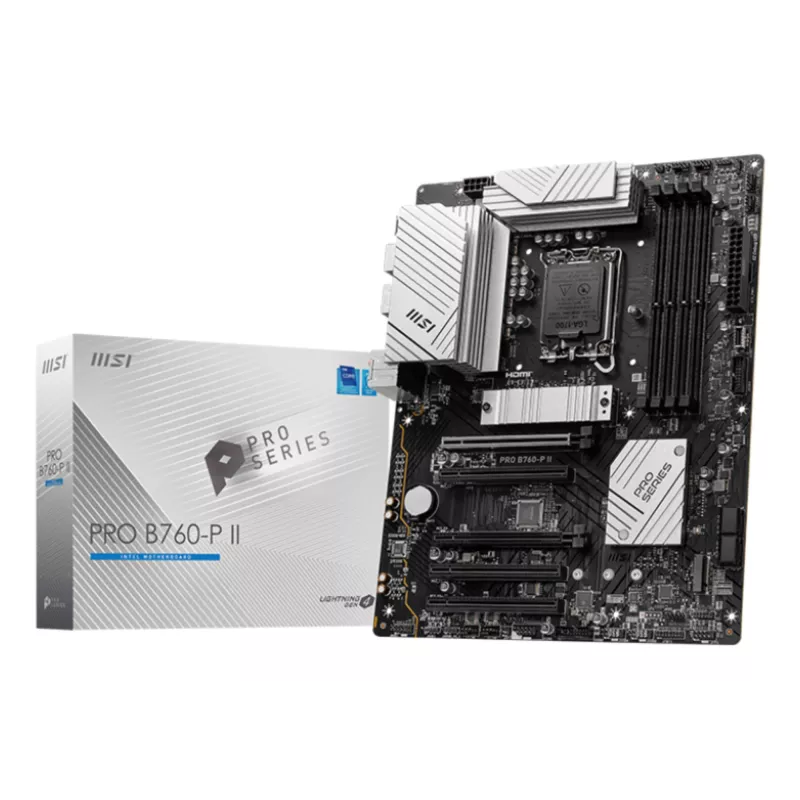

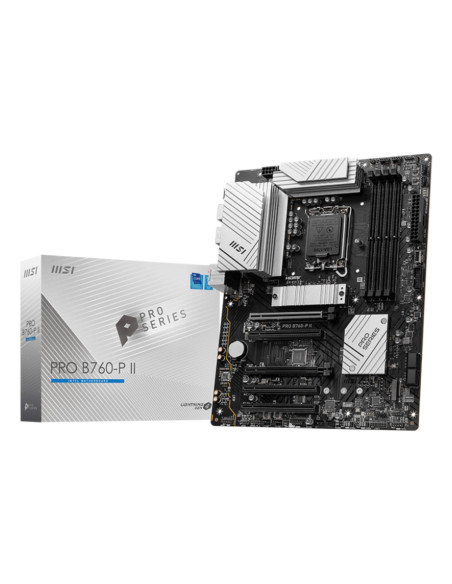

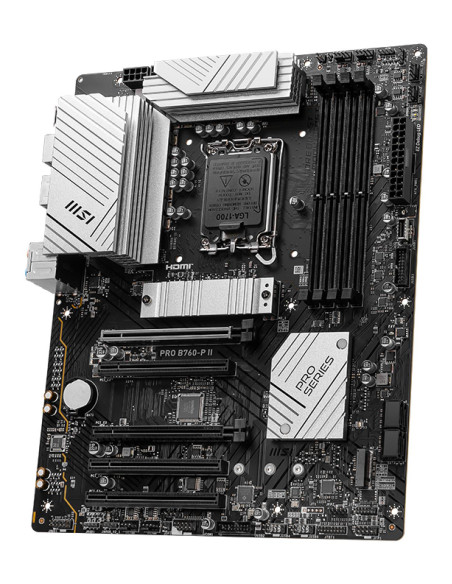

Mainboard, MSI, Intel B760 Express, LGA1700, Memory DDR5, Memory slots 4, 5xPCI-Express 5.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort,

Mainboard, MSI, Intel B760 Express, LGA1700, Memory DDR5, Memory slots 4, 5xPCI-Express 5.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort,

Name: Mainboard, MSI, Intel B760 Express, LGA1700, Memory DDR5, Memory slots 4, 5xPCI-Express 5.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort,
Brand: MSI
SKU: PROB760-PII
Price: 131.61 EUR
Availability: InStock

Gamintojas: MSI

Kodas PROB760-PII

Yra sandėlyje

131,61 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

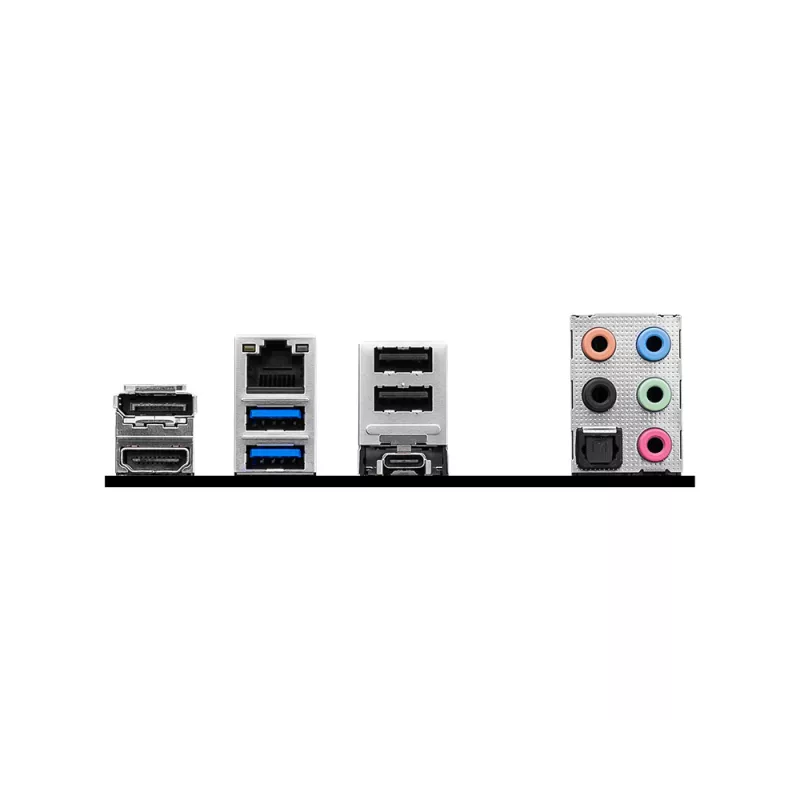

Intel B760 , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Pentium® Gold , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces PCI Express 4.0,SATA III , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: MSI PRO B760-P II. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CELERON , INTEL CORE I3, INTEL CORE I5, INTEL CORE I7, INTEL PENTIUM GOLD. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256 GB
CNCODE: 84733020
UNIT BOX HEIGHT: 0.27
UNIT BOX LENGTH: 0.345
UNIT BOX WIDTH: 0.07
MODEL: PRO B760-P II
CATEGORY CODE: MBI
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.007252
UNIT CALCULATED WEIGHT, KG: 1.51
DEPTH, MM: 304.8
WIDTH, MM: 243.84
CABLES INCLUDED: SATA
HDMI VERSION: 2.1
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
WI-FI: No
DRIVERS INCLUDED: YES
PROCESSOR MANUFACTURER: Intel
USB 2.0 PORTS QUANTITY: 4
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CELERON /INTEL CORE I3/INTEL CORE I5/INTEL CORE I7/INTEL PENTIUM GOLD
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: Intel B760
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: PCI EXPRESS 4.0,SATA III
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
MEMORY SLOTS TYPE: DIMM
USB 2.0 CONNECTORS: 4
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 4
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7000
NUMBER OF HDDS SUPPORTED: 4
PCI EXPRESS X1 (GEN 4.X) SLOTS: 2
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000
CHASSIS INTRUSION CONNECTOR: YES
LAN CONTROLLER: REALTEK RTL8125-BG
ACPI VERSION: 6.4
CLEAR CMOS JUMPER: YES
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 3.5
PCI EXPRESS X4 (GEN 4.X) SLOTS: 1
S/PDIF OUT CONNECTOR: YES
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
POWER FAN CONNECTOR: YES
