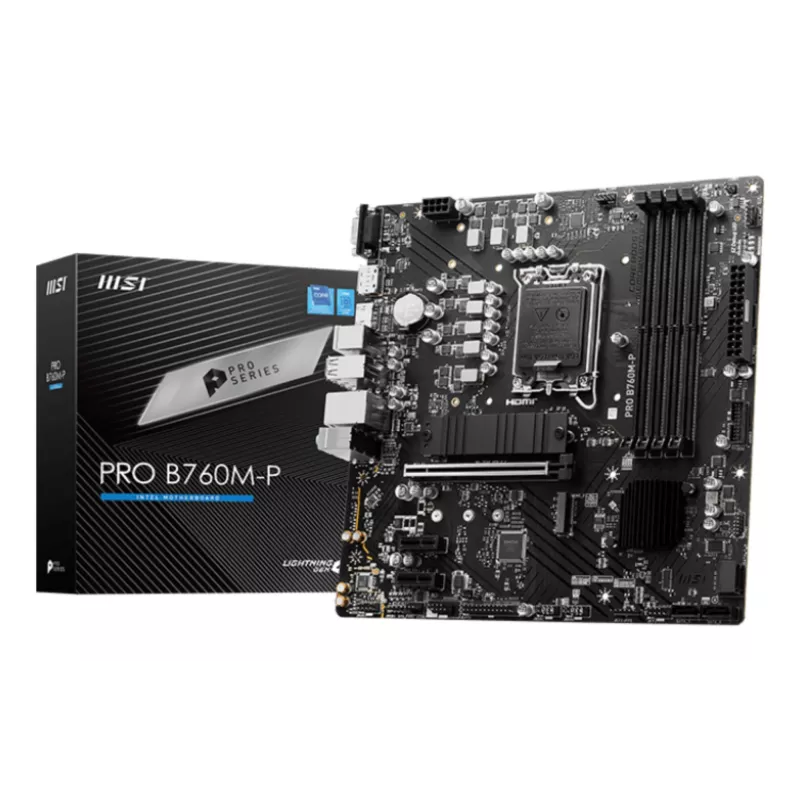

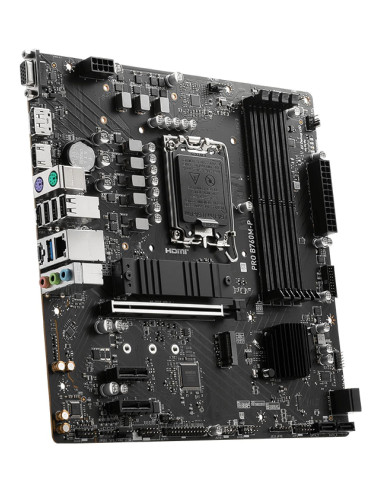

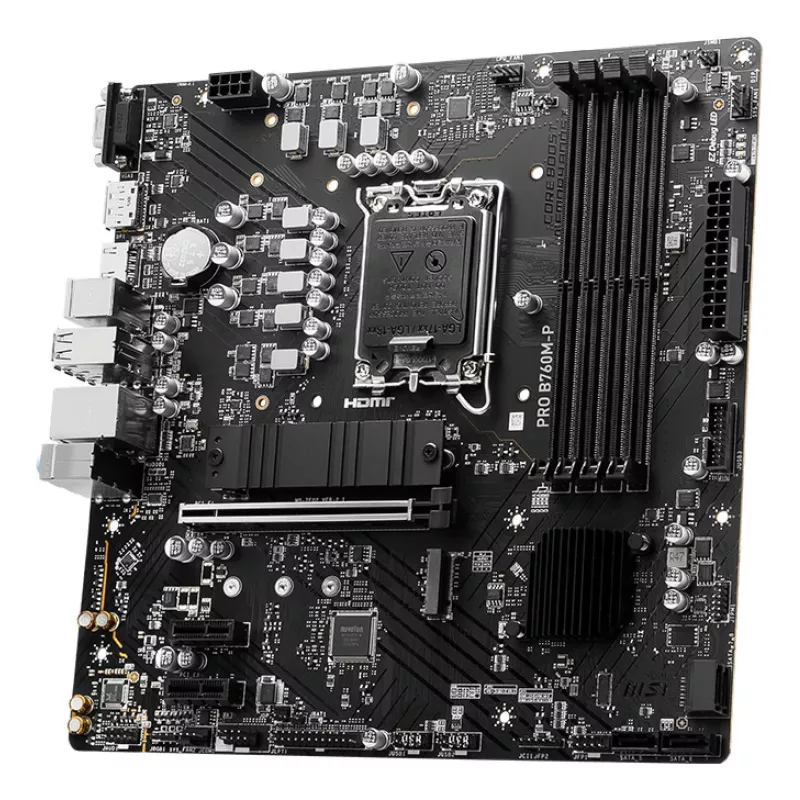

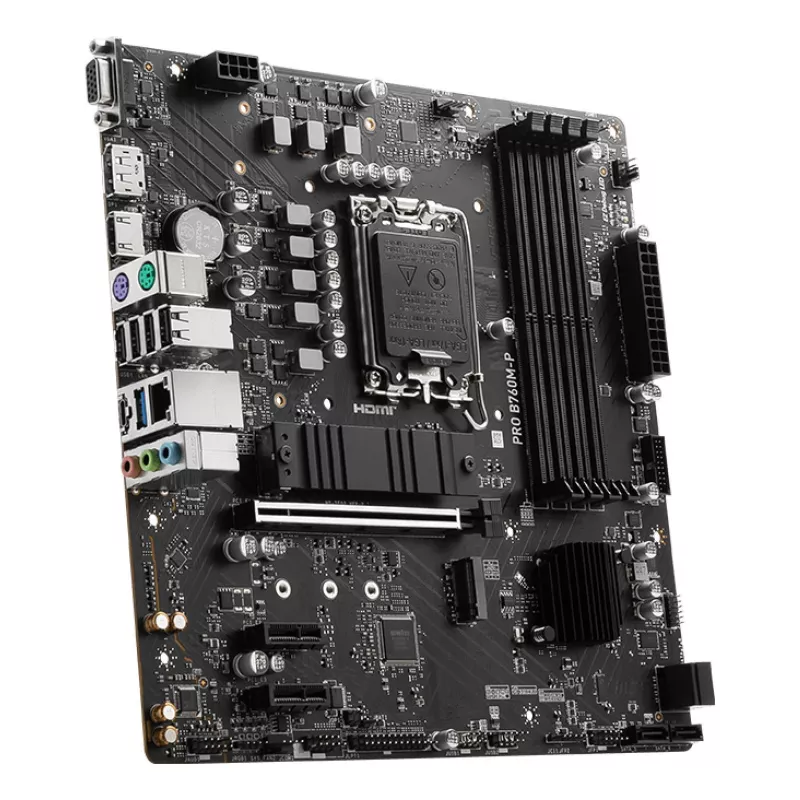

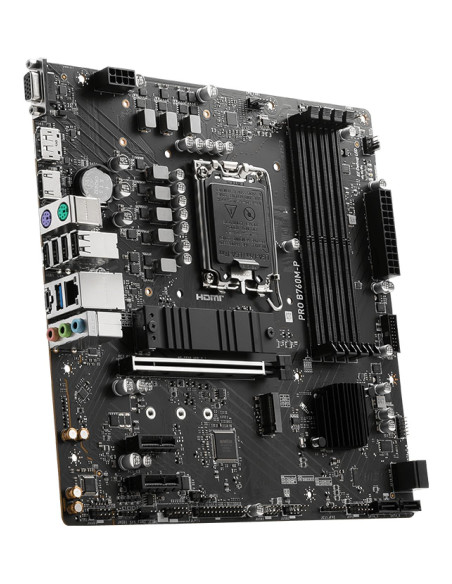

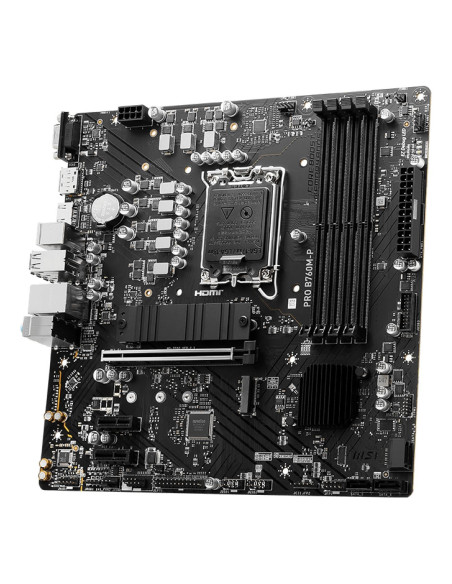

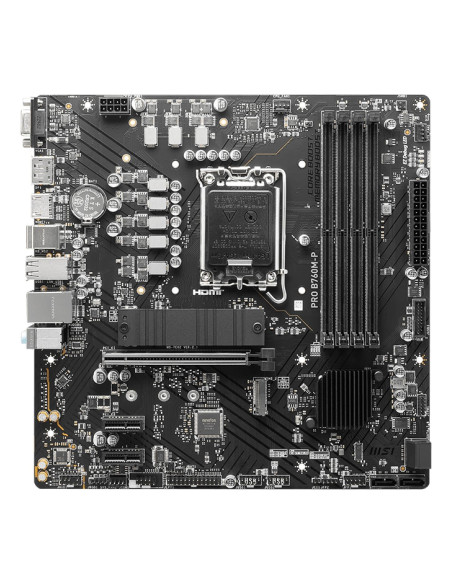

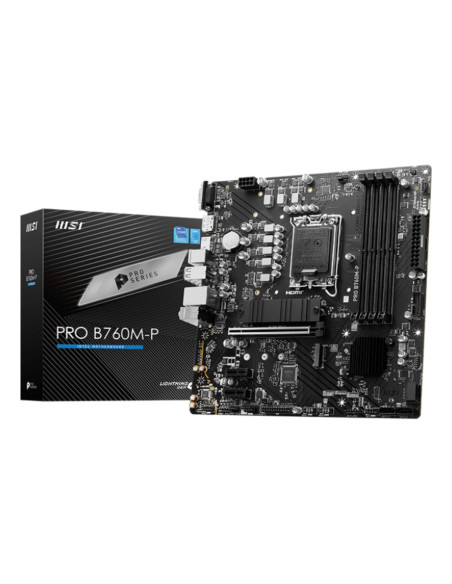

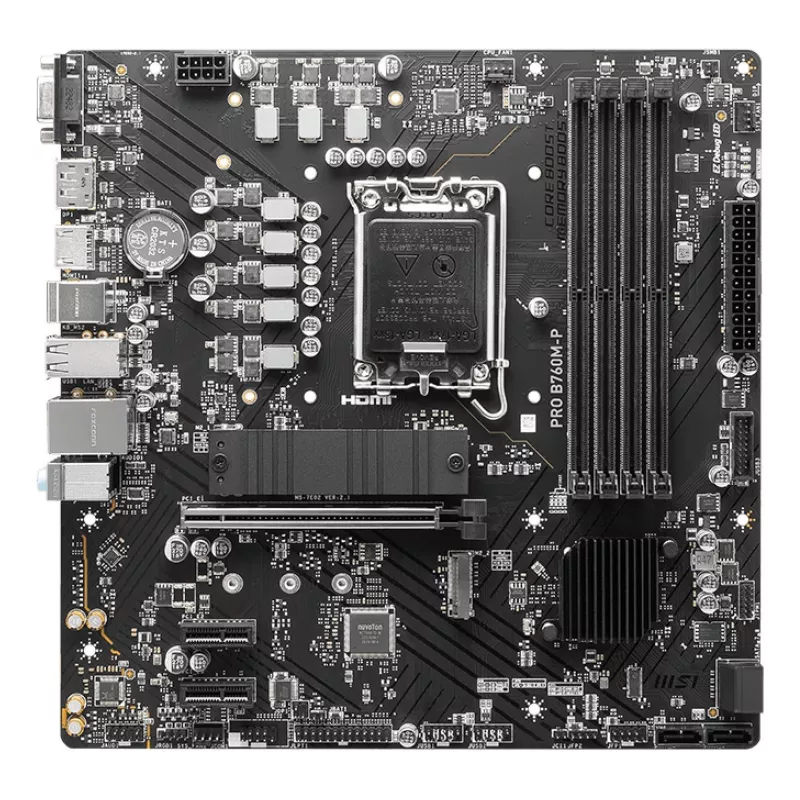

Mainboard, MSI, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2

Mainboard, MSI, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2

Name: Mainboard, MSI, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2
Brand: MSI
SKU: PROB760M-P
Price: 106.06 EUR
Availability: InStock

Gamintojas: MSI

Kodas PROB760M-P

Yra sandėlyje

106,06 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

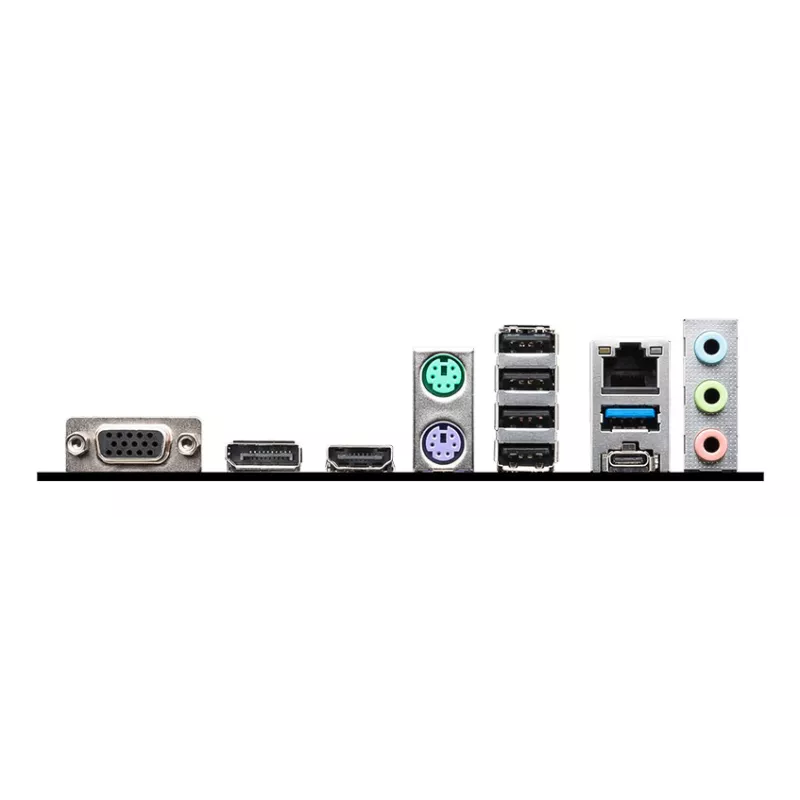

Intel B760 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Pentium® Gold , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Supported storage drive interfaces SATA III , 4xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.056
UNIT BOX LENGTH: 0.3
UNIT BOX WIDTH: 0.275
MODEL: PRO B760M-P
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.00462
PRODUCT NET WEIGHT, KG: 0.72
UNIT CALCULATED WEIGHT, KG: 0.9
SUMMARY: MSI PRO B760M-P. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL CELERON , INTEL PENTIUM GOLD. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 192 GB, ECC OMPATIBILITY: NON-ECC. SUPPORTED STORAGE
DEPTH, MM: 243.84
WIDTH, MM: 243.84
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
WI-FI: No
POWER SOURCE TYPE: ATX
CABLES INCLUDED: SATA
USB 2.0 PORTS QUANTITY: 4
ETHERNET LAN (RJ-45) PORTS: 1
HDMI VERSION: 1.4
HDMI PORTS QUANTITY: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: YES
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
VGA (D-SUB) PORTS QUANTITY: 1
RAID SUPPORT: YES
MOTHERBOARD CHIPSET: Intel B760
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
COMPATIBLE PROCESSOR SERIES: INTEL CELERON/INTEL PENTIUM GOLD
PROCESSOR SOCKET: LGA 1700
SUPPORTED PROCESSOR SOCKETS: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 192
PROCESSOR MANUFACTURER: Intel
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF SATA III CONNECTORS: 4
NUMBER OF HDDS SUPPORTED: 4
USB 2.0 CONNECTORS: 4
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
MICROPHONE IN: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
ACPI VERSION: 6.4
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 3.5
ECC ?OMPATIBILITY: NON-ECC
UNBUFFERED MEMORY: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
RGB LED PIN HEADER: YES
PS/2 PORTS QUANTITY: 2
AUDIO CHIP: REALTEK ALC897
PCI EXPRESS X1 (GEN 4.X) SLOTS: 2
CHASSIS INTRUSION CONNECTOR: YES
NUMBER OF COM CONNECTORS: 1
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8111H
CLEAR CMOS JUMPER: YES
PARALLEL CONNECTOR: YES
