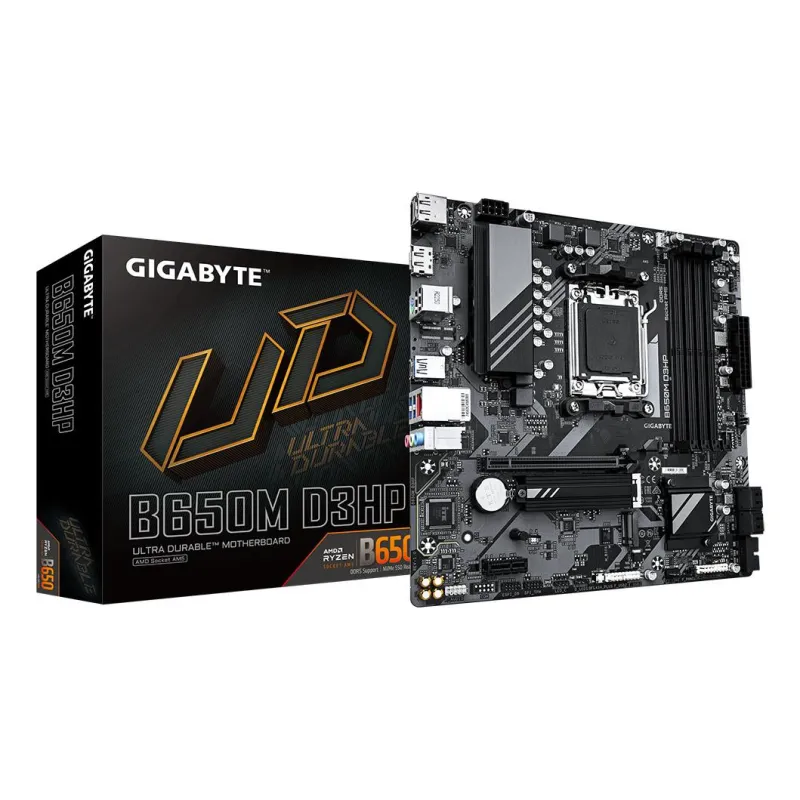

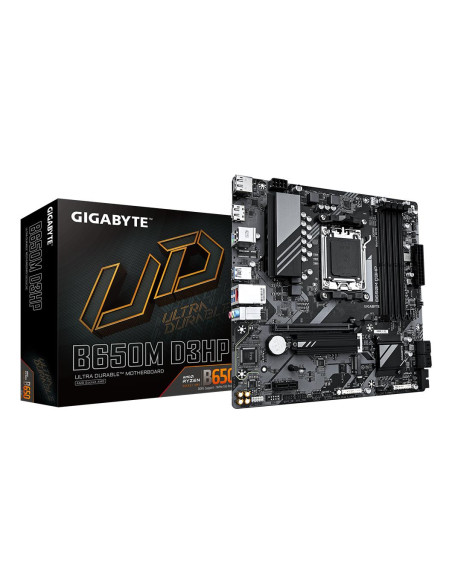

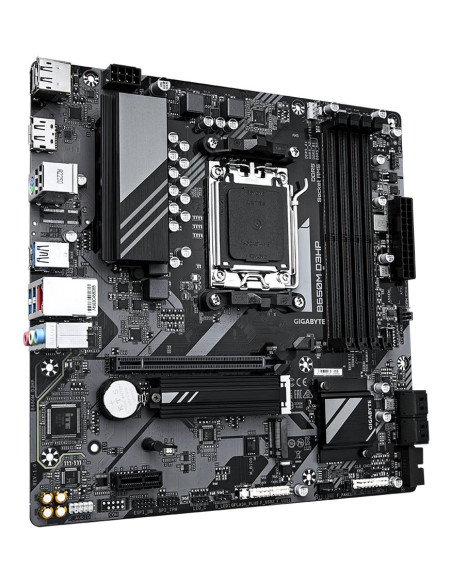

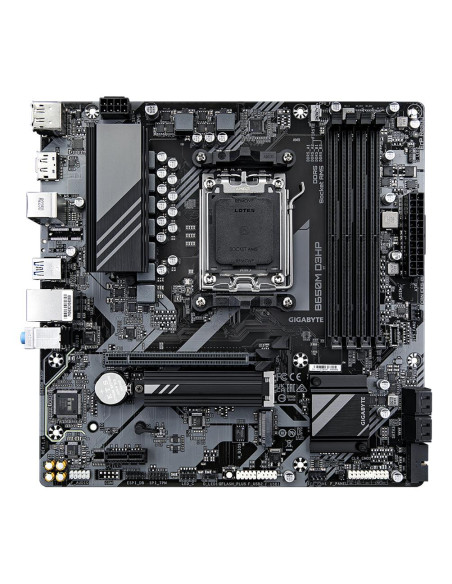

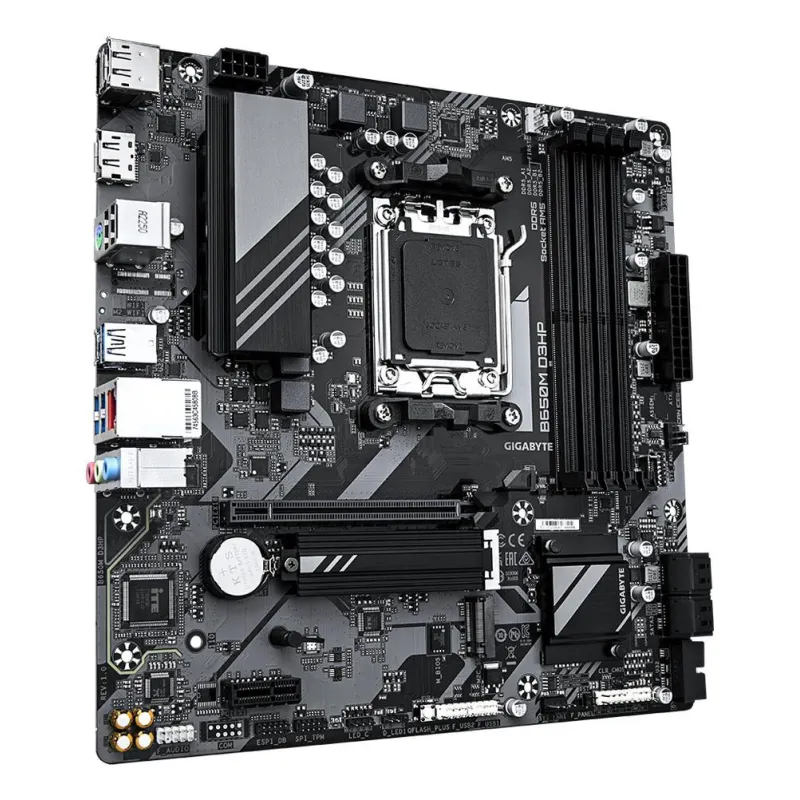

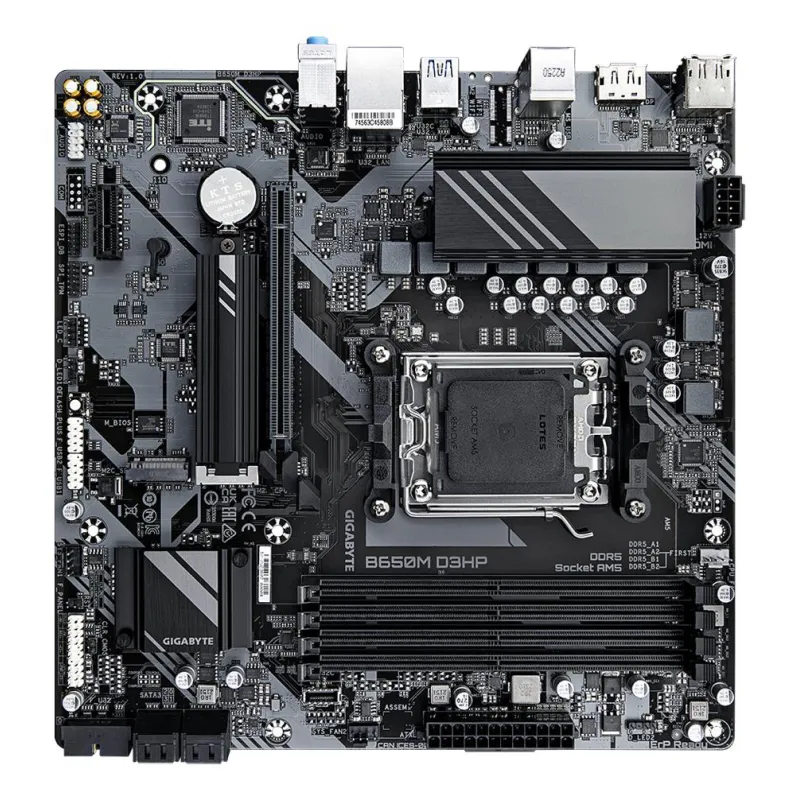

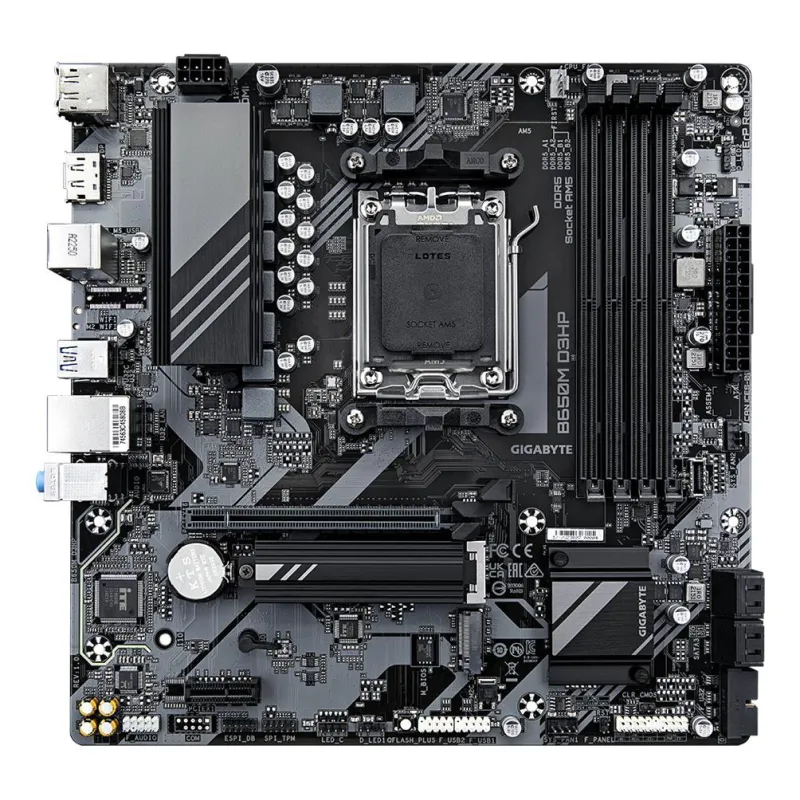

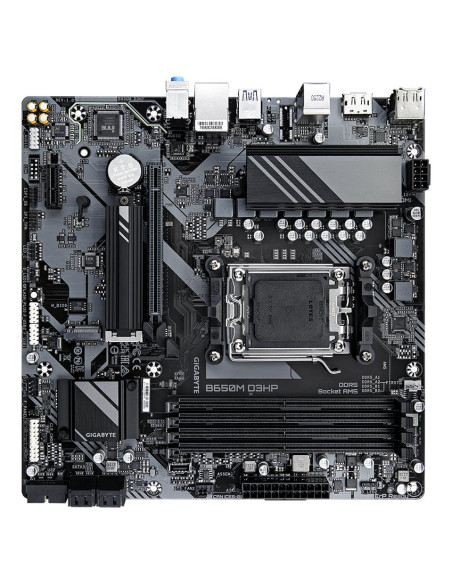

Mainboard, GIGABYTE, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B650MD3HP1.3

Mainboard, GIGABYTE, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B650MD3HP1.3

Name: Mainboard, GIGABYTE, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B650MD3HP1.3
Brand: GIGABYTE
SKU: B650M D3HP 1 3
Price: 107.34 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B650M D3HP 1 3

Paskutinė prekė

107,34 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

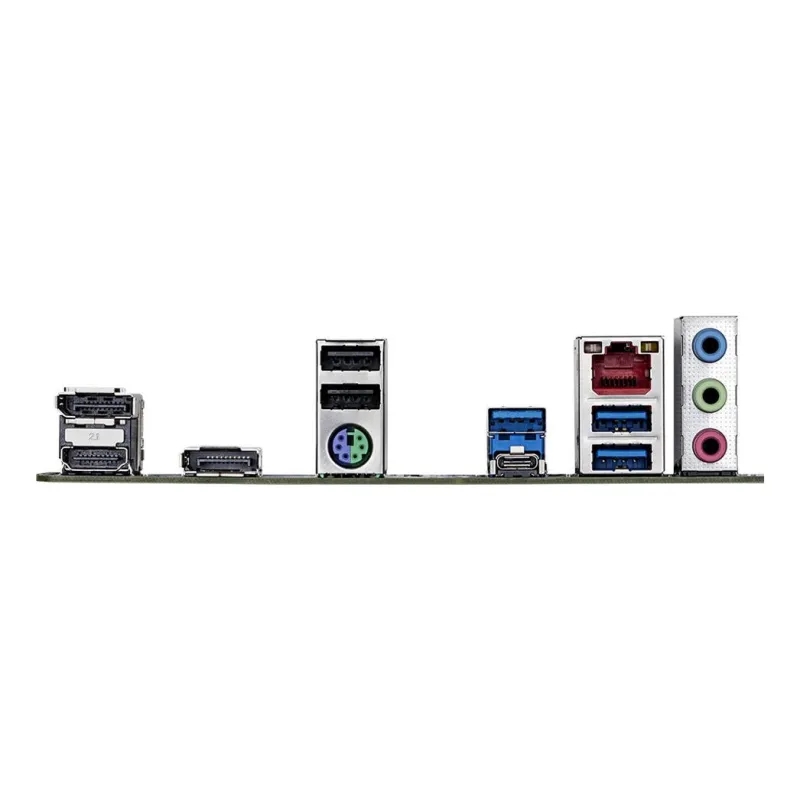

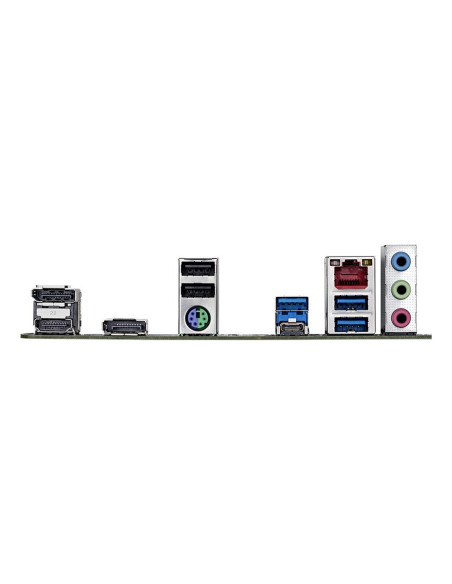

AMD B650 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , Discrete graphics support Yes , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B650M D3HP MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 5+2+2 PHASES VRM, UP TO 7600MHZ DDR5 (OC), 2XPCIE 4.0 M.2, 2.5GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERI
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.05
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.265
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
COMPONENT FOR: PC
PRODUCT COLOUR: BROWN
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 244
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 1020
PACKAGE WIDTH, MM: 265
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.004669
UNIT CALCULATED WEIGHT, KG: 1.06
ETHERNET LAN: YES
WI-FI: No
MODEL: B650M D3HP (REV. 1.3)
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
WARRANTY PERIOD, YEAR(S): 3
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY WEIGHT, G: 3
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
COUNTRY OF ORIGIN: CHINA
HDCP: YES
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: AMD
USB 2.0 PORTS QUANTITY: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
SCREWS INCLUDED: YES
POWER SOURCE TYPE: ATX
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
HDMI PORTS QUANTITY: 1
BATTERY TYPE: CR2032
BATTERIES INCLUDED: YES
HEADPHONE OUTPUTS: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
RAID SUPPORT: YES
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MEMORY CHANNELS: DUAL-CHANNEL
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 2
DIRECTX VERSION: 12.0
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: AMD B650
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7600
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
LINE-IN: YES
MICROPHONE IN: YES
NUMBER OF HDDS SUPPORTED: 4
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2580
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 22110
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
TPM CONNECTOR: YES
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
ACPI VERSION: 5.0
12V POWER CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
LAN CONTROLLER: REALTEK RTL8125
DISCRETE GRAPHICS SUPPORT: YES
