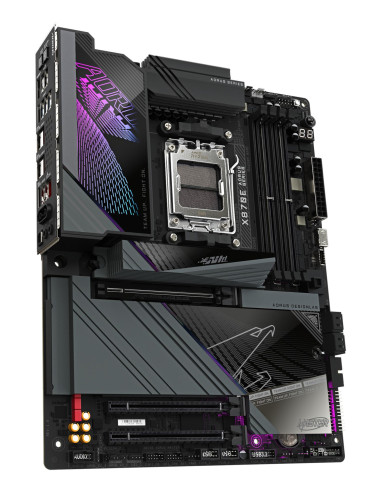

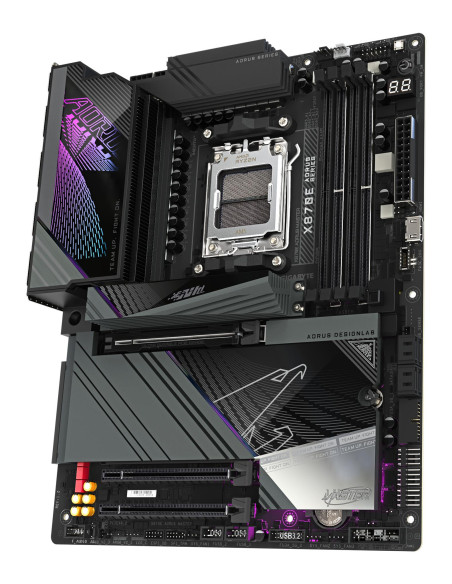

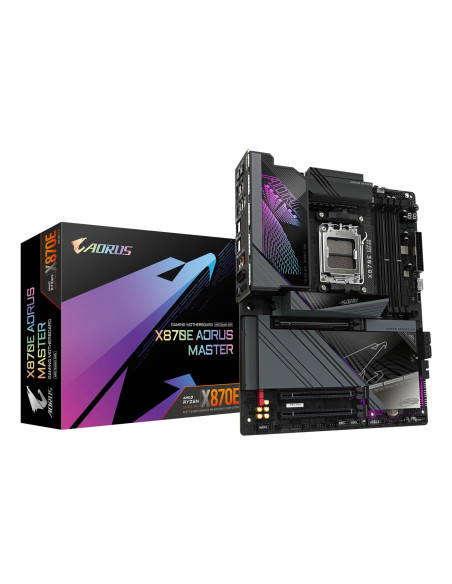

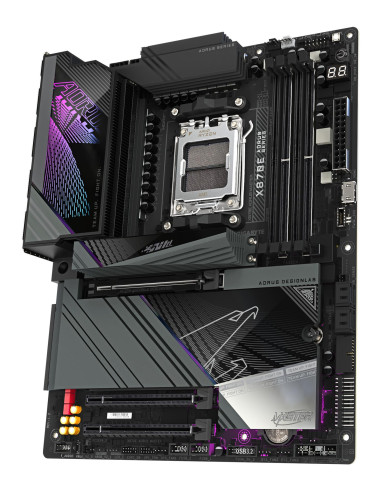

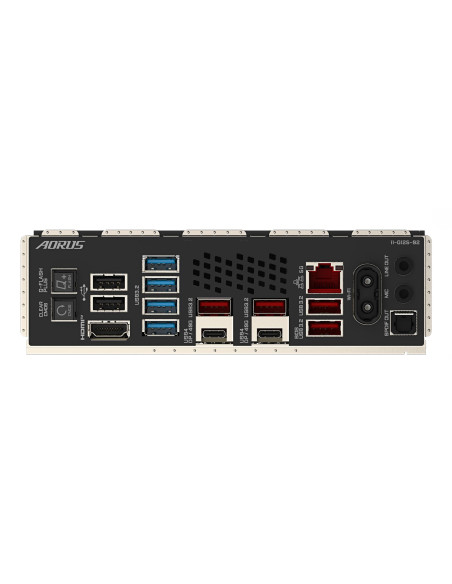

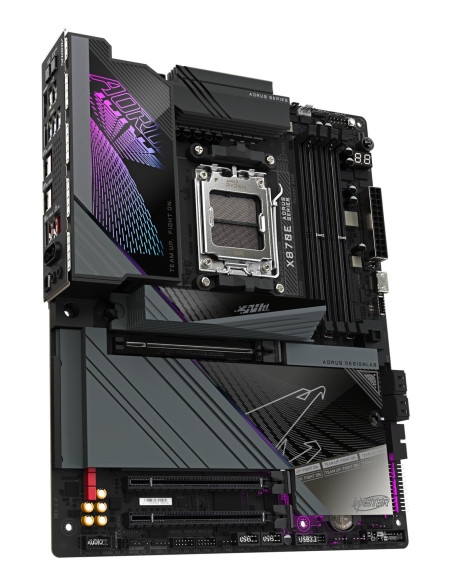

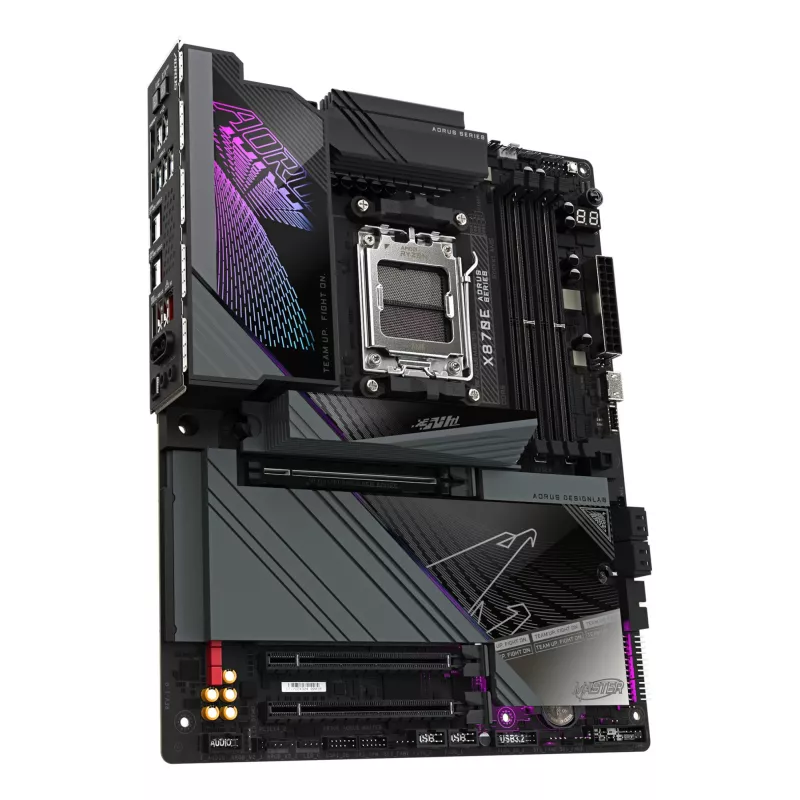

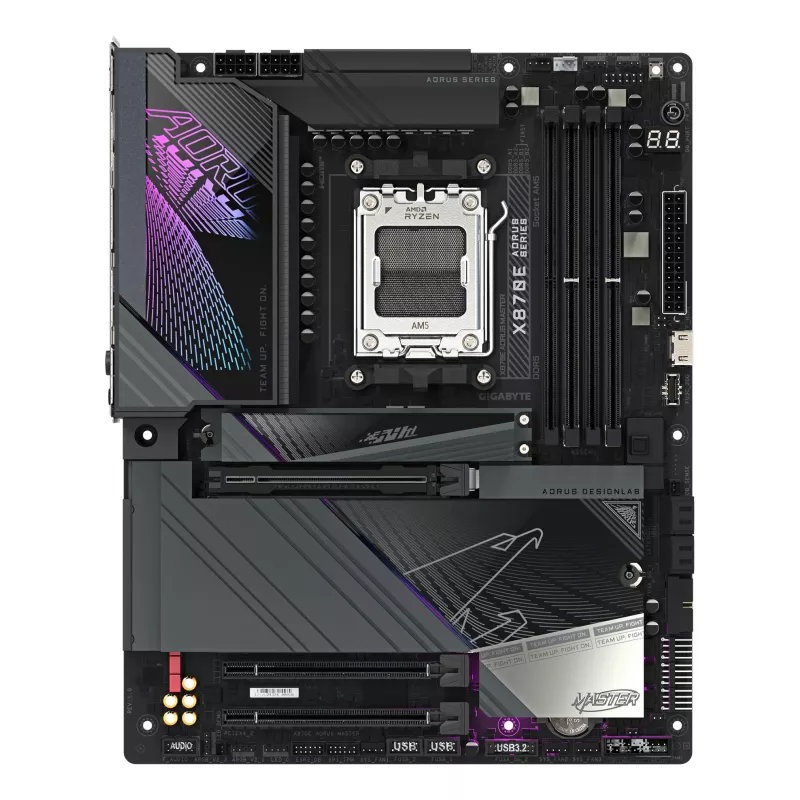

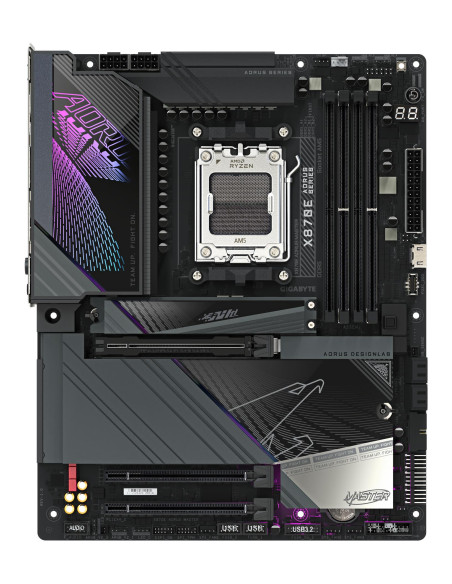

Mainboard, GIGABYTE, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 4x, 1xPCI-Express 4.0 4x , 1xPCI-Expr

Mainboard, GIGABYTE, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 4x, 1xPCI-Express 4.0 4x , 1xPCI-Expr

Name: Mainboard, GIGABYTE, AMD X870E, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 4x, 1xPCI-Express 4.0 4x , 1xPCI-Expr
Brand: GIGABYTE
SKU: X870EAORUSMASTER
Price: 470.34 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas X870EAORUSMASTER

Yra sandėlyje

470,34 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD X870 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 4xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 2.54 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE X870E AORUS MASTER MOTHERBOARD - SUPPORTS AMD RYZEN 9000 CPUS, 16+2+2 PHASES DIGITAL VRM, UP TO 8600MHZ DDR5 (OC), 3XPCIE 5.0 + 1XPCIE 4.0, WI-FI 7, 5GBE LAN, USB 4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.35
UNIT BOX WIDTH: 0.295
PRODUCT COLOUR: BLACK
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 2540
WIDTH, MM: 305
WARRANTY PERIOD, YEAR(S): 3
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.01203
UNIT CALCULATED WEIGHT, KG: 3
WI-FI: Yes
MODEL: X870E AORUS MASTER
PACKAGE DEPTH, MM: 294
PACKAGE HEIGHT, MM: 80
PACKAGE WIDTH, MM: 345
RAID SUPPORT: YES
PACKAGE WEIGHT, G: 2970
ETHERNET LAN: YES
COUNTRY OF ORIGIN: CHINA
COMPONENT FOR: PC
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
SCREWS INCLUDED: YES
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
MEMORY CHANNELS: DUAL-CHANNEL
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC1220
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 8
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 6
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
USB 3.2 GEN 2X2 CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
MOTHERBOARD CHIPSET: AMD X870
S/PDIF OUT PORT: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 4
WIFI-AP ANTENNA JACK: 2
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
ETHERNET INTERFACE TYPE: 5 GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI STANDARDS: WI-FI 7 (802.11BE)
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
3RD M.2 LARGEST KEY SIZE: 22110
4TH M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
4TH M.2 LARGEST KEY SIZE: 22110
NUMBER OF M.2 (M) SLOTS: 4
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
ANTENNA INCLUDED: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8600
NUMBER OF HDDS SUPPORTED: 4
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600
HDMI VERSION: 2.1
WLAN CONTROLLER MODEL: QUALCOMM QCNCM865
HEADPHONE OUTPUTS: 1
USB4 GEN 2X2 PORTS QUANTITY: 2
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
DIRECTX VERSION: 12.0
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 5
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: YES
DISPLAYPORT VERSION: 1.4
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8126
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERIES INCLUDED: YES
USB 2.0 PORTS QUANTITY: 2
SUPPORTED MEMORY MODULE CAPACITIES: 12GB/1GB/24GB/2GB/32GB/4GB/8GB
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
PCI EXPRESS X4 SLOTS: 2
