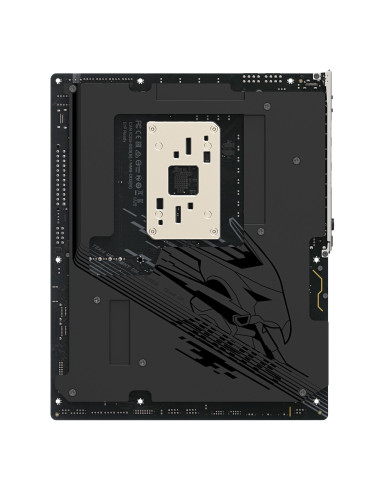

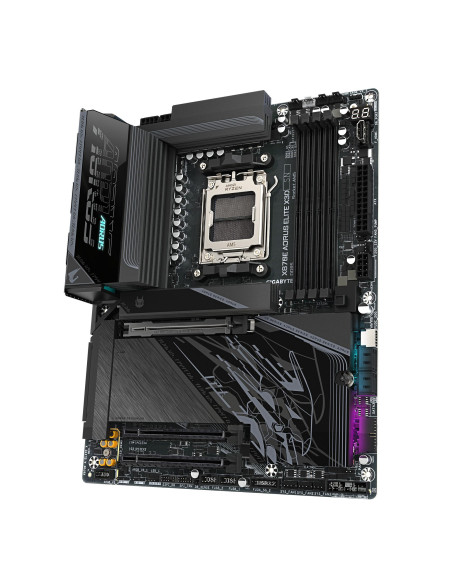

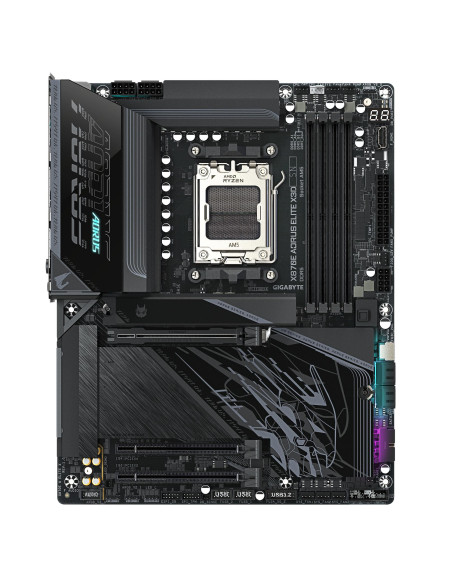

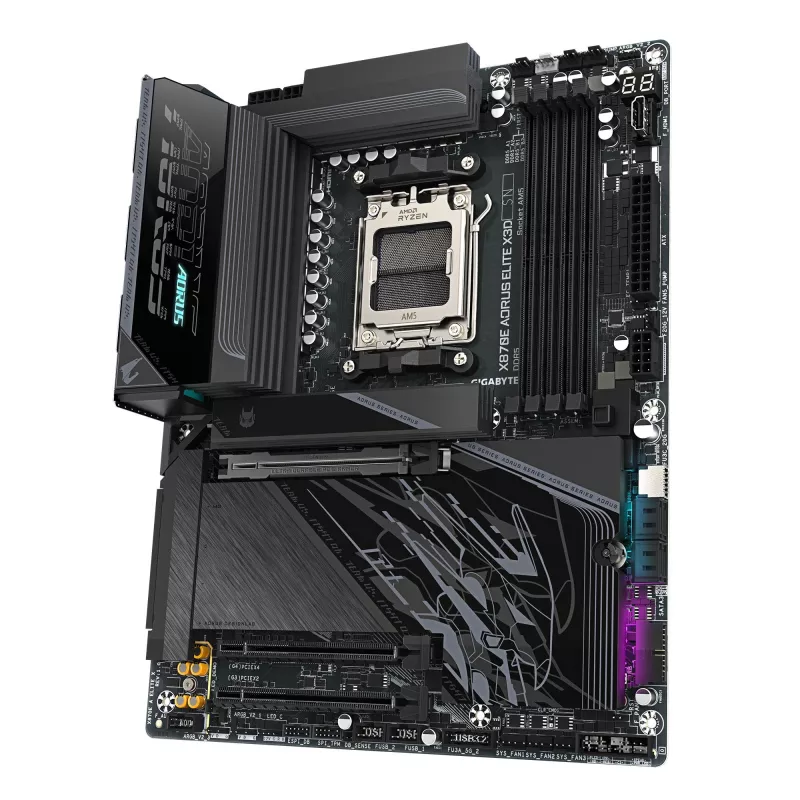

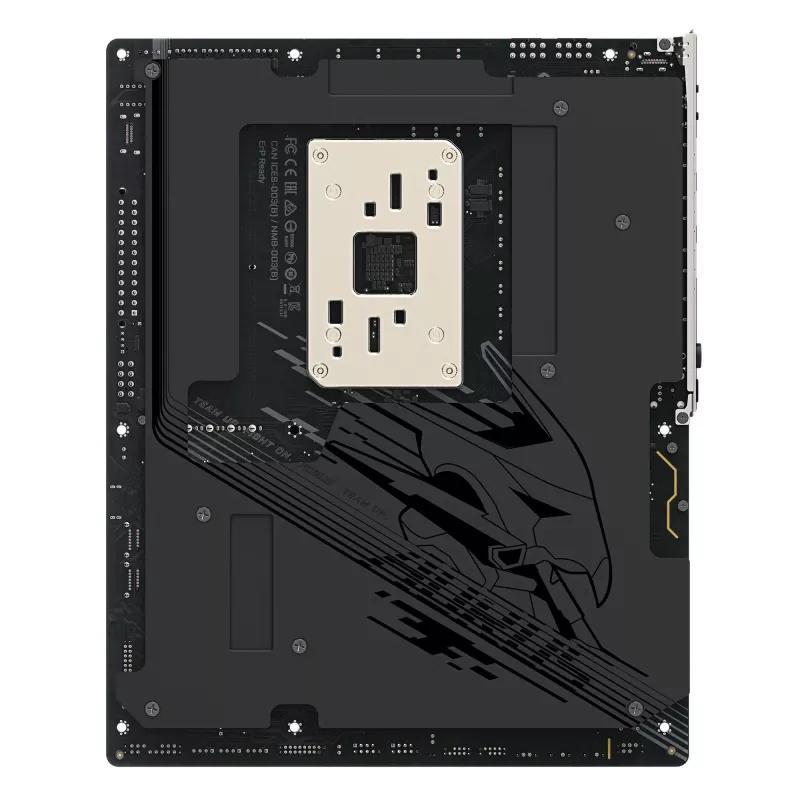

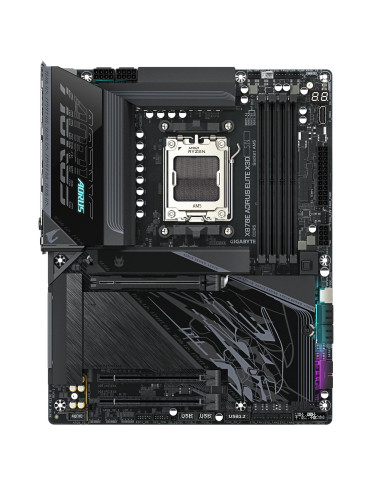

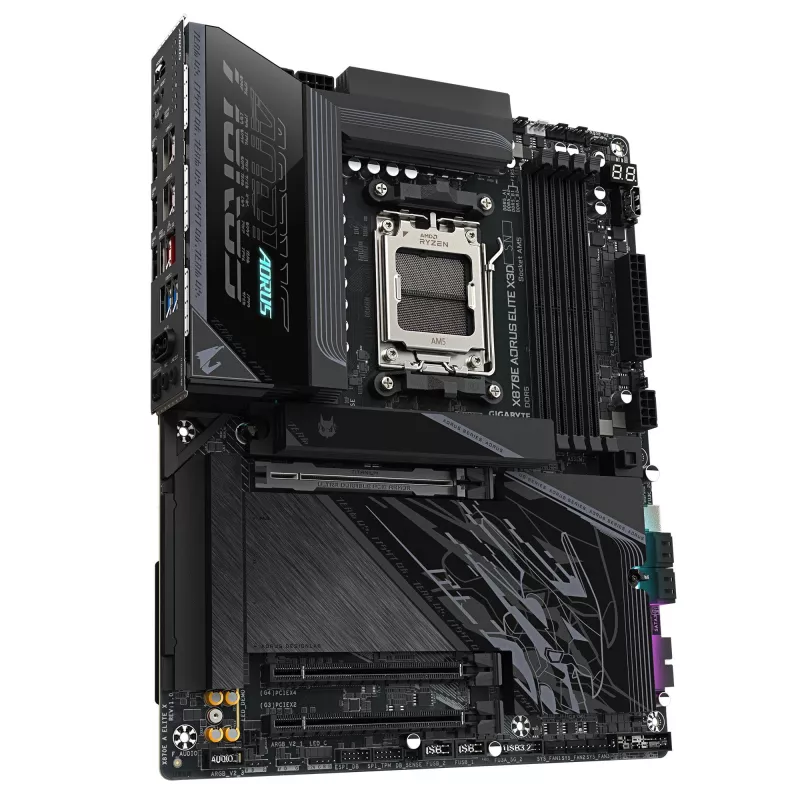

Mainboard, GIGABYTE, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 4xNumber of M.2 (M) slots,

Mainboard, GIGABYTE, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 4xNumber of M.2 (M) slots,

Name: Mainboard, GIGABYTE, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 4xNumber of M.2 (M) slots,
Brand: GIGABYTE
SKU: X870E A ELITE X
Price: 339.18 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas X870E A ELITE X

Yra sandėlyje

339,18 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

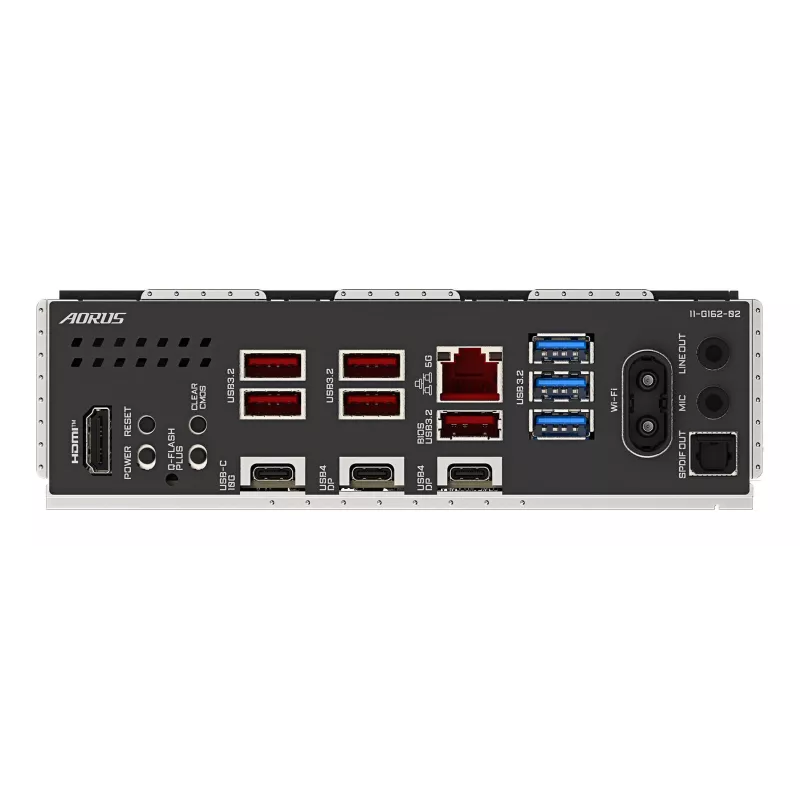

AMD X870E , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III , 4096 x 2304 pixels , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 5xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 2.98 kg

Prekės informacija
Atsiliepimai (0)

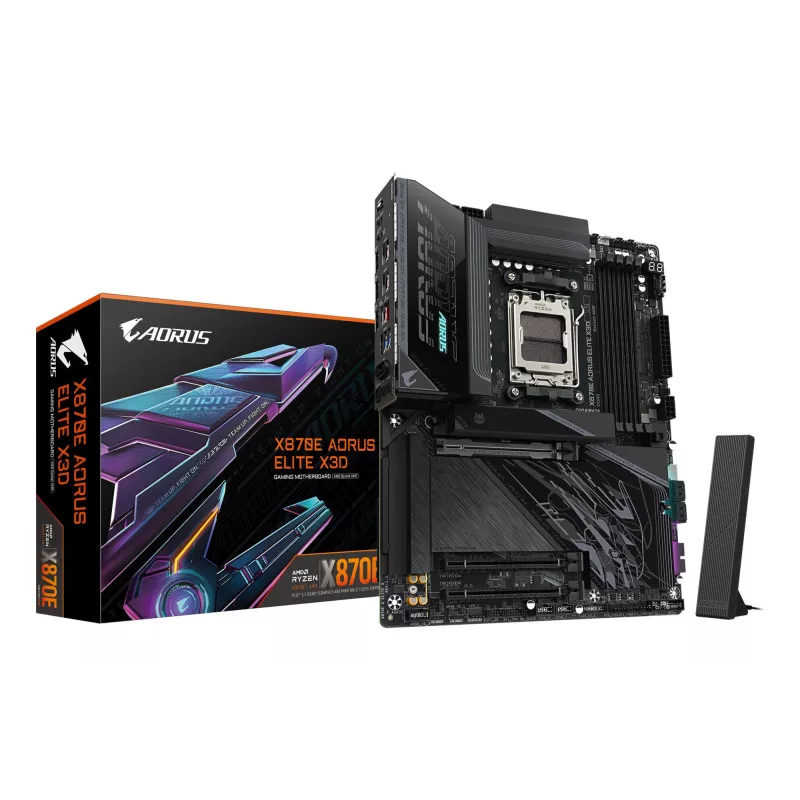

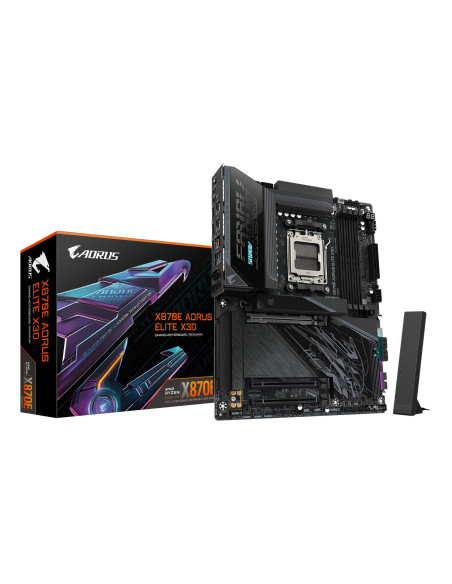

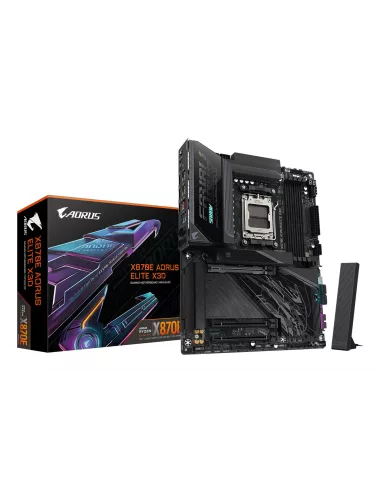

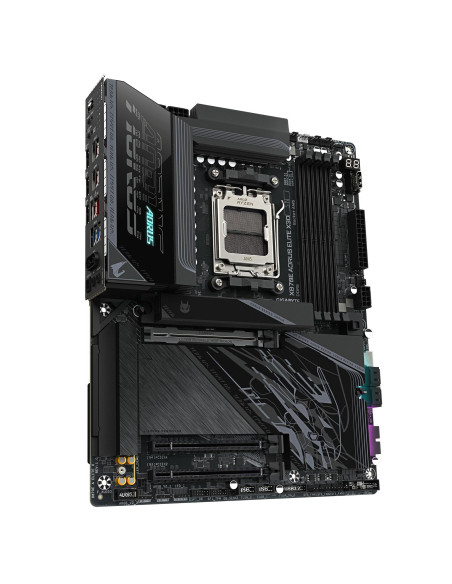

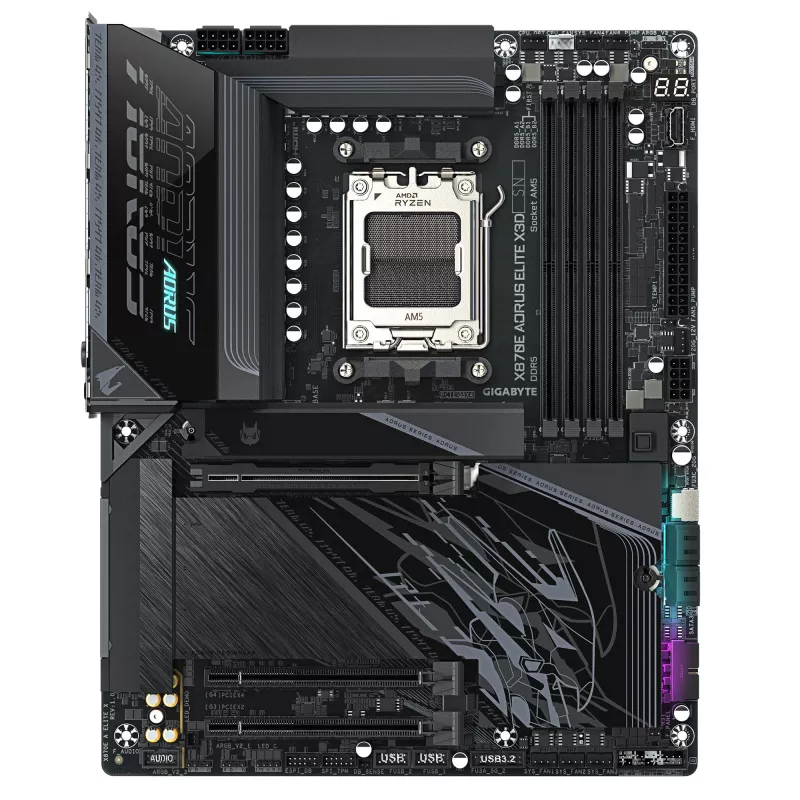

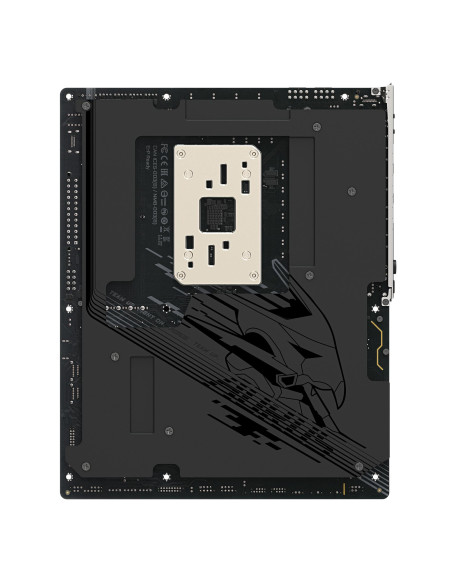

SUMMARY: GIGABYTE X870E AORUS ELITE X3D MOTHERBOARD - SUPPORTS AMD RYZEN 9000 CPUS, 16+2+2 PHASES DIGITAL VRM, UP TO 9000HZ DDR5 (OC), 2XPCIE 5.0 + 2XPCIE 4.0, WI-FI 7, 5GBE LAN, USB 4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSO
CNCODE: 84733020
CATEGORY CODE: MBA
UNIT BOX LENGTH: 0.35
UNIT BOX WIDTH: 0.295
UNIT BOX HEIGHT: 0.08
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 2980
WIDTH, MM: 305
PACKAGE DEPTH, MM: 294
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 3410
PACKAGE WIDTH, MM: 345
COUNTRY OF ORIGIN: CHINA
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.01257
UNIT CALCULATED WEIGHT, KG: 3.45
MODEL: X870E A ELITE X
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCT COLOUR: BLACK
AUDIO CHIP: REALTEK ALC1220-VB
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
ECC СOMPATIBILITY: NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 256
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 9000
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 8
RAID LEVELS: 0/1/10/5
RAID SUPPORT: YES
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 6
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
USB 3.2 GEN 2X2 CONNECTORS: 1

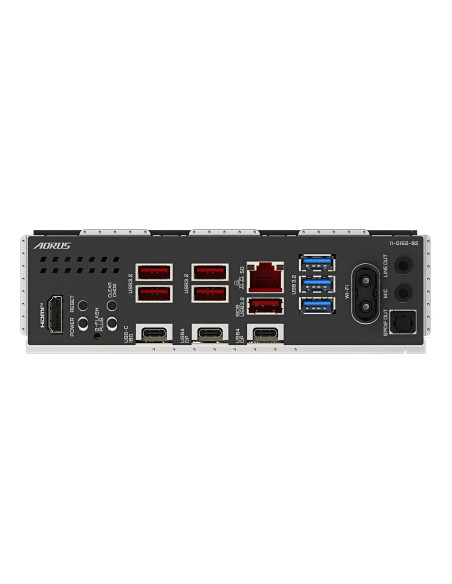

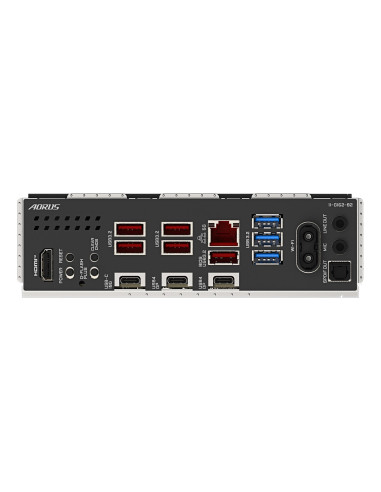

ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
MOTHERBOARD CHIPSET: AMD X870E
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 5
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
BLUETOOTH: YES
BLUETOOTH VERSION: 5.4
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET/5 GIGABIT ETHERNET/FAST ETHERNET/GIGABIT ETHERNET
S/PDIF OUT PORT: YES
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI: Yes
NUMBER OF M.2 (M) SLOTS: 4
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 512
BIOS TYPE: UEFI AMI
CLEAR CMOS BUTTON: YES
ETHERNET LAN: YES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000
HDMI VERSION: 2.1
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)
WLAN CONTROLLER MODEL: QUALCOMM QCNCM865
HEADPHONE OUTPUTS: 1
USB4 GEN 2X2 PORTS QUANTITY: 2
WIFI-AP ANTENNA JACK: 2
PC HEALTH MONITORING: CPU/FAN/TEMPERATURE/VOLTAGE/WATER COOLING
POWER SOURCE TYPE: ATX
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
DIRECTX VERSION: 12.0
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
FRONT PANEL CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF NOISE DETECTION HEADERS: 1
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF TEMPERATURE SENSOR HEADERS: 2
NUMBER OF WATER PUMP CONNECTORS: 3
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
DIGITAL AUDIO OPTICAL OUT: 1
DISPLAYPORT VERSION: 1.4
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8126
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 22110
4TH M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
4TH M.2 LARGEST KEY SIZE: 22110
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
ANTENNA INCLUDED: YES
BATTERIES INCLUDED: YES
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION)
SCREWS INCLUDED: YES
WARRANTY PERIOD, YEAR(S): 3
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
