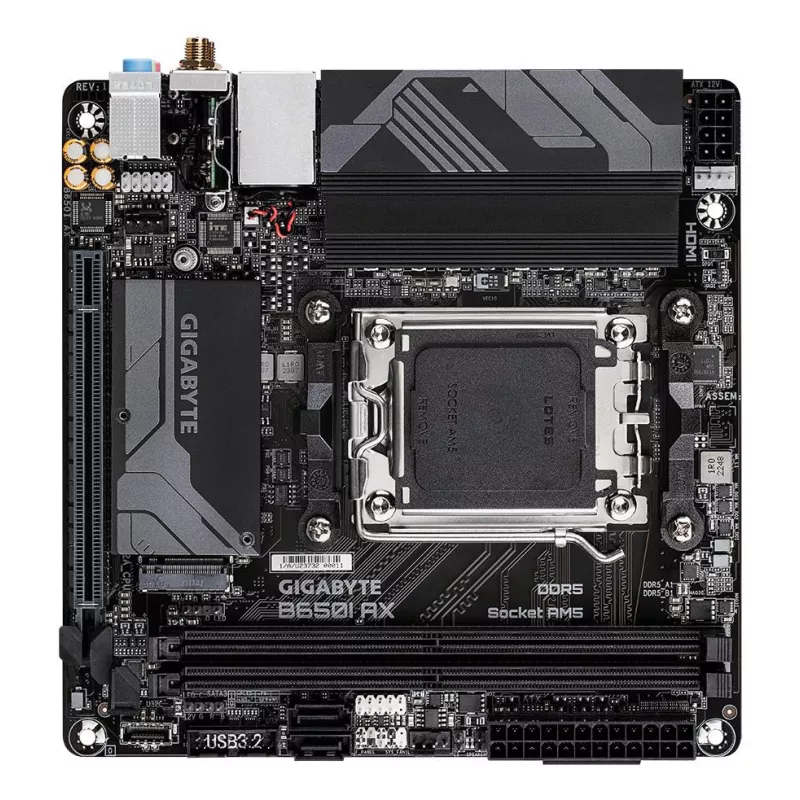

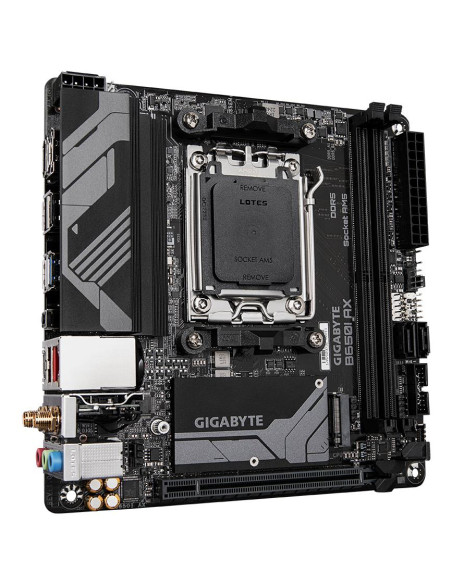

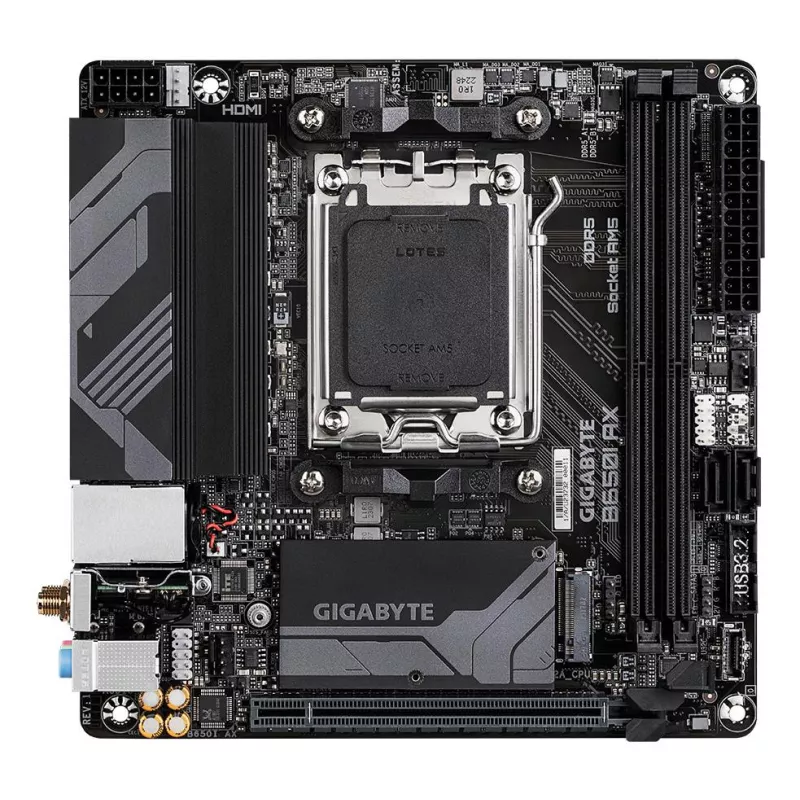

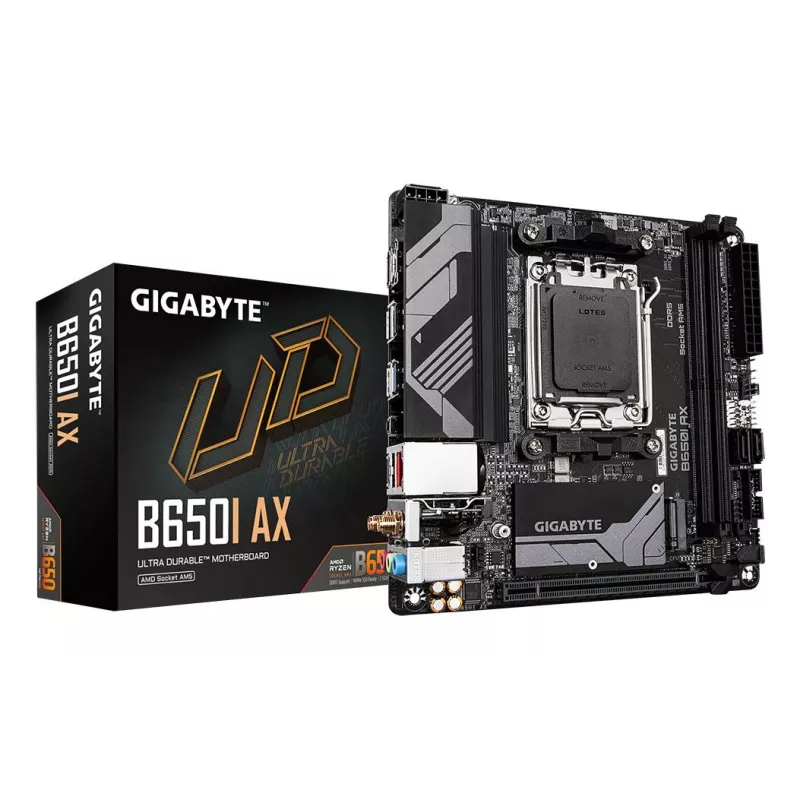

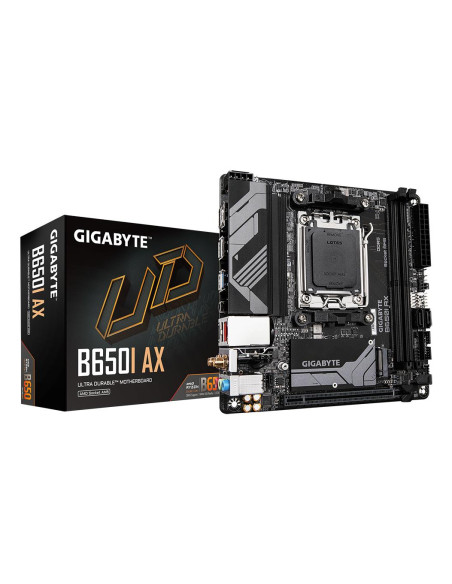

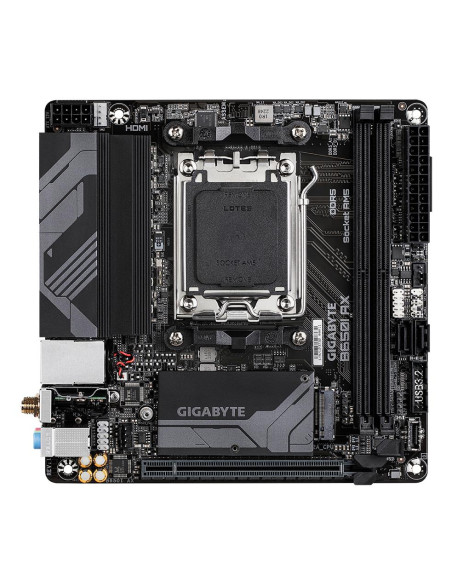

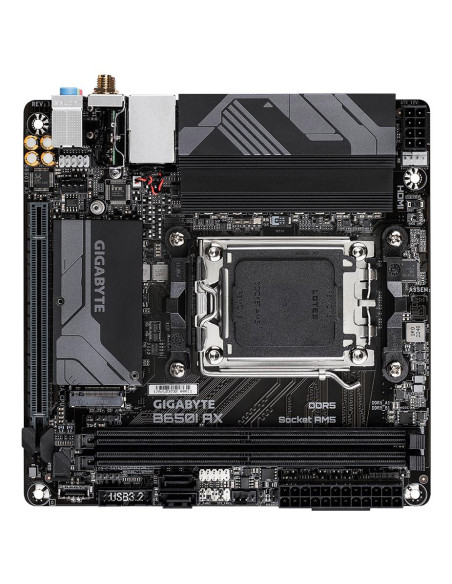

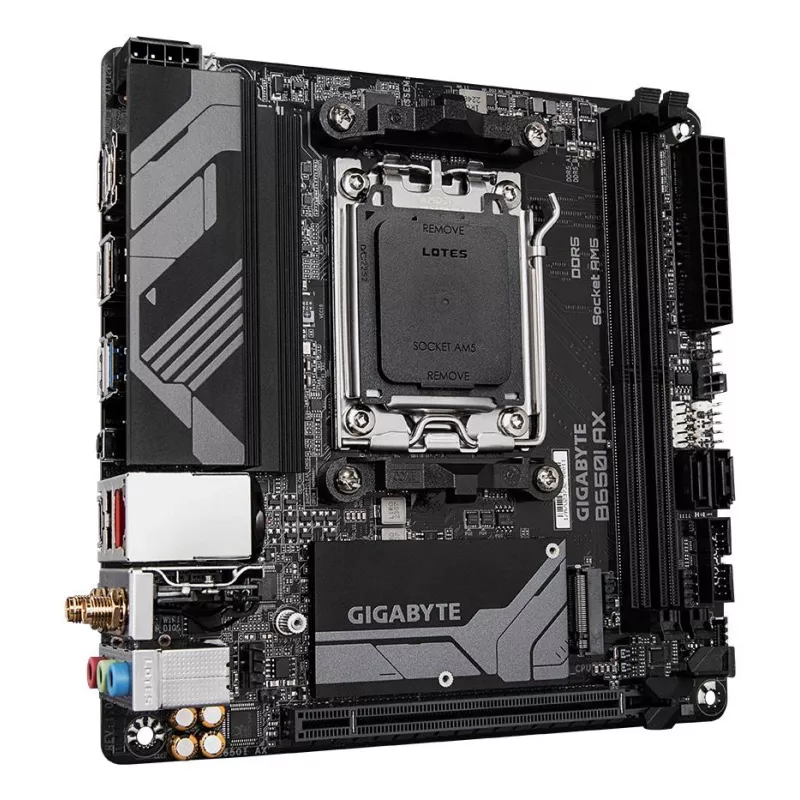

Mainboard, GIGABYTE, AMD B650, Socket AM5, mini ITX, RAM DDR5-SDRAM, 2xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slo

Mainboard, GIGABYTE, AMD B650, Socket AM5, mini ITX, RAM DDR5-SDRAM, 2xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slo

Name: Mainboard, GIGABYTE, AMD B650, Socket AM5, mini ITX, RAM DDR5-SDRAM, 2xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slo
Brand: GIGABYTE
SKU: B650I AX 1.2
Price: 143.91 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B650I AX 1.2

Paskutinė prekė

143,91 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

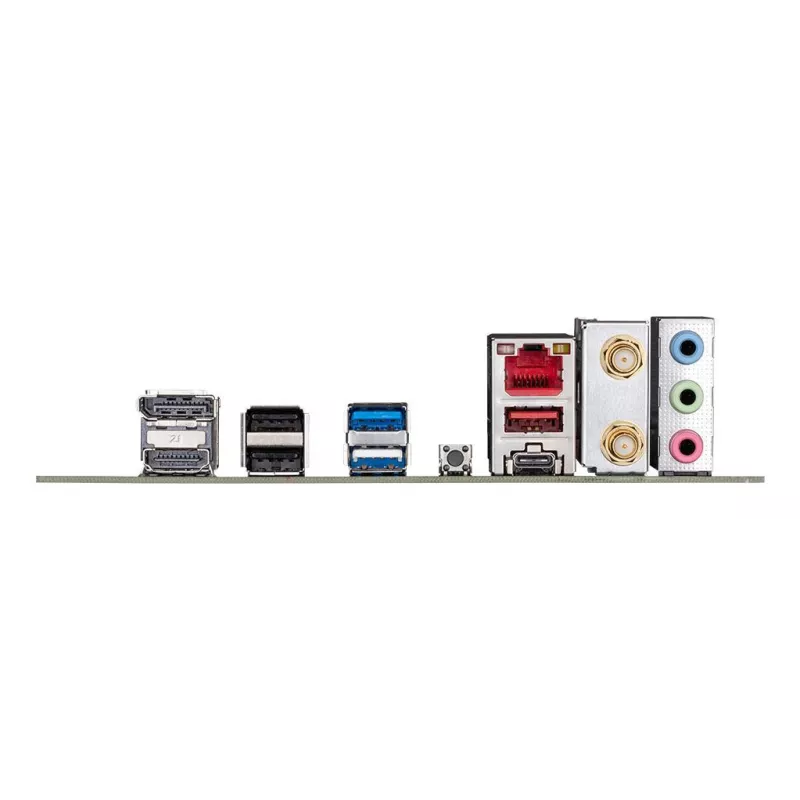

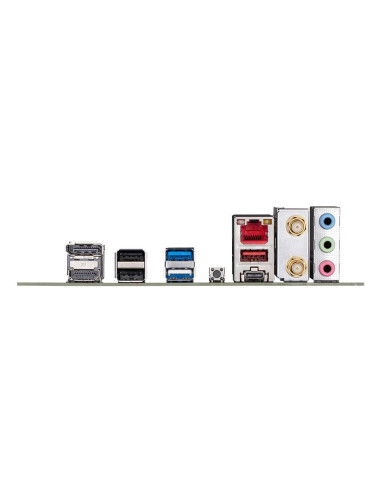

AMD B650 , mini ITX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , Discrete graphics support Yes , 3xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

UNIT CALCULATED VOLUME, CUBM: 0.002632
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED WEIGHT, KG: 0.77
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.065
UNIT BOX LENGTH: 0.18
UNIT BOX WIDTH: 0.225
SUMMARY: GIGABYTE B650I AX MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 5+2+1 PHASES VRM, UP TO 6400MHZ DDR5 (OC), 1XPCIE 4.0 M.2, 2.5GBE LAN, WIFI 6E, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 70
BLUETOOTH: YES
PRODUCT COLOUR: BROWN
WI-FI: Yes
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
POWER SOURCE TYPE: ATX
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
DEPTH, MM: 170
HEIGHT, MM: 35
WIDTH, MM: 170
USB 2.0 PORTS QUANTITY: 3
BLUETOOTH VERSION: 5.3
BATTERY WEIGHT, G: 3
BATTERIES INCLUDED: YES
COUNTRY OF ORIGIN: CHINA
PACKAGE DEPTH, MM: 180
PACKAGE HEIGHT, MM: 65
PACKAGE WEIGHT, G: 879
PACKAGE WIDTH, MM: 222
BATTERY TYPE: CR2032
PROCESSOR MANUFACTURER: AMD
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: YES
WARRANTY PERIOD, YEAR(S): 3
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 1
HDCP: YES
HEADPHONE OUTPUTS: 1
SCREWS INCLUDED: YES
COMPONENT FOR: PC
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: AMD B650
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MINI ITX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
PROCESSOR SOCKET: SOCKET AM5
ECC СOMPATIBILITY: NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 128
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 6400
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF HDDS SUPPORTED: 2
NUMBER OF STORAGE DRIVES SUPPORTED: 3
RAID LEVELS: 0/1
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
NUMBER OF SATA III CONNECTORS: 2
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
MICROPHONE IN: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 1
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
ACPI VERSION: 5.0
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
UNBUFFERED MEMORY: YES
12V POWER CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
RGB LED PIN HEADER: YES
WIFI-AP ANTENNA JACK: 2
ANTENNA INCLUDED: YES
WLAN CONTROLLER MODEL: REALTEK RTL8852CE
CHASSIS INTRUSION CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF RGB LED PIN HEADERS: 2
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8125
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
DISCRETE GRAPHICS SUPPORT: YES
NUMBER OF EATX POWER CONNECTORS: 1
