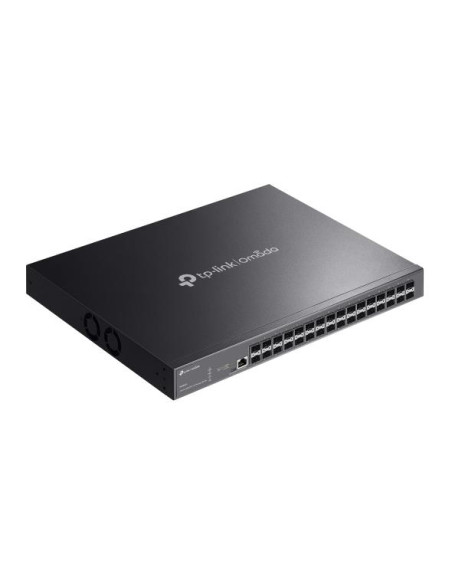

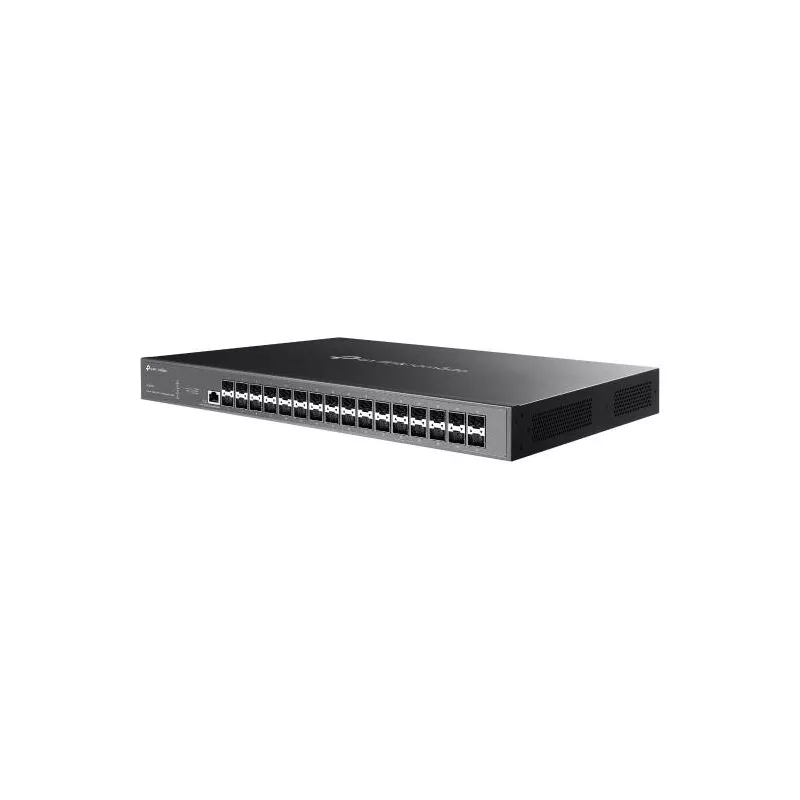

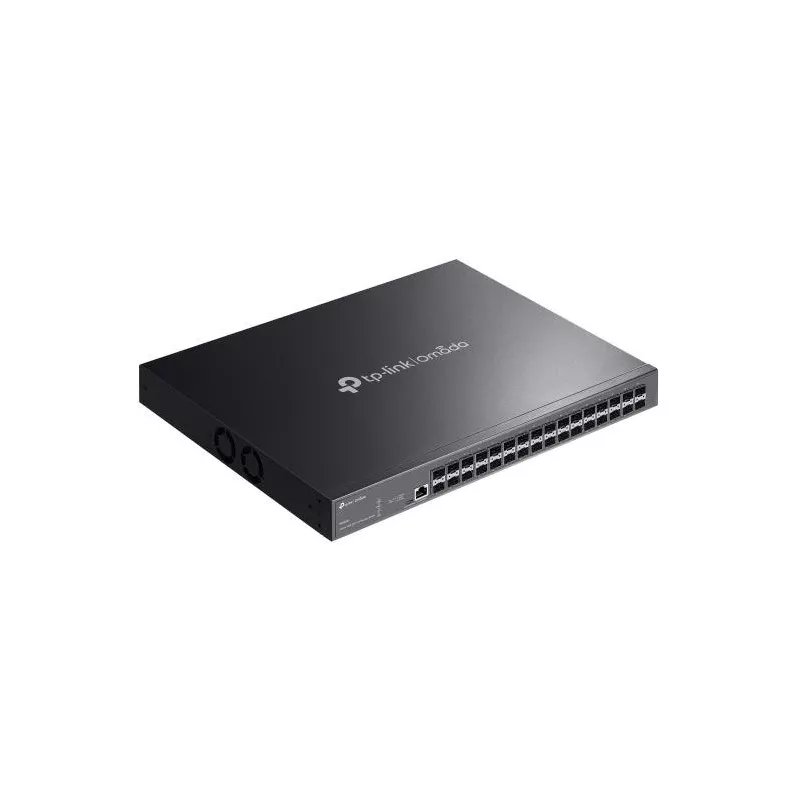

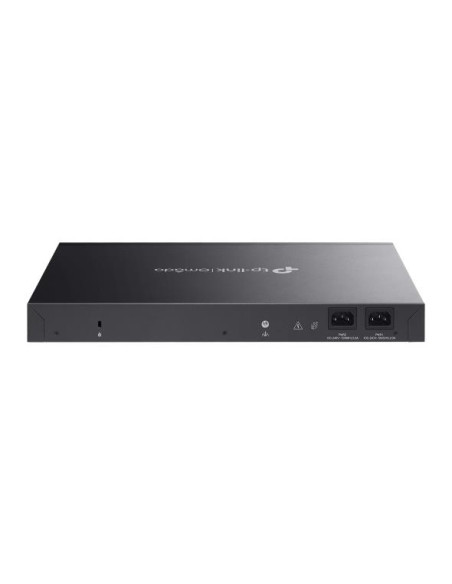

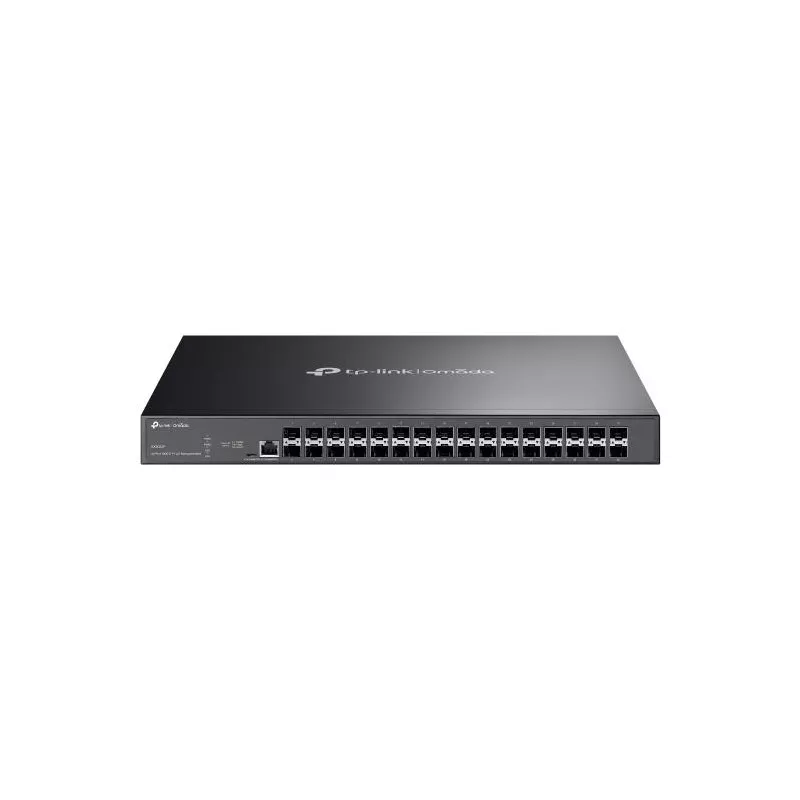

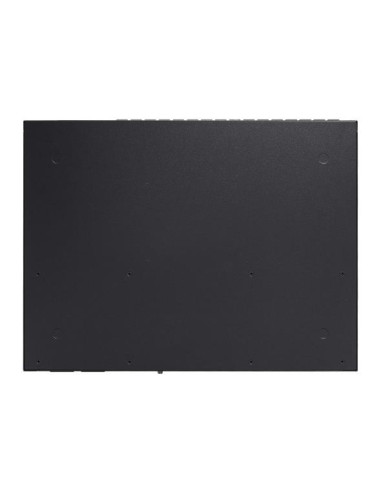

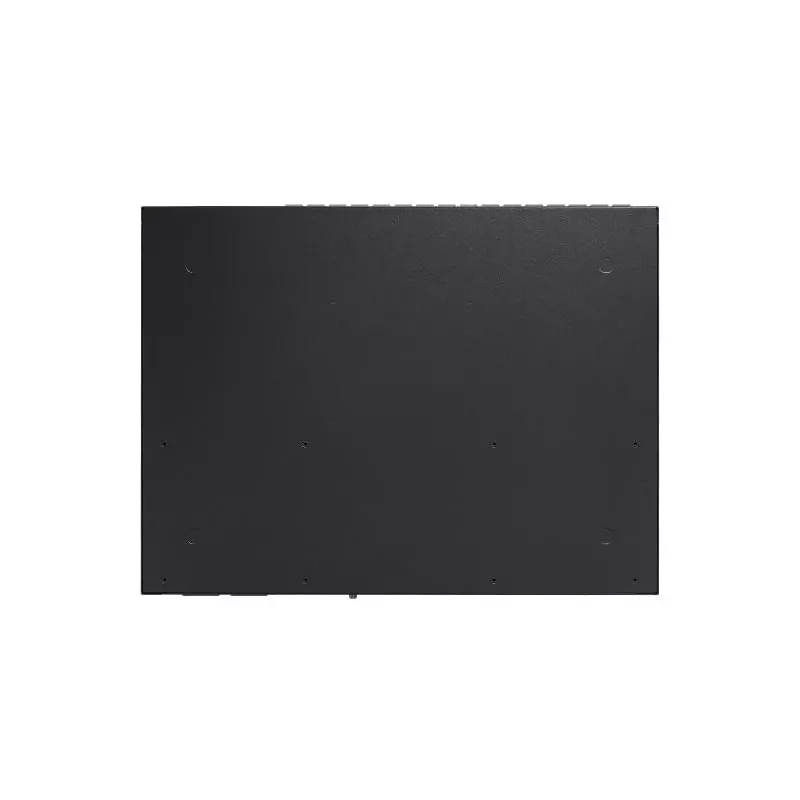

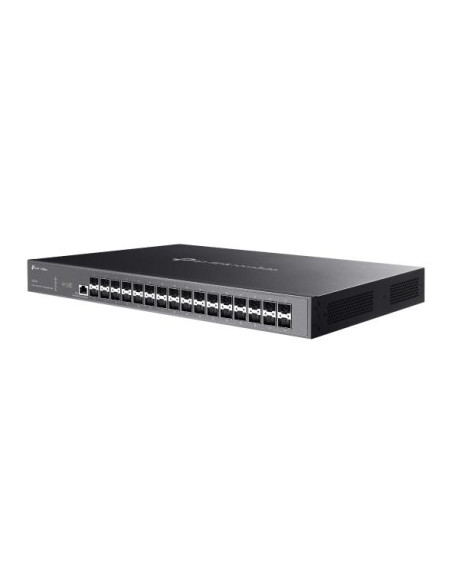

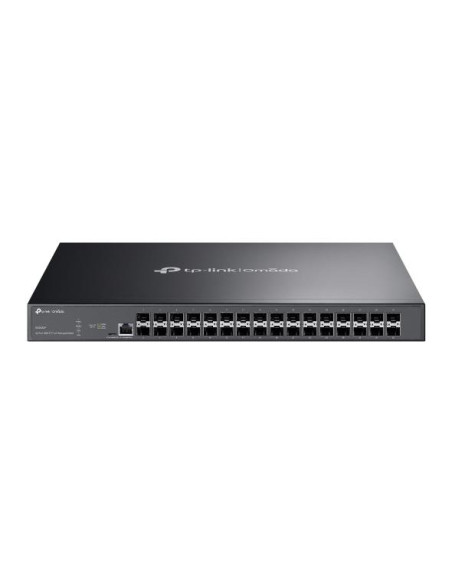

Switch, TP-LINK, SX3032F, 32xSFP+, 1xConsole, 1xRJ45, SX3032F

Switch, TP-LINK, SX3032F, 32xSFP+, 1xConsole, 1xRJ45, SX3032F

Name: Switch, TP-LINK, SX3032F, 32xSFP+, 1xConsole, 1xRJ45, SX3032F
Brand: TP-LINK
SKU: SX3032F
Price: 898.62 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas SX3032F

Paskutinė prekė

898,62 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series SX3032F , Type Managed , Switch layer L2+ , Quality of Service (QoS) support Yes , Cloud-managed Yes , 1xBasic switching RJ-45 Ethernet ports quantity , 32xInstalled SFP+ modules quantity , Console port RJ-45/micro-USB , Port mirroring Yes , Switching capacity 640 Gbit/s , Forwarding rate 240 Mpps , Password protection Yes , Rack mounting Yes , Product colour Black , Power source AC , Power supply included Yes , Width 440 mm , Depth 330 mm , Height 44 mm

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA 32-PORT 10GE SFP+ L2+ MANAGED SWITCH. SWITCH TYPE: MANAGED, SWITCH LAYER: L2+. BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 1, INSTALLED SFP+ MODULES QUANTITY: 32, CONSOLE PORT: RJ-45/MICRO-USB. MAC ADDRESS TABLE: 32000 ENTRIES, SWITCHING
CATEGORY CODE: SWI
CNCODE: 85176200
UNIT BOX HEIGHT: 0.1
UNIT BOX LENGTH: 0.47
UNIT BOX WIDTH: 0.53
PRODUCT COLOUR: BLACK
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
CABLES INCLUDED: POWER
QUICK START GUIDE: YES
MODEL: OMADA
UNIT CALCULATED VOLUME, CUBM: 0.030576
UNIT CALCULATED WEIGHT, KG: 6.65
POWER CONSUMPTION (MAX), W: 49.4
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
OPERATING TEMPERATURE (T-T), °C: -5 - 45
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
STORAGE TEMPERATURE (T-T), °C: 40 - 70
COMPLIANCE CERTIFICATES: CE/FEDERAL COMMUNICATIONS COMMISSION (FCC)/ROHS
DEPTH, MM: 330
HEIGHT, MM: 44
WIDTH, MM: 440
UNITS PER SHIPPING BOX: 3
NUMBER OF FANS, FAN(S): 2
POWER SUPPLY INCLUDED: YES
RACK MOUNTING: YES
PASSWORD PROTECTION: YES
NETWORKING STANDARDS: IEEE 802.1AB/IEEE 802.1P/IEEE 802.1Q/IEEE 802.1X/IEEE 802.3AH/IEEE 802.3X
SERIES: SX3032F
SWITCH TYPE: MANAGED
CONSOLE PORT: RJ-45/MICRO-USB
POWER SOURCE: AC
SWITCH LAYER: L2+
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 1
QUALITY OF SERVICE (QOS) SUPPORT: YES
FORWARDING RATE, MPPS: 240
SWITCHING CAPACITY, GBIT/S: 640
CLOUD-MANAGED: YES
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
IPV4 ROUTES: 48
NUMBER OF VLANS: 30
PORT MIRRORING: YES
RATE LIMITING: YES
VIRTUAL LAN FEATURES: PROTOCOL-BASED VLAN/SSID-BASED VLAN ASSIGNMENT/TAGGED VLAN/VLAN MAPPING/VOICE VLAN
VLAN SUPPORT: YES
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 32000
PACKET BUFFER MEMORY, MB: 24
DHCP FEATURES: DHCP RELAY/DHCP SERVER/DHCPV6 SNOOPING
IGMP SNOOPING: YES
LOOP PROTECTION: YES
STATIC ROUTE: YES
ARP INSPECTION: YES
CONFIGURING LOCATION SETTINGS (CLI): YES
LINK AGGREGATION: YES
SPANNING TREE PROTOCOL: YES
JUMBO FRAMES: 9
ACCESS CONTROL LIST (ACL): YES
AUTHENTICATION: MAC-BASED AUTHENTICATION,PORT-BASED AUTHENTICATION
IP-MAC-PORT BINDING: YES
SSH/SSL SUPPORT: YES
STATIC PORT SECURITY: YES
MULTICAST SUPPORT: YES
AUTHENTICATION TYPE: AAA,TACACS+
MIB SUPPORT: MIB II (RFC1213) INTERFACE MIB (RFC2233) ETHERNET INTERFACE MIB (RFC1643) BRIDGE MIB (RFC1493) P/Q-BRIDGE MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) RADIUS ACCOUNTING CLIENT MIB (RFC2620) RADIUS AUTHENTICATION CLIENT MIB (RFC26
IPV6 ROUTES: 48
INSTALLED SFP+ MODULES QUANTITY: 32
NUMBER OF QUEUES: 8
NUMBER OF STATIC ROUTES: 128
NUMBER OF IP INTERFACES: 128
QUEUE SCHEDULING ALGORITHMS: PRIORITY QUEUING (PQ)/SP/WEIGHTED ROUND ROBIN (WRR)
MULTICAST LISTENER DISCOVERY (MLD) SNOOPING: YES
NUMBER OF MULTICAST GROUPS FILTERED: 4000
GARP VLAN REGISTRATION PROTOCOL (GVRP): YES
IP SOURCE GUARD (IPSG): YES
IPV4 & IPV6 FEATURES: DUAL STACK IPV4/IPV6/ICMPV6/IPV6 TFTP
REDUNDANT FANS SUPPORT: YES
