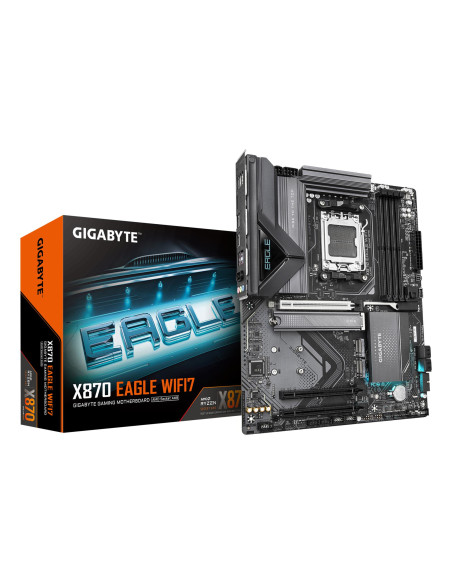

Mainboard, GIGABYTE, AMD X870, SAM5, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHD

Mainboard, GIGABYTE, AMD X870, SAM5, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHD

Name: Mainboard, GIGABYTE, AMD X870, SAM5, ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHD
Brand: GIGABYTE
SKU: X870 EAGLE WIFI7 1.1
Price: 230.9 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas X870 EAGLE WIFI7 1.1

Yra sandėlyje

230,90 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD X870 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.74 kg

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.34
UNIT BOX WIDTH: 0.27
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.007344
UNIT CALCULATED WEIGHT, KG: 1.792
MODEL: X870 EAGLE WIFI7 (1.1)
BLUETOOTH VERSION: 5.4
BLUETOOTH: Y
SUMMARY: GIGABYTE X870 EAGLE WIFI7 MOTHERBOARD - SUPPORTS AMD RYZEN 9000 CPUS, 14+2+2 PHASES VRM, UP TO 8000MHZ DDR5 (OC), 1XPCIE 5.0 + 2XPCIE 4.0, WI-FI 7, 2.5GBE LAN, USB 4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES:
PRODUCT COLOUR: BLACK
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1740
WIDTH, MM: 305
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WIDTH, MM: 335
COUNTRY OF ORIGIN: CHINA
PACKAGE WEIGHT, G: 1940
WARRANTY PERIOD, YEAR(S): 3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
WI-FI: Y
WI-FI STANDARDS: WI-FI 7 (802.11BE)
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
USB 2.0 PORTS QUANTITY: 4
BATTERIES INCLUDED: Y
BATTERY WEIGHT, G: 3
ETHERNET LAN (RJ-45) PORTS: 1
HDMI VERSION: 2.1
HDMI PORTS QUANTITY: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: Y
SCREWS INCLUDED: Y
HEADPHONE OUTPUTS: 1
BATTERY TYPE: CR2032
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DIRECTX VERSION: 12.0
RAID SUPPORT: Y
MOTHERBOARD CHIPSET: AMD X870
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
PROCESSOR SOCKET: SOCKET AM5
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
MAXIMUM INTERNAL MEMORY, GB: 256
PROCESSOR MANUFACTURER: AMD
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200
SUPPORTED MEMORY TYPES: DDR5-SDRAM
MEMORY SLOTS TYPE: DIMM
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ON-BOARD GRAPHICS CARD: N
ATX POWER CONNECTOR (24-PIN): Y
CPU FAN CONNECTOR: Y
EPS POWER CONNECTOR (8-PIN): Y
NUMBER OF SATA III CONNECTORS: 4
NUMBER OF HDDS SUPPORTED: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
USB4 GEN 2X2 PORTS QUANTITY: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 25110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 25110
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 3.X) SLOTS: 2
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
ACPI VERSION: 5.0
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
ECC ?OMPATIBILITY: NON-ECC
UNBUFFERED MEMORY: Y
12V POWER CONNECTOR: Y
FRONT PANEL AUDIO CONNECTOR: Y
FRONT PANEL CONNECTOR: Y
NUMBER OF CHASSIS FAN CONNECTORS: 4
RGB LED PIN HEADER: Y
USB 3.2 GEN 2X2 CONNECTORS: 1
WIFI-AP ANTENNA JACK: 2
AUDIO CHIP: REALTEK ALC897
ANTENNA INCLUDED: Y
CLEAR CMOS BUTTON: Y
WLAN CONTROLLER MODEL: MEDIATEK MT7925
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF WATER PUMP CONNECTORS: 1
TPM CONNECTOR: Y
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
SUPPORTED MEMORY MODULE CAPACITIES: 16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
LAN CONTROLLER: REALTEK RTL8125
CLEAR CMOS JUMPER: Y
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
