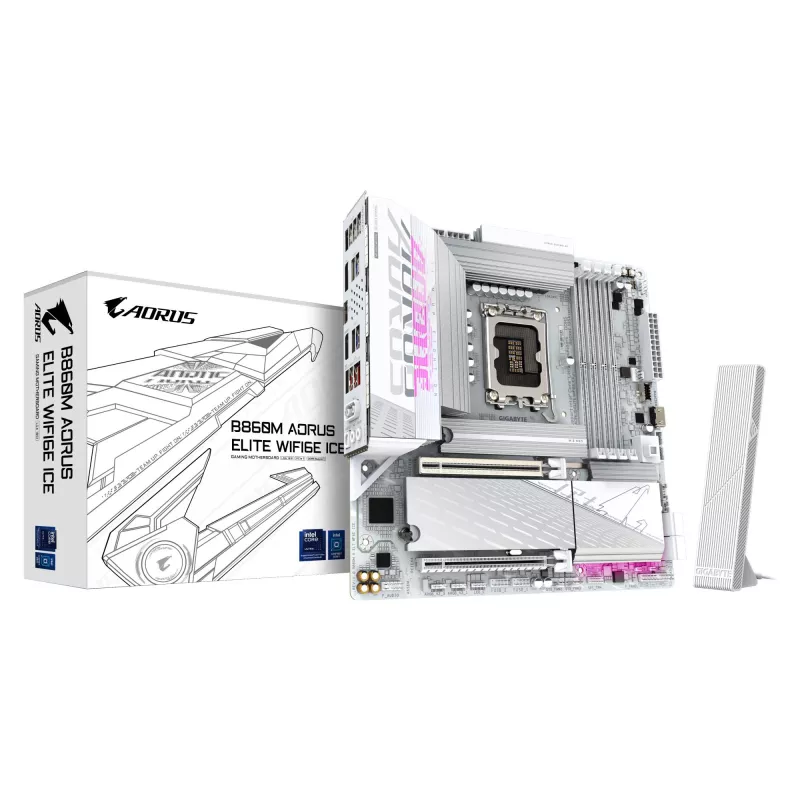

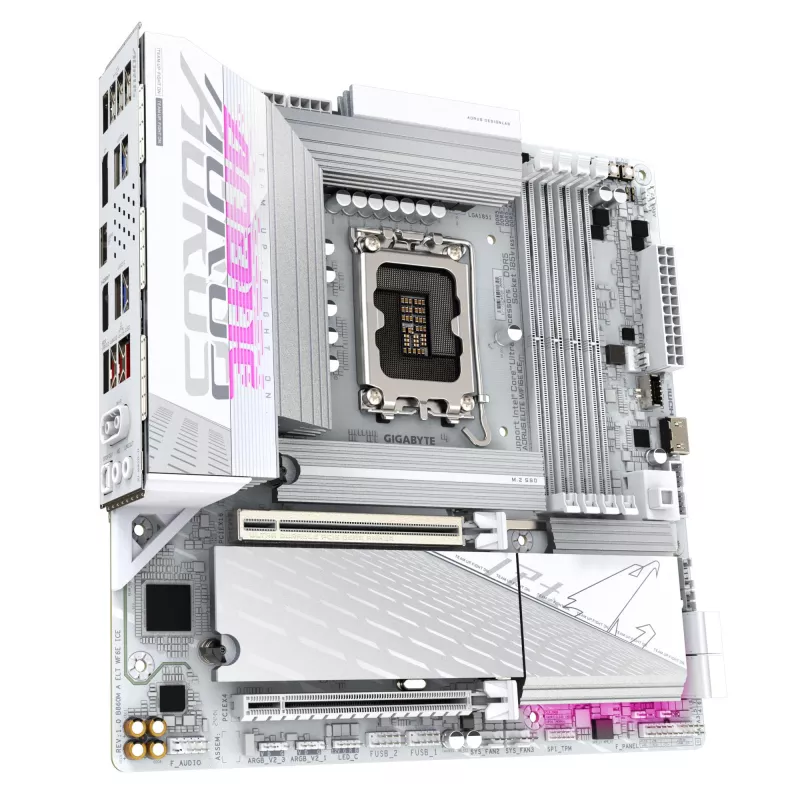

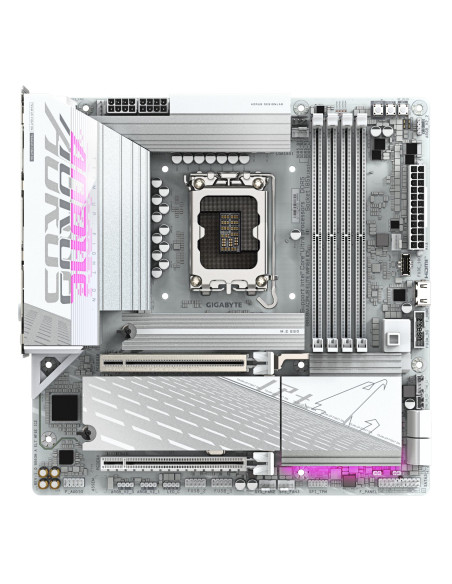

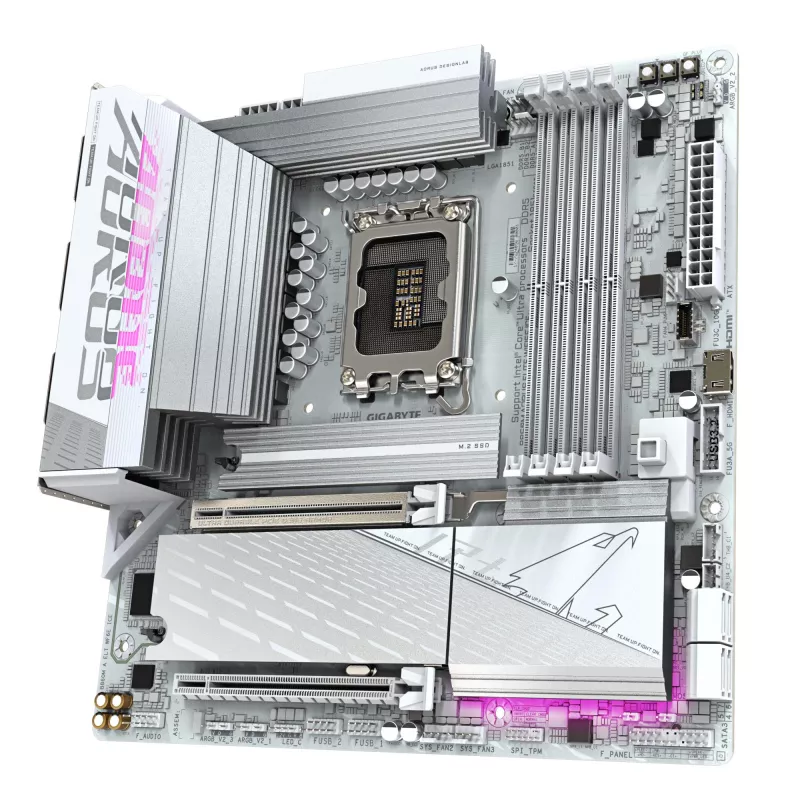

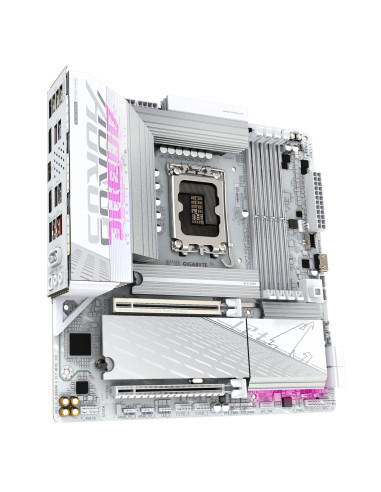

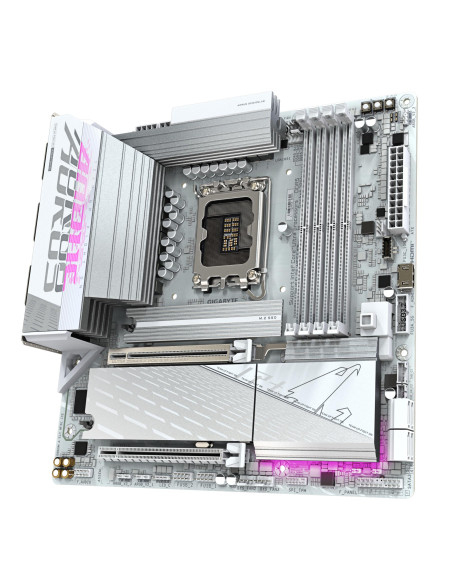

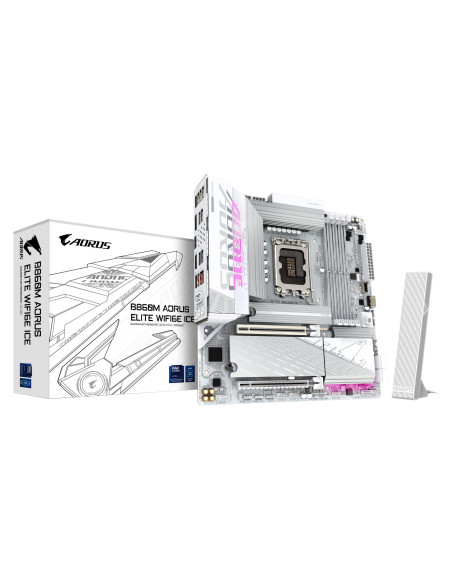

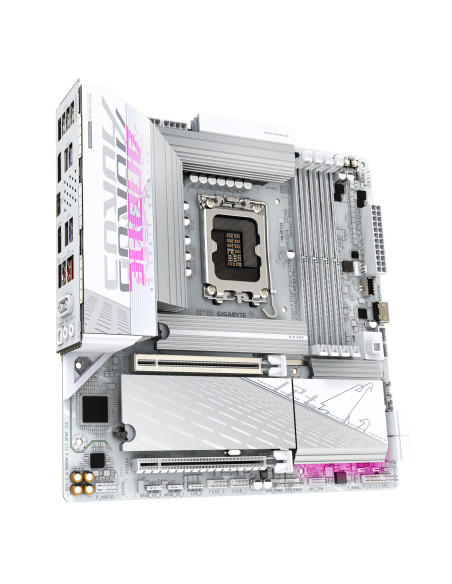

Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUS

Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUS

Name: Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUS
Brand: GIGABYTE
SKU: B860M A ELT WF6E ICE 1.0
Price: 200.5 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B860M A ELT WF6E ICE 1.0

Paskutinė prekė

200,50 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

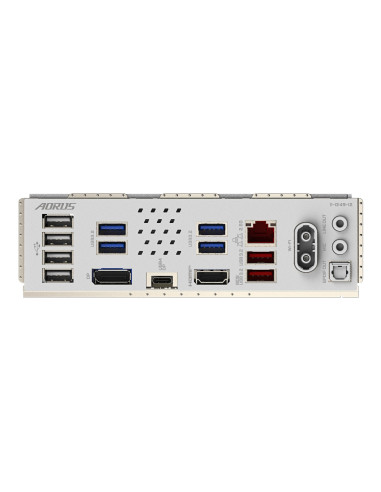

Intel B860 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1) , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.7 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B860M AORUS ELITE WF6E ICE MOTHERBOARD - INTEL CORE ULTRA SERIES CPUS, 12+1+2+1 PHASES VRM, UP TO 9200MHZ DDR5, 1XPCIE 5.0 + 2XPCIE 4.0 M.2, 2.5GBE LAN, WIFI 6E, USB 4. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPAT
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.27
UNIT BOX LENGTH: 0.275
UNIT BOX WIDTH: 0.07
WI-FI: Yes
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
COMPONENT FOR: PC
PRODUCT COLOUR: WHITE
DEPTH, MM: 244
HEIGHT, MM: 35
WIDTH, MM: 244
MODEL: B860M AORUS ELITE WIFI6E ICE
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.004032
UNIT CALCULATED WEIGHT, KG: 1.9
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
WEIGHT, G: 1700
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1902.5
PACKAGE WIDTH, MM: 270
WARRANTY PERIOD, YEAR(S): 3
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
COUNTRY OF ORIGIN: CHINA
BATTERY WEIGHT, G: 3
NUMBER OF BATTERY CELLS: 1
HDCP: YES
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
SCREWS INCLUDED: YES
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: Intel
USB 2.0 PORTS QUANTITY: 4
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
ETHERNET LAN: YES
ETHERNET LAN (RJ-45) PORTS: 1
ANTENNA INCLUDED: YES
POWER SOURCE TYPE: ATX
HDMI PORTS QUANTITY: 1
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
DIGITAL AUDIO OPTICAL OUT: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
HEADPHONE OUTPUTS: 1
COOLING TYPE: PASSIVE
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 2.1
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
RAID SUPPORT: YES
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)/INTEL CORE ULTRA (SERIES 1)
SUPPORTED PROCESSOR SOCKETS: LGA 1851
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: INTEL B860
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
S/PDIF OUT PORT: YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
WIFI-AP ANTENNA JACK: 2
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2580
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 25110
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 9200
NUMBER OF HDDS SUPPORTED: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 5600/6400/9200
WLAN CONTROLLER MODEL: INTEL WI-FI 6E AX211
USB4 GEN 2X2 PORTS QUANTITY: 1
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8125
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
