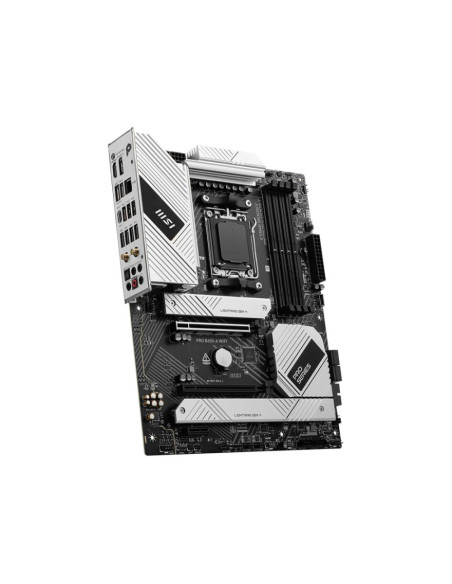

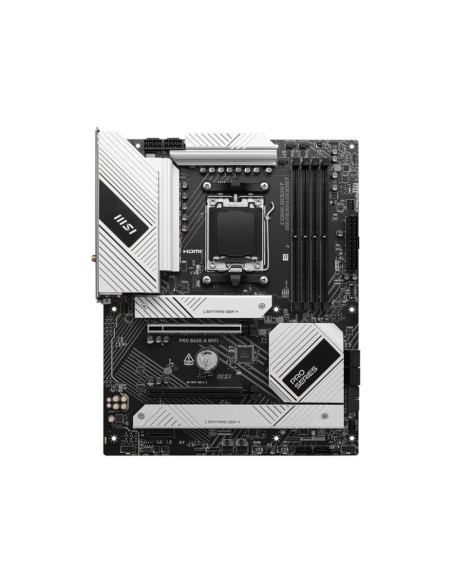

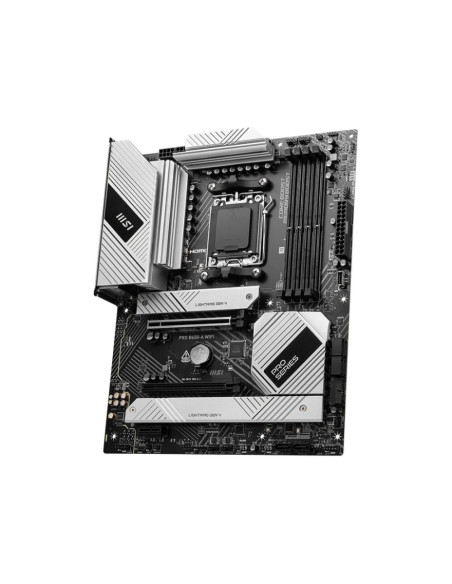

Mainboard, MSI, AMD B650, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 2x, 1xPCI-Express 4.0

Mainboard, MSI, AMD B650, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 2x, 1xPCI-Express 4.0

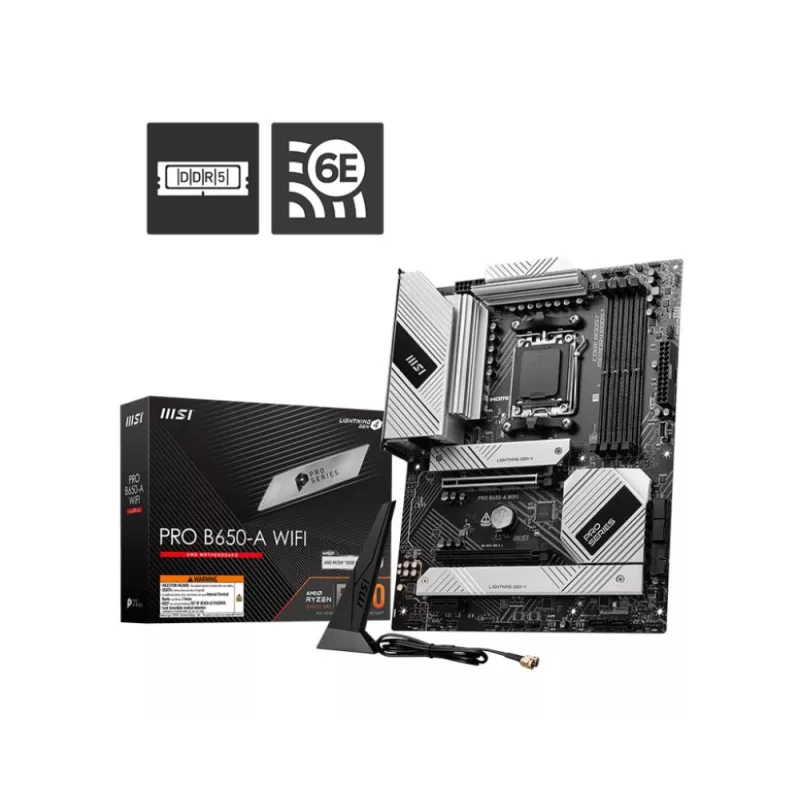

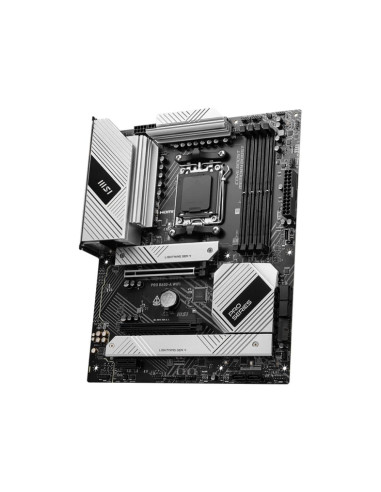

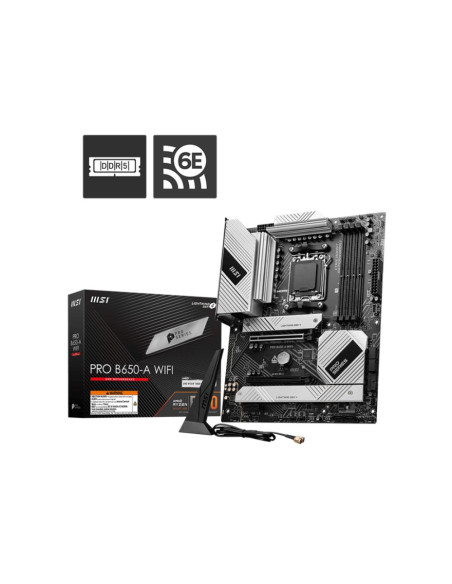

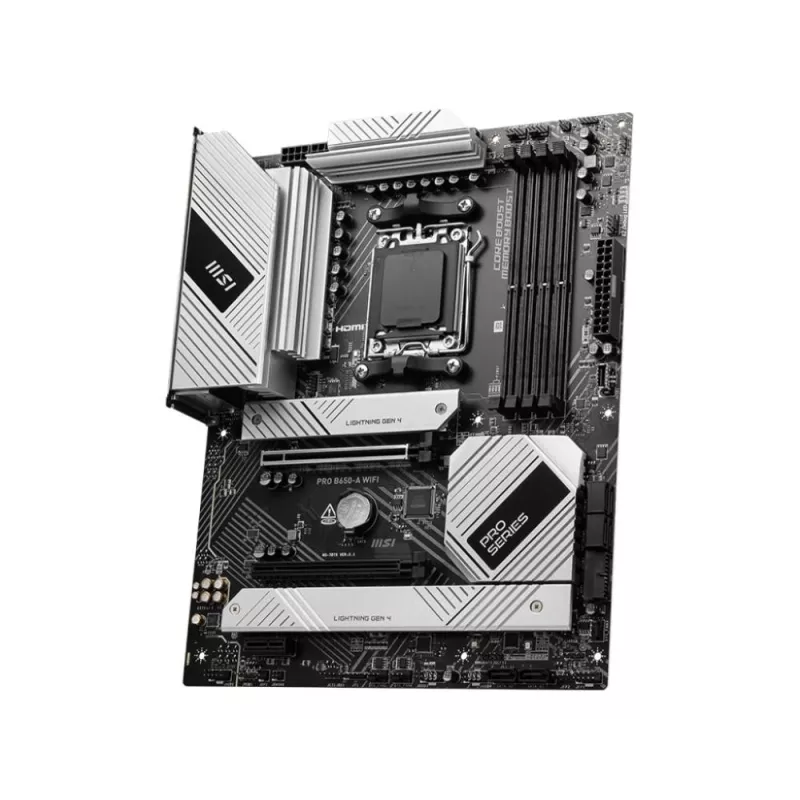

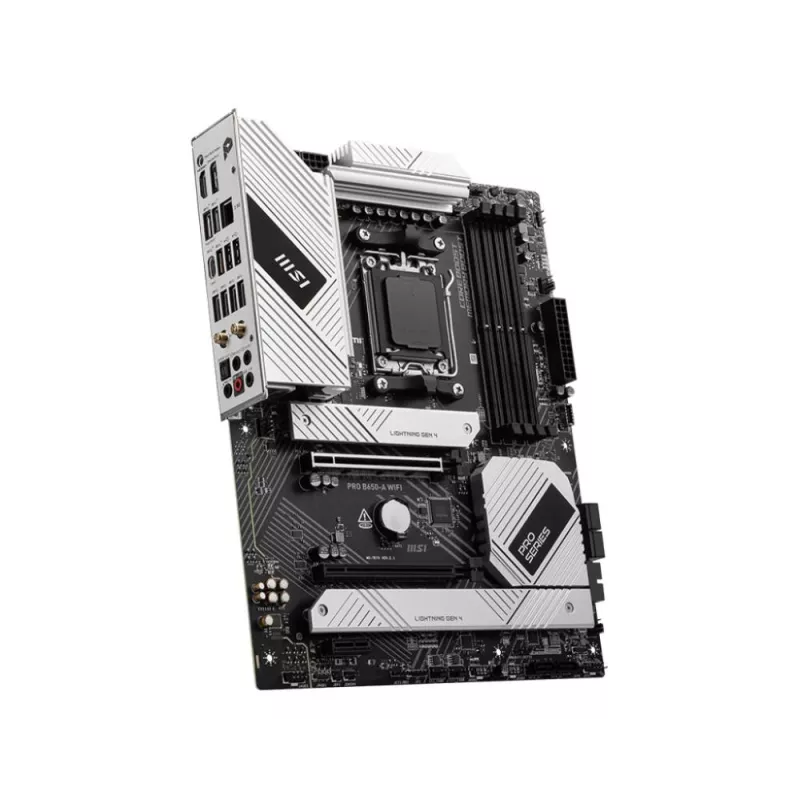

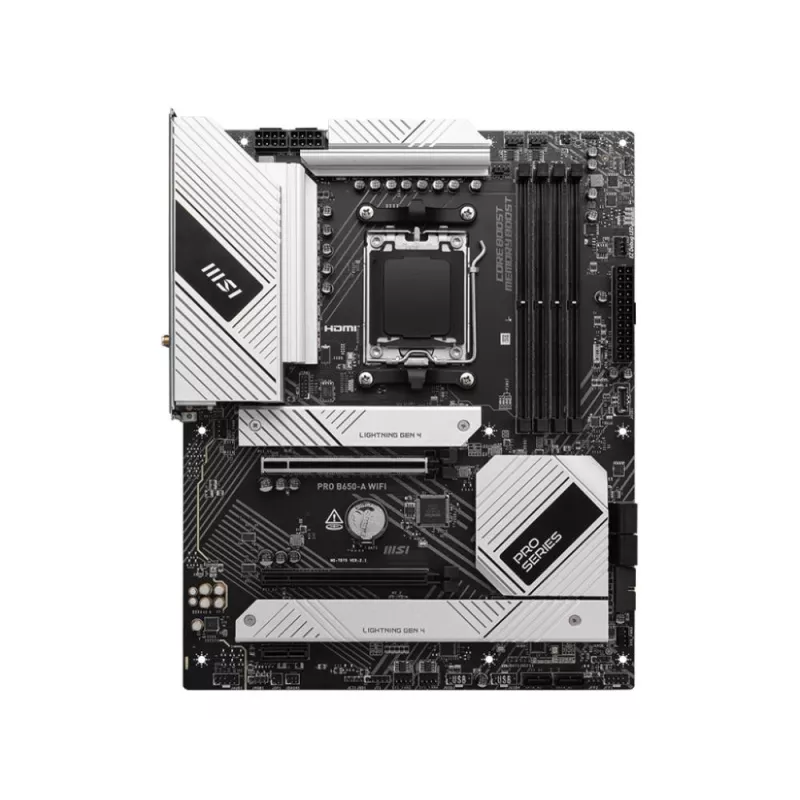

Name: Mainboard, MSI, AMD B650, SAM5, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 2x, 1xPCI-Express 4.0
Brand: MSI
SKU: PRO B650-A WIFI
Price: 157.42 EUR
Availability: InStock

Gamintojas: MSI

Kodas PRO B650-A WIFI

Yra sandėlyje

157,42 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

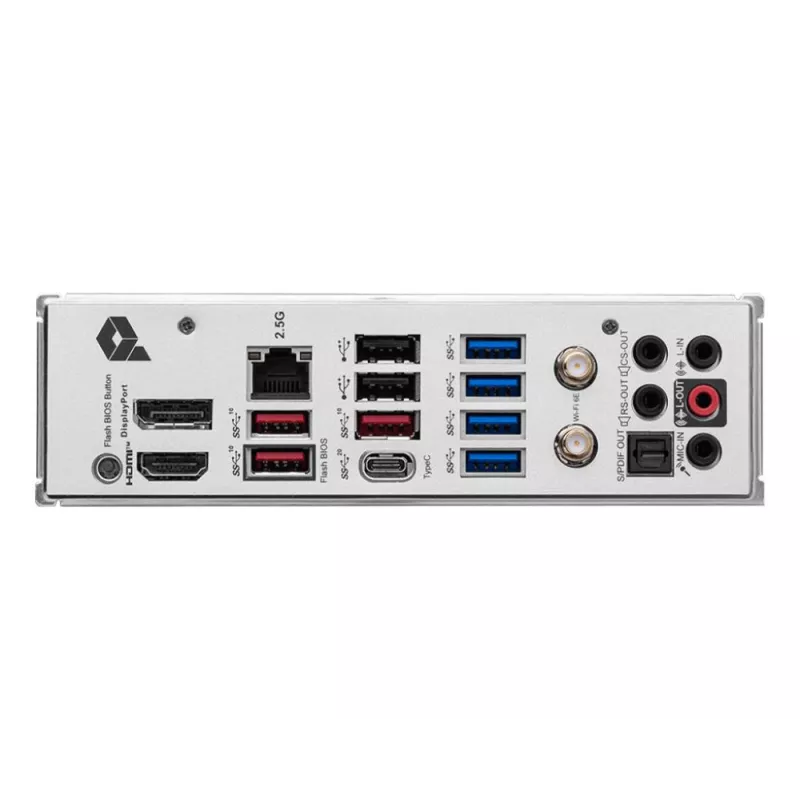

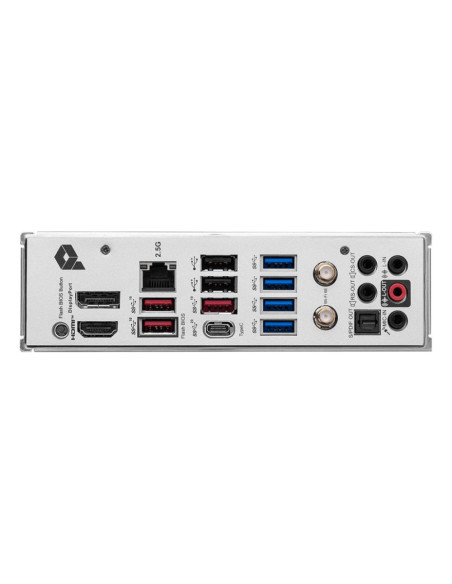

AMD B650 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Supported storage drive interfaces M.2,PCI Express , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
SUMMARY: MSI PRO B650-A WIFI. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 8000 SERIES, AMD RYZEN 9000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256 GB, MEMORY C
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.345
UNIT BOX WIDTH: 0.27
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
BLUETOOTH: Y
BLUETOOTH VERSION: 5.3
WI-FI: Y
WI-FI STANDARDS: 802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
ETHERNET LAN: Y
PRODUCT COLOUR: BLACK
CABLES INCLUDED: SATA
UNIT CALCULATED VOLUME, CUBM: 0.008375
UNIT CALCULATED WEIGHT, KG: 2
MODEL: PRO B650-A WIFI
UNITS PER SHIPPING BOX: 5
DEPTH, MM: 304.8
WIDTH, MM: 243.84
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
PROCESSOR SOCKET: SOCKET AM5
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
ECC ?OMPATIBILITY: NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 256
PROCESSOR MANUFACTURER: AMD
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: Y
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/10/5
RAID SUPPORT: Y
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ON-BOARD GRAPHICS CARD: N
CPU FAN CONNECTOR: Y
FRONT PANEL AUDIO CONNECTOR: Y
FRONT PANEL CONNECTOR: Y
RGB LED PIN HEADER: Y
USB 2.0 CONNECTORS: 4
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 6
S/PDIF OUT PORT: Y
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 3
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
AUDIO CHIP: REALTEK ALC4080
MOTHERBOARD CHIPSET: AMD B650
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: ATX
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2580
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 3
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7600
NUMBER OF HDDS SUPPORTED: 9
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
CHASSIS INTRUSION CONNECTOR: Y
TPM CONNECTOR: Y
ACPI VERSION: 6.4
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 3.4
PCI EXPRESS X8 (GEN 4.X) SLOTS: 2
PCI EXPRESS X8 (GEN 3.X) SLOTS: 1
