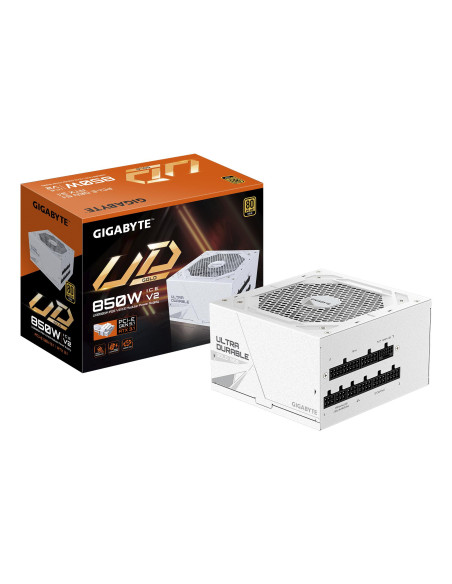

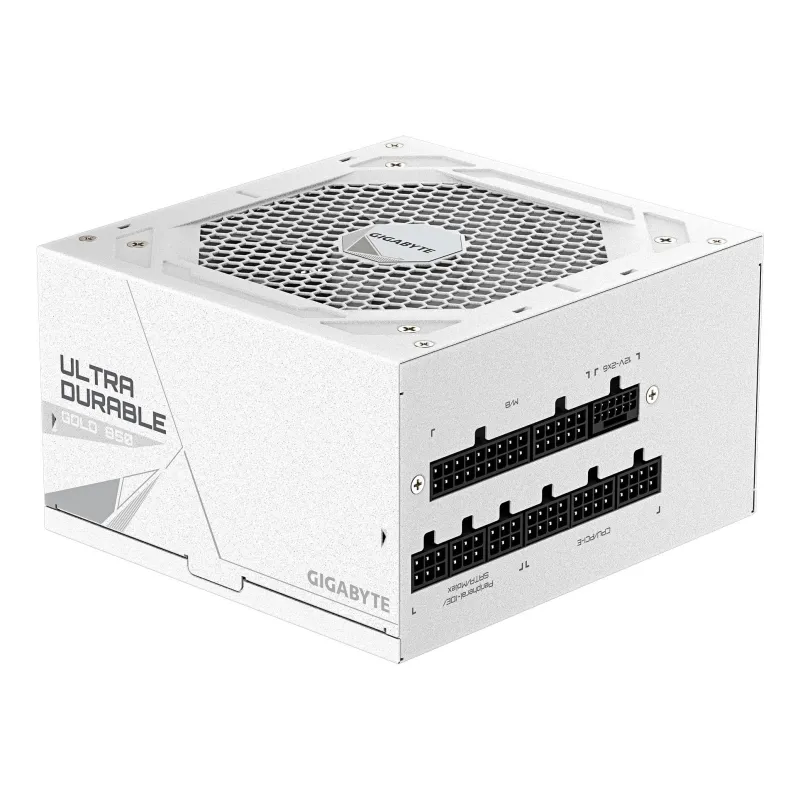

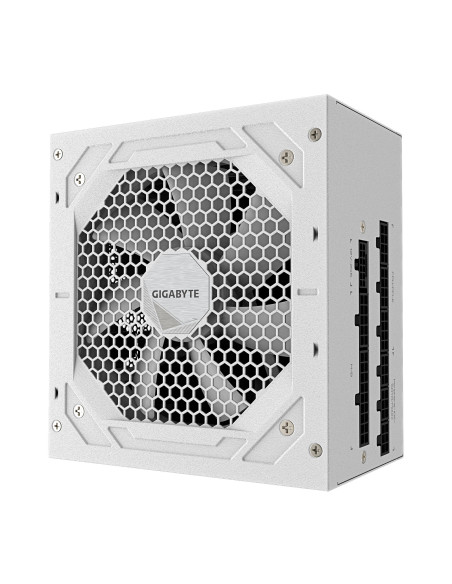

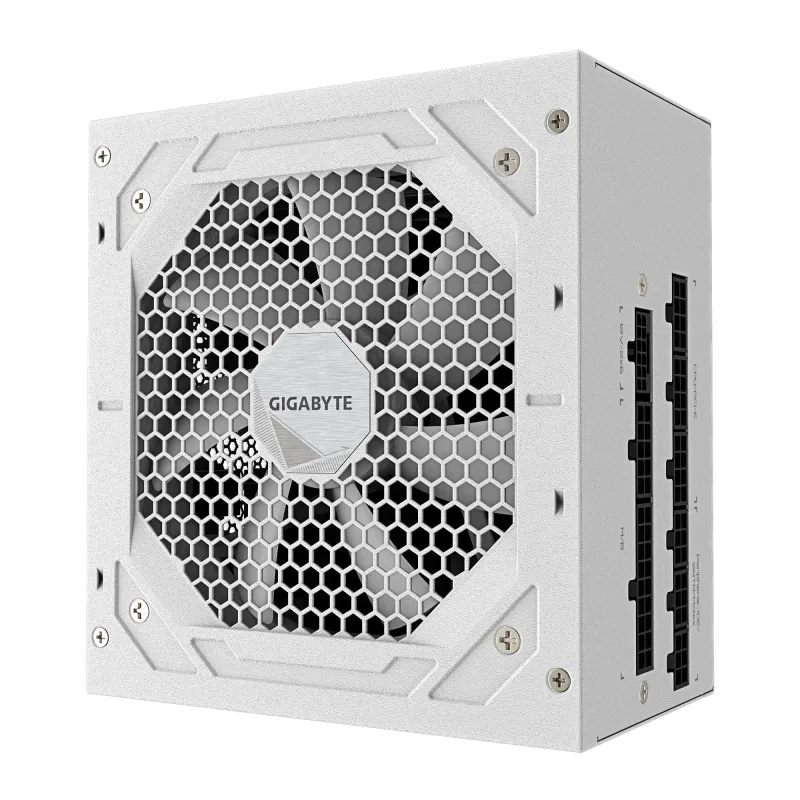

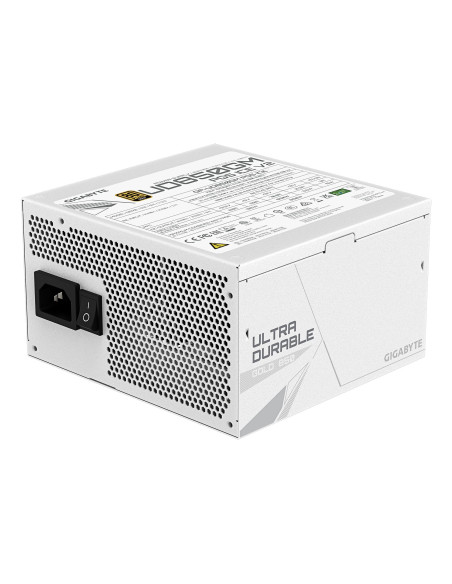

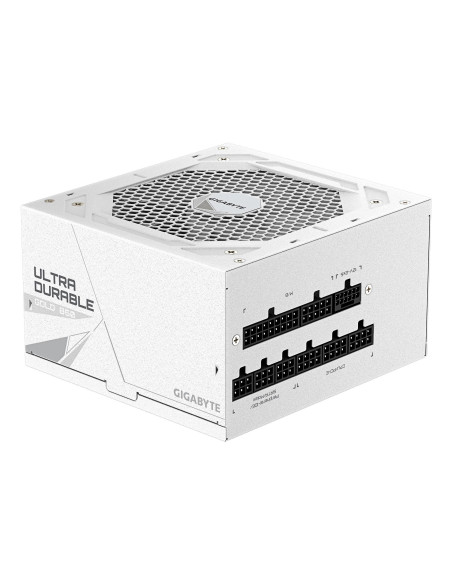

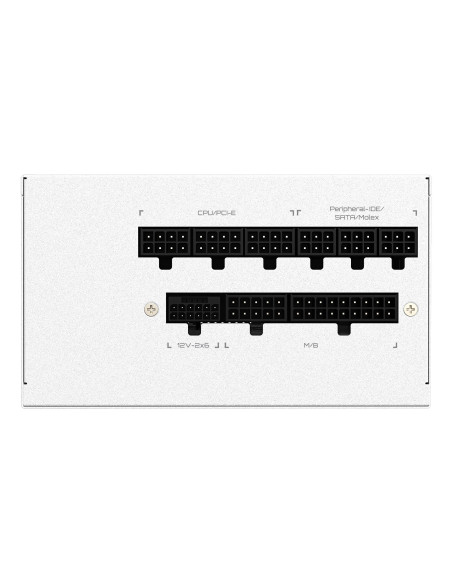

Power Supply, GIGABYTE, UD850GM PG5 ICE?, ATX, PC, 100 - 240 V, 850 W, GP-UD850GMPG5ICE

Power Supply, GIGABYTE, UD850GM PG5 ICE?, ATX, PC, 100 - 240 V, 850 W, GP-UD850GMPG5ICE

Name: Power Supply, GIGABYTE, UD850GM PG5 ICE?, ATX, PC, 100 - 240 V, 850 W, GP-UD850GMPG5ICE
Brand: GIGABYTE
SKU: GP-UD850GM PG5 ICE
Price: 101.89 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas GP-UD850GM PG5 ICE

Yra sandėlyje

101,89 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

850 W , 100 - 240 V , Efficiency 90 % , 80 PLUS certification 80 PLUS Gold , PC , ATX , Fan diameter 120 mm , Weight 2.4 kg , Package type Box , UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE UD850GM PG5 V2 ICE POWER SUPPLY UNIT- PCIE GEN 5.1, 80 PLUS GOLD, FULLY MODULAR DESIGN, 120MM FAN, ATX 3.1 COMPATIBLE, UK PLUG. TOTAL POWER: 850 W, AC INPUT VOLTAGE: 100 - 240 V, AC INPUT FREQUENCY: 50/60 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN
CNCODE: 85044095
CATEGORY CODE: PSU
UNIT BOX HEIGHT: 0.118
UNIT BOX LENGTH: 0.254
UNIT BOX WIDTH: 0.212
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/UNDER VOLTAGE
PRODUCT COLOUR: WHITE
INPUT CURRENT, A: 12 - 6.5
WEIGHT, G: 2400
PACKAGE WIDTH, MM: 618
PACKAGE DEPTH, MM: 269
PACKAGE HEIGHT, MM: 211
PACKAGE WEIGHT, G: 2560
PACKAGE TYPE: BOX
UNIT CALCULATED WEIGHT, KG: 2.62
PRODUCT NET WEIGHT, KG: 2.4
UNIT CALCULATED VOLUME, CUBM: 0.007865
UNITS PER SHIPPING BOX: 5
SHIPPING BOX WEIGHT, KG: 13.1
UNIT WIDTH, CM: 21.2
SHIPPING BOX HEIGHT, CM: 27.8
UNIT DEPTH, CM: 25.4
SHIPPING BOX DEPTH, CM: 61.5
UNIT HEIGHT, CM: 11.8
SHIPPING BOX WIDTH, CM: 23
NAME: CASE PSU ATX3.1 850W/GP-UD850GM PG5 ICE GIGABYTE
MODEL NAME: UD850GM PG5 V2 ICE POWER SUPPLY UNIT- PCIE GEN 5.1, 80 PLUS GOLD, FULLY MODULAR DESIGN, 120MM FAN, ATX 3.1 COMPATIBLE, UK PLUG
WIDTH, MM: 150
DEPTH, MM: 140
HEIGHT, MM: 86
WARRANTY PERIOD, YEAR(S): 10
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
COOLING TYPE: ACTIVE
AC INPUT FREQUENCY, HZ: 50/60
ON/OFF SWITCH: YES
PURPOSE: PC
NUMBER OF FANS, FAN(S): 1

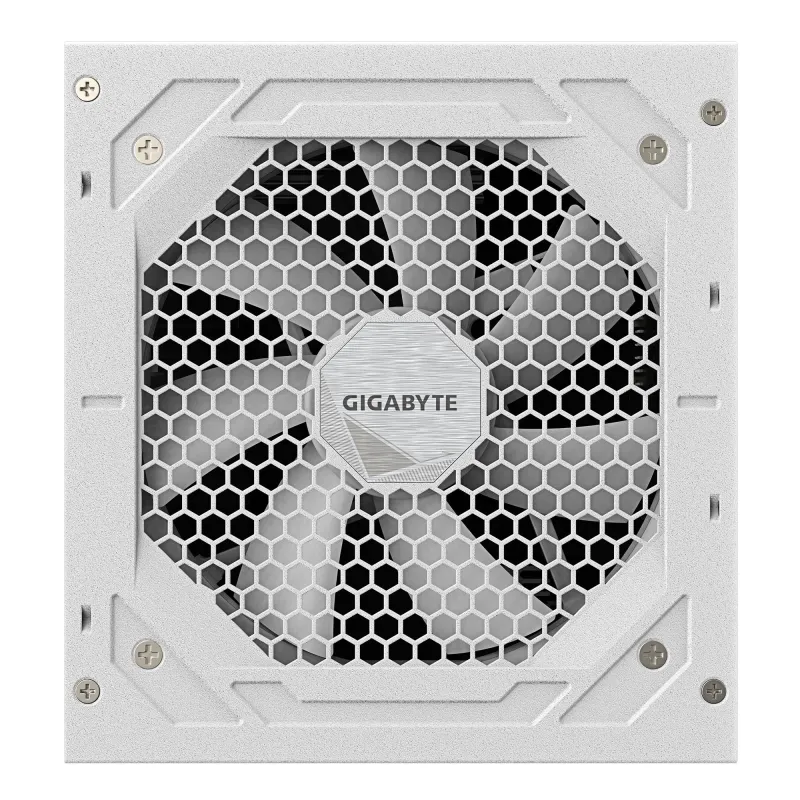

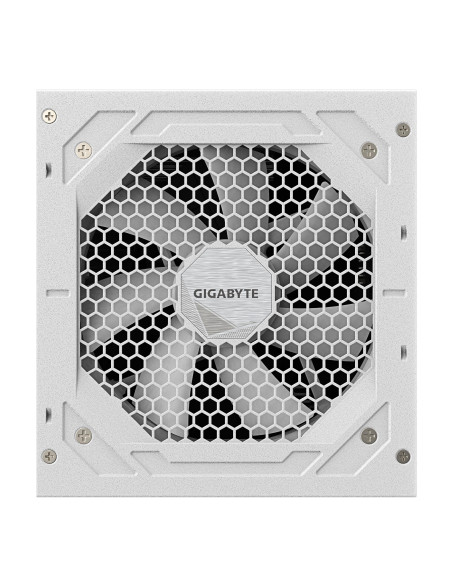

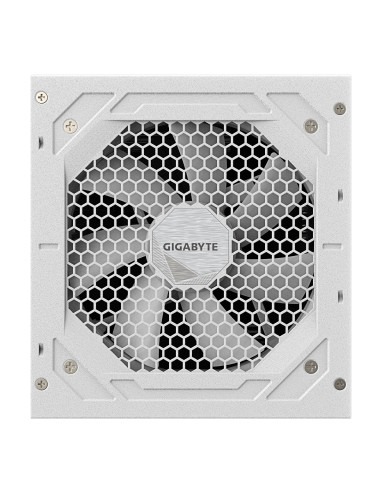

FAN DIAMETER, MM: 120
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 3
AC INPUT VOLTAGE, V: 100 - 240
TOTAL POWER, W: 850

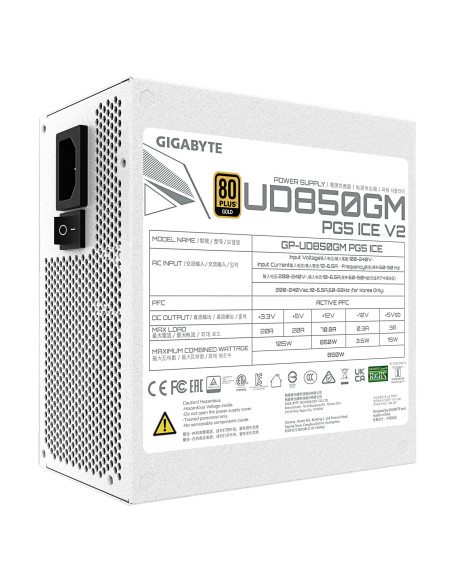

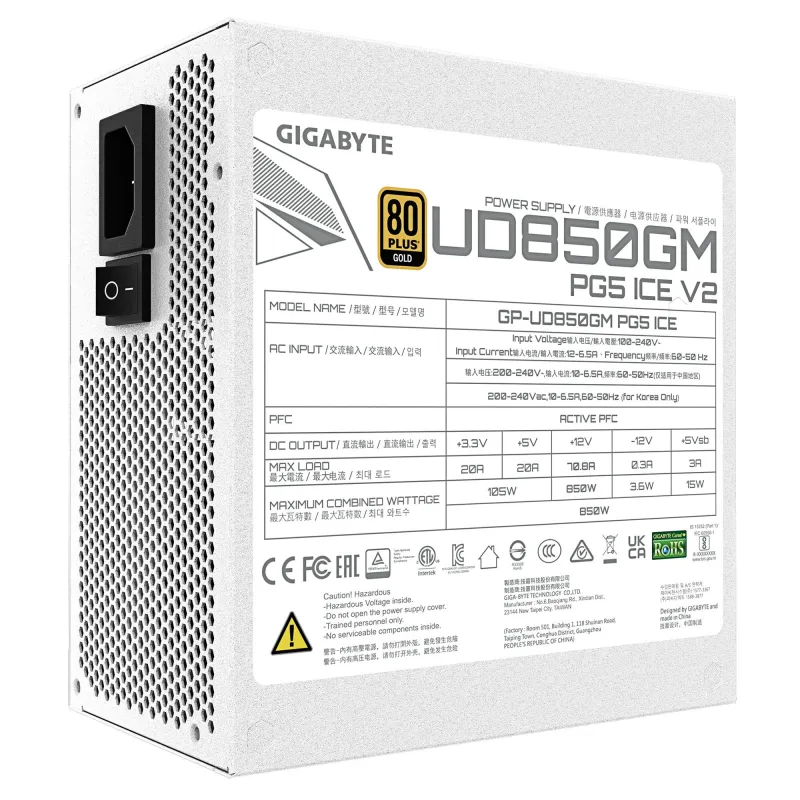

COMBINED POWER (+3.3V), W: 105
COMBINED POWER (+12V), W: 850
COMBINED POWER (+5V), W: 105
COMBINED POWER (-12V), W: 3.6
COMBINED POWER (+5VSB), W: 15
MAX OUTPUT CURRENT (+3.3V), A: 20
MAX OUTPUT CURRENT (+12V), A: 70.8
MAX OUTPUT CURRENT (+5V), A: 20
MAX OUTPUT CURRENT (-12V), A: 0.3
MAX OUTPUT CURRENT (+5VSB), A: 3
EFFICIENCY, %: 90
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 8
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 4
CABLING TYPE: FULLY-MODULAR
80 PLUS CERTIFICATION: 80 PLUS GOLD
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
BEARING TECHNOLOGY: HYB
POWER FACTOR: 0.9
HOLD TIME, MS: 16
MOTHERBOARD POWER CABLE LENGTH, MM: 610
PCI EXPRESS POWER CABLE LENGTH, MM: 600
CPU POWER CABLE LENGTH, MM: 650
PCI EXPRESS CONNECTOR: YES
ATX VERSION: 3.1
CPU POWER CONNECTOR (4+4 PIN): YES
FLOPPY DRIVE POWER CONNECTOR: 1
PCI EXPRESS POWER CONNECTORS (12+4 PIN): 1
NUMBER OF EPS CONNECTORS: 2
PCI EXPRESS POWER CONNECTORS (12+4 PIN) CABLE LENGTH, MM: 700
